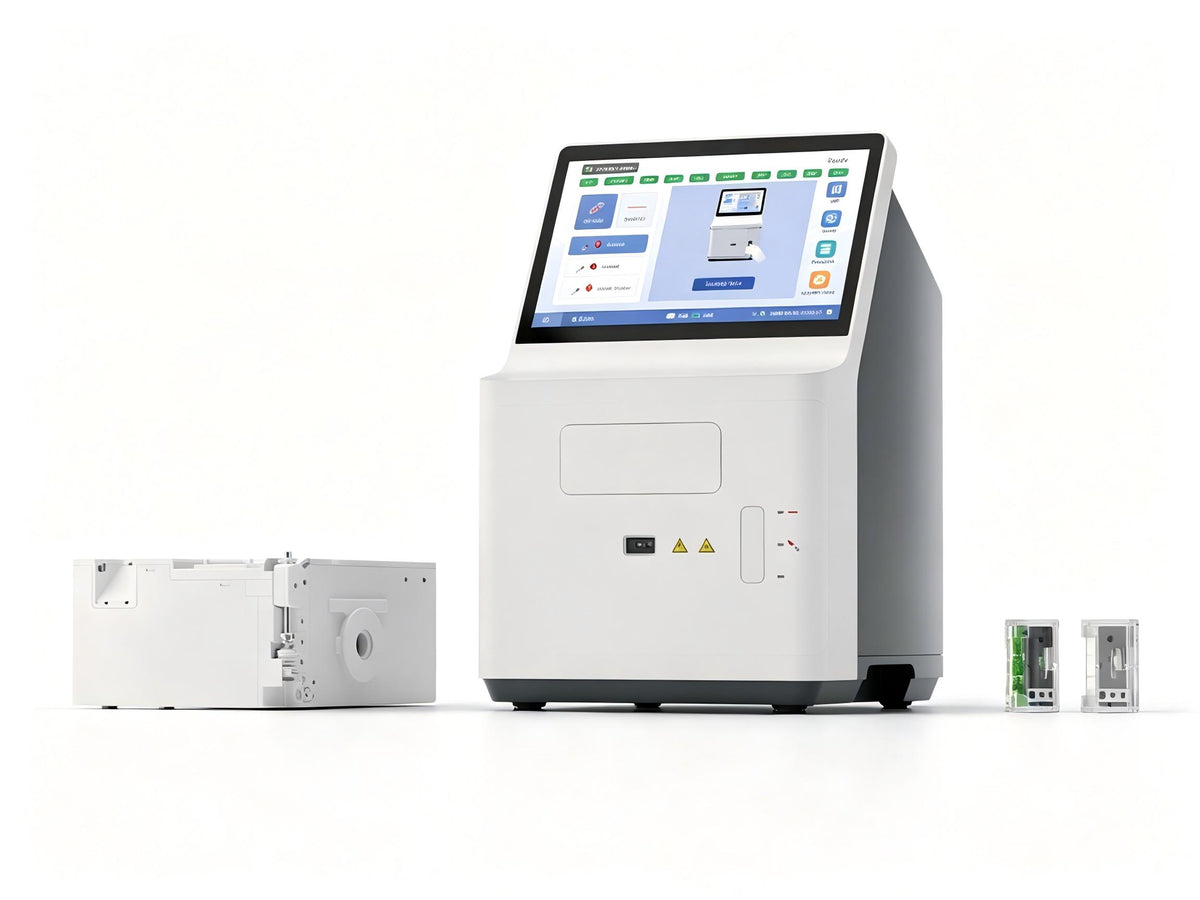

• EDAN i500 blood gas and chemistry analyzer with 10.1-inch touchscreen and benchtop design
1 1

WhatsApp USA: +1 6032769350 | WhatsApp HK: +852 63697831

Global Healthcare Medical

EDAN i500 Blood Gas and Chemistry Analyzer

EDAN i500 Blood Gas and Chemistry Analyzer

$19,999.00
$19,999.00
Sale Sold out
Free worldwide shipping. Shipping included in the price.

The EDAN i500 is a fully automated blood gas and chemistry analyzer that redefines benchtop efficiency in critical care diagnostics. As one of the world's smallest benchtop analyzers, it delivers a comprehensive panel of over 30 parameters from a single 63 μL whole blood sample—with results available in just 45 seconds.

Combining microfluidics with an innovative multi-use microchip (up to 600 tests per cartridge), the i500 offers a more economical solution for busy laboratories while maintaining the accuracy and reliability expected from a benchtop system. Its integrated self-cleaning sample inlet in the calibrator releases users from frequent maintenance, and room-temperature storage for consumables reduces logistics and warehousing costs.

Featuring a 10.1‑inch color touchscreen, integrated barcode scanner, built‑in thermal printer, and a powerful 5000mAh battery supporting over 100 continuous tests, the i500 is designed for easy management, easy operation, and easy installation—making it an ideal solution for emergency departments, intensive care units, operating rooms, and clinical laboratories.

Key Features & Benefits

Easy Operation – Fast, Simple, and Reliable

  • Results in just 45 seconds after sample aspiration—achieves earlier diagnosis and interventions

  • Auto‑sampling minimizes hands‑on time and reduces training requirements

  • Sample volume as low as 63 μL—one of the lowest blood volume requirements globally, reducing patient burden

  • 10.1‑inch color touchscreen with user‑friendly software simplifies operation

  • Integrated barcode scanner speeds data entry and minimizes errors

  • Built‑in thermal printer enables quick result printing on‑site

Easy Management – Streamlined Workflow and Cost Control

  • Only two consumables in the system, sharing the same on‑board shelf life—relieves users from complicated inventory work

  • Multi‑use test cartridges (up to 600 tests per cartridge) offer a more economical choice for busy laboratories

  • Room‑temperature storage for both consumables reduces logistics and warehousing costs

  • Multi‑parameters on one cartridge flexibly satisfy different customer needs

  • i500 CQM (Continuous Quality Monitoring) system allows for automatic and continuous daily checks, guaranteeing system stability and reliability

Easy Installation – Ready When You Are

  • Zero maintenance—portable and ready for use at any time

  • Integrated battery (5000mAh) supports over 100 continuous tests for uninterrupted operation

  • Room‑temperature storage consumables save preparation time

  • Integrated data transmission synchronously sends reports to LIS/HIS/DMS

  • Compact benchtop design with a small footprint fits any laboratory environment

  • From power‑off to start in just 5 minutes—no prolonged warm‑up or calibration required

Superior Performance – Accuracy You Can Trust

  • Best‑in‑class accuracy with performance validation against over 40 interfering substances

  • Microfluidics combined with innovative multi‑use microchip achieves accurate and reliable test results

  • More than 30 parameters from a single test—comprehensive patient assessment

  • Reliable results for critical values, extreme samples, and research samples

Comprehensive Test Menu



Parameter Linearity Range Measurement Method
pH 6.75 – 7.85 Potentiometric sensor
pO₂ 6 – 690 mmHg Amperometric sensor
pCO₂ 6 – 125 mmHg Potentiometric sensor
Na⁺ 95 – 190 mmol/L Potentiometric sensor
K⁺ 1.0 – 19.0 mmol/L Potentiometric sensor
Ca⁺⁺ 0.11 – 4.25 mmol/L Potentiometric sensor
Cl⁻ 70 – 160 mmol/L Potentiometric sensor
Glucose 0.5 – 47.0 mmol/L Amperometric sensor
Lactate 0.3 – 31.0 mmol/L Amperometric sensor
Hct 15 – 72 %PCV Conductance sensor

Available cartridges: BM3/BM3-R, BM8/BM8-R, BM10/BM10-R

Calculated values include: cH⁺, HCO₃⁻(act), HCO₃⁻(std), BE(ecf), BE(B), BB(B), ctCO₂(P), sO₂(est), Ca⁺⁺(7.4), AnGap, AnGap(K⁺), tHb(est), pO₂(A‑a), pO₂(a/A), RI, pO₂/FIO₂, and temperature‑corrected values

Technical Specifications



Specification Detail
Throughput Results in 45 seconds after sample aspiration
Sample Volume 63 μL
Display 10.1‑inch Color TFT, 1280×800 resolution
Power Supply AC 100V – 240V
Battery 5000mAh (100+ continuous tests)
Dimensions (L×W×H) 305 × 245 × 405 mm
Weight 9.1 kg (including battery)
Operating Environment 10°C – 31°C; 25% – 80% RH; 57.0 – 106.6 kPa

Why Choose the EDAN i500?



Clinical Challenge i500 Solution
Need for rapid critical results Results in 45 seconds—fastest in its class
Limited sample volume Only 63 μL—one of the world's lowest blood volume requirements
Complex maintenance Zero maintenance with self‑cleaning sample inlet
High operating costs Multi‑use cartridges (up to 600 tests) + room‑temperature storage
Varying testing needs Over 30 parameters from a single cartridge
Training requirements Auto‑sampling + touchscreen UI—minimal training
Data management Synchronous LIS/HIS/DMS transmission
Quality assurance CQM system for automatic daily checks
Laboratory space constraints One of the world's smallest benchtop analyzers
