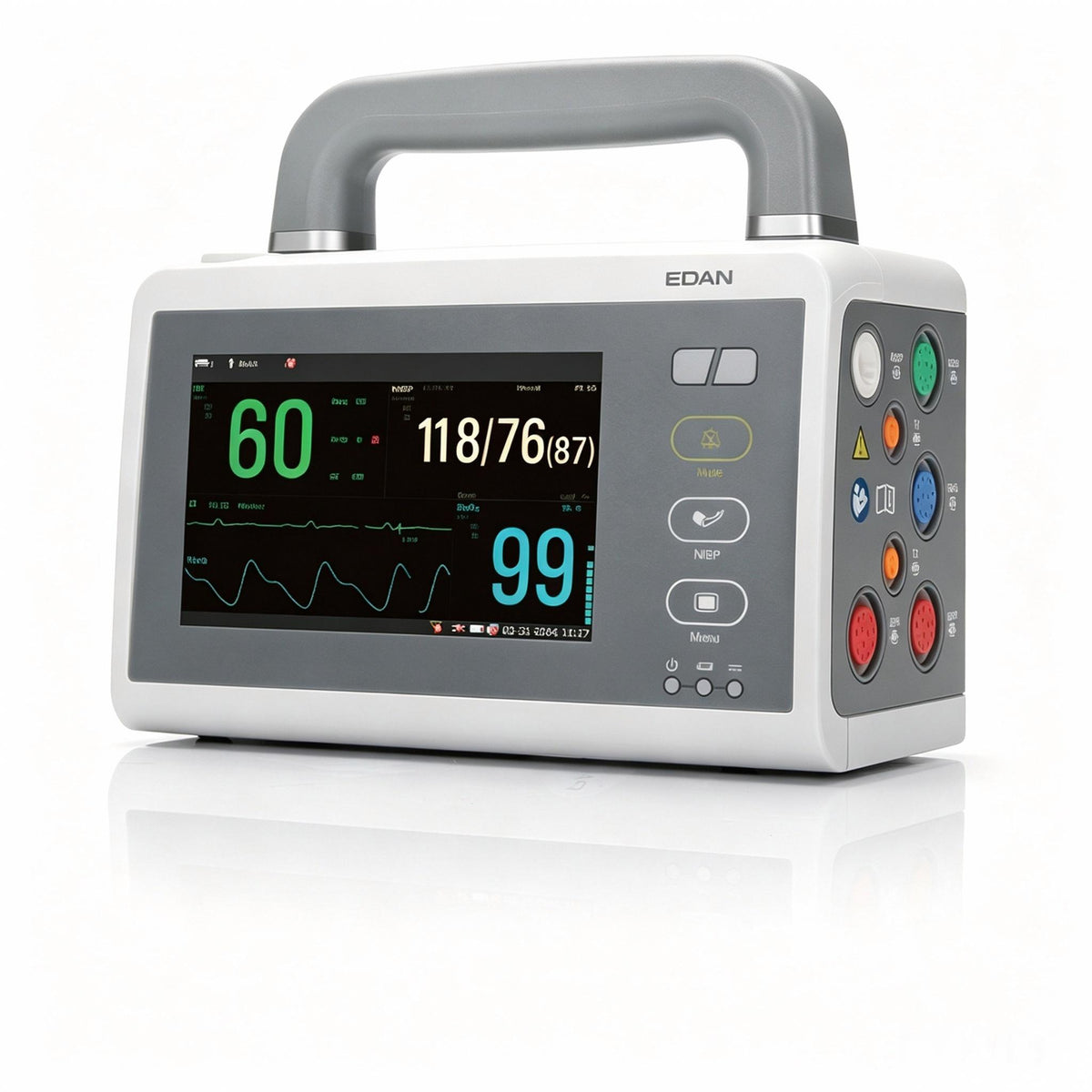

EDAN iM20 Patient Monitor

The EDAN iM20 Patient Monitor is a compact, rugged transport monitor that also serves as a multi-parameter module for EDAN Elite V series monitors. Designed to provide continuous physiological tracking during patient transfers, emergency transit, and bedside monitoring, the iM20 bridges the gap between ambulatory care and intensive care environments. Weighing less than 1.5 kg with the battery installed, it is one of the lightest transport monitors available, while still delivering comprehensive multi-parameter monitoring for adult, pediatric, and neonatal patients.

Key Features & Benefits

Rugged Design for Demanding Environments

The iM20 is engineered to withstand the harshest conditions encountered in field medical practice and patient transport:

• IP44 water and dust protection – protected against splashing water and solid foreign objects ≥ 1.0 mm diameter, suitable for use in rainy weather and dusty environments

• 1-meter shock resistance – unintentional falls, impacts, and bumpy rides on rough roads or hilly areas will not interrupt monitoring

• No-fan design – silent operation with no dust accumulation, extending battery life for long-term transport even without external power

Compact and Lightweight Transport Solution

• Weighs less than 1.5 kg including battery (without accessories)

• Compact dimensions: 185 mm (W) × 116 mm (H) × 85.3 mm (D)

• 5-inch full-touch color TFT-LCD screen – modern full-touch operation without physical buttons, bringing user experience to a new level

• Built-on handle – does not need to be removed even when plugging into Elite Series monitors

Seamless Dual-Function Operation

The iM20 uniquely serves two roles in one device:

• As a transport monitor – provides comprehensive monitoring during patient transfers inside and outside the hospital, including ambulance and field use

• As a multi-parameter module – plugs directly into EDAN Elite V series monitors with plug-and-play functionality, switching roles easily between module and monitor

Comprehensive Parameter Monitoring

The iM20 provides a full suite of standard and optional parameters for continuous patient assessment:

Advanced Clinical Algorithms

The iM20 incorporates EDAN's proprietary algorithms for accurate, reliable measurements:

• iSEAP™ ECG algorithm – optimized for arrhythmia detection, pacemaker detection, and HR measurement

• SEMIP™ 12-lead diagnosis algorithm – 208 kinds of ECG findings in optional 12-lead configuration

• iMAT™ SpO₂ algorithm – outstanding motion resistance and low perfusion resistance performance

• Perfusion Index (PI) measurement – blood perfusion indicator

• iCUFS™ NIBP algorithm – optimized for cardiac patients, hypertensive patients, and neonatal patients

Built-in Non-Volatile Memory

The iM20 stores comprehensive patient data for retrospective review:

• 150 hours trend review

• 1200 sets NIBP measurement review

• 200 sets alarm review

• 200 sets arrhythmia review

• 50 sets 12-lead diagnosis review

Seamless Connectivity

• Built-in Wi-Fi – internal wireless connectivity for EMR integration and central station communication

• HL7 compatibility – advanced EMR connectivity via HL7 protocol

• EDAN Central Monitoring Station (CMS) compatible – connects to MFM-CMS for multi-point observation

• USB interface – data export and storage expansion

Extended Battery Life

• Rechargeable Li-ion battery – up to 5.5 hours of continuous operation

• Excellent power saving performance – extended battery life for long-term transport without external power supply

Technical Specifications

Why Choose the EDAN iM20?
