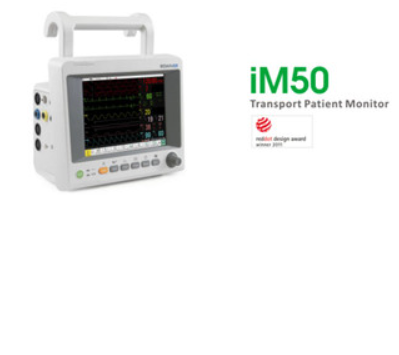

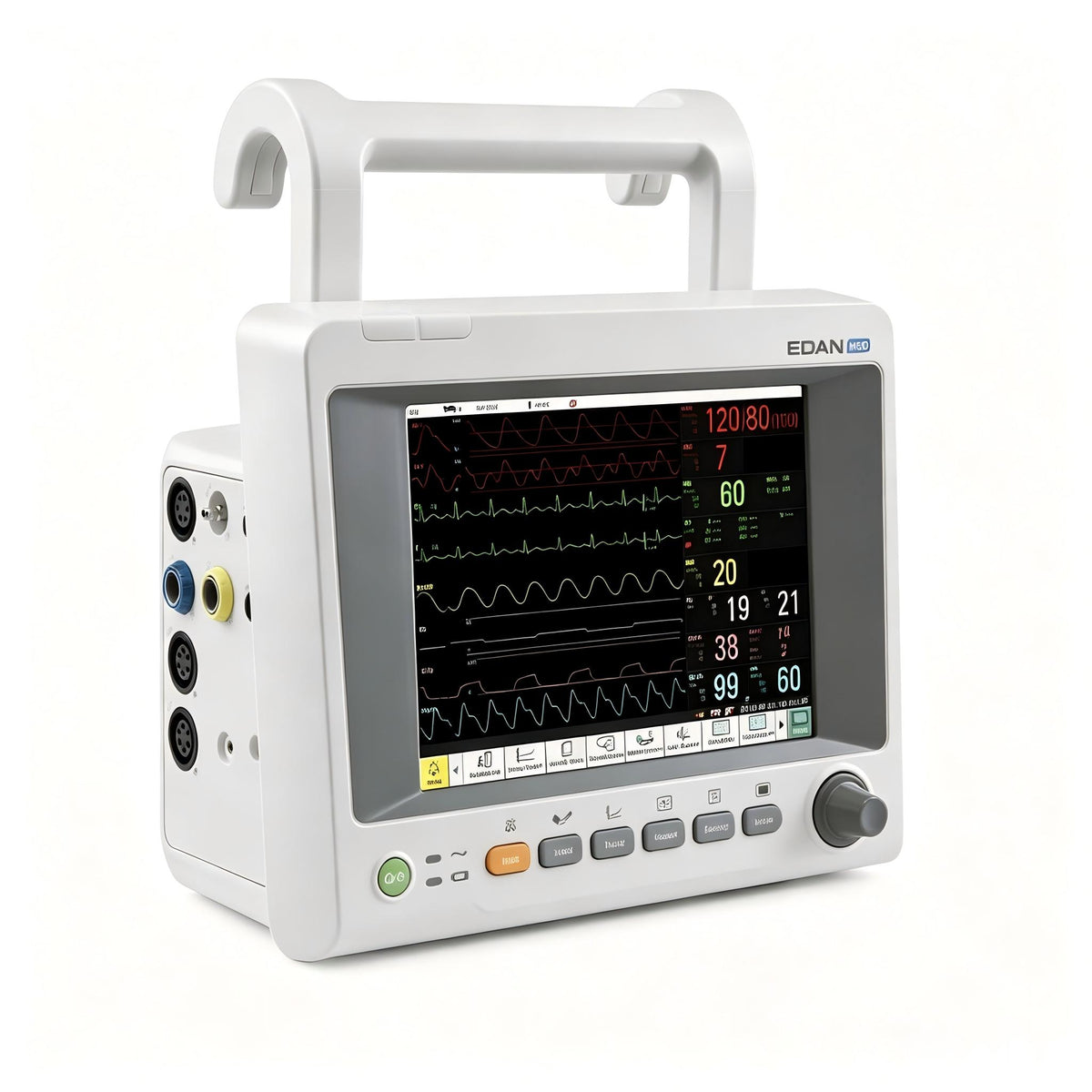

EDAN iM50 Patient Monitor

The EDAN iM50 is a compact, lightweight multi-parameter patient monitor designed to deliver reliable vital signs monitoring across a wide range of clinical settings. As part of EDAN's iM Series, the iM50 serves dual purposes—functioning both as a standalone bedside monitor and as a transport monitor for intra-hospital patient transfers. Weighing less than 1.5 kg with battery installed, its lightweight and compact design provides the perfect solution for transport or space-constrained environments.

Featuring an 8.4-inch color TFT LCD touchscreen with 800×600 resolution capable of displaying up to 11 waveforms, the iM50 delivers clear, real-time patient data at a glance. The full touchscreen enables intuitive operation by clicking on specific parameters or waveforms in real time. With a comprehensive range of standard parameters, advanced optional monitoring capabilities, and flexible mounting solutions, the iM50 adapts seamlessly from general wards to emergency departments and ambulance transport.

Key Features & Benefits

Compact, Lightweight Design for Transport and Space-Constrained Environments

• Weighs less than 1.5 kg with battery installed – easy to carry during patient transfers

• Compact footprint – ideal for crowded emergency departments, small wards, and ambulance use

• Dual-purpose functionality – serves as both a standalone monitor and a transport monitor

• Flexible mounting solutions – bedrail hooks, wall mount, or rolling stand options available

8.4‑inch Touchscreen with Intuitive Operation

• 8.4-inch color TFT LCD display with 800×600 resolution

• Displays up to 11 waveforms simultaneously for comprehensive patient overview

• Full touchscreen enables intuitive operation by clicking on specific parameters or waveforms in real time

• Navigation knob included as standard for precise control

• Large font display and customizable screen layouts for easy reading

Reliable, Clinically Validated Algorithms

The iM50 incorporates EDAN's scientifically validated algorithms for accurate, reliable measurements:

• iSEAP™ ECG algorithm – optimized for arrhythmia detection, pacemaker detection, and HR measurement

• iMAT™ SpO₂ algorithm – outstanding motion resistance and low perfusion resistance performance

• iCUFS™ NIBP algorithm – optimized for cardiac patients, hypertensive patients, and neonatal patients

Advanced Clinical Decision Support Tools

• Arrhythmia detection and S‑T segment analysis – intended for adult patients

• OxyCRG (Oxy Cardio Respirogram) – available to judge respiration and circulation function, especially valuable for neonatal patients

• 120‑hour graphic and tabular trends – comprehensive review of all parameters

• 120‑second full‑disclosure waveform review – detailed retrospective analysis

Comprehensive Standard and Optional Parameters

Standard Parameters:

• 3/5‑lead ECG

• RESP (Respiration)

• EDAN NIBP (Non‑Invasive Blood Pressure)

• EDAN SpO₂

• 2‑TEMP (dual temperature channels)

• PR (Pulse Rate)

• HR (Heart Rate)

Optional Parameters:

• 6/12‑lead ECG

• Nellcor OxiMax™ SpO₂

• IBP (Invasive Blood Pressure, with ICP support)

• EDAN G2 CO₂ (Sidestream Capnography)

• Respironics CO₂ (Mainstream and Sidestream)

• MASIMO CO₂ (Mainstream and Sidestream)

• Multi‑gas monitoring

• Cardiac output measurement

• Quick TEMP

Seamless Connectivity and Data Management

• Built‑in Wi‑Fi for wireless connection to hospital networks

• HL7 protocol support for integration with Electronic Medical Records (EMR) and Central Monitoring Station (CMS)

• Bi‑direction communication with EDAN MFM‑CMS central station

• SD card slot enables memory extension for large data storage

• USB and serial ports enable abundant future upgrades

• VGA output and analog output for connection to external displays

• Nurse Call function for immediate staff notification

Built‑in Safety and Protection Features

• Pacemaker detection – ensures accurate monitoring for patients with implanted pacemakers

• Electrosurgical interference proof – maintains reliable readings during surgical procedures

• Defibrillation protection and defibrillation synchronization – protects the monitor and ensures safe use during emergency procedures

• Customizable alarms – tailored to individual patient needs

Long‑Lasting Battery and Power Management

• Built‑in rechargeable Li‑ion battery (14.8V, 4200mAh)

• Extended battery life – supports uninterrupted monitoring during transport and power outages

• 120 seconds frozen waveform capability for review

Technical Specifications

Why Choose the EDAN iM50?
