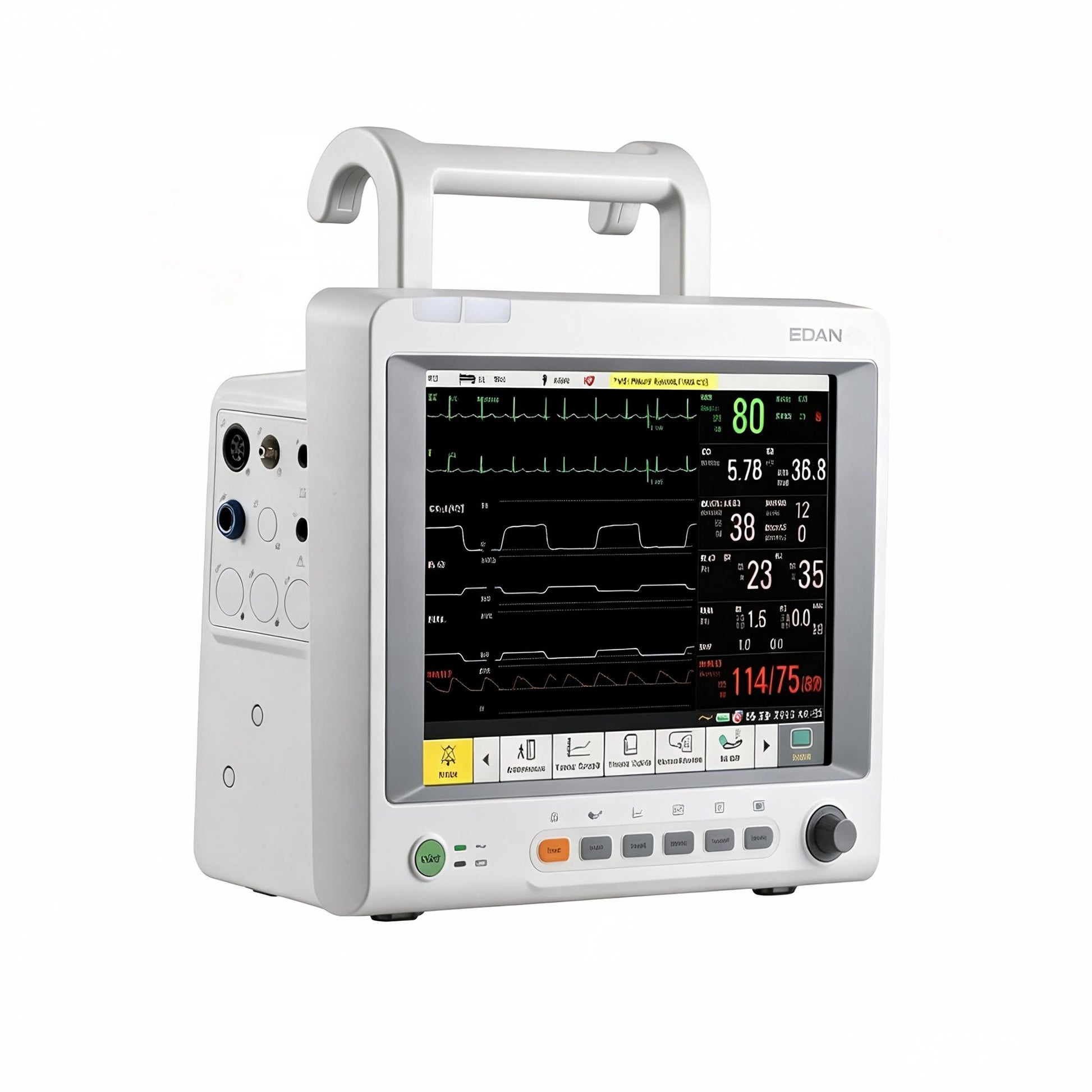

EDAN iM70 Patient Monitor

The EDAN iM70 is a versatile, high-performance patient monitor designed to deliver accurate multi-parameter monitoring across a broad spectrum of clinical settings—from general wards to intensive care units and anesthesia monitoring. Featuring a 12.1-inch color TFT LCD screen with 800x600 resolution capable of displaying up to 11 waveforms, the iM70 provides clinicians with clear, comprehensive patient data at a glance.

With a full range of standard parameters, advanced optional monitoring capabilities, and flexible mounting options, the iM70 adapts seamlessly to various clinical environments. Its fanless, low-power design ensures silent operation and prevents dust accumulation, making it ideal for patient rooms and critical care areas. The iM70 is FDA 510(k) cleared and intended for use by trained healthcare professionals in hospital environments.

Key Features & Benefits

12.1‑inch High‑Resolution Display with Touchscreen Option

The iM70 features a 12.1‑inch color TFT LCD screen with 800x600 resolution, capable of displaying up to 11 waveforms simultaneously. The high‑resolution display clearly shows all patient data including NIBP, ECG, SpO₂, respiration, and temperature. An optional touchscreen provides intuitive, efficient operation.

Fanless, Low‑Power Design for Quiet Operation

The iM70 employs a fanless, low‑power consumption design that creates no noise and no dust accumulation. This makes it particularly suitable for:

• Patient rooms where noise can disturb rest and recovery

• Critical care units where dust can interfere with sensitive equipment

• Quiet clinical environments where a peaceful atmosphere is essential

Comprehensive Standard Parameters

The iM70 comes equipped with a full range of standard parameters for comprehensive patient monitoring:

Advanced Optional Parameters

The iM70 supports a wide range of optional parameters to meet diverse clinical needs:

• Dual IBP slots – invasive blood pressure monitoring for hemodynamic assessment

• CO₂ Monitoring (EtCO₂) – capnography for respiratory assessment

• Multi‑gas monitoring – anesthetic agent analysis

• Cardiac Output (C.O.) – advanced hemodynamic assessment

• 12‑Lead ECG – comprehensive cardiac diagnostics

• WiFi connectivity – wireless network integration

• Touch screen – full touchscreen operation

Clinically Validated Algorithms

The iM70 incorporates EDAN‘s scientifically validated algorithms for accurate, reliable measurements:

• iSEAP™ ECG Algorithm – optimized for arrhythmia detection, pacemaker detection, and HR measurement

• iMAT™ SpO₂ Algorithm – outstanding motion resistance and low perfusion resistance performance

• iCUFS™ NIBP Algorithm – optimized for cardiac patients, hypertensive patients, and neonatal patients

Advanced Clinical Decision Support Tools

The iM70 provides a suite of clinical decision support tools:

• Arrhythmia detection – intended for adult patients

• S‑T Segment Analysis – for comprehensive cardiac assessment

• OxyCRG (Oxy Cardio Respirogram) – helps judge respiration and circulation function, especially valuable for neonatal patients

• 120‑second full‑disclosure waveform review – detailed retrospective analysis

• 120‑hour graphic and tabular trends – comprehensive review of all parameters

• Customizable alarms – tailored to individual patient needs

• Night mode – dimmer screen for patient comfort

• Large font display – easy reading at a distance

• Pitch tone – customizable audio feedback

• Shortcut menu – one‑touch access to frequently used functions

Seamless Connectivity and Data Management

The iM70 offers comprehensive connectivity options for seamless integration into hospital workflows:

• HL7 support – integration with Electronic Medical Records (EMR) and hospital information systems

• Bi‑directional communication with EDAN central monitoring system

• WiFi connectivity – optional wireless network integration

• Nurse Call function – immediate staff notification

• USB and serial ports – for data export and future upgrades

Flexible Mounting and Portable Design

The iM70 supports multiple mounting configurations to suit various clinical environments:

• Bedrail hooks – for bedside monitoring

• Wall mount – for fixed locations

• Rolling stand – for portable use between rooms

Technical Specifications

Why Choose the EDAN iM70?
