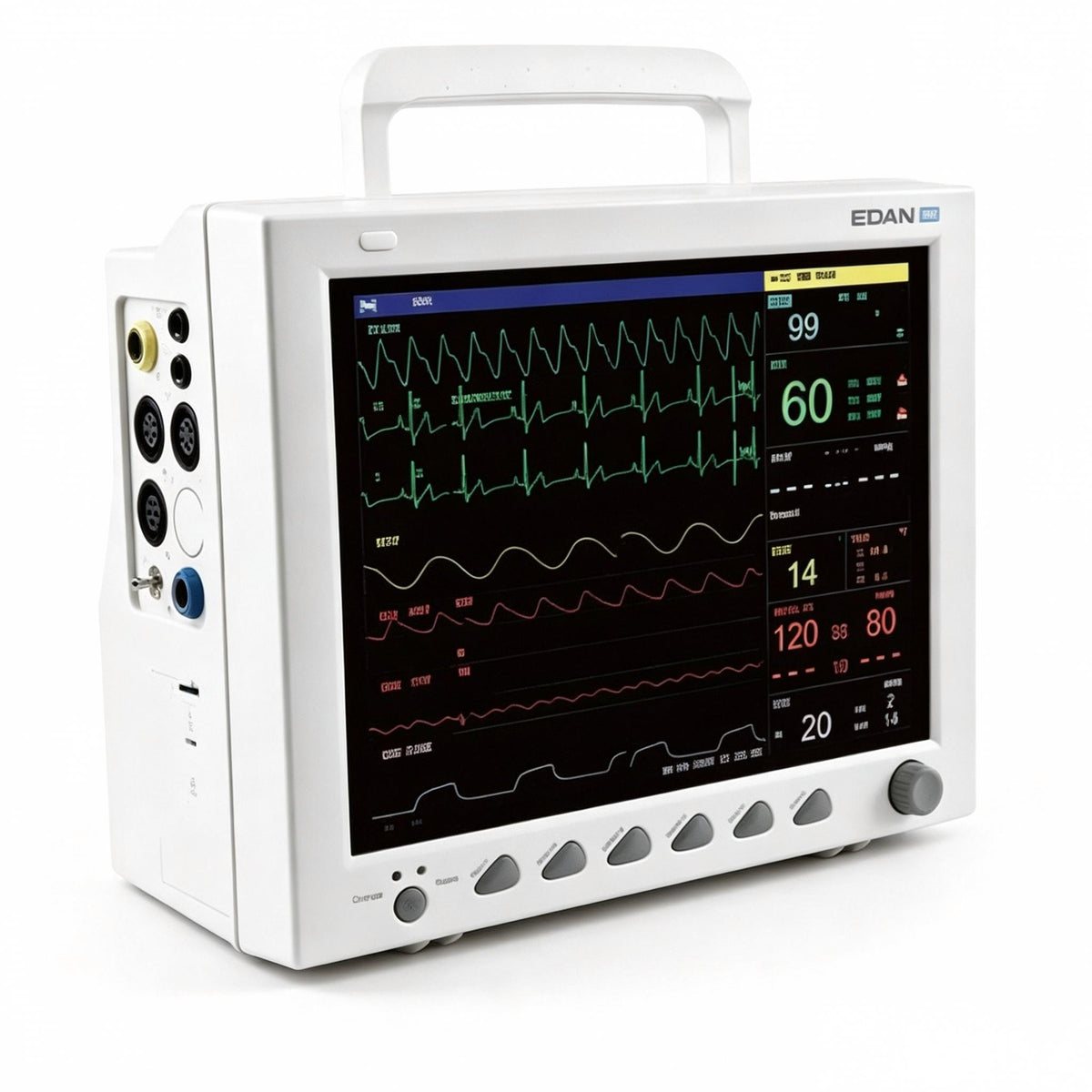

EDAN iM8 Compact Patient Monitor
EDAN iM8 Compact Patient Monitor
The EDAN iM8 Patient Monitor is a compact, reliable multi-parameter bedside monitor designed to bring high-quality monitoring within easy reach. With accurate readings and optimized performance, the iM8 series meets essential monitoring needs for adult, pediatric, and neonatal patients across hospitals, clinics, and during patient transport. Available in three display sizes—12.1-inch (iM8), 10.4-inch (iM8A), and 10.1-inch (iM8B) —the series offers flexibility to match different clinical environments.
The iM8 puts dependable monitoring technology at your fingertips, featuring a high-resolution color TFT-LCD screen, built-in rechargeable battery, and seamless connectivity to central stations and EMR systems.
Key Features & Benefits
Reliable Multi-Parameter Monitoring
The iM8 series provides continuous monitoring of essential physiological parameters for comprehensive patient assessment:
| Standard Parameters | Optional Parameters |
|---|---|
| 3/5-lead ECG | 2-IBP (Invasive Blood Pressure) |
| RESP (Respiration) | Respironics CO₂ (Mainstream/Sidestream) |
| EDAN SpO₂ | EDAN G2 CO₂ (Sidestream) |
| NIBP (Non-Invasive Blood Pressure) | Thermal Recorder |
| PR (Pulse Rate) | WLAN Accessory Kit |
| 2-TEMP (Dual Temperature) | Nurse Call (with CMS) |
Advanced Algorithms for Accurate Readings
The iM8 incorporates EDAN's proprietary algorithms to deliver reliable measurements across diverse patient conditions:
-
iSEAP™ ECG Algorithm – Specially optimized for arrhythmia patients, with pacemaker detection and defibrillation protection
-
iMAT™ SpO₂ Algorithm – Outstanding motion resistance and low perfusion resistance performance, with dual-mode anti-interference pulse oximetry
-
SP10 Validated NIBP – Clinically validated non-invasive blood pressure measurement
Comprehensive Safety Features
The iM8 is built with multiple protective features for safe clinical use:
-
Pacemaker detection – Supports patients with implanted cardiac devices
-
Defibrillation and electrosurgical interference protection – Maintains reliable readings during emergency and surgical procedures
-
Pitch tone (pulse-tone modulation) – Audible feedback that varies with SpO₂ levels
-
Visual and audible alarms – Alerts clinicians to parameter changes and system conditions
Extensive Data Storage & Review
The iM8 offers robust data management capabilities:
-
96-hour trend storage – Comprehensive review of patient parameter history
-
500 NIBP measurement review – Track blood pressure trends over time
-
60 alarm review – Retrospective analysis of alarm events
-
720-second frozen waveform – Capture and review critical moments
Seamless Connectivity & Networking
The iM8 is designed for integration into modern clinical workflows:
-
HL7/LAN connection – Direct interface to EMR and Central Station
-
MFM-CMS compatibility – Bi-directional communication with EDAN's central monitoring system
-
USB port – Data export and storage expansion
-
VGA output (optional) – Connection to external displays for teaching or consultation
-
Optional WLAN – Wireless connectivity for flexible patient monitoring
Portable & User-Friendly Design
-
Compact and lightweight – Weighs approximately 5 kg, easy to carry between rooms
-
Built-in rechargeable Li-ion battery – Supports uninterrupted monitoring during transport
-
High-resolution color TFT-LCD screen – Clear waveform and numeric display
-
Multiple display modes – 3/5-lead ECG analysis, OxyCRG for neonates, large font, and trend screen
Technical Specifications
| Specification | Detail |
|---|---|
| Model Variants | iM8 (12.1"), iM8A (10.4"), iM8B (10.1") |
| Display Resolution | 800×600 |
| Waveforms Displayed | Up to 11 waveforms, 8 traces |
| Dimensions | 320 mm (L) × 150 mm (W) × 265 mm (H) |
| Weight | Approx. 5 kg (battery and recorder not included) |
| ECG | 3/5-lead selectable; HR range adult 15–300 bpm; ped/neonate to 350 bpm |
| SpO₂ Accuracy | ±2% adult/pediatric, ±3% neonate |
| NIBP Modes | Automated, manual, continuous, sequence |
| CO₂ (Optional) | EDAN G2 Sidestream or Respironics Mainstream/Sidestream |
| IBP (Optional) | Dual IBP slots |
| Memory | 96-hour trend storage, 500 NIBP records, 60 alarm events, 720s frozen waveform |
| Connectivity | USB, LAN (MFM-CMS supported), optional Wi-Fi, HL7/EMR integration |
| Battery | Built-in rechargeable Li-ion |
| Power Supply | 100–240 V, 50/60 Hz |
Why Choose the EDAN iM8?
| Clinical Challenge | iM8 Solution |
|---|---|
| Need for reliable monitoring across patient types | Adult, pediatric, and neonatal suitability with configurable parameters |
| Arrhythmia and pacemaker patients | iSEAP™ algorithm with pacemaker detection and defibrillation protection |
| Motion and low-perfusion SpO₂ challenges | iMAT™ algorithm with exceptional motion and low perfusion resistance |
| Seamless data integration | HL7/LAN connection to EMR and central station with MFM-CMS compatibility |
| Long-term data review | 96-hour trend storage with 500 NIBP records and 720s frozen waveform |
| Portability for transport | Compact 5 kg design with built-in rechargeable battery |
| Infection control | No-fan design and easy-to-clean surface |
| Comprehensive CO₂ monitoring | Optional EDAN G2 or Respironics CO₂ modules |
