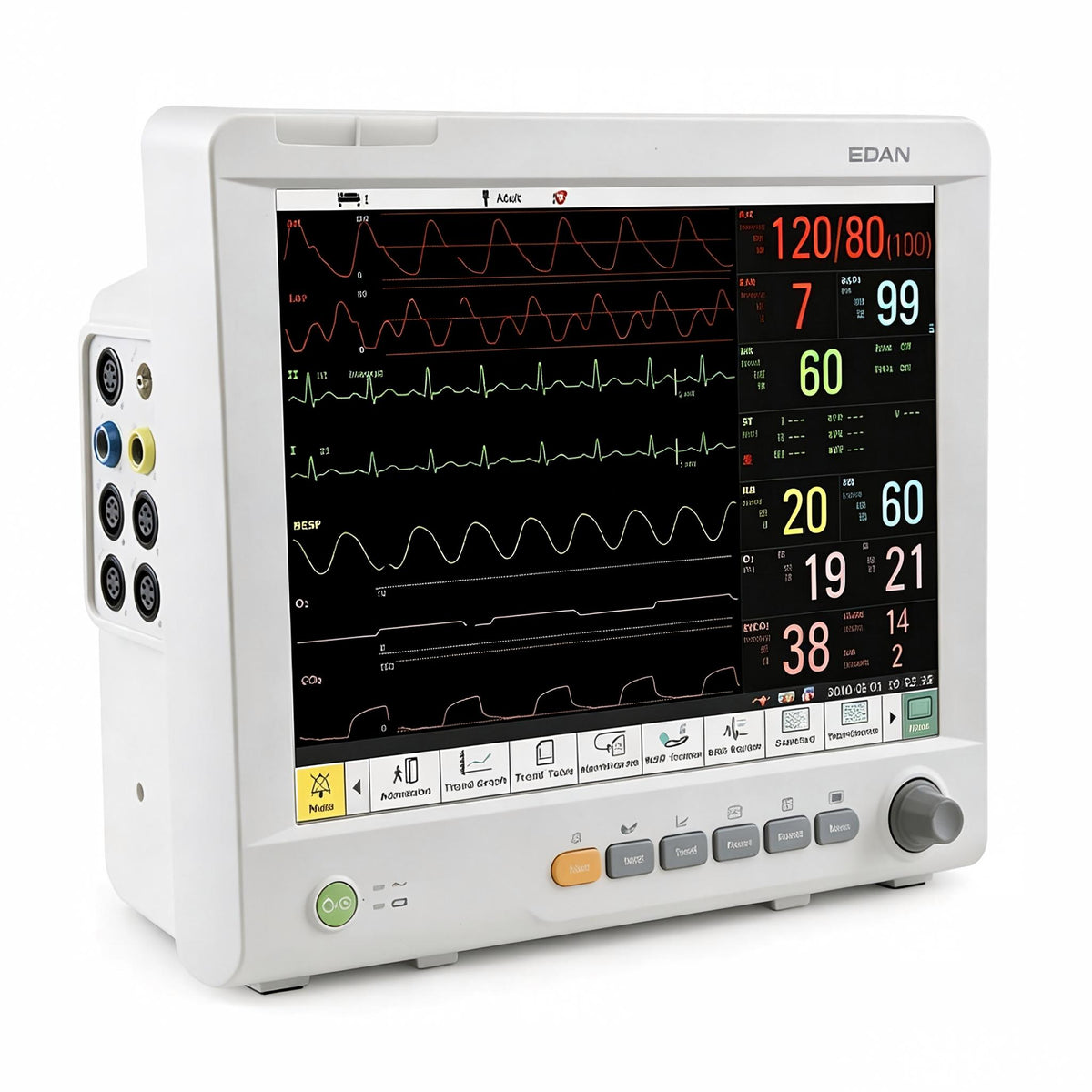

EDAN iM80 Patient Monitor

The EDAN iM80 is a high-performance, multi-parameter patient monitor engineered to meet the demanding needs of critical care, post-anesthesia care units, and operating rooms. Featuring a 15-inch high-resolution color TFT LCD screen with touchscreen capability, the iM80 delivers crystal-clear visualization of up to 13 waveforms simultaneously. Its advanced monitoring system and built-in clinical interfaces provide an all-in-one solution for hospital environments, from general wards to the most critical care settings.

The iM80 is FDA 510(k) cleared and intended for use by trained healthcare professionals in hospital environments.

Key Features & Benefits

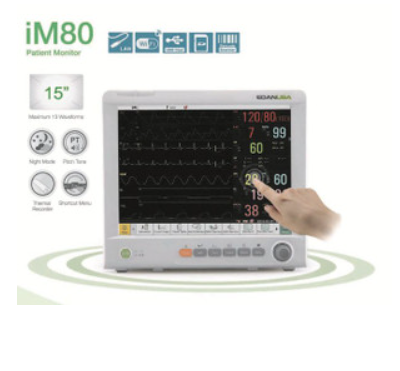

15‑inch High‑Resolution Display with Touchscreen

The iM80 features a 15‑inch color TFT LCD screen with 800×600 resolution, capable of displaying up to 13 waveforms simultaneously. The full touchscreen enables intuitive operation by clicking on specific parameters or waveforms in real time, with the standard configuration also including a navigation knob for precise control. A large font display ensures easy reading at a distance.

No‑Fan Design for Silent, Dust‑Free Operation

The iM80 employs a no‑fan design that ensures silent operation and prevents dust accumulation inside the device. This makes it particularly suitable for:

• Patient rooms where noise can disturb rest and recovery

• Critical care units where dust can interfere with sensitive equipment

• Operating rooms where a quiet environment is essential

Comprehensive Standard and Optional Parameters

The iM80 comes equipped with a full range of standard parameters for comprehensive patient monitoring:

Optional parameters include:

• 2‑IBP / 4‑IBP – invasive blood pressure monitoring

• CO₂ Monitoring – capnography (EtCO₂)

• Multi‑gas monitoring – anesthetic agent analysis

• Cardiac Output (C.O.)

• 12‑Lead ECG

• Touch screen – full touchscreen operation

• WiFi – wireless network connectivity

• Thermal recorder

• Nellcor SpO₂

Clinically Validated Algorithms

The iM80 incorporates EDAN‘s scientifically validated algorithms for accurate, reliable measurements:

• iSEAP™ ECG Algorithm – optimized for arrhythmia detection, pacemaker detection, and HR measurement

• iMAT™ SpO₂ Algorithm – outstanding motion resistance and low perfusion resistance performance

• iCUFS™ NIBP Algorithm – optimized for cardiac patients, hypertensive patients, and neonatal patients

Advanced Clinical Decision Support Tools

The iM80 provides a comprehensive suite of clinical decision support tools:

• Arrhythmia detection – intended for adult patients

• S‑T Segment Analysis – for comprehensive cardiac assessment

• OxyCRG (Oxy Cardio Respirogram) – helps judge respiration and circulation function, especially valuable for neonatal patients

• 120‑second full‑disclosure waveform review – detailed retrospective analysis

• 120‑hour graphic and tabular trends – comprehensive review of all parameters

• Customizable alarms – tailored to individual patient needs

• Shortcut menu – one‑touch access to frequently used functions

• Night mode – dimmer screen for patient comfort

• Pitch tone – customizable audio feedback

Robust Safety and Protection Features

The iM80 is built with comprehensive safety features for demanding clinical environments:

• Pacemaker detection – ensures accurate monitoring for patients with implanted pacemakers

• Electrosurgical interference proof – maintains reliable readings during surgical procedures

• Defibrillation protection – protects the monitor during emergency procedures

• Defibrillation synchronization – safe integration with defibrillators

Seamless Connectivity and Data Management

The iM80 offers comprehensive connectivity options for seamless integration into hospital workflows:

• HL7 support – integration with Electronic Medical Records (EMR) and hospital information systems

• Bi‑directional communication with EDAN MFM‑CMS central station

• Nurse Call function – immediate staff notification

• VGA output and analog output – connection to external displays

• USB and serial ports – enable abundant future upgrades

• SD card slot – enables memory extension for large data storage

Long‑Lasting Battery and Flexible Mounting

• Built‑in rechargeable Li‑ion battery (14.8V, 4200mAh) provides up to 6 hours of continuous operation

• Multiple mounting options – bedrail hooks, wall mount, or rolling stand

Technical Specifications

Why Choose the EDAN iM80?
