EDAN iV12 Patient Monitor

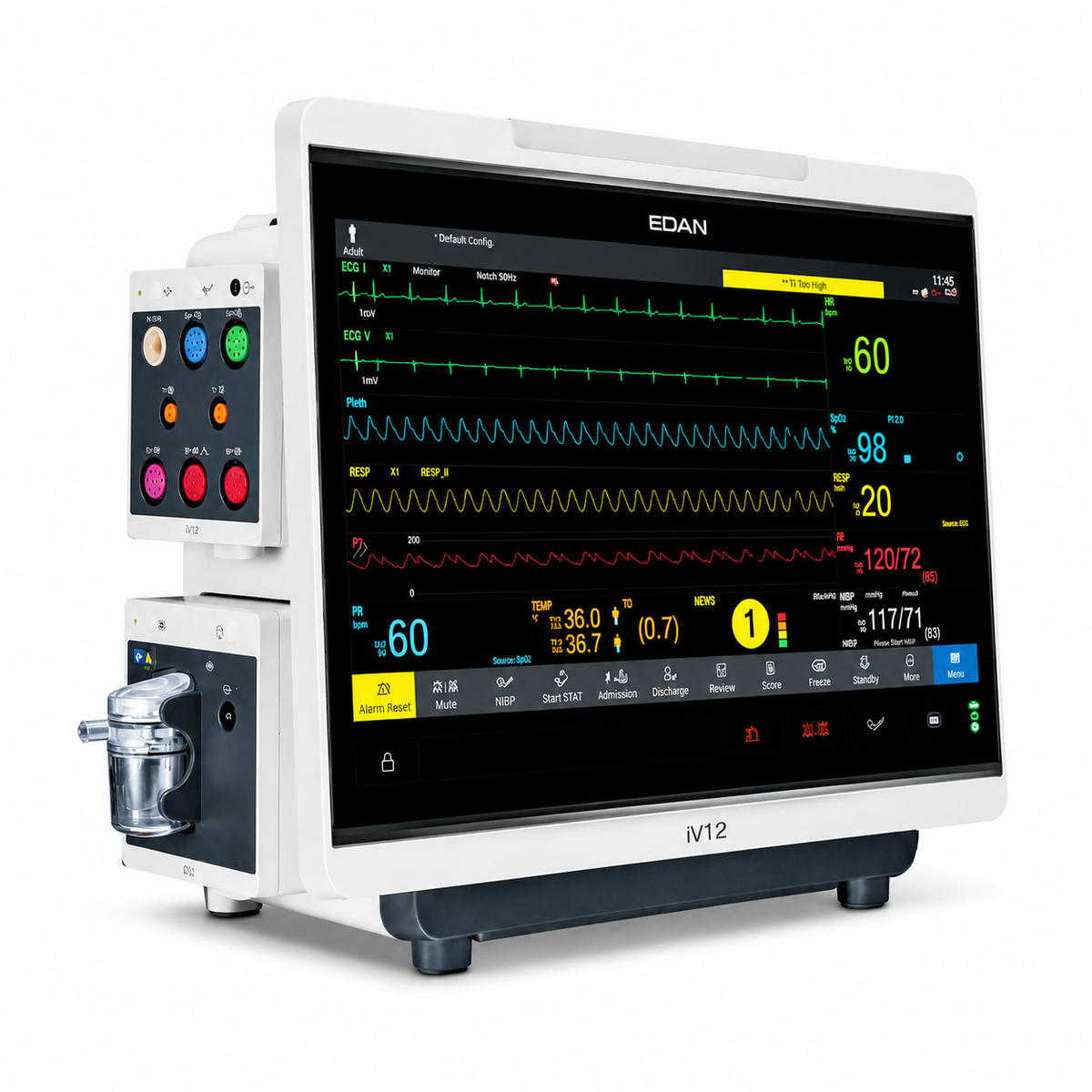

The EDAN iV12 is the 13.3-inch modular patient monitor at the entry point of EDAN’s iV series—a platform built around plug-and-play parameter modules, a large anti-glare HD display, and clinical assistive applications for high-acuity bedside and intraoperative monitoring. Where the iV12 differs from fixed-configuration monitors is its modular architecture: parameter modules can be added or replaced to match the clinical need of the department, without replacing the main unit.

The iV12 pairs a 13.3-inch anti-glare HD display (1920 × 1080, 170° viewing angle) with full-touch gesture operation and a pure glass front panel for routine disinfection. Standard parameters include ECG, RESP, EDAN SpO₂, EDAN NIBP, PR, and TEMP, with a broad optional module set covering CNBP (Continuous Non-Invasive Blood Pressure), up to 8-channel IBP, cardiac output (C.O.), PresCCO pulse contour analysis, rSO₂, CO₂, anesthetic gas (AG), O₂, respiratory mechanics (RM), BIS, EEG, and NMT. Per the China registration covering the iV12 family, BIS and NMT are indicated for adult and pediatric patients.

For clinical workflow, the iV12 includes automated clinical scoring (NEWS, NEWS2, MEWS, PEWS), sepsis screening scoring (qSOFA, SOFA), and Glasgow Coma Scale (GCS) assessment as decision-support tools, alongside 24-hour ECG and NIBP summaries. Connectivity covers HL7-based HIS/EMR integration, wired or wireless central station (CMS) connection, mobile station and web observer access, and V-Link module pairing with anesthesia machines and ventilators. The fanless design reduces noise and dust accumulation, and the IP22-rated enclosure supports routine wipe-down in critical care and surgical environments.

The iV12 is built for departments that need modular parameter depth, a large HD viewing area, and clinical decision-support tools in a 12-inch-class enclosure—an intermediate option between compact fixed monitors and the larger iV15/iV17 models, sharing the same module ecosystem and interface logic across the iV series.

Key Features & Benefits

13.3-Inch Anti-Glare HD Display with Gesture Operation

The 13.3-inch anti-glare HD display delivers 1920 × 1080 resolution with an ultra-wide 170° viewing angle, keeping waveforms and numerics readable from multiple positions around the bed. Full-touch gesture operation supports direct on-screen interaction, and the pure glass front panel facilitates routine disinfection between patients. Auto-brightness adjustment adapts the display to ambient lighting conditions.

Modular Plug-and-Play Parameter Architecture

The iV series is built around plug-and-play parameter modules, allowing the iV12 to be configured and reconfigured as departmental needs change. Modules can be added or replaced without removing the main unit, and the shared module ecosystem across the iV12/iV15/iV17 supports standardization across different acuity levels within the same facility.

Clinical Assistive Applications

The iV12 includes a suite of clinical assistive applications intended to support clinical workflow: automated clinical scoring (NEWS, NEWS2, MEWS, PEWS) for rapid patient assessment, sepsis screening and tracking (qSOFA, SOFA) , and Glasgow Coma Scale (GCS) for consciousness assessment. These tools are presented as decision-support aids and do not replace clinical judgment.

Advanced ECG and Hemodynamic Monitoring

The ECG suite includes 24-hour ECG and NIBP summaries, multi-lead analysis, and a high-resolution ECG mode. Hemodynamic monitoring covers up to 8-channel IBP, invasive cardiac output (C.O.) , and PresCCO hemodynamic monitoring by pulse contour analysis, along with CNBP as a cuff-less continuous blood pressure trend. Oxygenation tracking supports rSO₂, AG-O₂, and dual-SpO₂ monitoring.

Anesthesia and Respiratory Monitoring Modules

For intraoperative and critical respiratory monitoring, the iV12 accepts modules for anesthetic gas concentration (AG), CO₂, O₂, respiratory mechanics (RM), bispectral index (BIS), and neuromuscular transmission (NMT) . BIS and NMT are indicated for adult and pediatric patients under the China registration covering the iV12 family. The V-Link module enables pairing with anesthesia machines and ventilators for integrated data display.

No-Fan Design with IP22-Rated Enclosure

The fanless architecture eliminates operating noise and prevents dust from accumulating on internal fan blades and grilles, supporting use in ICU, CCU, and operating room environments. The IP22-rated enclosure provides protection against vertically dripping water and solid objects ≥ 12.5 mm, supporting routine wipe-down protocols.

HL7 / HIS / EMR Connectivity and Central Station Integration

The iV12 supports HL7 protocol for HIS/EMR integration, enabling real-time access to electronic medical records. Central monitoring station (CMS) connection is available via wired or wireless networks, and the monitor can stream to mobile stations and web observers for remote access. Ventilator and anesthesia machine integration is supported through the V-Link module.

3.8 kg Chassis for Bedside and Intraoperative Use

At approximately 3.8 kg (excluding battery, accessories, and recorder) , the iV12 is designed for bedside mounting on rolling stands and wall mounts, as well as intraoperative use where space around the anesthesia machine is limited. The monitor is not intended for MRI environments.
