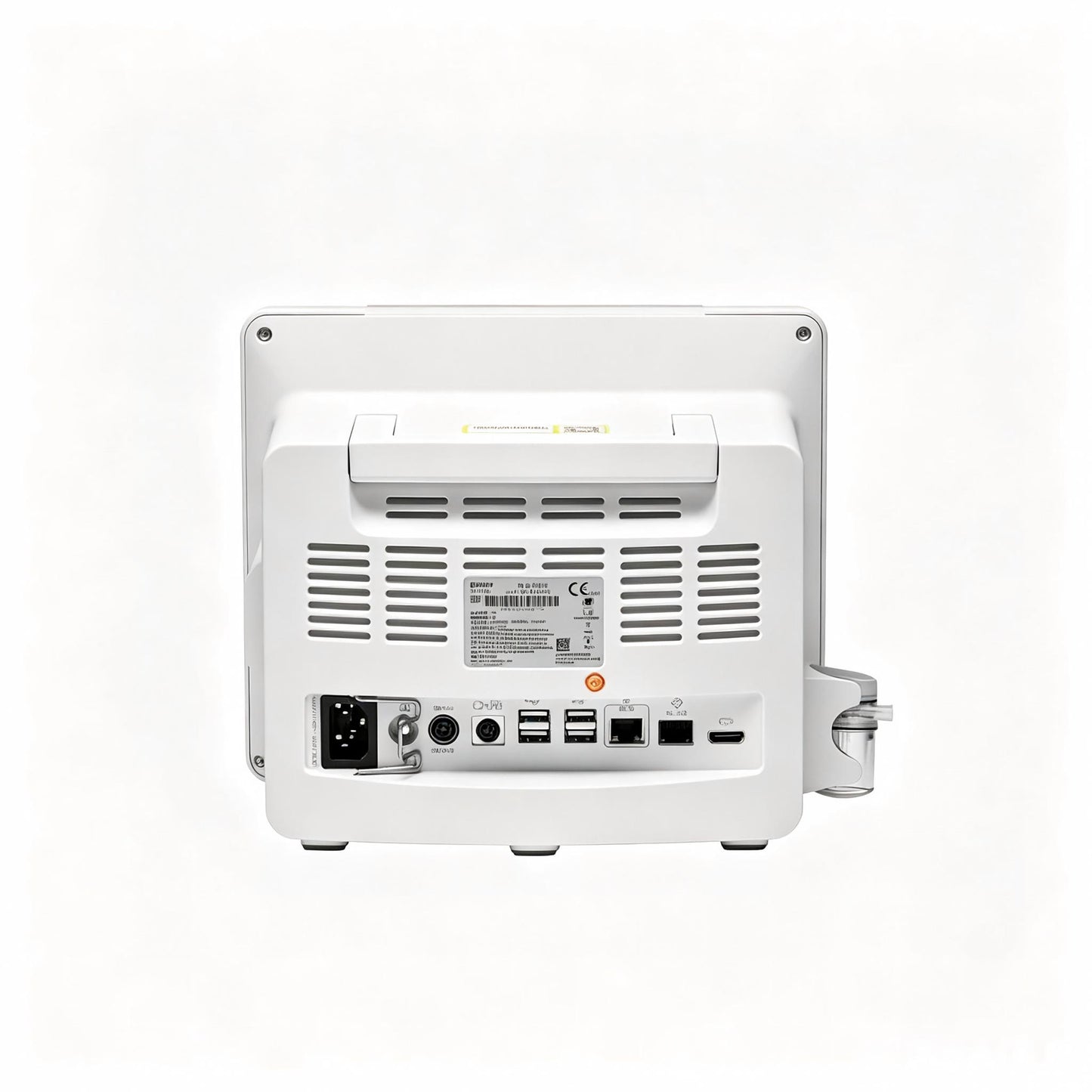

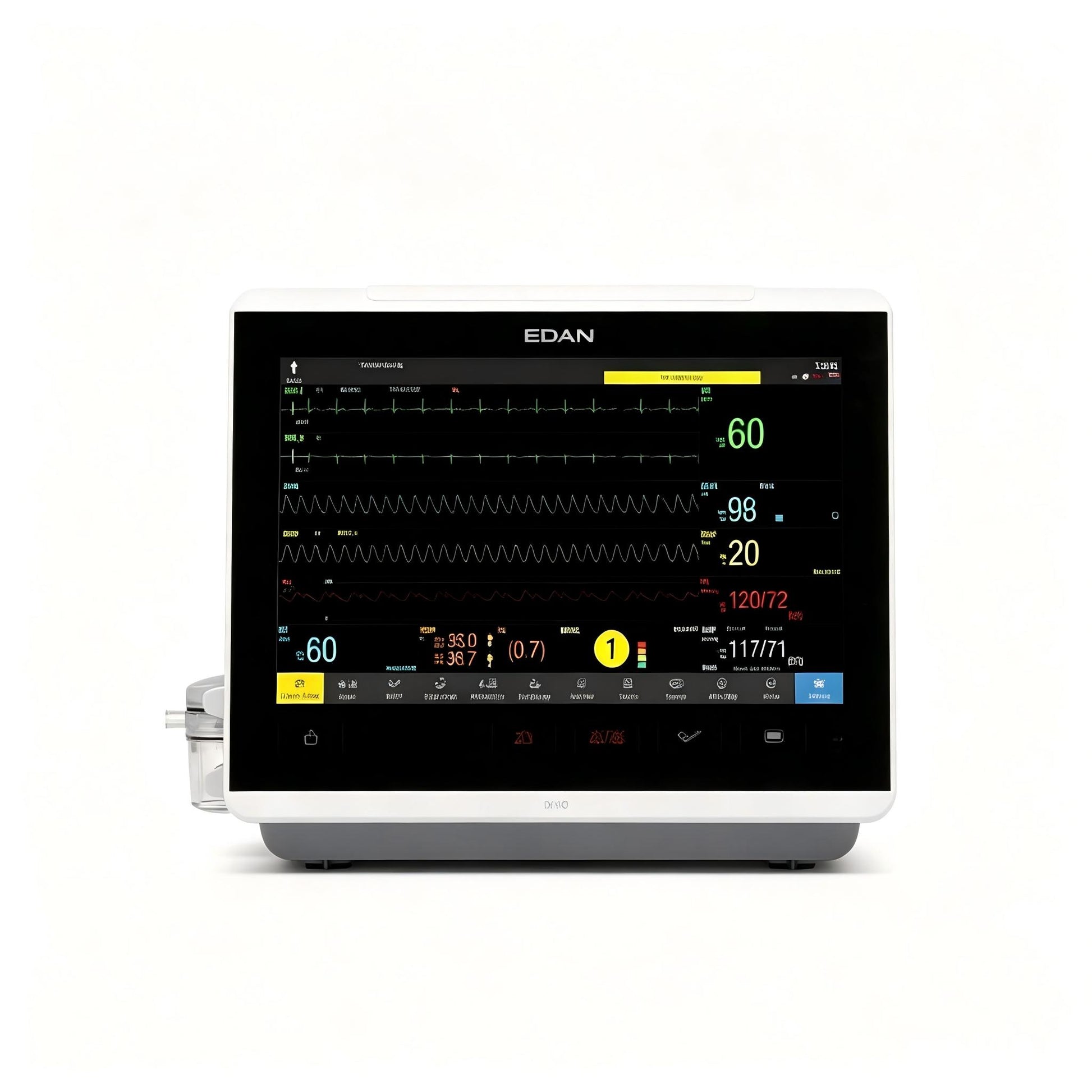

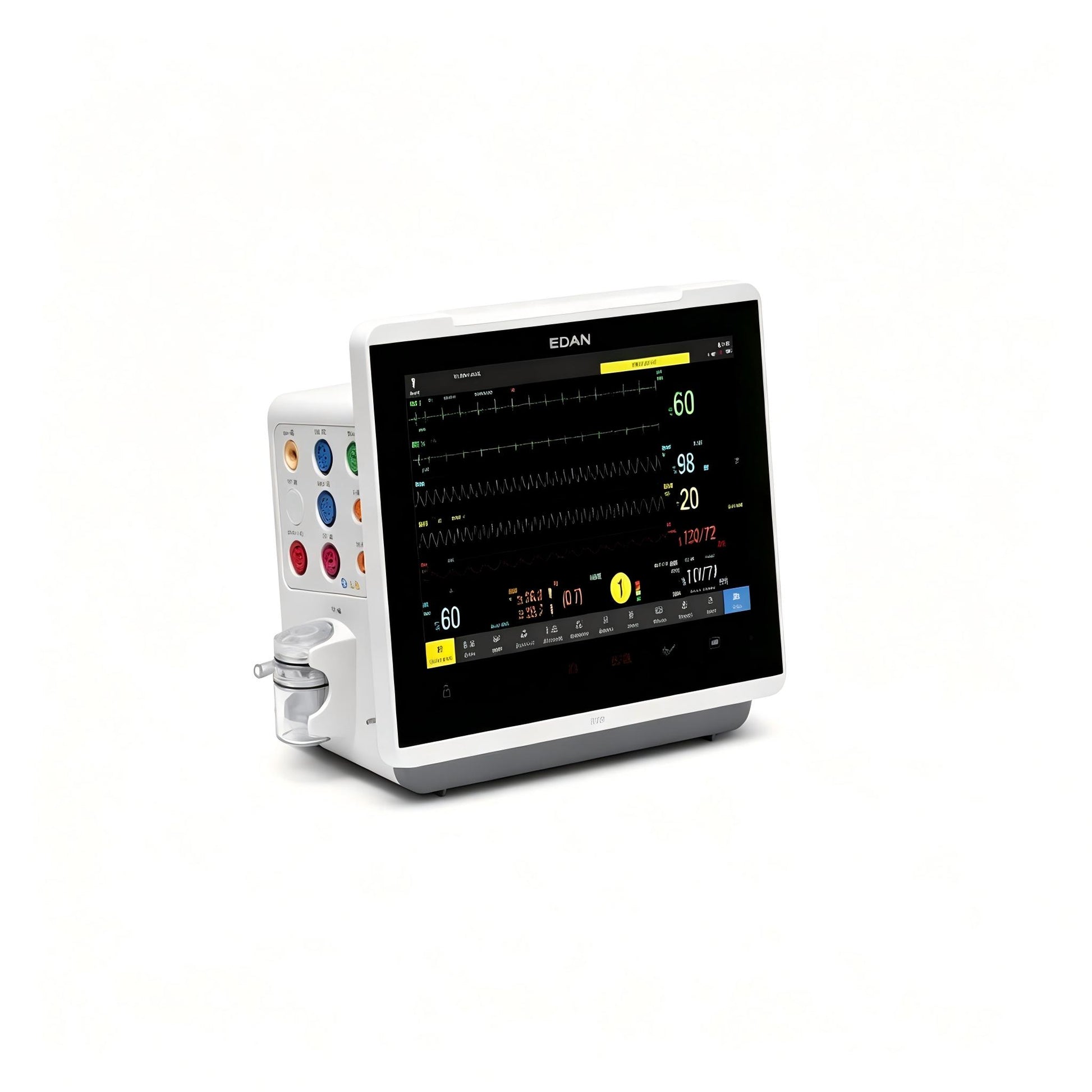

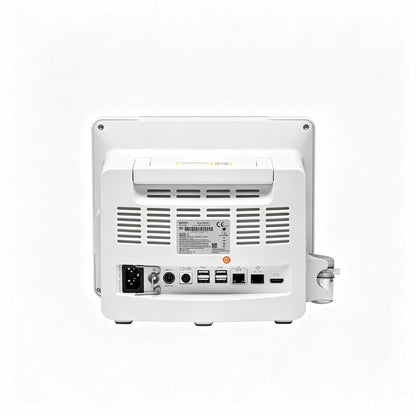

EDAN iX10 Patient Monitor

The EDAN iX10 is a next-generation multi-parameter patient monitor that redefines effortless monitoring through outstanding visual design, operational efficiency, and accurate monitoring solutions. Developed from over 16 years of clinical experience and first-hand data collection, the iX Series was designed to bridge the gap between monitoring technology and practitioner needs.

Featuring a 10.1-inch high-resolution anti-glare color touchscreen with 1280×800 pixel resolution, the iX10 delivers crystal-clear waveform and numeric display. Its flexibility allows it to support multiple hospital departments, including Emergency Rooms, Recovery Rooms, Sub-acute Units, and General Wards. The iX10 is FDA 510(k) cleared (K232962) for monitoring adults, pediatrics, and neonates.

Key Features & Benefits

Effortless Visual Experience

• 10.1-inch full touchscreen with anti-glare design ensures clear visibility even in bright light conditions

• 170° ultra-wide viewing angle allows clinicians to read patient data from virtually any position in the room

• Auto brightness adjustment adapts to ambient light for optimal viewing at all times

• Background color optimized for general medical environments to reduce reflections

Innovative Monitoring Technologies

• CNBP (Continuous Non-invasive Blood Pressure) – EDAN‘s breakthrough technology collects pulse wave and ECG signals to measure blood pressure continuously and non-invasively, enabling prompt response to sudden BP changes that traditional NIBP might miss

• iFAST 15‑Second BP Measurement – Intelligent rising algorithms automate cuff inflation to avoid repeated pressurization, significantly reducing measurement time and improving patient comfort

• iSEAP™ ECG Algorithm – Delivers excellent sensitivity in arrhythmia and heartbeat detection, ST analysis, and giant T‑wave differentiation

• SEMIP™ Cardiac Diagnosis – Trustworthy ECG diagnosis validated by CSE, MIT, and AHA databases

• iMAT™ SpO₂ Algorithm – Provides improved stability in high‑motion and low‑perfusion conditions

Comprehensive Parameter Monitoring

Standard Parameters:

• 3/5/6‑lead ECG

• EDAN SpO₂

• NIBP (Non‑Invasive Blood Pressure)

• 2‑TEMP (Dual temperature channels)

• RESP (Respiration)

• PR (Pulse Rate)

Optional Parameters:

• 12‑lead ECG

• Nellcor SpO₂

• EDAN Dual‑SpO₂ (iX10/iX12)

• 2‑IBP (Invasive Blood Pressure)

• C.O. (Cardiac Output)

• EDAN G2 CO₂, Masimo CO₂, Respironics CO₂

Clinical Decision Support Tools

• Early Warning Scoring (EWS) – Compliant with NEWS2, MEWS, and PEWS, helping identify deteriorating conditions through comprehensive vital signs assessment

• Glasgow Coma Scale (GCS) – Built‑in neurological assessment tool

• CCHD Screening – Critical Congenital Heart Disease screening for neonates, recommended by the U.S. Department of Health and Human Services

• NIBP Summary – 24‑hour trend graph for quick blood pressure review

Seamless Connectivity & Data Management

• Wired or wireless connection to Central Monitoring Station (CMS) and Electronic Medical Records (EMR) via HL7 protocol

• Patient data accessible from multiple terminals including Mobile Station, Web Observer, and CMS

• 48‑hour full-disclosure waveform storage and 240‑hour trend data

• USB/SD external storage support

• Wi‑Fi (802.11a/b/g/n) and Bluetooth Low Energy (e‑Link) connectivity

Designed for Infection Control & Daily Use

• Full‑screen seamless design makes daily cleaning and disinfection quick and easy

• Fanless design for silent operation and reduced dust accumulation

• Waterproof and dustproof integrated casing

• Enhanced battery capability supports intra‑hospital transport

• Flexible mounting solutions with quick‑release design for easy transport
