EDAN iX12 Patient Monitor

The EDAN iX12 is a next-generation multi-parameter patient monitor that combines outstanding visual design with operational efficiency and accurate monitoring solutions. Developed from over 16 years of clinical experience and first‑hand data collection, the iX Series was designed to bridge the gap between monitoring technology and practitioner needs.

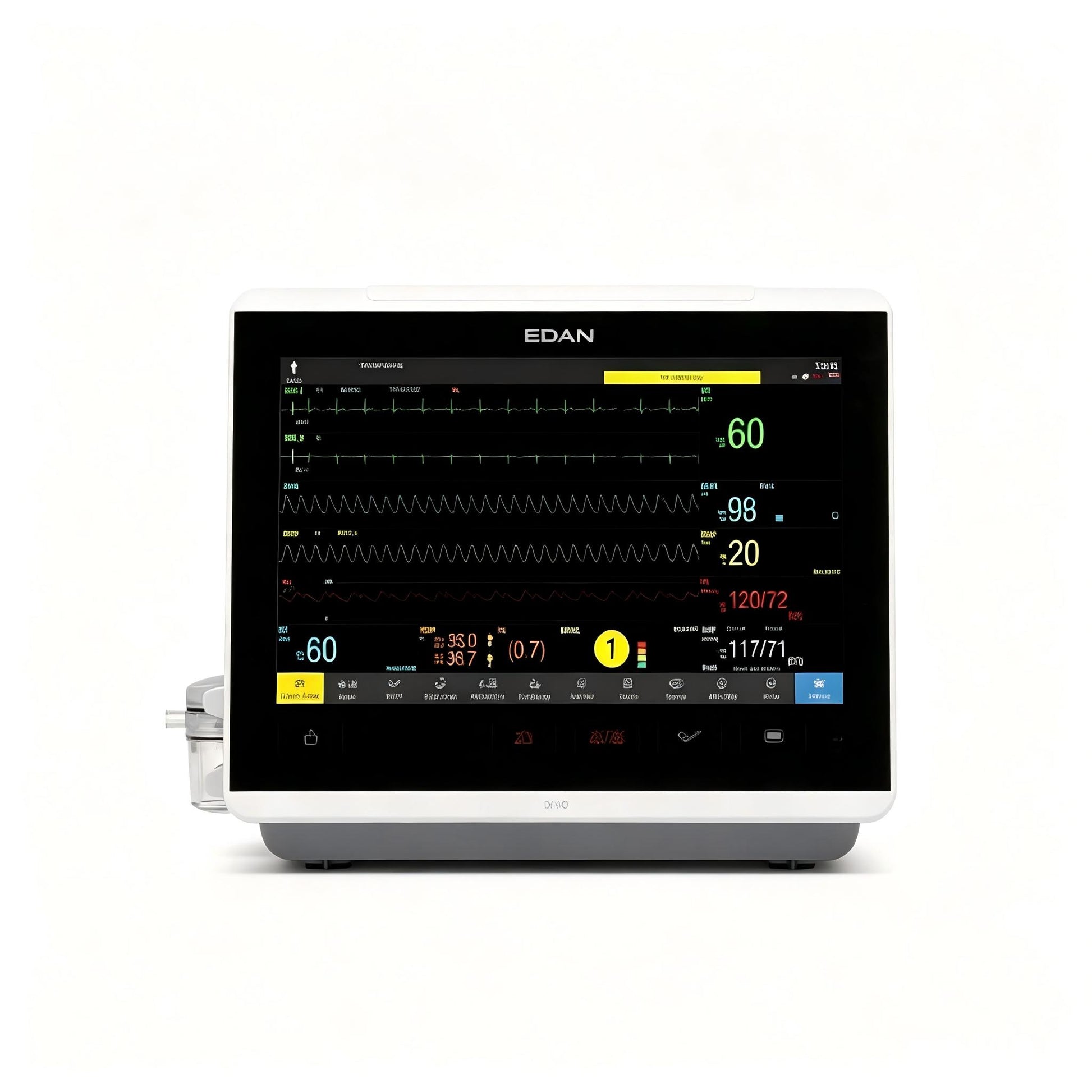

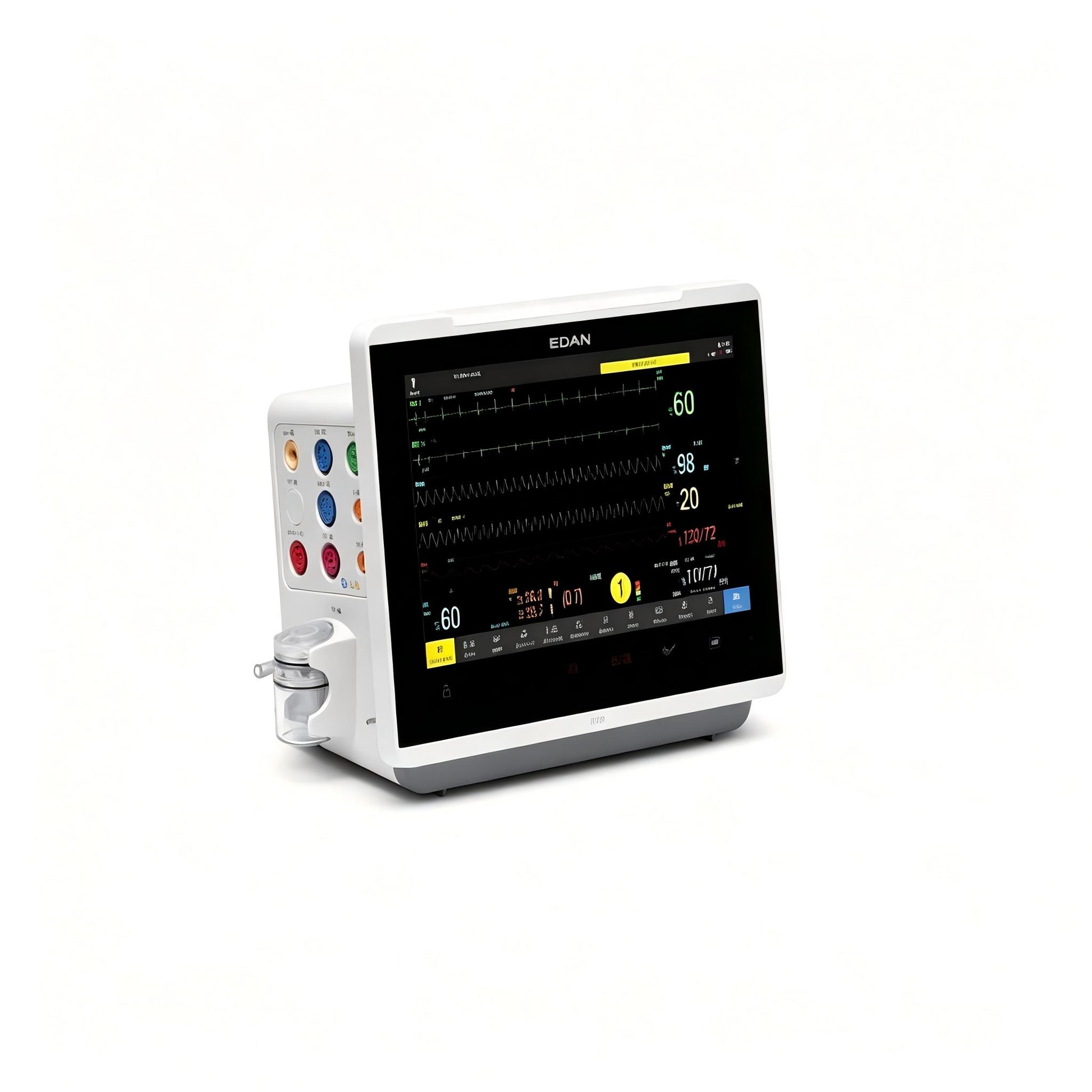

Featuring an ultra‑slim 12.1‑inch high‑resolution color touchscreen, the iX12 delivers crystal‑clear waveform and numeric display while maintaining a compact footprint—measuring just 41mm at its thinnest point. The iX12 is FDA 510(k) cleared (K232962) for monitoring adults, pediatrics, and neonates in hospital environments.

Key Features & Benefits

Effortless Visual Experience

• 12.1‑inch high‑resolution color TFT‑LCD touchscreen with 800×600 resolution delivers clear, user‑friendly visualization

• 100° tilt‑adjustable display allows clinicians to position the screen for optimal viewing from any angle

• Ultra‑slim design (41mm at thinnest point) saves valuable bedside space

• Dual‑segment alarm lights provide clear, at‑a‑glance indications of technical and patient alarms

• Built‑in carry handle and cable receiving design for easy portability

Advanced Monitoring Technologies

• iSEAP™ ECG Algorithm – delivers excellent sensitivity in arrhythmia and heartbeat detection, ST analysis, and giant T‑wave differentiation, with auto‑detection of up to 33 types of arrhythmias

• SEMIP™ Cardiac Diagnosis – trustworthy ECG diagnosis validated by CSE, MIT, and AHA databases, with 208 ECG findings over age/gender diversities

• iMAT™ SpO₂ Algorithm – provides outstanding motion resistance and low‑perfusion performance

• iCUFS™ NIBP Algorithm – optimized for cardiac patients, hypertensive patients, and neonates

• iFAST 15‑Second BP Measurement – intelligent rising algorithms automate cuff inflation to avoid repeated pressurization, significantly reducing measurement time and improving patient comfort

• NIBP Simul – allows simultaneous SpO₂ measurement during NIBP measurement on the same limb without interference

• NIBP Cleaning Mode – cleans NIBP tubes for better pump function

Comprehensive Parameter Monitoring

Standard Parameters:

• 3/5‑lead ECG (optional 6/12‑lead available)

• RESP (Respiration)

• EDAN SpO₂

• EDAN NIBP (Non‑Invasive Blood Pressure)

• 2‑TEMP (Dual temperature channels)

• PR (Pulse Rate)

• HR (Heart Rate)

Optional Parameters:

• 6/12‑lead ECG with automatic lead type detection

• 2‑IBP (Invasive Blood Pressure)

• C.O. (Cardiac Output)

• EDAN G2 CO₂ (Sidestream Capnography)

• Nellcor SpO₂, Masimo CO₂, Respironics CO₂

Seamless Connectivity & Data Management

• Built‑in Wi‑Fi for wireless connection to hospital networks

• HL7 protocol support for integration with Central Monitoring Station (CMS) and Electronic Medical Records (EMR)

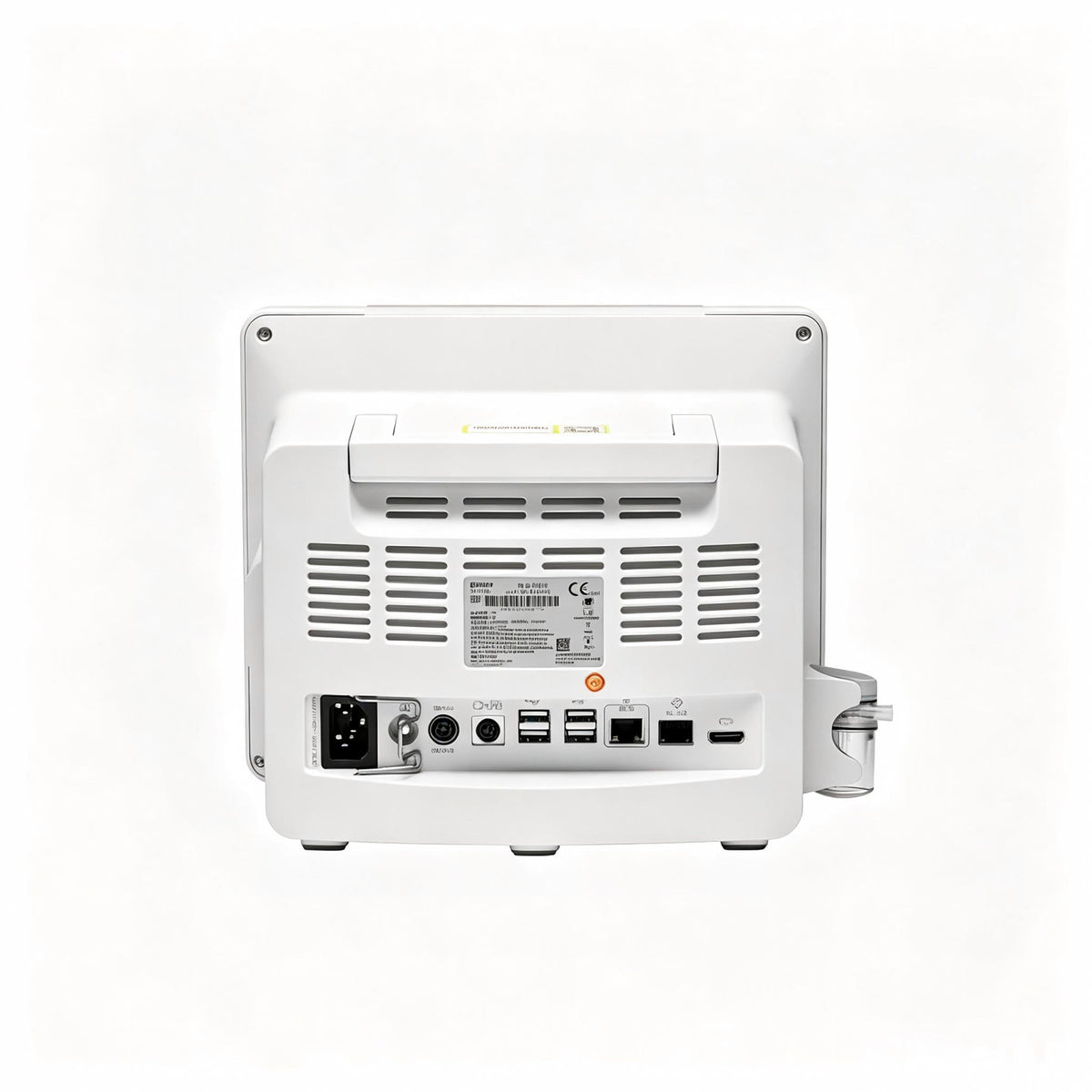

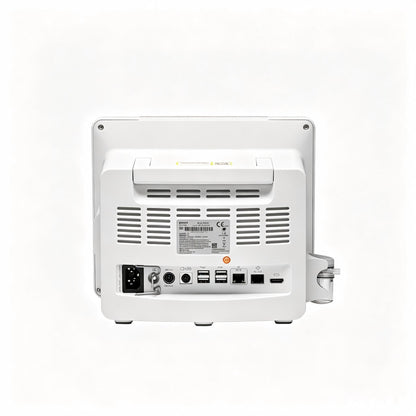

• USB port for data backup and barcode scanner connectivity

• 8GB of internal memory and 240 hours of trend graph and table review

• Defibrillator synchronization (optional) for seamless integration with emergency equipment

Designed for Infection Control & Daily Use

• Fanless design – ensures silent operation, low power consumption, and prevents dust accumulation inside the device

• Up to 8 hours of battery operation – supports intra‑hospital transport and uninterrupted monitoring during power outages

• Easy‑to‑clean surface – simplifies daily disinfection

• 6 selectable ECG filters – ensures interference‑free waveform display

Clinical Decision Support

• Early Warning Scoring (EWS) – compliant with NEWS, MEWS, and PEWS for identifying deteriorating conditions

• CCHD Screening – Critical Congenital Heart Disease screening for neonates, recommended by the U.S. Department of Health and Human Services

• Arrhythmia detection and ST Segment analysis – intended for adult patients
