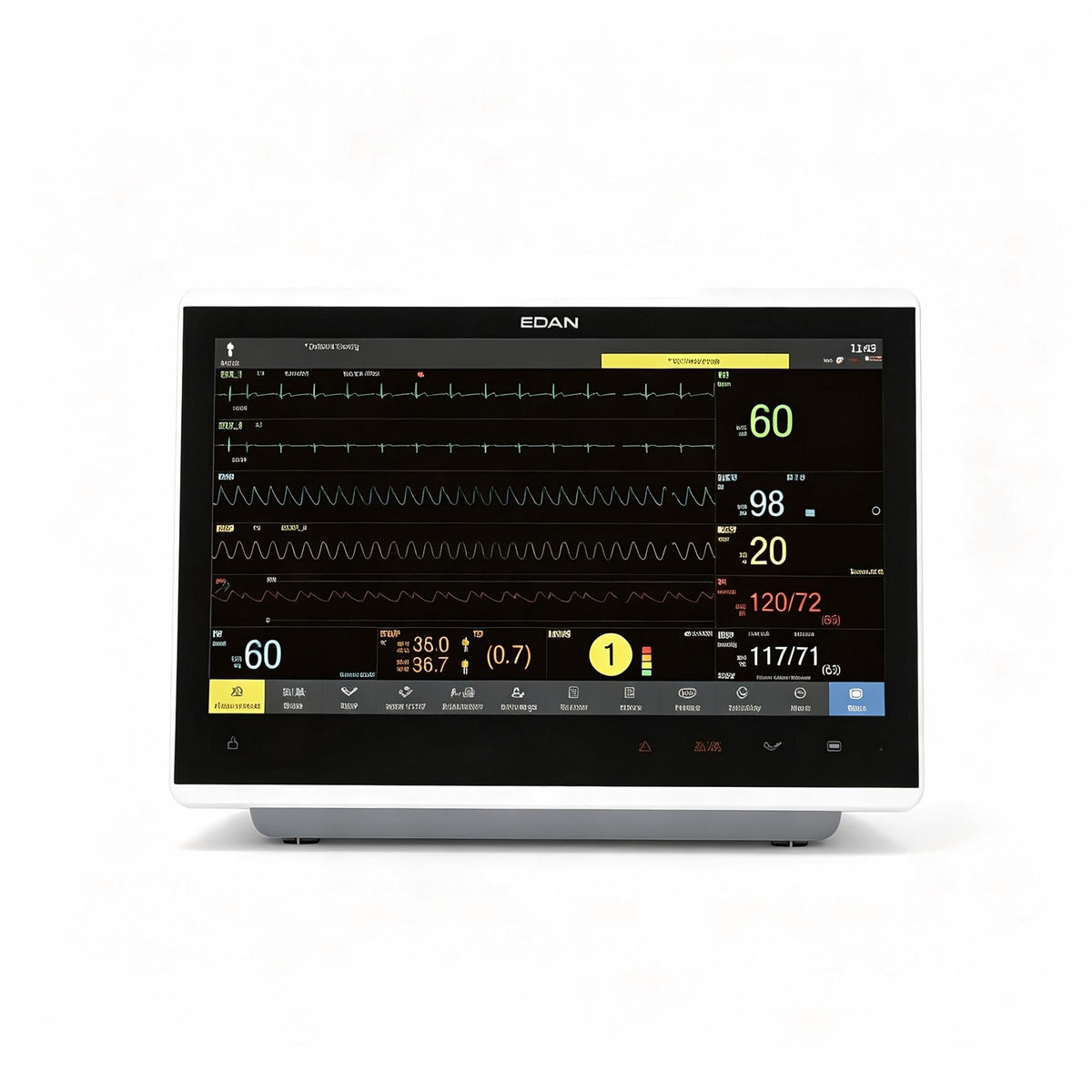

EDAN iX15 Patient Monitor

The EDAN iX15 is a premium 15.6‑inch multi‑parameter patient monitor that redefines effortless monitoring through outstanding visual design, operational efficiency, and accurate clinical solutions. Developed from over 16 years of clinical experience and first‑hand data collection, the iX Series was designed to bridge the gap between monitoring technology and practitioner needs.

Featuring a 15.6‑inch high‑resolution anti‑glare color touchscreen with 1920×1080 Full HD resolution, the iX15 delivers crystal‑clear visualization of waveforms and numerical data. Its flexibility allows it to support multiple hospital departments, including Emergency Rooms, Recovery Rooms, Operating Rooms, Sub‑acute Units, and General Wards. The iX15 is FDA 510(k) cleared (K232962) for monitoring adults, pediatrics, and neonates.

Key Features & Benefits

Effortless Visual Experience

• 15.6‑inch Full HD touchscreen with 1920×1080 pixel resolution delivers crystal‑clear, high‑definition visualization

• Anti‑glare HD screen ensures clear visibility even in bright light conditions

• 170° ultra‑wide viewing angle allows clinicians to read patient data from virtually any position in the room

• Auto brightness adjustment adapts to ambient light for optimal viewing at all times, reducing workload

• Full‑screen seamless design makes daily cleaning and disinfection quick and easy

Advanced Monitoring Technologies

• CNBP (Continuous Non‑invasive Blood Pressure) – EDAN‘s breakthrough technology collects pulse wave and ECG signals to measure blood pressure continuously and non‑invasively, enabling prompt response to sudden BP changes that traditional NIBP might miss

• iFAST 15‑Second BP Measurement – Intelligent rising algorithms automate cuff inflation to avoid repeated pressurization, significantly reducing measurement time and improving patient comfort

• iSEAP™ ECG Algorithm – Delivers excellent sensitivity in arrhythmia and heartbeat detection, ST analysis, and giant T‑wave differentiation

• iCUFS™ NIBP Algorithm – Confirmed accuracy in cardiac, hypertensive, and neonatal patients

• SEMIP™ Cardiac Diagnosis – Trustworthy ECG diagnosis validated by CSE, MIT, and AHA databases

• iMAT™ SpO₂ Algorithm – Provides improved stability in high‑motion and low‑perfusion conditions

• iCARB™ CO₂ Algorithm – Intelligent identification of CO₂ pseudo‑waves

• iAPRB™ AG Algorithm – High performance in anesthetic gases measurement with paramagnetic O₂

Comprehensive Parameter Monitoring

Standard Parameters:

• 3/5/6‑lead ECG

• EDAN SpO₂

• NIBP (Non‑Invasive Blood Pressure)

• 2‑TEMP (Dual temperature channels)

• RESP (Respiration)

• PR (Pulse Rate)

Optional Parameters:

• 12‑lead ECG

• Nellcor SpO₂

• EDAN Dual‑SpO₂

• 4‑IBP (Invasive Blood Pressure) – iX15 supports up to 4 IBP channels

• C.O. (Cardiac Output)

• EDAN G2 CO₂, Masimo CO₂, Respironics CO₂

• EDAN G7 AG, Masimo AG (Anesthetic Gas)

Clinical Decision Support Tools

• Early Warning Scoring (EWS) – Compliant with NEWS, NEWS2, MEWS, and PEWS, helping identify deteriorating conditions through comprehensive vital signs assessment

• Glasgow Coma Scale (GCS) – Built‑in neurological assessment tool for patients in a coma from all causes, widely used in critical care, post‑operative, and pre‑hospital emergencies

• CCHD Screening – Critical Congenital Heart Disease screening for neonates, recommended by the U.S. Department of Health and Human Services

• ECG Summary – All‑day ECG summary with pie chart visualization of arrhythmia events by severity

• NIBP Summary – 24‑hour trend graph for quick blood pressure review

Seamless Connectivity & Data Management

• Wired or wireless connection to Central Monitoring Station (CMS) and Electronic Medical Records (EMR) via HL7 protocol

• Patient data accessible from multiple terminals including Mobile Station, Web Observer, and CMS

• 240‑hour trend graph and table review

• USB port for data backup and barcode scanner connectivity

• Built‑in Wi‑Fi (802.11a/b/g/n) and Bluetooth Low Energy (e‑Link)

Designed for Infection Control & Daily Use

• Fanless design – ensures silent operation, low power consumption, and prevents dust accumulation inside the device

• Waterproof and dustproof integrated casing

• Enhanced battery capability supports intra‑hospital transport

• Easy daily disinfection – seamless design simplifies cleaning

• Flexible mounting solutions with quick‑release design for easy transport

Interactive User Interface

• Gesture operation – switching display modes with intuitive gestures

• Pull‑down panel – quickly adjust user settings

• Customizable shortcut keys – direct access to user operations

Technical Specifications

Why Choose the EDAN iX15?
