Edan Nano L12 EXP Diagnostic Ultrasound System
Edan Nano L12 EXP Diagnostic Ultrasound System

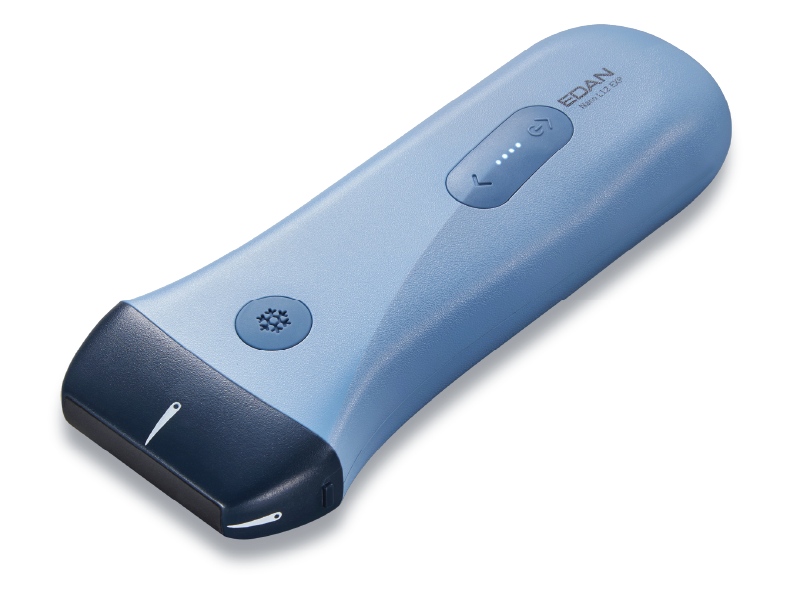

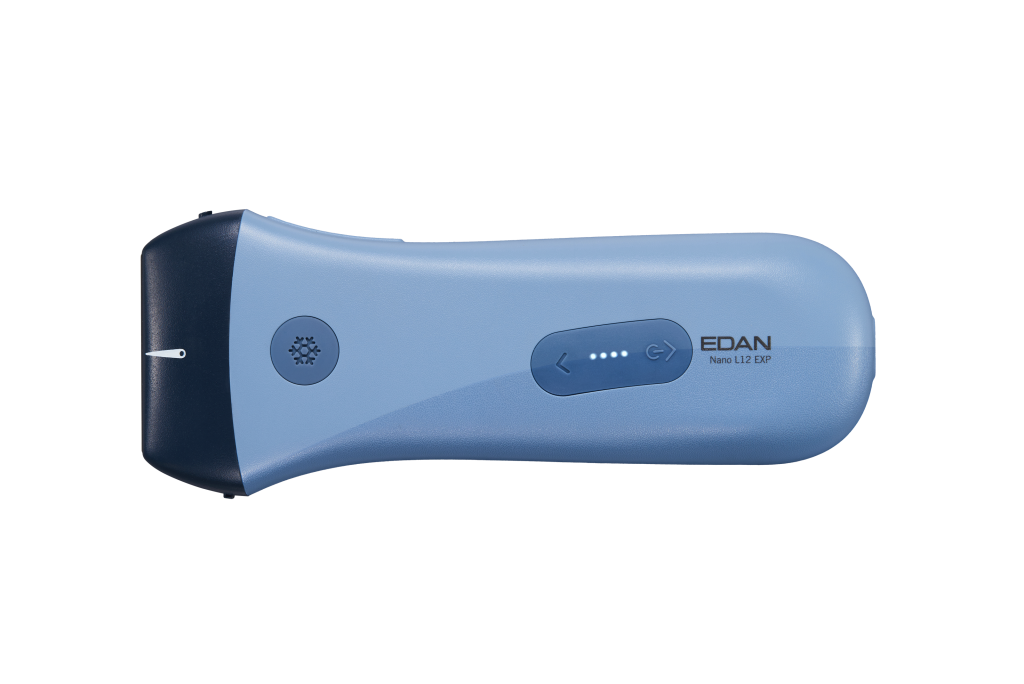

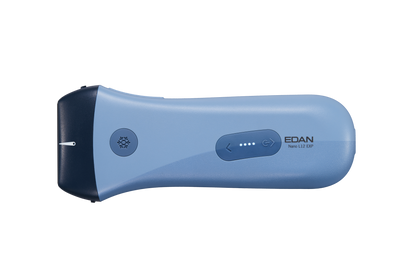

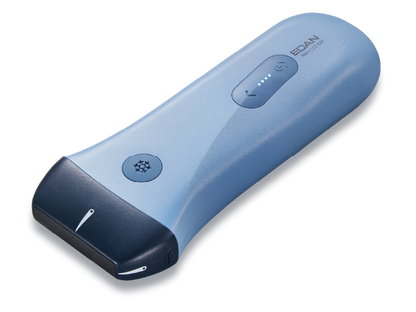

The EDAN Nano L12 EXP is a pocket-sized, linear-array handheld diagnostic ultrasound system designed for high-resolution imaging of superficial structures and vascular applications. Powered by the latest SynSight™ zone sonography platform, this revolutionary device combines cutting‑edge imaging technology with unmatched mobility, making it an indispensable tool for dynamic clinical environments—from emergency triage and field rescue to in‑patient assessments, home healthcare, and primary medical care.
Featuring a high-frequency linear transducer optimized for musculoskeletal, vascular, nerve, and small parts imaging, the Nano L12 EXP delivers exceptional near-field resolution in a form factor small enough to fit in your pocket. Its sleek and intuitive interface, coupled with state‑of‑the‑art features, ensures efficient and accurate assessments across various clinical settings—putting diagnostic ultrasound always in your pocket, always on the go.
Key Features & Benefits
Always Ready – Designed for Mobility
The EDAN Nano L12 EXP is built for clinicians who need diagnostic imaging at their fingertips, anytime and anywhere:
-
IP67 dustproof and waterproof – easy to clean and disinfect, ideal for demanding clinical environments
-
Qualified for emergency medical service – reliable in critical situations
-
Configurable cart and carrying bag – versatile options for various application scenarios
Flexible Connectivity – Work Your Way
-
Compatible with Android smartphones and tablets – use your own device as the display
-
Support for Wi‑Fi and cable connection – choose the connection method that suits your preference
Definitive Image Quality – Powered by SynSight™
The Nano L12 EXP leverages EDAN‘s advanced SynSight™ zone sonography platform to deliver exceptional imaging performance in a compact form factor:
-
Synthetic focused beam‑forming – delivers consistent image quality across the entire field of view
-
Advanced acoustic acquisition – extracts more data at faster speeds than traditional beamforming
-
Excellent image uniformity – ensures detail resolution and contrast resolution for confident diagnosis
High‑Frequency Linear Array for Superficial Imaging
The Nano L12 EXP is equipped with a linear array transducer optimized for high‑resolution imaging of superficial structures:
| Feature | Benefit |
|---|---|
| High frequency | Excellent near‑field resolution for fine detail visualization |
| Linear array | Ideal for musculoskeletal, vascular, and nerve imaging |
| Wide bandwidth | Adaptable for various depths and tissue types |

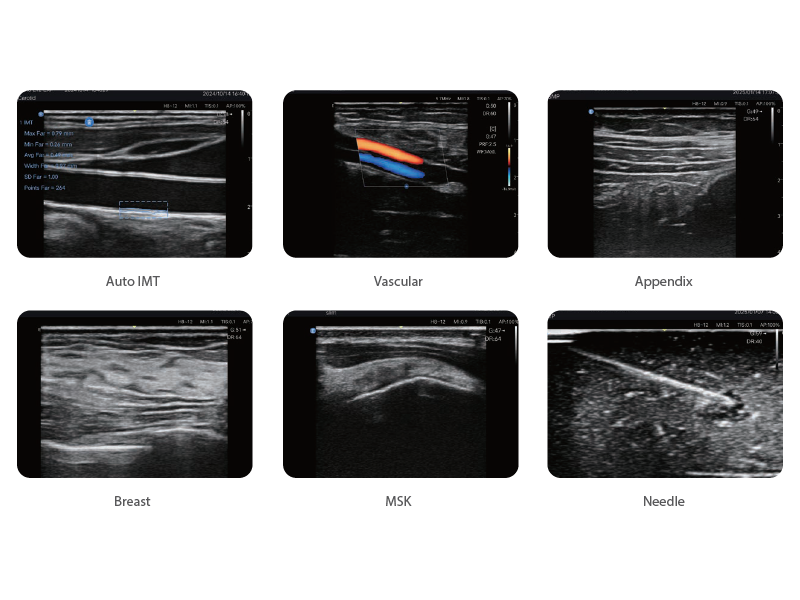

Comprehensive Imaging Modes
The Nano L12 EXP supports a full range of imaging modes for versatile clinical applications:
| Imaging Mode | Application |
|---|---|
| B‑mode | Fundamental 2D imaging |
| M‑mode | Motion analysis |
| Color Doppler | Real‑time blood flow visualization |
| Power Doppler | Sensitive low‑flow detection |
Versatile Clinical Applications
The EDAN Nano L12 EXP delivers outstanding value across a broad spectrum of clinical specialties:
| Application Area | Specific Uses |
|---|---|
| Vascular | Peripheral vascular and carotid artery assessment |
| MSK (Musculoskeletal) | Tendon, ligament, and joint assessment |
| Nerve | Nerve block guidance and assessment |
| Small Parts | Thyroid, breast, testes, and superficial structure imaging |
| Anesthesiology | Regional anesthesia and nerve block guidance |
| Pain Management | Injection guidance |
| Emergency/FAST | Focused assessment with sonography for trauma |
| Primary Care | Point‑of‑care assessments |
Why Choose the EDAN Nano L12 EXP?
Technical Specifications
