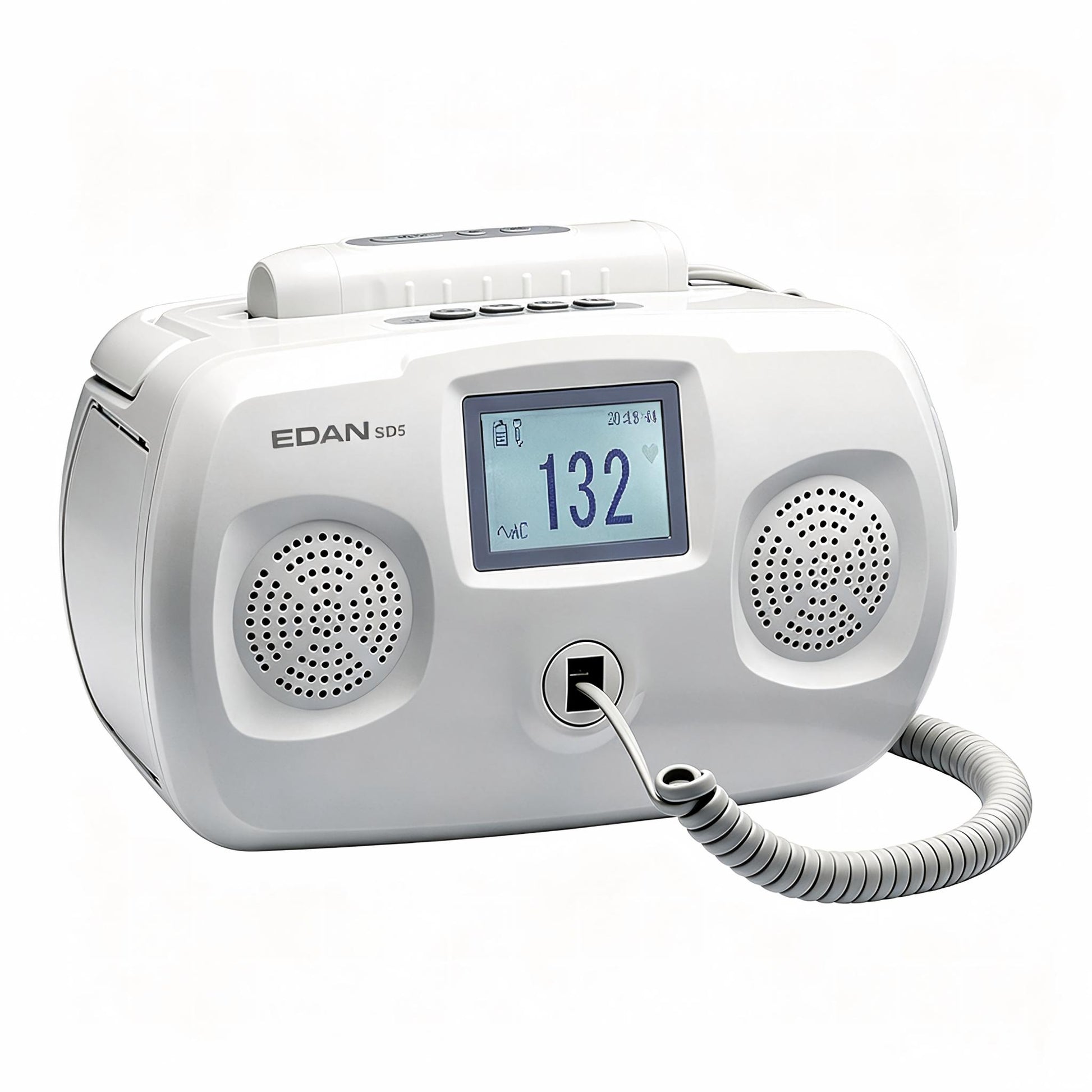

EDAN SD5 Ultrasonic Tabletop Doppler
EDAN SD5 Ultrasonic Tabletop Doppler
The EDAN SD5 is a professional ultrasonic tabletop Doppler designed for healthcare providers who need reliable, high-performance fetal heart rate monitoring in a convenient benchtop format. As an innovative development in EDAN's fetal Doppler category, the SD5 combines unmatched accuracy in FHR detection, a large digital display, and a remote control probe to create an efficient workflow for obstetric clinics, labor and delivery departments, and private practices.
The SD5 is FDA 510(k) cleared (K153475) and intended for use by healthcare professionals including registered nurses, midwives, ultrasound technicians, and physician assistants in hospitals, clinics, and private offices. With its 2 MHz and 3 MHz probes, the device detects fetal heart rate from early gestation through delivery and can also verify fetal heart viability.
Key Features & Benefits
Highly Sensitive Probe for Easy Fetal Heart Location
The SD5 features a newly designed highly sensitive probe that helps clinicians easily locate the fetal heartbeat—especially helpful in cases of early gestation weeks. The probe is available in 2 MHz (deeper penetration for later pregnancy) and 3 MHz (detects heartbeat as early as 10 weeks) frequencies.
Remote Control Probe for Convenient Operation
The convenient remote control probe allows clinicians to operate the device without reaching for the main unit. This thoughtful design enables healthcare providers to pay full attention to their patients while maintaining complete control over the monitoring session.
Eye-Catching Backlit LCD Screen
The SD5 features a large, backlit LCD screen that displays FHR values in clear, easy‑to‑read digits. The informative display provides real‑time FHR data with large‑font values, making it simple to read at a glance even in busy clinical environments.
Accurate FHR Calculation with Autocorrelation Algorithm
The SD5 employs an advanced autocorrelation algorithm to ensure highly accurate FHR calculations. The device provides unmatched accuracy in FHR detection with a measurement range of 50‑240 bpm, 1 bpm resolution, and ±2 bpm accuracy.
Dual High‑Fidelity Speakers for Crystal Clear Sound
The SD5 is equipped with dual high‑fidelity speakers that deliver FHR sounds with fullness and clarity. The improved low‑frequency speakers ensure that even subtle heart sounds are heard clearly.
Active Noise Reduction Technology
The SD5 incorporates active noise reduction technology that minimizes background noise to ensure a crystal clear heart beating sound. This feature is especially valuable in busy clinical environments where ambient noise can interfere with auscultation.
Built‑In Audio Recorder
The SD5 features a built‑in audio recorder that captures FHR sounds for playback and review. The 240‑second fetal heart sound record and playback capability provides added reliability to diagnosis and allows clinicians to share recordings with patients or colleagues.
Built‑In Recorder for Documentation
The SD5 includes a built‑in recorder that allows for documentation of FHR data, supporting comprehensive patient records and clinical decision‑making.
Long‑Lasting Rechargeable Battery
The SD5 main unit is powered by a Ni‑MH battery that provides up to 20 hours of continuous working time. This extended battery life ensures the device is ready throughout the clinical day, even during power outages or when moving between rooms.
Signal Strength Indicator
The SD5 features a signal strength indicator that helps clinicians locate the fetal heart position more precisely. This visual guide reduces the time needed to find the optimal probe placement and improves the overall efficiency of the examination.
Auto Shut‑Off for Battery Conservation
The device includes an auto shut‑off function that powers down when no signal is detected or no operation occurs for a set period. This intelligent feature conserves battery life and extends the time between charges.
Portable and Lightweight Design
Despite its tabletop format, the SD5 features a portable and lightweight design that makes it easy to move between examination rooms or store when not in use.
Technical Specifications
| Specification | Detail |
|---|---|
| Device Type | Ultrasonic Tabletop Doppler |
| Operating Mode | Continuous Wave (CW) Doppler |
| FHR Measurement Range | 50 – 240 bpm |
| Resolution | 1 bpm |
| Accuracy | ±2 bpm |
| Probe Frequencies | 2 MHz, 3 MHz |
| Display | Backlit LCD screen with large‑font FHR display |
| Audio | Dual high‑fidelity speakers, active noise reduction |
| Recording | Built‑in audio recorder, 240‑second playback |
| Connectivity | Wired probe connection |
| Power (Main Unit) | AC (100‑240V) or Ni‑MH battery |
| Battery Life (Main Unit) | Up to 20 hours continuous use |
| Intended Users | Nurses, midwives, ultrasound technicians, physician assistants |
| Intended Settings | Hospitals, clinics, private offices |
| Regulatory | FDA 510(k) cleared (K153475) |
Why Choose the EDAN SD5?
| Clinical Challenge | SD5 Solution |
|---|---|
| Locating fetal heart in early gestation | Highly sensitive 3 MHz probe detects heartbeat from 10 weeks |
| Busy clinical environment with ambient noise | Active noise reduction + dual high‑fidelity speakers for clear sound |
| Need for hands‑free operation | Remote control probe allows focus on patient |
| Documentation and diagnosis | Built‑in recorder with 240‑second playback |
| Long clinical days | 20‑hour battery life keeps you going |
| Precise probe placement | Signal strength indicator guides positioning |
| Accurate FHR measurement | Autocorrelation algorithm ensures reliable readings |
