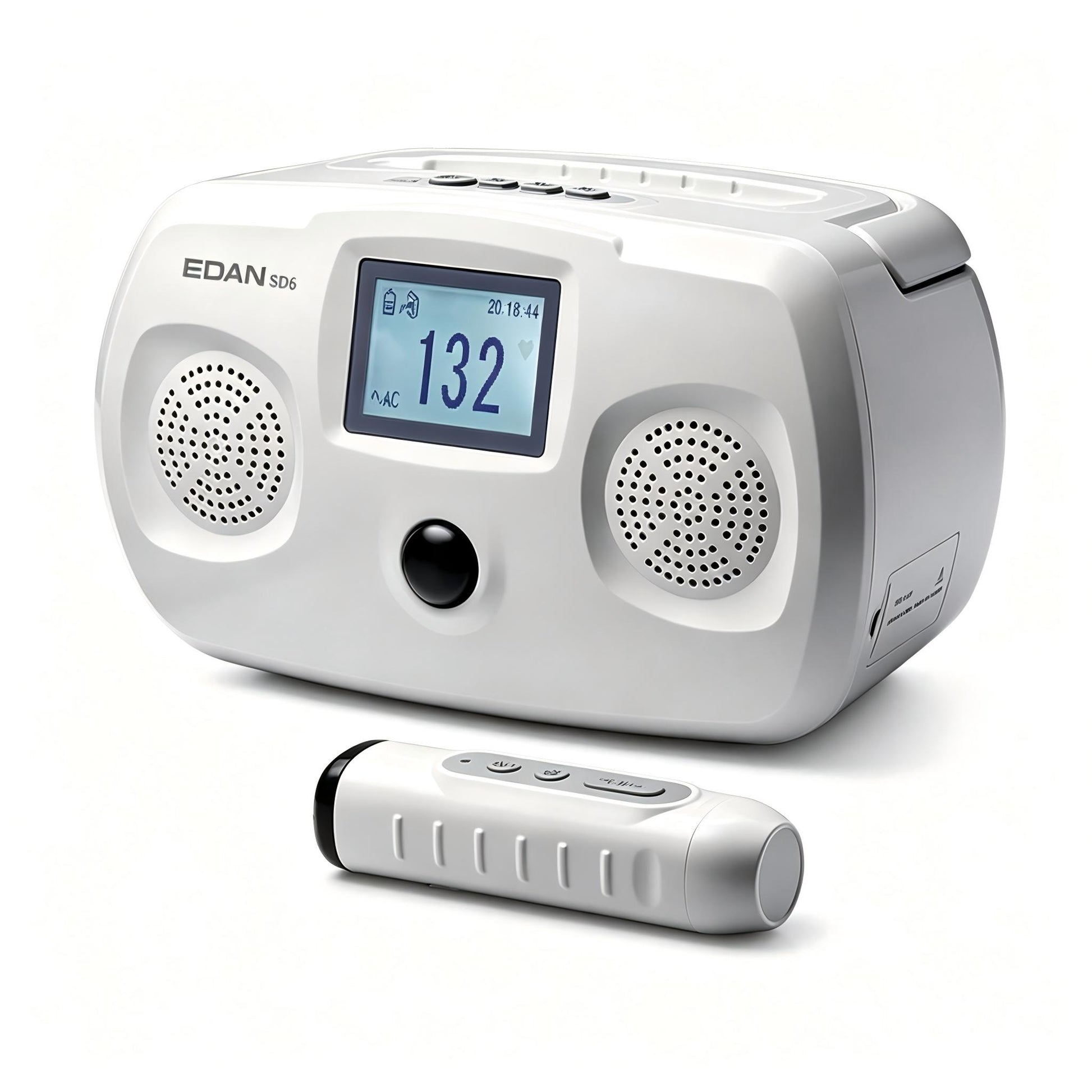

EDAN SD6 Ultrasonic Tabletop Doppler

The EDAN SD6 is an innovative ultrasonic tabletop Doppler that brings wireless freedom to fetal heart rate monitoring. As the wireless counterpart to the SD5, the SD6 utilizes Bluetooth technology for stable, cordless signal transfer between the probe and the main unit. This advanced connectivity, combined with a highly sensitive probe, active noise reduction, and dual high-fidelity speakers, makes the SD6 an ideal choice for busy obstetric clinics, labor and delivery departments, and private practices.

FDA 510(k) cleared and intended for use by healthcare professionals, the SD6 is indicated for detecting fetal heart rate from early gestation through delivery and for verifying fetal heart viability.

Key Features & Benefits

Wireless Bluetooth Technology for Unrestricted Movement

The SD6 sets itself apart with its wireless probe that uses Bluetooth technology for enhanced signal stability via a paired connection. This cordless design frees clinicians from the constraints of a wired probe, allowing for greater flexibility and ease of use during examinations. The probe is powered by a built-in Lithium battery, providing 2.5 hours of continuous working time.

Highly Sensitive Probe for Easy Fetal Heart Location

The SD6 features a newly designed highly sensitive probe that helps clinicians easily locate the fetal heartbeat, especially in cases of early gestation weeks. Available in both 2 MHz and 3 MHz frequencies, the probe allows for effective detection from early pregnancy through delivery.

Active Noise Reduction for Crystal Clear Sound

The SD6 incorporates active noise reduction technology that minimizes background noise to ensure a crystal clear fetal heart sound. This feature is particularly valuable in busy clinical environments where ambient noise can interfere with auscultation.

Dual High-Fidelity Speakers for Full, Clear Audio

Equipped with dual high-fidelity speakers featuring improved low-frequency response, the SD6 plays FHR sounds with fullness and clarity. This ensures that even subtle heart sounds are heard clearly, enhancing diagnostic confidence.

Signal Strength Indicator for Precise Probe Placement

The SD6 includes a signal strength indicator that helps clinicians locate the fetal heart position more precisely. This visual guide reduces the time needed to find the optimal probe placement and improves the overall efficiency of the examination.

Accurate FHR Calculation with Autocorrelation Algorithm

The SD6 employs an advanced autocorrelation algorithm to ensure highly accurate FHR calculations. The device provides a measurement range of 50-240 bpm, 1 bpm resolution, and ±2 bpm accuracy.

Built-In Audio Recorder for Diagnosis and Documentation

The SD6 features a built-in audio recorder that captures FHR sounds for playback and review. The 240-second fetal heart sound record and playback capability provides added reliability to diagnosis and allows clinicians to share recordings with patients or colleagues.

Eye-Catching Backlit LCD Screen

The SD6 features a large, backlit LCD screen that displays FHR values in clear, easy-to-read digits. The informative display provides real-time FHR data with large-font values, making it simple to read at a glance.

Long-Lasting Rechargeable Battery for the Main Unit

The SD6 main unit is powered by a Ni-MH battery that provides up to 20 hours of continuous working time. This extended battery life ensures the device is ready throughout the clinical day, even during power outages or when moving between rooms.

Auto Shut-Off for Battery Conservation

The device includes an auto shut-off function that powers down when no signal is detected or no operation occurs for a set period, conserving battery life and extending the time between charges.

Remote Control Probe for Convenient Operation

The SD6's wireless probe doubles as a remote control, allowing clinicians to operate the device without reaching for the main unit. This thoughtful design enables healthcare providers to pay full attention to their patients while maintaining complete control over the monitoring session.

Portable and Lightweight Design

Despite its tabletop format, the SD6 features a portable and lightweight design that makes it easy to move between examination rooms or store when not in use.

Technical Specifications

Why Choose the EDAN SD6?
