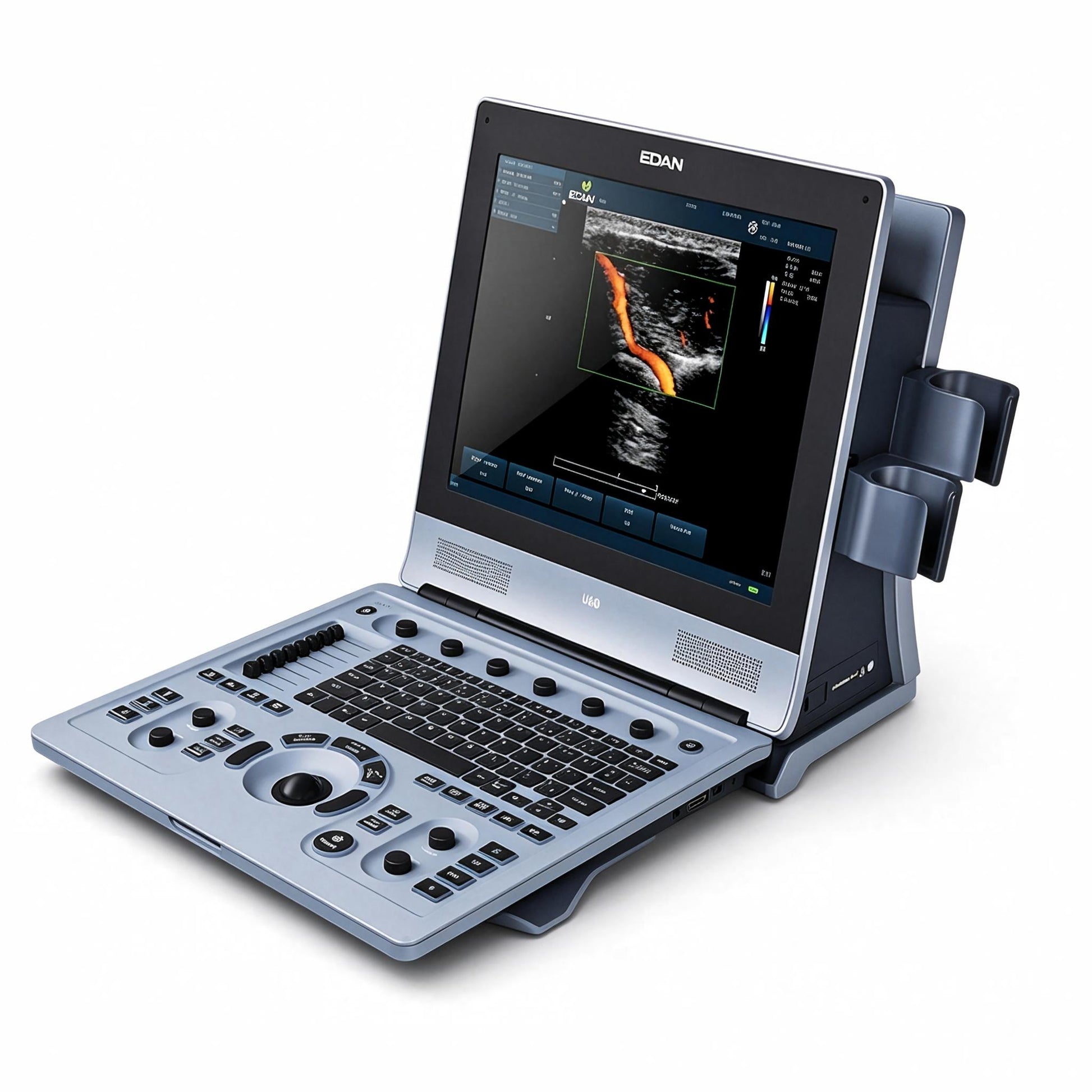

EDAN U60 Diagnostic Ultrasound System
EDAN U60 Diagnostic Ultrasound System
The EDAN U60 is a portable, user‑friendly diagnostic ultrasound system designed to meet the diverse imaging needs of modern clinical practices. With its compact and lightweight design, advanced imaging technologies, and versatile probe options, the U60 delivers reliable performance across a broad range of applications—from abdominal and obstetric imaging to cardiology, vascular, and musculoskeletal assessments.
Featuring a high‑resolution 15‑inch LCD monitor for clear image viewing, dual transducer ports for seamless probe switching, and battery operation of up to 80 minutes for uninterrupted workflow, the U60 is built for versatility and mobility. Weighing less than 8.5 kg and supported by a 500GB hard drive for ample image storage, this system is an ideal solution for hospitals, clinics, and point‑of‑care settings.
Key Features & Benefits
Advanced Imaging Technologies for Superior Diagnostic Confidence
The U60 incorporates a comprehensive suite of advanced imaging technologies to deliver clear, stable images:
-
Phased Inversion Harmonic Compound Imaging (eHCI) – reduces image noise and clutter, delivering cleaner, more diagnostic images
-
Spatial Compounding Imaging – utilizes multiple lines of sight to improve contrast resolution and reduce artifacts
-
Speckle Reduction Imaging (eSRI) – enhances tissue differentiation while maintaining detail resolution
-
Multi‑Beam Forming (mBeam) – maintains high frame rates in all modes including color and pulsed wave Doppler
-
Frequency Compounding Imaging – enhances tissue differentiation and detail resolution
These technologies work together to provide exceptional image quality across all clinical applications.
User‑Centric Design for Efficient Workflow
-
High‑resolution 15‑inch LCD monitor – delivers crisp, clear images for easy viewing
-
Intuitive control panel – ensures easy operation, minimizing training requirements
-
Dual transducer ports – allows simultaneous connection of two transducers for seamless switching during examinations
-
Battery operation of up to 80 minutes – provides uninterrupted workflow, even in mobile or remote settings
-
500GB hard drive – capable of storing over 227,000 static images
Comprehensive Imaging Modes
The U60 supports a full range of imaging modes for versatile clinical applications:
| Imaging Mode | Description |
|---|---|
| B‑mode | Fundamental 2D imaging |
| M‑mode | Motion analysis |
| Color Doppler | Real‑time blood flow visualization |
| PDI/DPDI | Power Doppler Imaging / Directional Power Doppler Imaging |
| PW Doppler | Pulsed Wave Doppler for quantitative flow assessment |
| CW Doppler | Continuous Wave Doppler for high‑velocity flow measurement |
| HPRF | High Pulse Repetition Frequency for extended velocity range |
Versatile Probe Compatibility
The U60 supports a wide range of transducers to address diverse clinical applications:
| Transducer Type | Applications |
|---|---|
| Convex Array (2–6 MHz) | Abdominal, obstetric, and general imaging |
| Linear Array (5–15 MHz) | Musculoskeletal, small parts, and vascular imaging |
| Phased Array (2–5 MHz) | Cardiac assessment |
| Micro‑Convex Array | Small parts, pediatric, and neonatal imaging |
| Endocavity Array | Gynecological and urological examinations |
Versatile Clinical Applications
The U60 delivers outstanding performance across a broad spectrum of clinical applications:
-
Abdomen – liver, gallbladder, pancreas, spleen, kidney evaluation
-
Obstetrics – fetal biometry, gestational age assessment
-
Gynecology – uterine and ovarian evaluation
-
Cardiology – cardiac assessment with Color and PW Doppler
-
Vascular – peripheral vascular and carotid artery assessment
-
Small Parts – breast, thyroid, testes, and superficial structure imaging
-
Musculoskeletal – tendon, ligament, and joint assessment
-
Urology – renal, bladder, and prostate examinations
-
Pediatrics – pediatric and neonatal imaging
Flexible Data Management and Connectivity
-
500GB hard drive – for on‑device archiving of patient images
-
Flexible image archiving – including storage to USB and DICOM
-
DICOM 3.0 compatibility – seamless integration with PACS and hospital information systems
-
Network transmission – for data sharing and remote access
-
Multiple peripheral ports – including USB ports for easy connectivity
-
Comprehensive measurement and calculation software – for all major clinical applications
Portable and Durable Design
-
5000mAh rechargeable battery – up to 80 minutes of continuous operation
-
Linux‑based operating system – enables additional printer drivers and USB DVD drive support
-
IPX7‑rated probes – for reliable performance in clinical environments
Included Accessories
-
Rechargeable lithium‑ion battery
-
Power cord
-
Flash disk
-
Potential equalization conductor
-
Carrying case
-
Ultrasound gel
-
User manual
Optional Accessories
-
Luxury mobile trolley
-
Black and white video graphic printer
-
Color video printer
Why Choose the EDAN U60?
| Clinical Challenge | U60 Solution |
|---|---|
| Need for portable ultrasound | Lightweight <8.5 kg design with 80‑minute battery—use anywhere |
| Budget constraints | Cost‑effective system without compromising image quality |
| Multiple clinical applications | Comprehensive transducer range + application‑specific software |
| Image quality concerns | Harmonic imaging, speckle reduction, and spatial compounding technologies |
| Workflow efficiency | Intuitive control panel + dual transducer ports + one‑key standby |
| Training requirements | User‑centric design with Smart Presets—minimal training |
| Data management | 500GB storage + USB + DICOM 3.0 + network connectivity |
| Department versatility | One system serves OB/GYN, abdominal, cardiac, vascular, and more |
Technical Specifications
