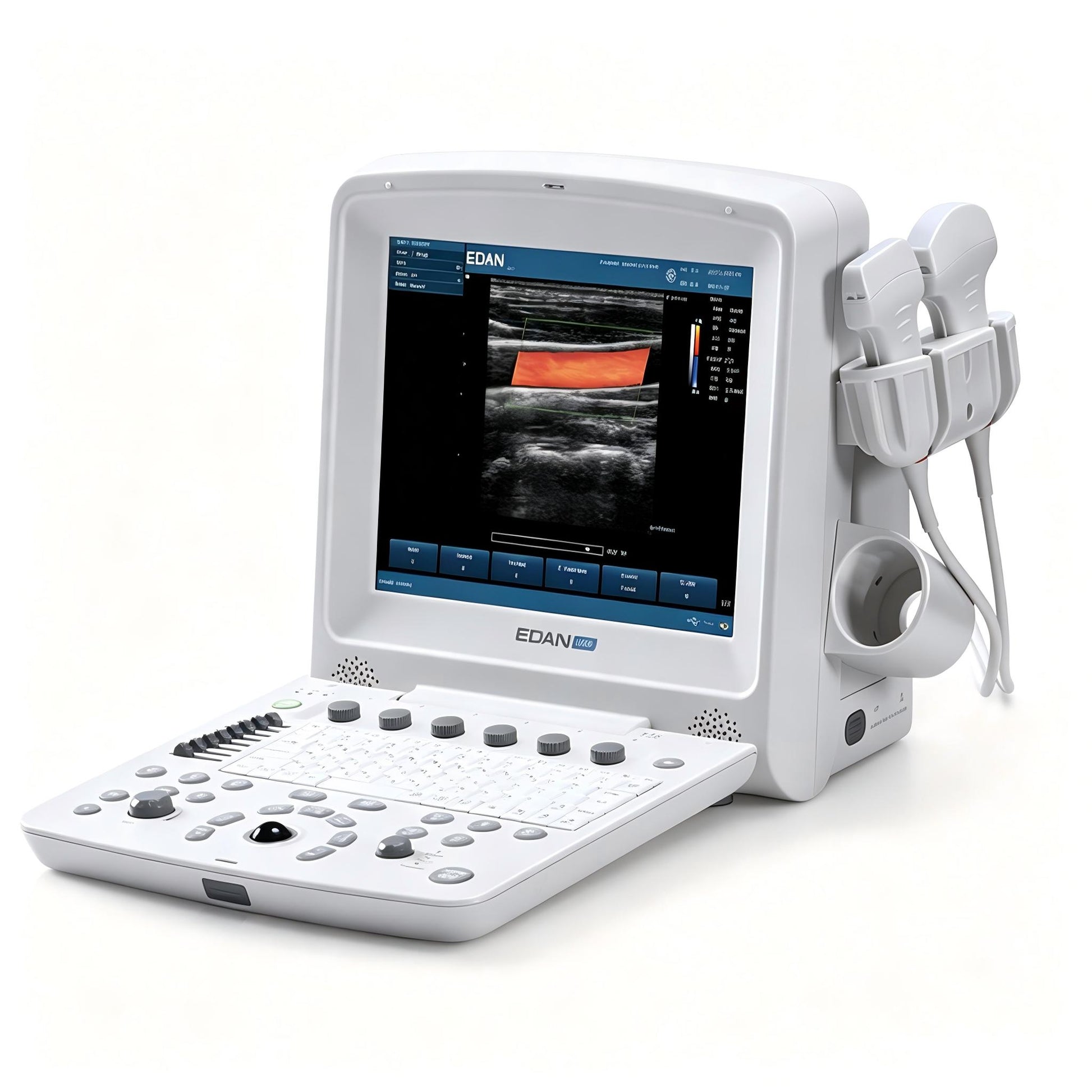

EDAN U50 Diagnostic Ultrasound System

The EDAN U50 is a portable, cost‑effective color Doppler diagnostic ultrasound system designed to deliver reliable performance across a wide range of clinical applications. Characterized by a compact, lightweight design and a user‑centric workflow, the U50 meets the need for a highly portable and easy‑to‑use ultrasound system. It offers excellent image quality and functional performance, delivering high diagnostic confidence for patients in hospitals and clinics.

Featuring a 12.1‑inch high‑resolution LCD display, two active transducer connectors, and a comprehensive suite of advanced imaging technologies, the U50 is designed to address the needs of various clinical departments including ultrasound, obstetrics and gynecology, urology, pain management, and physical examination centers. With its streamlined operation and broad range of features—including B‑mode, M‑mode, Color Doppler, PW, CW, HPRF, and DICOM connectivity—the U50 is a versatile solution for modern diagnostic imaging.

Key Features & Benefits

Superior Image Quality

The U50 incorporates advanced imaging technologies traditionally found only on premium‑priced systems:

• Phase Inversion Harmonic Imaging – reduces noise and clutter for optimum image quality

• Multi‑Beam Technology – ensures high frame‑rate performance in all imaging modes

• Speckle Reduction Imaging (eSRI) – enhances tissue differentiation by reducing granular noise

• Spatial Compounding Imaging – improves contrast resolution by combining multiple angles of insonation

• Frequency Compounding Imaging – enhances tissue differentiation and detail resolution

• Digital Multi‑Beam Beamforming – supports 64 physical channels for exceptional image quality

These technologies, combined with advanced signal processing, provide increased diagnostic confidence across all clinical applications.

Comprehensive Imaging Modes

The U50 supports a full range of imaging modes for versatile clinical applications:

Portable and Ergonomic Design

• 12.1‑inch high‑resolution TFT‑LCD monitor (1024×768 resolution) – delivers crisp, clear images

• Compact and lightweight – 7.8 kg (without probe and battery)

• Dimensions: 32cm (H) × 22cm (W) × 33cm (D)

• Interactive back‑lighting control panel – with tactile feedback hard keys, physical trackball, and 8‑segment TGC sliders

• Ergonomic keyboard layout – for comfortable operation during extended examinations

• Optional lithium battery (5000mAh, removable) – supports portable use

Versatile Clinical Applications

The U50 delivers outstanding performance across a broad range of applications:

Comprehensive Transducer Compatibility

The U50 features two active transducer connectors and supports a wide range of transducers:

Enhanced Workflow Tools

• 256‑frame cine loop – for bidirectional review and retrospective analysis

• Pan Zoom – for detailed examination of regions of interest

• Needle Guide – for interventional procedure guidance

• Smart Preset – one‑touch optimization for different exam types

• Auto Spectrum Envelope – one‑key automatic Doppler measurement

• One‑key Standby – for quick system recovery

• 267 user‑configurable body marks – facilitates accurate documentation and reporting

• Comprehensive measurement and calculation software packages – for all major clinical applications

Flexible Data Management and Connectivity

• 504MB internal memory

• Optional 500GB hard drive – for on‑device archiving of patient images

• Multiple peripheral ports: VGA, composite video, USB

• DICOM 3.0 compatibility – seamless integration with PACS and hospital information systems

• Multi‑language software packages – supports international users

• Linux‑based operating system – enables additional printer drivers and USB DVD drive support

• Optional external DVD drive

Quick and Efficient Operation

• Fast boot‑up: 45 seconds from complete shut‑down

• Quick recovery: 3 seconds from screen saver

• Fast shut‑down: 3 seconds

Technical Specifications

Why Choose the EDAN U50?
