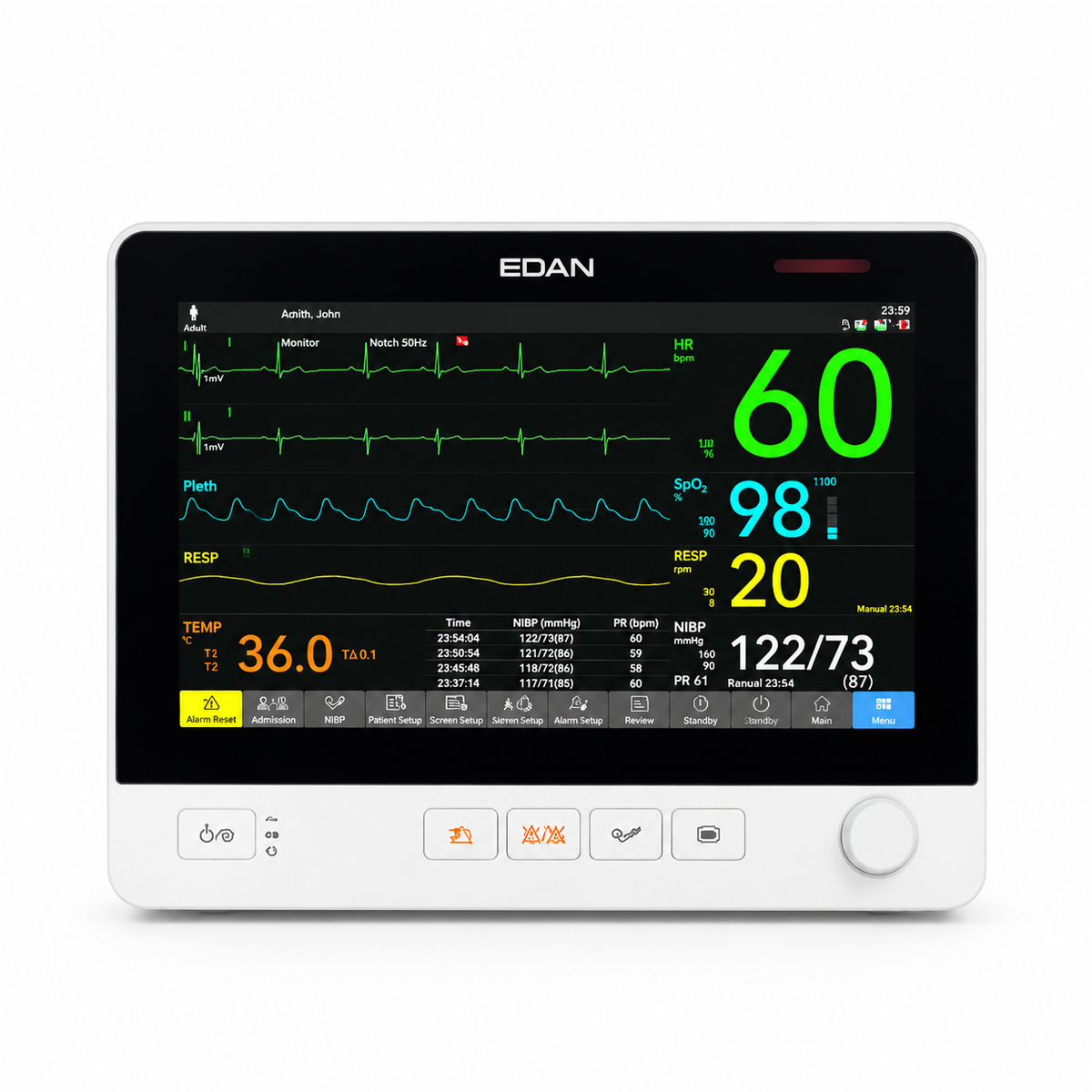

EDAN UX12 Patient Monitor

The EDAN UX12 is the 13.3-inch Full HD model in EDAN‘s UX series of bedside patient monitors, sharing the FDA-cleared CX/UX monitoring platform (K250179) with the CX series and the compact UX10. It is positioned for general wards, emergency departments, step-down units, and intermediate care, where a larger Full HD display, 2-channel temperature as standard, and optional hemodynamic or respiratory parameters are needed without moving to the 15.6-inch UX15.

Standard parameters on the UX12 include 3/5-lead ECG, RESP, EDAN SpO₂, EDAN NIBP, PR, and 2-channel TEMP (T1/T2) , running on EDAN’s iSEAP™ ECG, iCUFS™ / iFAST™ NIBP, and iMAT™ SpO₂ algorithms. The 13.3-inch Full HD touchscreen (1920 × 1080) supports gesture operation, supplemented by a rotary knob for alternative control. A fanless cooling design reduces power consumption and dust accumulation, and the enclosure is designed to withstand up to 31 common medical disinfectants.

For expansion, the UX12 accepts optional 6/12-lead ECG, 2-channel IBP, EDAN G2 sidestream CO₂, and cardiac output (C.O.) , with a thermal recorder, built-in Wi-Fi (Wi-Fi 6), HDMI, and a multifunction interface for documentation and connectivity. Per FDA 510(k) K250179, the UX12 is indicated for monitoring, storing, recording, reviewing, and generating alarms for multiple physiological parameters in adult, pediatric, and neonatal patients; arrhythmia detection/ST analysis and C.O. are indicated for adult patients specifically, and the monitor is not intended for MRI environments.

Data management covers 1,600 NIBP records, 240 hours of trend data, 1,800 alarm events, and 48 hours of full-disclosure waveforms. The rechargeable Li-ion battery (5,100 mAh option) supports transport monitoring, and the monitor weighs approximately 4 kg—making it a Full HD, shared-platform bedside monitor for departments that need larger display area and hemodynamic depth than the UX10, with the same algorithms and accessory ecosystem as the CX series.

Key Features & Benefits

13.3-Inch Full HD Touchscreen with Gesture Operation

The 13.3-inch color TFT touchscreen delivers 1920 × 1080 Full HD resolution, providing a larger viewing area for simultaneous multi-waveform and multi-parameter display. Gesture operation supports direct interaction with displayed parameters and menus, while the rotary knob offers an alternative physical control. Large font, trend, OxyCRG, and full ECG display modes let the clinical team prioritize numerics, waveforms, or historical data depending on the task.

No-Fan Design with Broad Disinfectant Compatibility

The fanless architecture eliminates operating noise and prevents dust from accumulating on internal fan blades and grilles, supporting lower power consumption and reduced dust-related maintenance needs in wards, emergency areas, and intermediate care. The enclosure is designed to withstand up to 31 common medical disinfectants, supporting routine wipe-down protocols between patients.

iSEAP™ ECG: Up to 33 Arrhythmia Types with SEMIP™ Analysis

The iSEAP™ ECG algorithm detects up to 33 arrhythmia types, with arrhythmia detection and ST segment analysis indicated for adult patients under the cleared indications for use. Standard 3/5-lead ECG is expandable to 6/12-lead for broader cardiac evaluation. Multi-level analysis is designed to improve cardiac sensitivity while reducing false alarms.

iCUFS™ and iFAST™ NIBP Algorithms

The UX12 supports both iCUFS™ and iFAST™ NIBP algorithms under the cleared indications. iCUFS™ is intended for adult, pediatric, and neonatal patients, with smart adaptive inflation and deflation. iFAST™ is intended for adult and pediatric patients (≥3 years of age) and is designed to complete measurement in approximately 15 seconds where configured. Both algorithms are also indicated for use with pregnant women, including pre-eclamptic patients; NIBP MAP is not applicable to pregnant women.

iMAT™ SpO₂: Motion and Low-Perfusion Performance

EDAN’s iMAT™ SpO₂ algorithm is engineered for motion resistance and low-perfusion performance, with a Perfusion Index (PI) reference reading that reflects perfusion changes at the sensor site. The UX12 supports simultaneous SpO₂ and NIBP measurement on the same limb, which can simplify setup when access sites are limited.

Optional 2-Channel IBP, CO₂, and Cardiac Output

The UX12 supports optional 2-channel invasive blood pressure (IBP) , EDAN G2 sidestream CO₂, and cardiac output (C.O.) via thermodilution. IBP transducer interface cables are available for BD, Edwards, Hospira/Abbott, Utah, and B.Braun systems. C.O. is indicated for adult patients only. CO₂ monitoring is supported as an optional parameter under the cleared indications.

Extended Data Storage and Connectivity

The UX12 stores 1,600 NIBP records, 240 hours of trend data, 1,800 alarm events, and 48 hours of full-disclosure waveforms. Connectivity includes Wi-Fi 6 (IEEE 802.11a/b/g/n/ac, 2.4/5 GHz), HDMI, a multifunction interface (nurse call, analog output, defibrillator synchronization), and USB for data export. The optional thermal recorder provides hard-copy documentation, and night mode dims the display for low-light recovery areas.
