EDAN VE-1010 Veterinary PC ECG

The EDAN VE-1010 is a PC-based veterinary ECG solution that combines a compact DP12 data sampling box with dedicated VE-1010 VET PC ECG software to turn a compatible Windows computer into a paperless animal ECG workstation. Unlike self-contained ECG devices with built-in screens, the VE-1010 separates acquisition from processing: the sampling box connects to the PC via USB, and the software handles waveform display, measurement, report generation, archiving, and data sharing.

The system is designed for simultaneous 6/7-lead acquisition and recording, supporting resting ECG examination, surgical monitoring, and routine cardiac screening in veterinary practice. The DP12 sampling box measures 148 × 100 × 40 mm, weighs approximately 210 g, and receives power directly from the PC via DC 5V USB—no separate power adapter or battery is required for the acquisition front-end. ECG data is sampled at 1,000 Hz per channel with 24-bit A/D resolution, a 0.05–150 Hz frequency response, and input impedance ≥ 50 MΩ (10 Hz).

The VE-1010 VET PC ECG software provides automatic and manual measurement, heart rate variability analysis, and report generation on standard A4, B5, or Letter paper using a general office printer. Reports can be exported in PDF, WORD, JPG, and BMP formats, and transmitted via email for teleconsultation or shared across a local area network (LAN) . The software maintains a database of patient information and ECG traces for archiving and recall, supporting a paperless and streamlined workflow for veterinary clinics.

Windows compatibility is a critical consideration for this product. The VE-1010 software is only compatible with Windows 7 and Windows XP (with Windows Vista also referenced in some documentation). It is not compatible with Windows 10, Windows 11, or macOS, and the system requirements reference older hardware specifications (Pentium P4 or Celeron D 310 or above, 256 MB RAM, 40 GB HDD). Buyers must confirm that a suitable Windows 7/XP computer is available before purchase.

Regulatory status: The VE-1010 is a veterinary device, not a human medical device. No FDA 510(k) clearance specific to the VE-1010 was identified in the public FDA database; available records reference IEC/EN 60601-1-1 compliance and a general U.S. federal restriction statement, consistent with veterinary equipment labeling. No independent CE MDR certification specific to this model was identified. Availability and labeling vary by market; confirm local import and use requirements before purchase.

The VE-1010 is built for veterinarians who want to use an existing compatible PC as the display and processing platform, adding 6/7-lead ECG acquisition, digital measurement, report export, and archiving without purchasing a self-contained ECG cart.

Key Features & Benefits

PC-Based Paperless Workflow: Sampling Box + Dedicated Software

The VE-1010 separates the ECG acquisition front-end (DP12 sampling box) from the computing and display environment (the clinic’s Windows PC) . The sampling box connects via USB and is powered by the PC, while the VE-1010 VET PC ECG software provides the waveform display, measurement tools, report templates, and database. This architecture allows clinics to leverage existing computer hardware rather than dedicating a standalone ECG device to each examination room.

Simultaneous 6/7-Lead Acquisition with 24-Bit Signal Chain

The DP12 sampling box acquires 6 or 7 leads simultaneously, with 24-bit A/D resolution, 1,000 Hz per-channel sampling, input impedance ≥ 50 MΩ (10 Hz), and a frequency response of 0.05–150 Hz (−3 dB) . The input circuit is floating and defibrillation-protected, and the system supports automatic baseline adjustment to keep traces readable during recording. These are signal-chain specifications; clinical value depends on proper electrode placement and clinician review.

Heart Rate Variability Analysis and Auto/Manual Measurement

The VE-1010 software includes automatic and manual measurement tools, with heart rate variability (HRV) analysis referenced as part of the feature set. HRV analysis is positioned as a tool for assessing autonomic influence on cardiac rhythm, and is presented within the software as an analytical function for clinician interpretation. The software also supports multiple display modes, including 7×1 and 3×3 layouts for the 6-lead mode.

Report Export in PDF, WORD, JPG, and BMP with Teleconsultation

ECG reports can be generated on standard A4, B5, or Letter paper using a general office printer, with paper speeds of 5, 6.25, 10, 12.5, 25, or 50 mm/s (±3%) and gain settings of 0.625, 1.25, 2.5, 5, 10, 20, or 40 mm/mV. Reports can be exported in PDF, WORD, JPG, and BMP formats, and transmitted via email for teleconsultation or shared across a LAN . This supports remote case discussion and digital recordkeeping without requiring a dedicated thermal printer.

Patient Database and Complete ECG Archives

The software maintains a database of patient information and ECG traces for archiving and recall. Storage capacity depends on the PC’s hard drive, rather than a fixed internal memory limit, allowing clinics to retain as many records as their computer storage allows. Pet ID, pet name, sex, age, and species can be recorded alongside each ECG for organized retrieval.

Compact USB-Powered Sampling Box

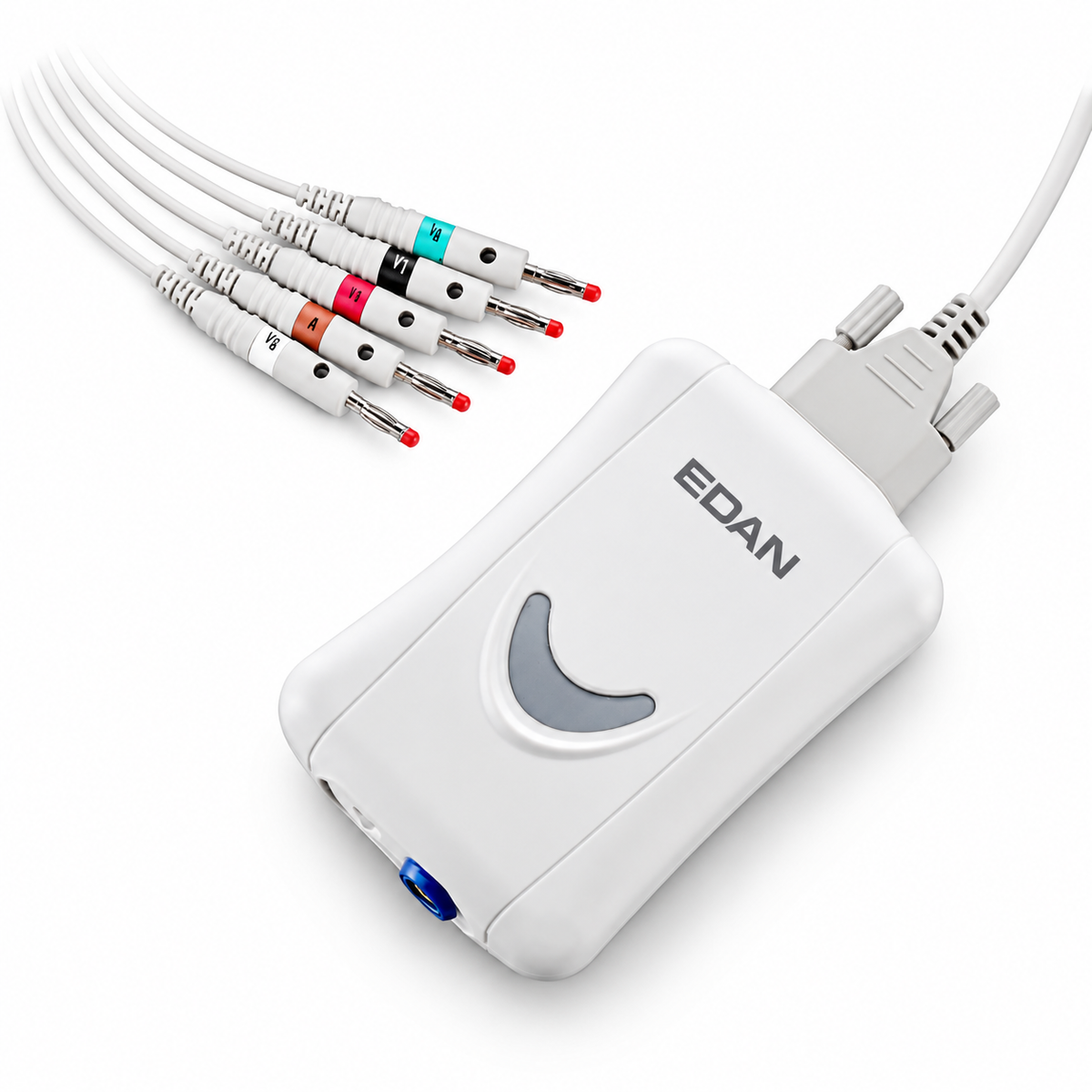

The DP12 sampling box measures 148 × 100 × 40 mm, weighs approximately 210 g, and is powered directly from the PC via USB (DC 5V) . It is small enough to place beside the patient or on a clip, reducing cable clutter between the animal and the computer. The system includes a 5-lead veterinary ECG cable (Ø4 mm banana connector, IEC or AHA) and a set of reusable veterinary clip electrodes as standard.

Windows 7 / XP Compatibility: Critical System Requirement

The VE-1010 software is only compatible with Windows 7 and Windows XP (with Windows Vista also referenced in some documentation). It is not compatible with Windows 10, Windows 11, or macOS. The software’s system requirements reference Pentium P4 or Celeron D 310 or above, 256 MB RAM or above, and 40 GB HDD or above. Buyers should confirm that a suitable Windows 7/XP computer is available or can be maintained before purchase, as this is a legacy operating system environment.

Veterinary-Specific Intended Use

The VE-1010 is intended for veterinary ECG examination and is not a human medical device. It is designed for use by veterinarians and trained veterinary professionals in animal hospitals, clinics, and surgical settings for resting ECG examination and surgical monitoring. It should not be used for human diagnostic purposes.
