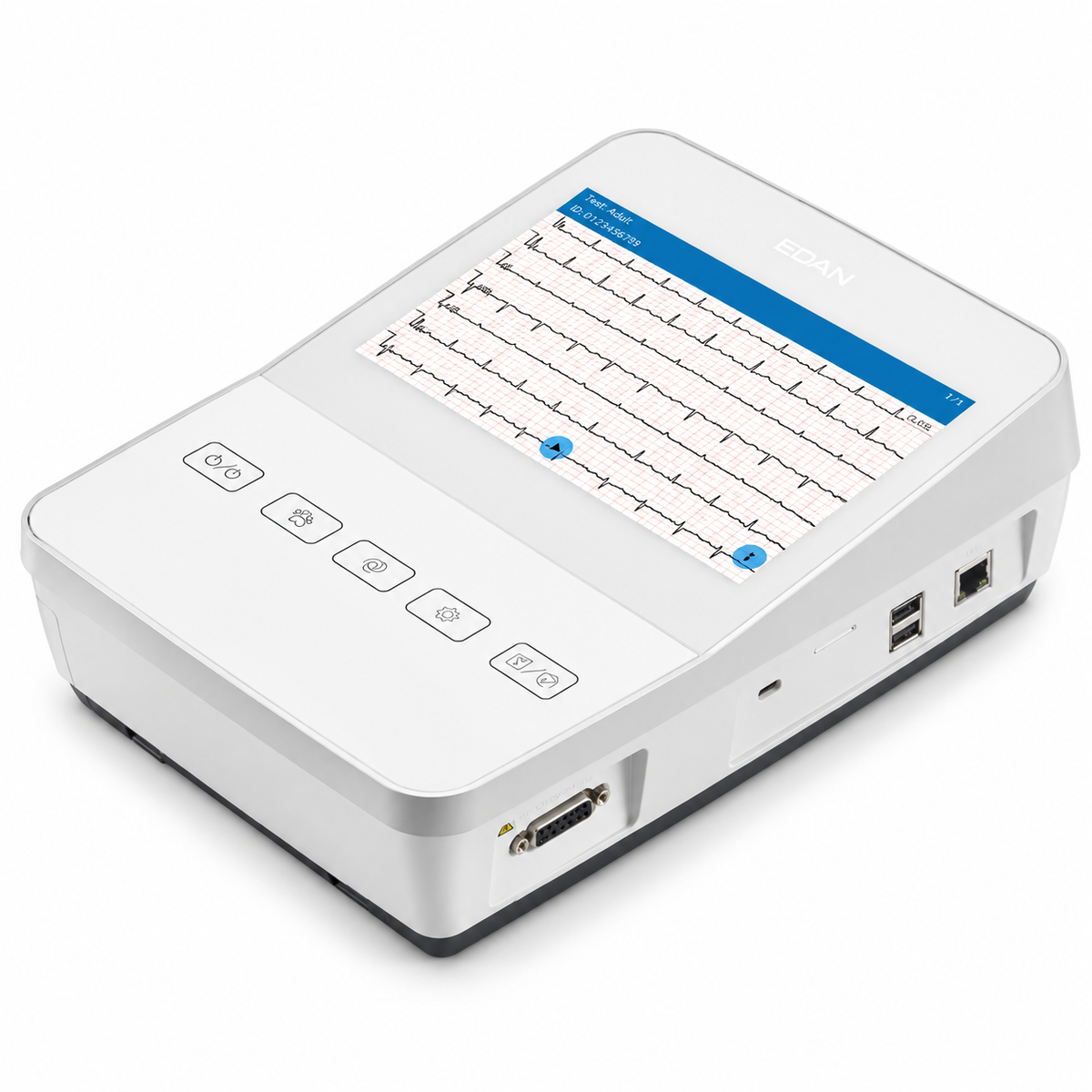

EDAN VE-1200 Pro Veterinary Electrocardiograph

The EDAN VE-1200 Pro is a 12-channel veterinary electrocardiograph engineered specifically for animal patients, combining a 8.0/10.1-inch full touchscreen, VE-SEMIP automatic analysis algorithm, built-in Wi-Fi, and a built-in thermal printer in a compact enclosure designed for routine cardiac assessment in veterinary practice. It is positioned for companion animal clinics, animal hospitals, and surgical monitoring environments where rapid ECG acquisition and on-screen analysis support clinical workflow.

The VE-1200 Pro is built around EDAN’s VE-SEMIP algorithm, which integrates advanced filtering, waveform recognition, precise measurement, and automated analysis into a single processing chain. According to EDAN’s product literature, VE-SEMIP dynamically optimizes for each animal species and body size, generating analysis results and interpretive suggestions as soon as data acquisition is completed. These outputs are presented as clinical decision support—they are intended to assist the veterinarian in reviewing the ECG, not to replace clinical judgment.

The device supports 12-channel ECG acquisition through a veterinary-specific ECG cable and reusable flat clip electrodes, with the standard accessory set including a 5-lead veterinary ECG cable (banana connector, IEC) and 5 reusable veterinary clip electrodes. The glass frontal panel and full touchscreen with gesture operation support routine cleaning and disinfection between patients, while the industrial-grade hardware is specified for accurate signal acquisition across different clinical environments.

The VE-1200 Pro includes built-in Wi-Fi for data transmission, an SD card slot (8 GB optional) for extended storage, and barcode scanner compatibility for patient identification. The built-in thermal printer produces reports on A5-size Z-fold paper (210 mm × 140 mm) , and the device supports gesture-based waveform amplification and measurement alongside averaged template analysis for detailed review.

The system is powered by a rechargeable lithium-ion battery (2500 mAh) or AC mains via a 19 V power adapter, and is available with an optional handle for transport between examination rooms and wards. An optional rolling stand (MT-310) supports cart-based deployment where a fixed workstation is preferred.

Regulatory status: The VE-1200 Pro is a veterinary device, not a human medical device. No FDA 510(k) clearance specific to the VE-1200 Pro was identified in the public FDA database during preparation of this page; the device is positioned for veterinary use and is not intended for human diagnostic purposes. No independent CE MDR certification specific to this model was identified; availability and labeling vary by market. Confirm local import and use requirements before purchase.

The VE-1200 Pro is built for veterinarians who need a dedicated, touch-operated 12-channel ECG device with species-aware analysis, integrated printing, and network-ready data management—without adapting a human ECG system to animal use.

Key Features & Benefits

VE-SEMIP: Species-Aware Analysis for Veterinary ECG

The VE-SEMIP algorithm is the defining feature of the VE-1200 Pro. It integrates filtering, waveform recognition, measurement, and automated analysis into a single processing pipeline, with dynamic optimization for each animal species and body size. According to EDAN’s product documentation, this approach is intended to deliver analysis results and interpretive suggestions immediately after acquisition, supporting rapid review during consultations and pre-surgical assessments. These outputs are clinical decision support tools; they assist the veterinarian’s interpretation and do not constitute an independent diagnosis.

8.0/10.1-Inch Full Touchscreen with Gesture Operation

The 8.0/10.1-inch full touchscreen displays all 12 leads and provides gesture-based operation for waveform review and menu navigation. The glass frontal panel is designed for easy cleaning and disinfection between patients, supporting infection control in high-turnover clinical environments. The industrial-grade hardware is specified for accurate signal acquisition, with the touch interface allowing direct interaction with the displayed ECG.

Built-In Wi-Fi, SD Card, and Barcode Scanner Support

The VE-1200 Pro includes built-in Wi-Fi for wireless data transmission, an SD card slot for extended local storage (8 GB card available as an option), and barcode scanner compatibility (linear or 2D) for streamlined patient identification. These connectivity features support integration into veterinary practice management workflows where digital recordkeeping and patient tracking are prioritized.

Built-In Thermal Printer with A5 Paper

The integrated thermal printer produces 12-channel reports on A5-size Z-fold paper (210 mm × 140 mm) . The printer is part of the main unit, so acquisition and hard-copy documentation happen at the point of care without a separate printing device. The Z-fold paper format keeps reports organized and easy to file in patient records.

Gesture Amplification, Measurement, and Averaged Template Analysis

The VE-1200 Pro supports gesture-based amplification and measurement of any waveform segment on screen, allowing detailed inspection of specific complexes or intervals. Averaged template analysis displays the averaged P, Q, S, and T points with relevant measurement parameters, and users can manually relocate these points and recalculate the corresponding values where needed. These tools support detailed ECG review without requiring external software.

12-Channel Acquisition with Veterinary-Specific Accessories

The VE-1200 Pro acquires 12 leads simultaneously through a veterinary-specific ECG cable and reusable flat clip electrodes designed for animal anatomy. The standard accessory set includes a 5-lead veterinary ECG cable (Ø4 mm banana connector, IEC) and 5 reusable veterinary clip electrodes, with AHA cable options available separately. The floating input circuit and defibrillation protection support safe acquisition in clinical settings.

Rechargeable Battery and Optional Transport Handle

The 14.8 V, 2500 mAh lithium-ion battery supports operation away from mains power, with the device also operable on AC mains via a 19 V power adapter. An optional handle is available for transport between examination rooms, and an optional rolling stand (MT-310) supports cart-based deployment for clinics that prefer a dedicated ECG station.

Glass Panel and Touchscreen for Routine Disinfection

The glass frontal panel and flat touchscreen surface are designed for routine cleaning and disinfection between patients. This is particularly relevant in veterinary settings where animals may be examined in rapid succession and infection control between patients is a practical requirement.
