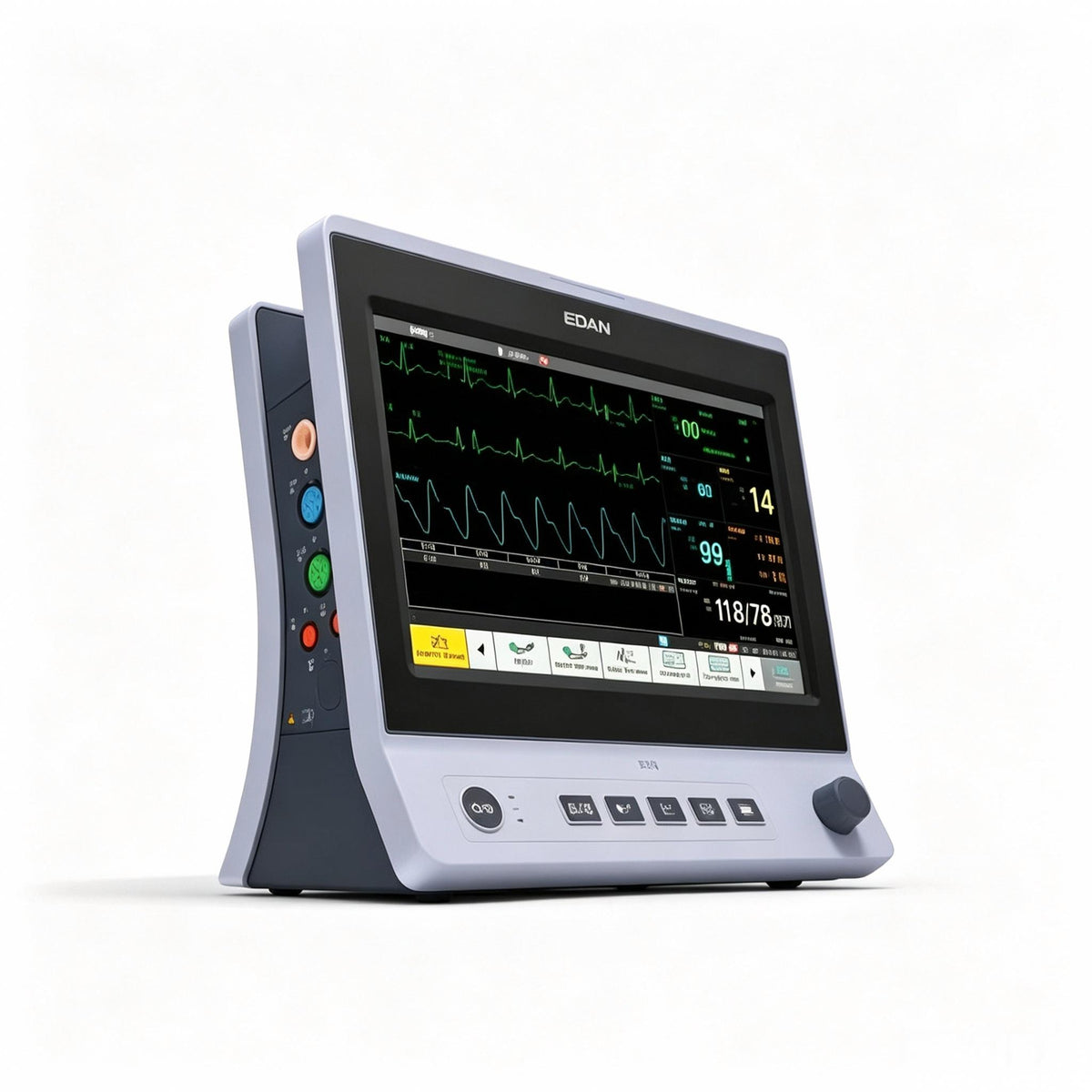

EDAN X10 Patient Monitor

The EDAN X10 Patient Monitor is a high-performance multi-parameter bedside monitor designed for general wards, emergency rooms, rehabilitation centers, cardiac intensive care units, and in-hospital transfer units. Featuring a 10.1-inch color touchscreen with 800×600 resolution, the X10 delivers crisp, detailed vital sign information for effortless interpretation at a glance.

Designed for every patient from neonate to adult, the X10 combines advanced monitoring algorithms with comprehensive data storage, seamless Wi-Fi connectivity, and a user-friendly interface—making it an indispensable tool in contemporary healthcare facilities.

Key Features & Benefits

High-Resolution 10.1-Inch Touchscreen

The 10.1-inch color TFT LCD touchscreen delivers clear visualization of up to 13 waveforms simultaneously. The intuitive shortcut menu and user-friendly interface boost working efficiency, while customizable alarms and profiles for adult, pediatric, and neonatal patients ensure tailored monitoring for every case.

Comprehensive Parameter Monitoring

The X10 provides a full suite of standard parameters for comprehensive patient assessment:

• 3/5-lead ECG with automatic lead type detection

• EDAN SpO₂ with iMAT™ algorithm for motion resistance and low perfusion performance

• EDAN NIBP with iCUFS™ algorithm and smart deflation technology

• Respiration (RESP)

• 2-TEMP (dual temperature channels)

• Pulse Rate (PR) and Heart Rate (HR)

Optional configurations expand the X10's capabilities:

• 6/12-lead ECG with unique 6-lead system featuring automatic chest lead identification

• G2 CO₂ (sidestream) with superior water trap design and iCARB™ algorithm

• Dual IBP slots for invasive blood pressure monitoring

• Cardiac Output (X12 model)

• Thermal Recorder for hard-copy documentation

• Nurse Call (with CMS) and Defibrillator Synchronization

Advanced Proprietary Algorithms

The X10 incorporates EDAN's industry-leading algorithms for accurate, reliable measurements:

Extensive Data Storage

The X10 is equipped with 8GB internal memory for comprehensive data management:

• 240-hour trend review – graphic and tabular

• 1200 NIBP measurements

• 120-second frozen waveform

• 48-hour waveform review

• 200 alarm events and 200 arrhythmia events

Seamless Connectivity

• Built-in Wi-Fi – streams live vitals to central monitoring station and syncs with EMR

• HL7 output – EMR / HIS sync

• USB, VGA output, Ethernet

• Compatible with EDAN CMS / CMS Lite III

Portable & Ultra-Slim Design

The X10 is designed for mobility without compromising performance:

• Ultra-slim design – thinnest spot measures just 7.6cm

• Lightweight – ≤ 2.8 kg

• Built-in carry handle – portable with or without a cart

• Battery duration up to 8 hours – supports in-hospital transport

• No-fan design – silent operation, no dust accumulation

Safety & Compliance

• Class I, CF type – suitable for cardiac contact applications

• FDA 510(k) cleared

• CE marked

• IEC/EN 60601-1 compliant

• IEC 60601-1-2 EMC compliant

Technical Specifications

Why Choose the EDAN X10?
