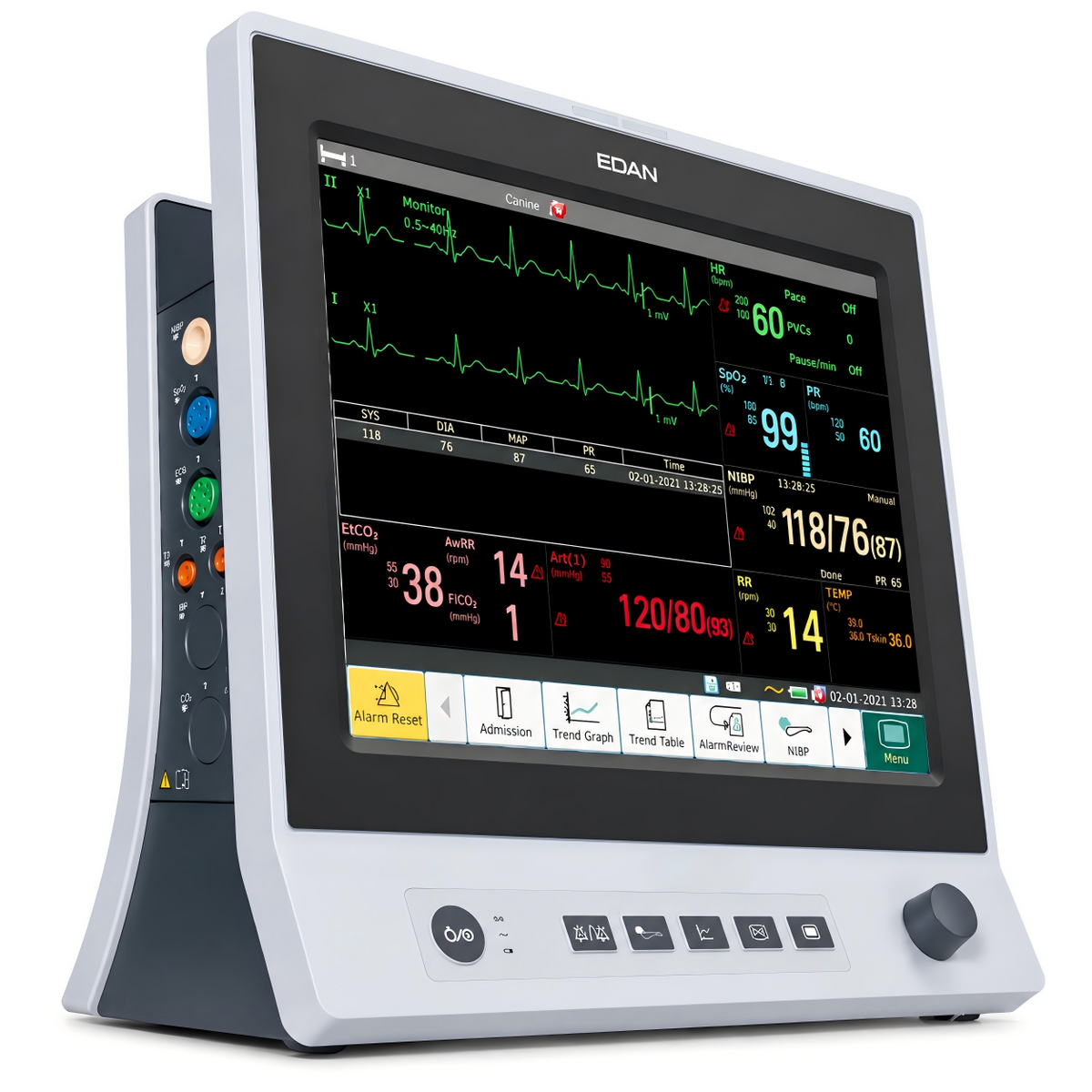

EDAN X12 VET Veterinary Monitor

The EDAN X12 VET is the 12.1-inch flagship model in EDAN’s X VET series—the largest and most capable configuration in the line, sharing the same ultra-slim, no-fan architecture as the X8 and X10 VET but adding the widest display area and the broadest optional parameter set in the series.

Standard parameters on the X12 VET include 3/5-lead ECG, RESP, EDAN SpO₂, EDAN NIBP, PR, and 2-channel TEMP (T1/T2) , running on EDAN’s iSEAP™ ECG, iMAT™ SpO₂, and iCUFS™ NIBP algorithms. The optional full-touch 12.1-inch screen provides direct on-screen interaction for parameter selection and menu navigation, while canine and feline alarm programs arrive pre-configured for species-appropriate threshold behavior.

For anesthetic and critical-care workflows, the X12 VET supports EDAN G2 sidestream CO₂ (iCARB™ algorithm with pseudo-wave identification and a water trap design), 2-channel IBP with a choice of transducer interface cables, and 6/12-lead ECG for expanded cardiac evaluation. Esophageal probe options combine ECG and core body temperature in a single lead, simplifying cable management in procedures.

Data management covers 1,200 NIBP records, 240 hours of trend data, 200 alarm and arrhythmia events, and 48 hours of full-disclosure waveforms, with USB export and optional built-in 32 GB SD card storage. The rechargeable Li-ion battery supports extended monitoring away from mains power, and the no-fan design eliminates operating noise and internal dust accumulation—practical advantages in surgical suites and recovery areas.

The X12 VET is built for clinics that need the largest viewing area in the X VET series without moving to a modular platform: the same algorithms, accessories ecosystem, and ultra-slim chassis, scaled to a 12.1-inch display.

Key Features & Benefits

12.1-Inch Display in an Ultra-Slim, No-Fan Chassis

The 12.1-inch color TFT-LCD provides the widest viewing area in the X VET series, with a 100° incline angle that keeps the screen readable whether the monitor sits on a tabletop or a rolling stand. The fanless cooling design eliminates operating noise and prevents dust from accumulating on internal fan blades and grilles—an advantage in surgical suites, recovery wards, and any environment with strict dust-control expectations.

Dual-Channel Temperature (T1 / T2)

The X12 VET supports 2-channel temperature (T1 and T2) as standard, enabling simultaneous monitoring of two temperature sites—for example, core and peripheral—without adding a second device. The optional esophageal probe combines ECG and core body temperature in one lead, simplifying cable management when rectal temperature measurement is not practical.

Optional Full-Touch Screen with Customizable Shortcuts

The optional full-touch 12.1-inch display adds direct on-screen parameter selection and menu navigation. The customizable shortcut menu along the bottom of the display places frequently used functions—alarm review, trend review, NIBP start/stop, and printing—within one tap. A waterproof silicone button shield supports routine wipe-down between patients.

Optional 2-Channel Invasive Blood Pressure (IBP)

The X12 VET offers optional 2-channel IBP, with a choice of transducer interface cables (BD, Edwards, Hospira/Abbott, Utah, B.Braun) and disposable transducer kits from major vendors. For procedures and critical patients where non-invasive cuff readings are insufficient, IBP adds direct pressure waveform monitoring alongside the standard NIBP parameter.

EDAN G2 Sidestream CO₂ with iCARB™

When configured with the EDAN G2 CO₂ module, the X12 VET adds sidestream capnography with the iCARB™ algorithm for intelligent CO₂ pseudo-wave identification, a water trap design to protect the monitor from humidity, and a breath tone that provides an audible cue to real-time respiratory changes. Low-flow sidestream sampling (approximately 50 mL/min) supports CO₂ monitoring in small patients.

ECG with iSEAP™: 33 Arrhythmia Types and Auto Lead Detection

The iSEAP™ ECG algorithm supports auto-detection of 33 arrhythmia types, automatic lead placement detection to reduce false alarms, and customized filtering for cleaner waveforms. The monitor is defibrillation-proof and ESU-protected, with defibrillator synchronization available through the optional VGA/analog output interface.

SpO₂ with iMAT™: Motion and Low-Perfusion Performance

EDAN’s iMAT™ SpO₂ algorithm is designed for motion resistance and low-perfusion performance, with a Perfusion Index (PI) reference reading that reflects perfusion changes at the sensor site. Veterinary-specific SpO₂ sensors are available as part of the X VET accessories ecosystem.

Data Review, Export, and Night Mode

The X12 VET stores 1,200 NIBP records, 240 hours of trend data, 200 alarm events, 200 arrhythmia events, and 48 hours of full-disclosure waveforms. Data can be exported via USB or retained on an optional built-in 32 GB SD card. Night mode dims the display for low-light recovery areas, and thermal printing (optional) supports hard-copy documentation.
