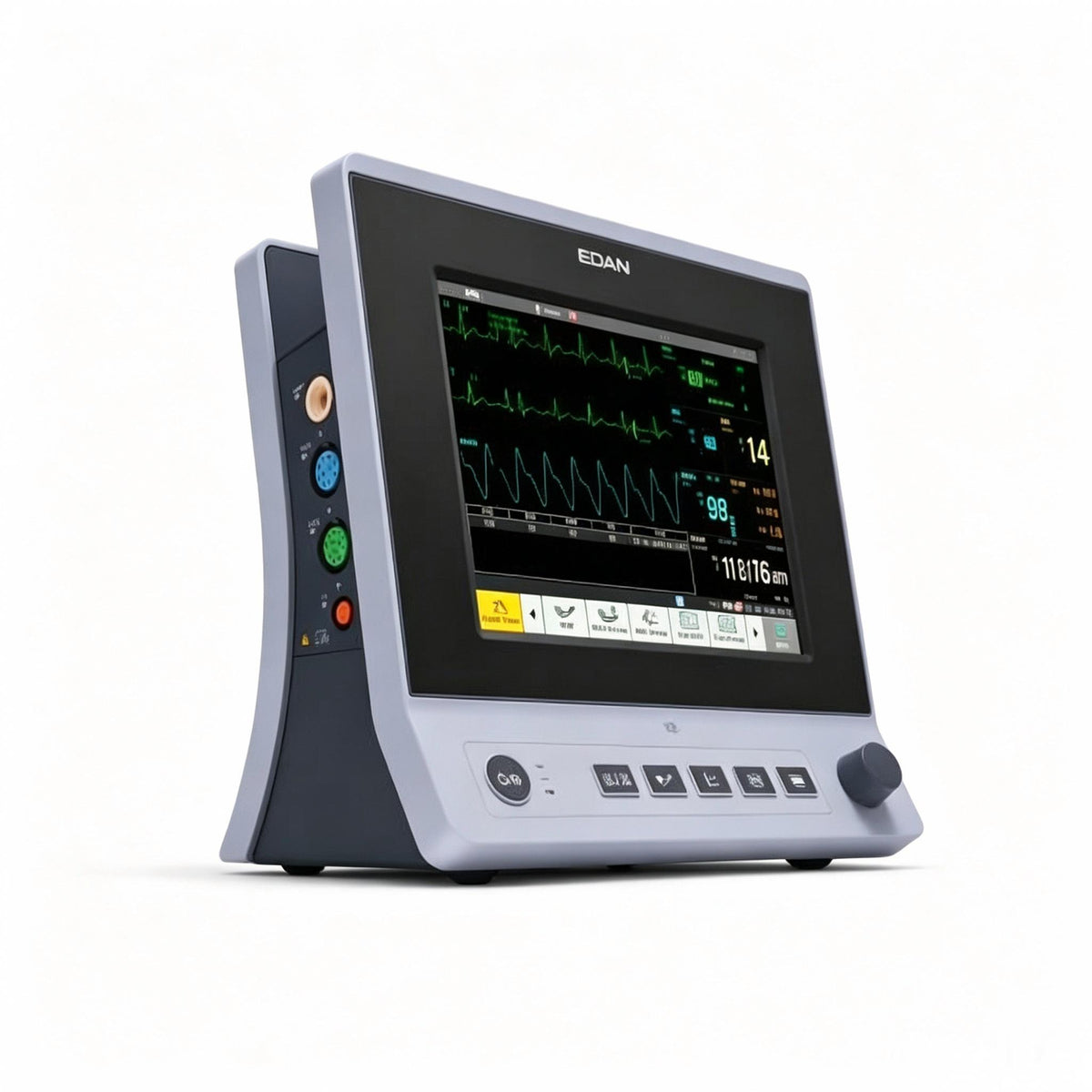

EDAN X8 Patient Monitor

The EDAN X8 Patient Monitor is a compact, high-performance multi-parameter monitor designed for general wards, step-down units, and in-hospital transport. Built for every patient from neonate to adult, the X8 delivers reliable vital sign coverage from a single 8-inch color touchscreen. With built-in Wi-Fi, it streams live vitals directly to your central monitoring station and syncs with your EMR—no cabling retrofit required. The X8 fulfills primary clinical requirements across diverse environments including emergency rooms, general wards, rehabilitation departments, and cardiac units.

Key Features & Benefits

High-Resolution 8-Inch Touchscreen

The 8-inch color TFT LCD touchscreen (800×600 resolution) delivers crisp, detailed vital sign information for effortless interpretation. The intuitive shortcut menu and user-friendly interface boost working efficiency. The ultra-slim design measures just 7.6cm at its thinnest point, with a built-in carry handle for easy transport.

Comprehensive Parameter Monitoring

The X8 provides a full suite of standard parameters:

• 3/5-lead ECG with iSEAP™ algorithm for auto-detection of 33 types of arrhythmias

• SpO₂ with iMAT™ algorithm offering motion resistance and low perfusion resistance

• NIBP with iCUFS™ algorithm and smart deflation technology

• Respiration (RESP)

• Pulse Rate (PR) and Heart Rate (HR)

• 2-TEMP (dual temperature channels)

• Optional 6/12-lead ECG upgrade with automatic lead type detection

• Optional G2 CO₂ (sidestream) with iCARB™ algorithm and intelligent pseudo-wave identification

• Optional Dual IBP slots

• Optional Cardiac Output (X12)

• Optional Multi-Gas

Advanced Algorithms & Technologies

The X8 incorporates EDAN's proprietary algorithms:

• iSEAP™ ECG algorithm – auto-detection of 33 types of arrhythmias, pacemaker detection

• SEMIP® ECG diagnosis algorithm – 208 ECG findings across age/gender diversities

• iMAT™ SpO₂ algorithm – motion-resistant, low-perfusion validated; reference reading of Perfusion Index (PI)

• iCUFS™ NIBP algorithm – validated for cardiac, hypertensive, and neonatal patients

• G2 CO₂ with iCARB™ algorithm – intelligent CO₂ pseudo-wave identification with sampling rate as low as 50ml/min

Extensive Data Storage

• 240-hour trend review – graphic and tabular

• 1200 NIBP measurements

• 120-second frozen waveform

• 8GB internal memory

• 200 alarm events, 200 arrhythmia events, 48-hour waveform review

Seamless Connectivity

• Built-in Wi-Fi – streams live vitals to central monitoring station and syncs with EMR

• HL7 output – EMR / HIS sync

• USB, VGA output, Ethernet

• Compatible with Edan CMS / CMS Lite III

Low Power Consumption & Portability

• Battery duration up to 8 hours

• No-fan design – silent operation, no dust accumulation

• Streamlined design – thinnest spot 7.6cm

• Built-in carry handle – portable with or without a cart

Safety & Compliance

• Class I, CF type – suitable for cardiac contact applications

• FDA 510(k) cleared

• CE marked

• IEC/EN 60601-1 compliant

• IEC 60601-1-2 EMC compliant
