Model:GHM030202
A Fully Automatic Urine Analyzer is a high-performance laboratory device that provides fast, accurate, and automated analysis of urine samples. Designed for medium to large clinical laboratories, it streamlines the entire urinalysis process—from sample loading to data output—minimizing manual intervention and maximizing workflow efficiency.
Features:
*Full automation: the instrument can complete the whole process of sample submission, sample injection, sample dropping, analysis and output report automatically without personnel on duty.

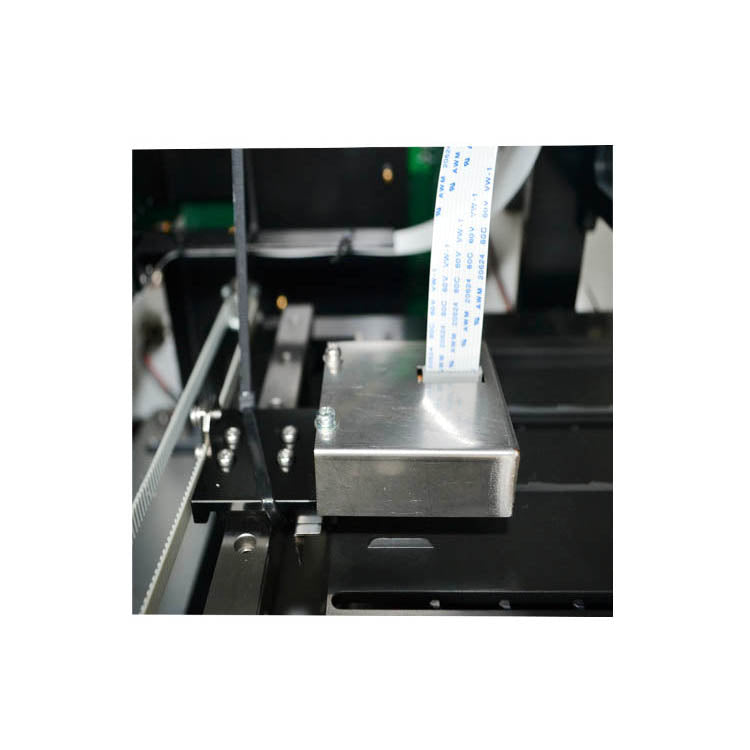

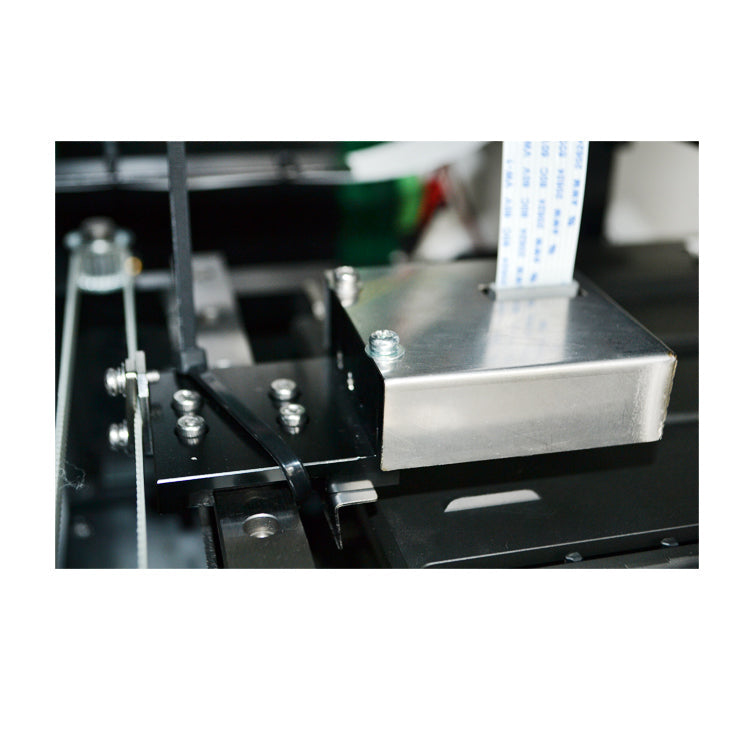

*The high-precision sampling system ensures the accuracy of the sample size of the test strip and reduces the pollution of the working table.
*Each module of the instrument adopts 32-bit ARM processor, and Can bus connection is applied to achieve fast and accurate result.
*Unique IC card control system: reduce the test strip batch difference, the result is more accurate.
*Unique system upgrade function: convenient TF card upgrade maintenance function, users can experience the latest software support synchronously.
*It can be online detected with the urine sediment analyzer and provide a comprehensive solution for urine, combining urine dry chemistry test results, sediment test results and physical and chemical indicators comprehensively.
Specifications:
|
Test Parameters |
Urobilinogen(URO),Bilirubin(BIL),Ketone (KET),Blood (BLD),Protein (PRO),Nitrite (NIT),Leukocytes(LEU),Glucose(GLU),Specific Gravity(SG),PH(pH),Ascorbic Acid(VC), Microalbumin(MAL) |
|
Test Principle |
Photoelectric colorimetric method |
|
Test Speed |
240 strips/hour(15 seconds/strip) |
|
On Board Sample Capacity |
5 racks of 10 tubes (50 samples) |
|
Sample Volume |
Minimum volume: 3 ml |
|
Aspiration Volume |
Less than 1 ml |
|
Data Storage Capacity |
20,000 |
|
External Output |
RS-232 |
|
Power Supply |
AC 220V, 50Hz |
|
Power |
300VA |
|
Fuse |
250V 2A |
|
Dimensions |
660mm x 625mm x 581mm(L x W x H) |
|
Weight |
65Kg |
|
Printer |
Thermal printer |
