Fully Automated Nucleic Acid Analyzer | Molecular POCT with 16-Target Multiplex qPCR

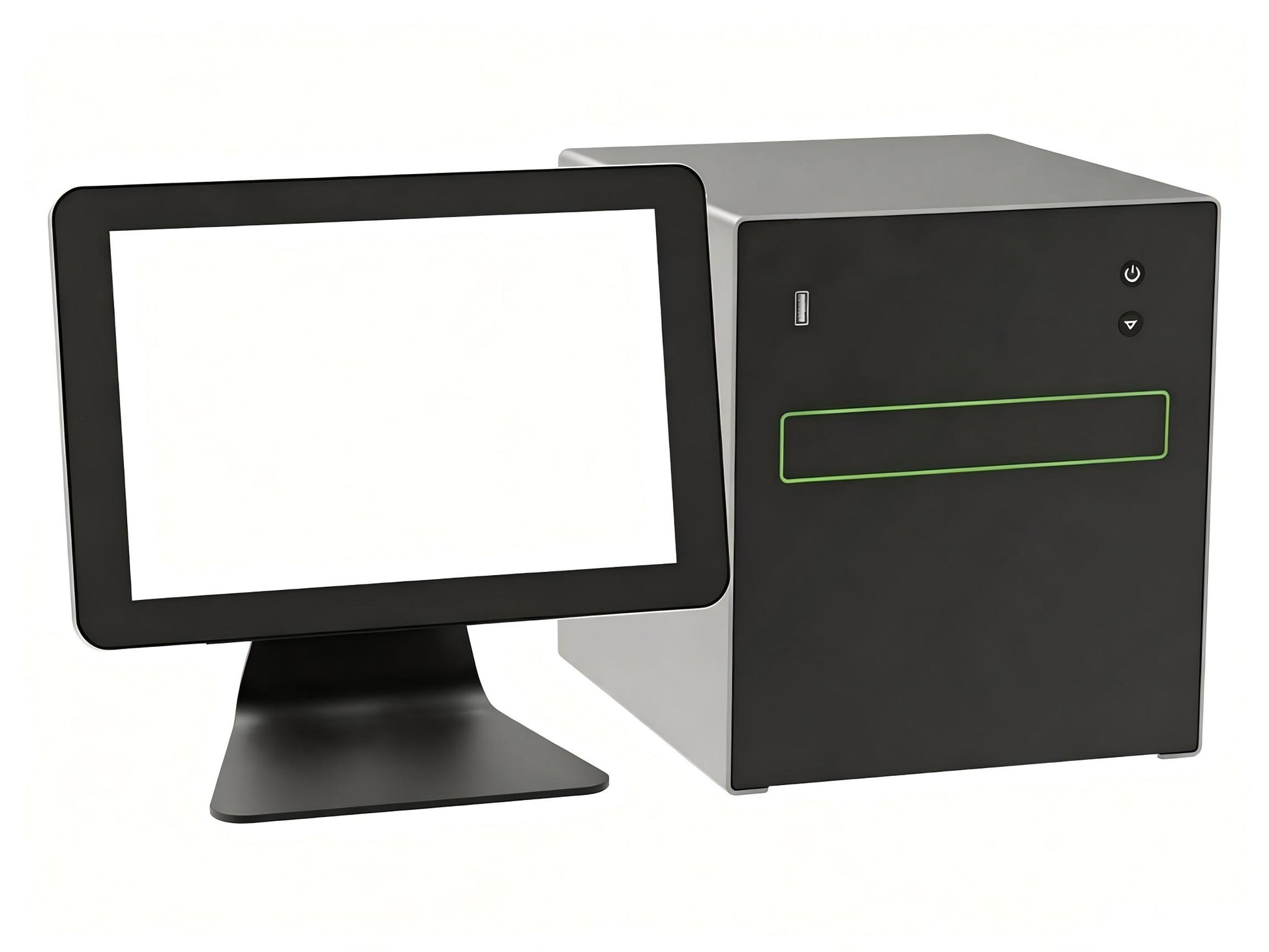

Model: GHM CH-0104 Fully Automated Nucleic Acid Analysis System

Fully automated molecular POCT system with centrifugal microfluidic technology, 16-target multiplex qPCR, and "sample in, result out" workflow in 30 min. Ideal for hospitals, labs, and field deployment.

The Global Healthcare Medical Fully Automated Nucleic Acid Analyzer is a revolutionary molecular point-of-care testing (POCT) platform that brings the power of multiplex PCR diagnostics to any clinical setting. By integrating proprietary centrifugal microfluidic technology with gold-standard real-time fluorescent PCR, this system delivers highly multiplexed detection of up to 16 targets from a single sample in just 30–45 minutes.

Designed with a "sample in, result out" philosophy, the analyzer automates the entire nucleic acid testing workflow—from extraction and purification through to amplification and detection—within a fully enclosed microfluidic chip. This eliminates the need for a dedicated PCR laboratory or specially trained operators, making molecular diagnostics accessible in even the most resource-limited environments.

The system features a modular design with 1 to 8 independent detection modules, allowing flexible configuration to match your laboratory's throughput requirements. Whether deployed in hospital wards, intensive care units, emergency departments, or field settings, this analyzer delivers the speed, accuracy, and ease-of-use that modern molecular diagnostics demand.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🧬 Ultra-Multiplex Detection Capability

The system leverages advanced centrifugal microfluidic technology to deliver powerful multiplexing:

• Up to 16 targets per sample – Comprehensive pathogen detection from a single specimen

• 4 PCR chambers × 4 fluorescence channels – Enables simultaneous detection of multiple targets in one run

• Broad pathogen panels available – Respiratory tract (9 targets), reproductive tract (10–11 targets), arboviral (8 targets), and malaria (4 targets)

⚡ Rapid Results in 30 Minutes

Delivers actionable results when they matter most:

• 30–45 minutes total run time – From sample loading to result reporting

• Single-step sample loading – Minimal hands-on time, maximum efficiency

• "Sample in, result out" workflow – End-to-end automation with no manual intervention

🛡️ Fully Enclosed, Contamination-Free Design

Engineered for safety and accuracy:

• Laser surface welding technology – Creates a fully sealed system that prevents amplicon contamination

• Silica membrane-based purification – Ensures high-purity nucleic acid extraction for reliable qPCR results

• Gold-standard qPCR – Delivers the sensitivity and specificity that clinicians trust

• No PCR laboratory required – Safe operation in non-specialized environments

📊 Flexible, Modular Architecture

Adapts to your workflow needs:

• 1 to 8 detection modules – Configure from 1 to 8 independent sample channels

• Simultaneous testing – Process 1 to 8 samples concurrently with independent run timing

• Expandable capacity – Start with a single module and scale as your testing volume grows

• "Run as you go" flexibility – Each module operates independently for continuous workflow

🔬 Robust Engineering and Design

Built for reliability in demanding environments:

• Main unit weight: 8 kg – Lightweight, benchtop design

• Control panel weight: 2.3 kg – Detachable touch-screen interface

• Compact footprint – Fits easily on laboratory benchtops

• 4 fluorescence channels – Flexible dye selection for multiplex assays

📱 Intuitive User Interface

Streamlines workflow and minimizes training:

• Full touch-screen control panel – Load, click, scan, and go

• Less than 10 minutes training – Intuitive operating logic, easy to learn

• Wireless connectivity – Seamless communication between control panel and main unit

• Automatic result reporting – Integrated LIS/HIS connectivity

🌡️ Room-Temperature Reagent Storage

Simplifies logistics and reduces costs:

• Lyophilized PCR reagents – Pre-dispensed in cartridges for room-temperature storage

• 12-month shelf life – Long stability at 4–28°C

• No cold chain required – Reduced shipping and storage costs

Specifications

Available Test Panels

*Includes optional additional target

What's Included

Standard Configuration

• Fully Automated Nucleic Acid Analyzer Main Unit

• Detachable Touch-Screen Control Panel

• Power Cables (2 units)

• Scanner Gun

• User Manual

• Calibration Certificate

Standalone Configuration

• Fully Automated Nucleic Acid Analyzer Main Unit

• Power Cable

• User Manual

• Calibration Certificate

Applications

The Fully Automated Nucleic Acid Analyzer is suitable for:

• Hospital Wards & ICUs – Rapid diagnosis of respiratory and bloodstream infections

• Emergency Departments – Fast turnaround for acute infectious disease presentations

• Clinical Laboratories – High-quality molecular diagnostic testing

• Infectious Disease Clinics – Comprehensive pathogen screening

• Public Health & CDC Laboratories – Outbreak surveillance and monitoring

• Border Control & Quarantine – Rapid screening at entry points

• Field & Emergency Response – On-site testing in disaster or outbreak scenarios

• Food Safety & Veterinary Testing – Pathogen detection in food and animal samples

Why Choose the Fully Automated Nucleic Acid Analyzer?

FAQ

Q: What is a fully automated nucleic acid analyzer?
A: This is a molecular point-of-care testing platform that automates the entire nucleic acid testing workflow—from extraction and purification to amplification and detection—using centrifugal microfluidic technology and real-time PCR.

Q: How many targets can be detected per sample?
A: The system can detect up to 16 targets from a single sample.

Q: How many samples can be processed at once?
A: The system features a modular design with 1 to 8 independent detection modules, allowing flexible configuration from 1 to 8 simultaneous samples.

Q: How long does a test take?
A: Total run time is 30–45 minutes from sample loading to result reporting.

Q: Does the system require a dedicated PCR laboratory?
A: No. The fully enclosed cartridge design and automated workflow eliminate the need for a dedicated PCR laboratory or specially trained PCR operators.

Q: What test panels are available?
A: Available CE-marked panels include Respiratory Tract (9 targets), Reproductive Tract (10–11 targets), Arboviral (8 targets), and Malaria (4 targets).

Q: How are the reagents stored?
A: The kits feature lyophilized reagents and can be stored at room temperature (4–28°C) with a 12-month shelf life.

Q: Is the system certified?
A: Yes, the system holds both NMPA and CE certifications.

Q: What is the weight and size of the instrument?
A: The main unit weighs 8 kg with a compact benchtop design.

Q: What connectivity options are available?
A: The control panel connects wirelessly to the main unit and integrates seamlessly with Laboratory Information Systems (LIS) and Hospital Information Systems (HIS).

Q: What is the delivery lead time?
A: The delivery lead time is approximately 10 working days.

Q: What is the warranty period?
A: The system comes with a 1‑year warranty.
