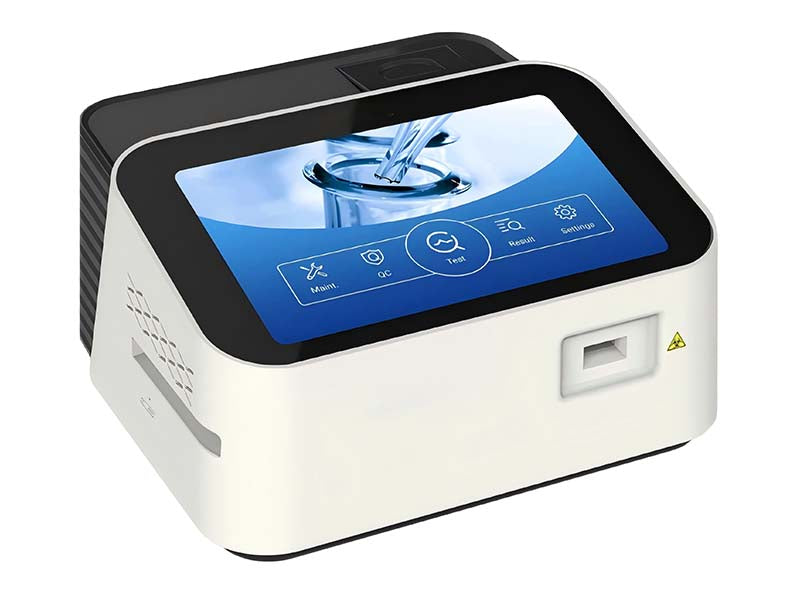

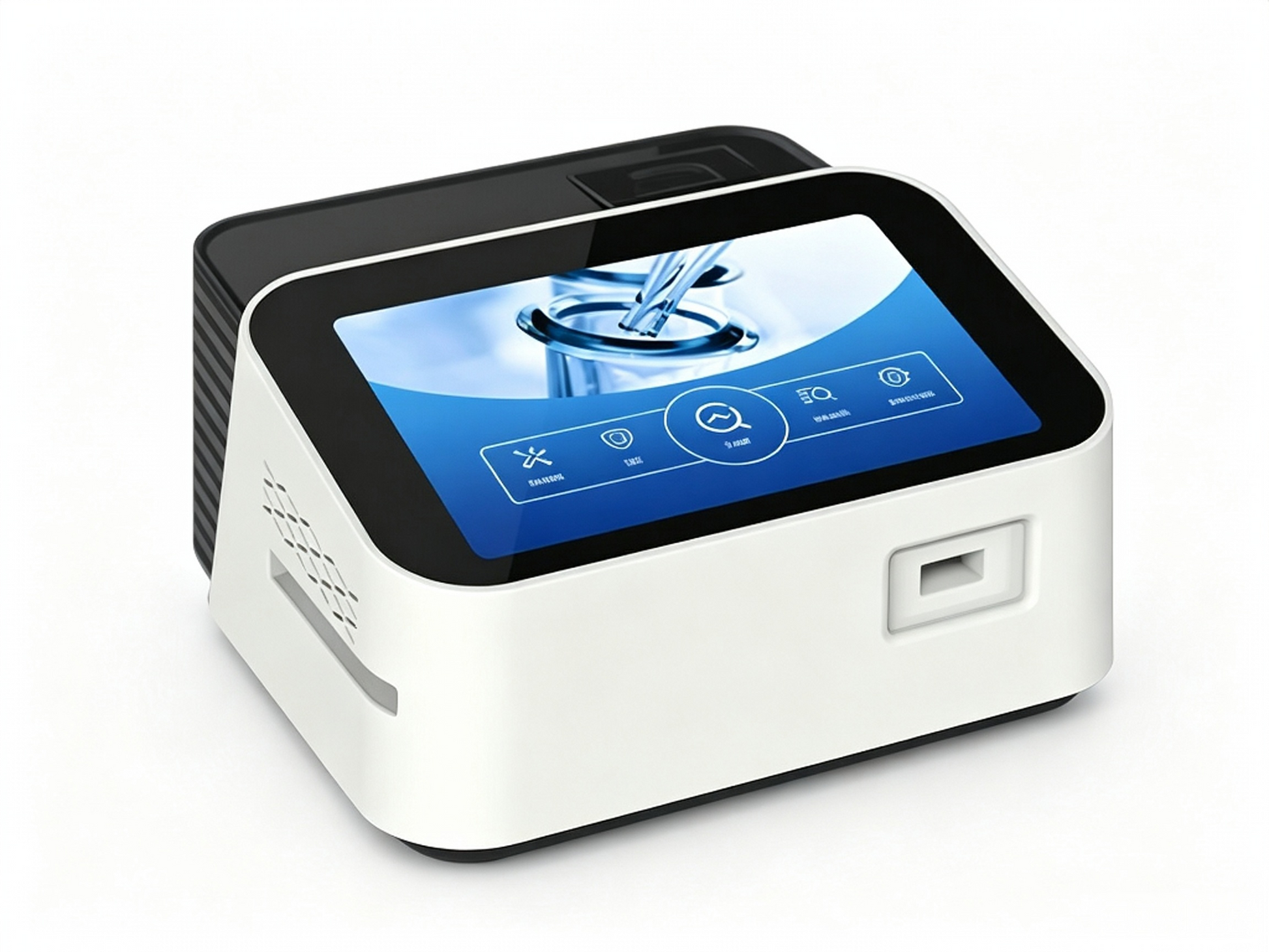

GHM-1160 Immunofluorescence Quantitative Analyzer | POCT Multi‑Channel Immunoassay System

Multi‑channel immunofluorescence analyzer with 4+1 test channels, 32°C constant incubation, 10.1" touch screen, and 100,000+ data storage. Ideal for hospitals, clinics, and point‑of‑care testing.

The Global Healthcare Medical GHM-1160 Immunofluorescence Quantitative Analyzer is a rapid, compact, and user‑friendly multi‑item immunofluorescence quantitative analyzer designed for point‑of‑care testing (POCT). Combining high‑throughput capabilities with a constant‑temperature incubation environment, the GHM‑1160 delivers timely, accurate, and efficient testing across a wide range of clinical scenarios.

Connecting with dedicated immunofluorescence test kits, the instrument automatically detects and quantifies biomarkers for cardiovascular disease, kidney disease, inflammation, fertility, diabetes, bone metabolism, tumors, and thyroid function in biological samples. Whether in an emergency department, intensive care unit, laboratory, or outpatient clinic, the GHM‑1160 provides reliable, actionable results in minutes.

Key Features

🧪 4 Incubation Channels + 1 Emergency Test Channel

The GHM‑1160 features 4 incubation channels and 1 emergency test channel. Multiple test items can be tested simultaneously, saving valuable operation time and enabling healthcare providers to run both routine and STAT tests without delay.

🌡️ 32°C Constant Temperature Incubation Environment

A steady 32°C constant test environment ensures more accurate test results by minimizing the influence of temperature variations. This temperature‑controlled design significantly improves detection accuracy and repeatability.

⚡ Rapid Results in 3–15 Minutes

The GHM‑1160 delivers test results in just 3 to 15 minutes, depending on the assay. This rapid turnaround time is critical for timely clinical decision‑making in emergency and acute care settings.

🖥️ 10.1‑Inch High‑Resolution LED Touch Screen

The large 10.1‑inch LED touch screen with 1280×800 resolution provides an intuitive, user‑friendly interface. Powered by an Android operating system, the device offers real‑time editing, easy search, and seamless navigation.

📊 Extensive Test Menu

The GHM‑1160 supports a comprehensive range of test items across multiple clinical disciplines:

• Cardiac Markers: cTnI, hs‑cTnI, TnT, BNP, NT‑proBNP, H‑FABP, CK‑MB

• Inflammation Markers: hs‑CRP+CRP, PCT, SAA/CRP, SAA, IL‑6

• Coagulation: D‑Dimer

• Renal Function: CysC, mAlb, NGAL, β2‑MG

• Diabetes: HbA1c

• Thyroid Function: TSH, T3, T4, fT3, fT4

• Tumor Markers: tPSA, fPSA, AFP, CEA

• Reproduction/Fertility: HCG+β, FSH, LH, PRL, AMH, Prog, Testosterone, E2

• Infectious Disease: Anti‑HCV, Anti‑TP, Anti‑HIV, HBsAg, Anti‑HBs, SARS‑CoV‑2 Antigen, H. pylori, Influenza A/B, Dengue

• Others: Ferritin, Total IgE, RF, ASO, Anti‑CCP, PG I/PG II

📱 Android Operating System with RFID Auto‑Recognition

The device runs on an Android system with touch screen operation. RFID cards enable automatic input of test card information, reducing manual entry errors and streamlining workflow.

🖨️ Built‑in Thermal Printer & External Printer Support

The GHM‑1160 features a built‑in thermal printer for immediate result printing, and supports connection to an external USB printer. This flexibility allows for convenient documentation and reporting in any clinical setting.

💾 Massive Data Storage Capacity

The device can store over 100,000 data records, enabling comprehensive patient data management, longitudinal tracking, and efficient record retrieval.

🔗 Seamless Connectivity & System Integration

The GHM‑1160 supports seamless connectivity with hospital information systems:

• Ethernet port for LIS/HIS system connection

• COM port for PC connection

• 2 USB ports for software updates and file copying

• WiFi connection for convenient data transmission

🧬 Lyophilized Bead Technology with Patented Pipette

The instrument incorporates lyophilized bead technology with a patented transferring pipette, enabling accurate sampling and delivering improved precision, stability, and sensitivity.

📦 Compact & Portable Design

• Dimensions: 299mm (W) × 276mm (D) × 152mm (H)

• Weight: 4.0 kg

• Compact footprint – Fits easily on laboratory benches and clinic counters

🩸 Versatile Sample Types & Volumes

The GHM‑1160 supports a wide range of sample types:

• Sample Types: Serum, plasma, whole blood, capillary blood, urine

• Sample Volume: 10 – 200 μL, depending on the assay

🌍 Multi‑Language Support

The interface supports English, Chinese, and Spanish, with additional language options available, making it suitable for international healthcare settings.

Specifications

Applications

The GHM-1160 Immunofluorescence Quantitative Analyzer is suitable for:

• Emergency Departments (ED) – Rapid cardiac marker and infection testing

• Intensive Care Units (ICU) – Critical care biomarker monitoring

• Hospital Laboratories – High‑volume immunoassay testing

• Outpatient Clinics – Point‑of‑care testing for chronic disease management

• Cardiology Clinics – Cardiac biomarker assessment

• Endocrinology Clinics – Thyroid function and diabetes monitoring

• Infectious Disease Clinics – Rapid pathogen and antibody testing

Why Choose the GHM-1160?

FAQ

Q: What is the GHM-1160 Immunofluorescence Quantitative Analyzer?

A: The GHM-1160 is a rapid, compact, multi‑item immunofluorescence quantitative analyzer designed for point‑of‑care testing. It provides timely, accurate, and efficient testing across a wide range of clinical scenarios.

Q: How many test channels does the GHM-1160 have?

A: The device features 4 incubation channels and 1 emergency test channel, allowing multiple test items to be processed simultaneously.

Q: What is the testing time?

A: The GHM-1160 delivers results in just 3 to 15 minutes, depending on the specific assay.

Q: What sample types does the device support?

A: The GHM-1160 supports serum, plasma, whole blood, capillary blood, and urine.

Q: What sample volume is required?

A: Sample volume ranges from 10 to 200 μL, depending on the assay.

Q: What test menu is available?

A: The GHM‑1160 offers a comprehensive test menu including cardiac markers, inflammation markers, coagulation markers, renal function, diabetes, thyroid function, tumor markers, fertility/reproduction markers, and infectious disease markers.

Q: Does the device have a built‑in printer?

A: Yes. The GHM‑1160 features a built‑in thermal printer and also supports connection to an external USB printer.

Q: How much data can the device store?

A: The GHM‑1160 can store over 100,000 data records.

Q: Can the device connect to hospital information systems?

A: Yes. The GHM‑1160 supports Ethernet (LIS/HIS), COM port (PC), 2 USB ports, and WiFi connectivity for seamless system integration.

Q: What is the constant incubation temperature?

A: The device maintains a 32°C constant test environment to ensure more accurate test results.
