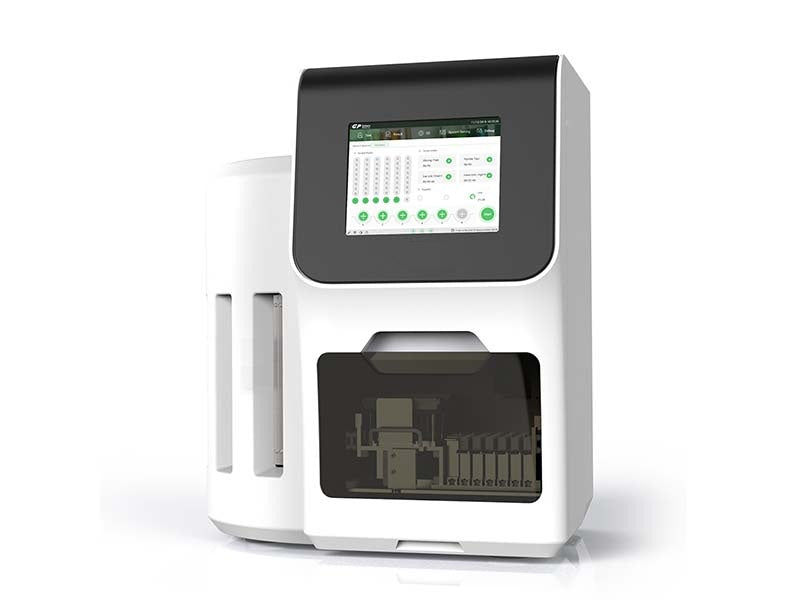

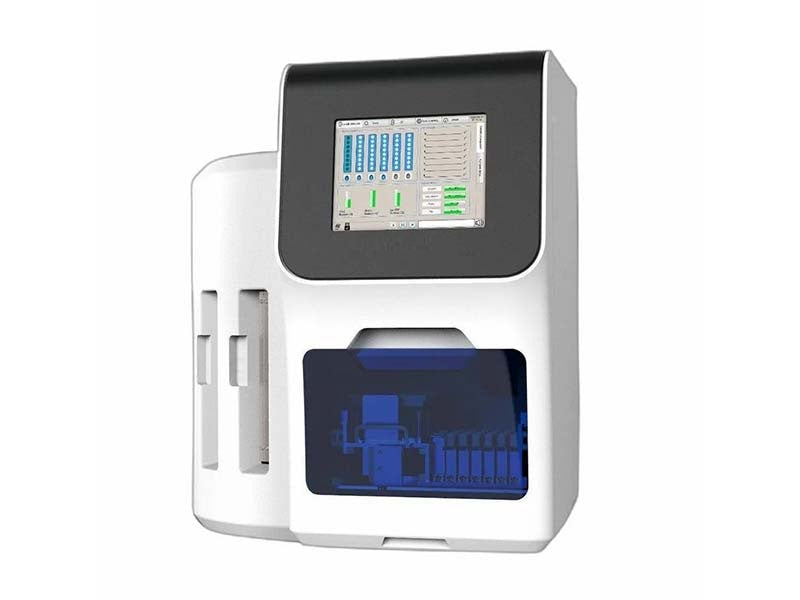

GHM-1600 Immunofluorescence Quantitative Analyzer | Fully Automated POCT Immunoassay System

GHM-1600 Immunofluorescence Quantitative Analyzer | Fully Automated POCT Immunoassay System

$8,499.00
$8,499.00
Sale Sold out
Shipping calculated at checkout.

Fully automated high-throughput immunofluorescence analyzer with 150 tests/hour, 48-sample capacity, 10.4" touchscreen, and 500,000+ data storage. Ideal for hospitals, ICUs, and clinical laboratories. CE/ISO/NMPA-certified.

The Global Healthcare Medical GHM-1600 Immunofluorescence Quantitative Analyzer is a fully‑automated, bench‑top diagnostic platform designed for high‑throughput point‑of‑care testing (POCT) in clinical laboratories and hospital settings. Combined with bar‑coded, ready‑to‑use strip cassettes, the GHM‑1600 delivers accurate, quantitative testing results in minutes.

The instrument automates the detection and quantification of biomarkers for cardiovascular disease, renal disease, inflammation, fertility, diabetes mellitus, bone metabolism, tumor markers, and thyroid function in biological samples. It represents a breakthrough in high‑end automated technology for the international POCT field.

This device is intended for professional use in clinical settings. Not a substitute for professional medical diagnosis.

Key Features

⚡ High‑Throughput Performance (150 Tests/Hour)

The GHM‑1600 delivers exceptional throughput, capable of processing up to 150 tests per hour with 48 samples per run. The average detection time is less than 30 seconds per sample. It can simultaneously test three different parameters from the same sample, maximizing efficiency in busy laboratory environments.

🤖 Fully Automated Operation

The GHM‑1600 is a truly fully‑automated system that completes the entire testing process automatically:

  • Automatic quality control – Ensures consistent, reliable results

  • Automatic sample aspiration, dilution, and mixing – Reduces manual handling errors

  • Automatic sample loading and measurement – Streamlines workflow

  • Automatic calculation and report printing – Saves valuable staff time

  • Automatic program upgrades – Keeps the system current

🧪 Comprehensive Test Menu (50+ Biomarkers)

The GHM‑1600 supports a wide range of immunofluorescence assays across major clinical disciplines:



Category Test Items
Cardiac Markers hs‑cTnI, cTnI, TnT, BNP, NT‑proBNP, CK‑MB/cTnI/Myo, H‑FABP
Inflammation hs‑CRP+CRP, PCT, PCT/CRP, SAA/CRP, SAA, IL‑6
Coagulation D‑Dimer
Renal Function CysC, mAlb, NGAL, β2‑MG
Diabetes HbA1c
Thyroid Function TSH, T3, T4, fT3, fT4
Tumor Markers tPSA, fPSA, AFP, CEA
Reproduction/Fertility HCG+β, FSH, LH, PRL, AMH, Prog, Testosterone, E2
Infectious Disease Anti‑HCV, Anti‑TP, Anti‑HIV, HBsAg, Anti‑Hbs, SARS‑CoV‑2 Antigen, Dengue NS1 Ag
Others Ferritin, Total IgE, RF, ASO, Anti‑CCP, 25‑OH‑VD

🖥️ 10.4‑Inch LCD Touchscreen with Android OS

The GHM‑1600 features a 10.4‑inch LCD capacitive touchscreen with 1024×768 resolution, delivering a clear, intuitive user interface. Powered by an Android operating system, the device offers easy operation, a modular structure, and convenient software upgrades and maintenance.

🩸 Versatile Sample Types & Low Sample Volume

The GHM‑1600 supports multiple sample types for maximum flexibility:

  • Whole Blood – Venous or capillary/fingertip

  • Serum & Plasma

  • Urine

It requires only a minimum of 10 µL sample volume for detection, making it ideal for pediatric and geriatric patients where sample volume is limited.

🔬 Precise & Contamination‑Free

The instrument ensures accurate and reliable results through:

  • Fully‑automatic sample adding system

  • Disposable tips with filter elements – Eliminates cross‑contamination

  • Automatic calibration, dilution, and sample loading

  • Traceability of results – Automatic barcode scanning of test items and reagent recognition

📊 Massive Data Storage Capacity

The GHM‑1600 can store over 500,000 test results, enabling comprehensive patient data management, longitudinal tracking, and efficient record retrieval.

🖨️ Built‑in Thermal Printer & External Printing

The device features a built‑in thermal printer for immediate result printing and supports connection to an external printer for flexible reporting options. Reports can be printed directly via USB.

🔗 Seamless Connectivity & System Integration

The GHM‑1600 supports seamless connectivity with hospital information systems:

  • Ethernet port – LIS/HIS system connection

  • COM port – PC connection

  • WiFi/4G data transmission – Wireless connectivity

  • Network printer support – Shared printing

🔄 Multiple Testing Modes

The GHM‑1600 supports diversified testing modes to accommodate various clinical workflows:

  • Random mode – Insert samples at any time

  • Batch mode – Process multiple samples together

  • STAT mode – Immediate testing of emergency samples

🛡️ SOP‑Compliant for Standardized Management

The GHM‑1600 meets the requirements of clinical laboratory standards with standard documented SOPs, ensuring consistent laboratory performance and easy accreditation.

🌍 Multi‑Language Support

The interface supports English, Spanish, and Chinese, making it suitable for international healthcare settings.

Specifications



Feature Specification
Product Type Fully Automated Immunofluorescence Quantitative Analyzer
Model GHM‑1600
Methodology Lateral Flow Chromatography (Immunofluorescence)
Throughput 48 Samples/Run; 150 Tests/Hour
Sample Types Whole Blood, Serum, Plasma, Urine, Fingertip Blood
Sample Volume 10 – 200 μL (assay‑dependent)
Display 10.4″ LCD Touchscreen (1024×768)
Operating System Android
Printer Built‑in Thermal Printer + External Printer Support
Data Storage Over 500,000 test cases
Connectivity Ethernet (LIS/HIS), COM Port (PC), WiFi, 4G
Calibration RFID Card Calibration
Languages English, Spanish, Chinese
Dimensions 639mm × 562mm × 728mm (D × W × H)
Weight 45 kg
Repeatability CV ≤ 2% within range [100, 15000] mV; CV ≤ 10% within range [0, 100) mV
Certifications CE, ISO, NMPA

Applications

The GHM‑1600 Immunofluorescence Quantitative Analyzer is suitable for:

  • Large Clinical Laboratories – High‑volume immunoassay testing

  • Hospital Central Laboratories – Comprehensive diagnostic support

  • Intensive Care Units (ICU) – Critical care biomarker monitoring

  • Emergency Departments – Rapid cardiac and infection testing

  • Outpatient Clinics – Point‑of‑care testing for chronic disease management

  • Diagnostic Chains and Reference Labs – Standardized testing across multiple sites

  • Blood Banks and Public Health Institutions

  • Cardiology, Endocrinology, Nephrology Clinics – Specialized biomarker assessment

  • Physical Examination Centers – Routine health checkups

Why Choose the GHM‑1600?



Basic Immunoassay Analyzers Global Healthcare Medical GHM‑1600
Limited throughput 150 tests/hour – high‑throughput performance
Manual operation Fully automated – from QC to report printing
Single‑channel 3‑parameter simultaneous testing from same sample
Limited sample capacity 48‑sample capacity per run
Slow results <30 seconds average per sample
Basic or no display 10.4" touchscreen with Android OS
Limited connectivity Ethernet, WiFi, 4G, LIS/HIS integration
Limited storage 500,000+ data records

FAQ

Q: What is the GHM‑1600 Immunofluorescence Quantitative Analyzer?

A: The GHM‑1600 is a fully‑automated, bench‑top diagnostic analyzer designed for high‑throughput point‑of‑care testing (POCT). Combined with bar‑coded, ready‑to‑use strip cassettes, it delivers accurate, quantitative testing results in minutes.

Q: What is the testing throughput?

A: The GHM‑1600 can process up to 150 tests per hour with 48 samples per run. The average detection time is less than 30 seconds per sample.

Q: What sample types does the device support?

A: The GHM‑1600 supports whole blood, serum, plasma, urine, and fingertip/capillary blood.

Q: What is the minimum sample volume required?

A: The device requires only a minimum of 10 µL sample volume for detection.

Q: What test menu is available?

A: The GHM‑1600 supports over 50 test items covering cardiac markers, inflammation, coagulation, renal function, diabetes, thyroid function, tumor markers, fertility/reproduction, and infectious diseases.

Q: How much data can the device store?

A: The GHM‑1600 can store over 500,000 test results.

Q: Does the device have a built‑in printer?

A: Yes. The GHM‑1600 features a built‑in thermal printer and also supports connection to an external printer.

Q: Can the device connect to hospital information systems?

A: Yes. The GHM‑1600 supports Ethernet (LIS/HIS), COM port (PC), WiFi, and 4G connectivity for seamless system integration.

Q: What operating system does the device use?

A: The GHM‑1600 is powered by an Android operating system with a 10.4‑inch LCD capacitive touchscreen.

Q: Does the device support emergency/STAT testing?

A: Yes. The GHM‑1600 supports random sample insertion, allowing for immediate testing of emergency samples at any time.

Q: What languages does the interface support?

A: The interface supports English, Spanish, and Chinese.
