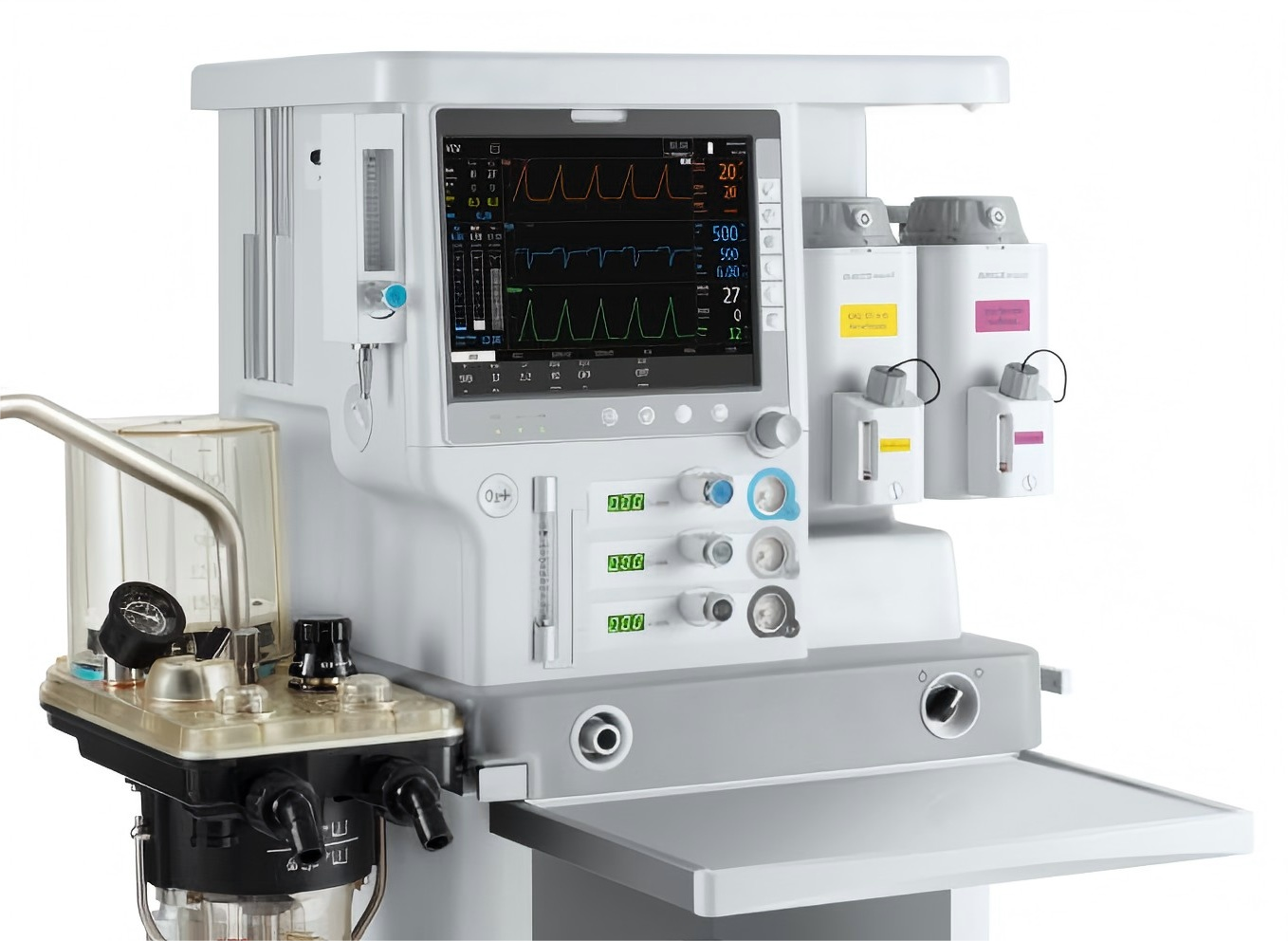

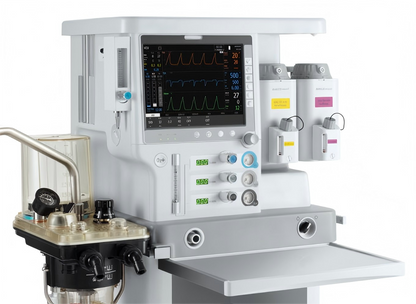

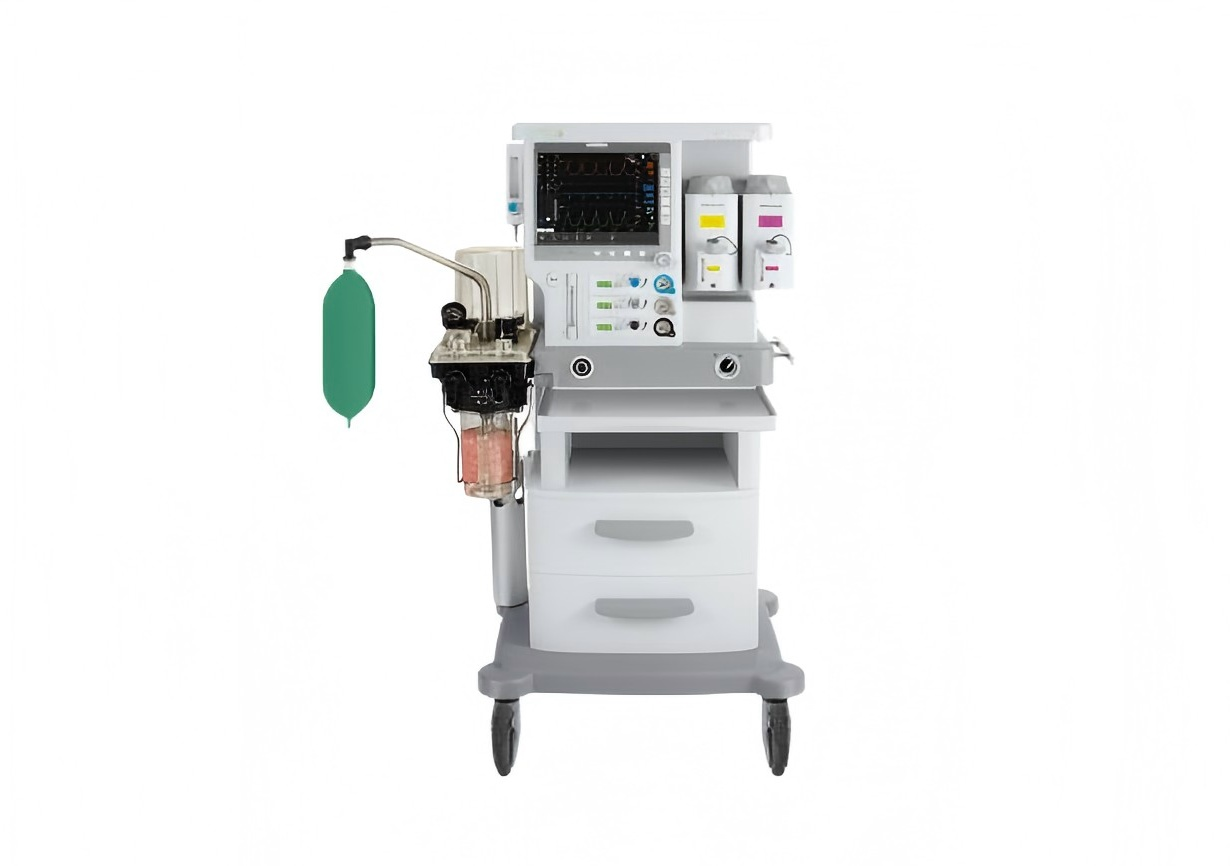

GHM-60 Powerful Anesthesia Workstation #

 Core Highlights (Quick Glance)

• All-Age Patient Coverage: Tidal volume 5–1500mL (neonates → adults) + max inspiratory flow 220 L/min
• 15.1” HD Touch Screen: One-click self-checks + 15k data logs + USB export
• 8 Ventilation Modes: Includes PRVC & CBM for routine + complex surgical cases
• Global Safety Certifications: CE & NMPA approved + hypoxic guard + 90–120min backup battery
• Hygienic Design: 137°C autoclavable circuit (latex-free) + tool-free cleaning

1. 15.1” High-Definition Touch Screen Interface

• Large, Intuitive Display: 15.1-inch LED touchscreen with 1280×768 resolution, showing real-time waveforms, loops, and critical parameters (e.g., tidal volume, gas concentrations) on a single screen—no external monitors required.
• Bookmark-Style Navigation: Streamlined flat-menu layout with quick-switch display presets, reducing operational complexity for medical staff.
• One-Click Self-Checks: Automated full/partial system tests, sensor calibration, and leak compliance checks enable fast, safe startup (ideal for emergency scenarios).
• Data Logging & Export: Stores up to 15,000 procedure logs (retained during power failure) with table/graph trend views; export via USB for documentation and analysis.

2. Advanced Ventilation System (Piston-Driven)

• Broad Patient Coverage: Tidal volume range (5–1500 mL) adapts to neonates, children, and adults; maximum inspiratory flow up to 220 L/min for diverse clinical needs.

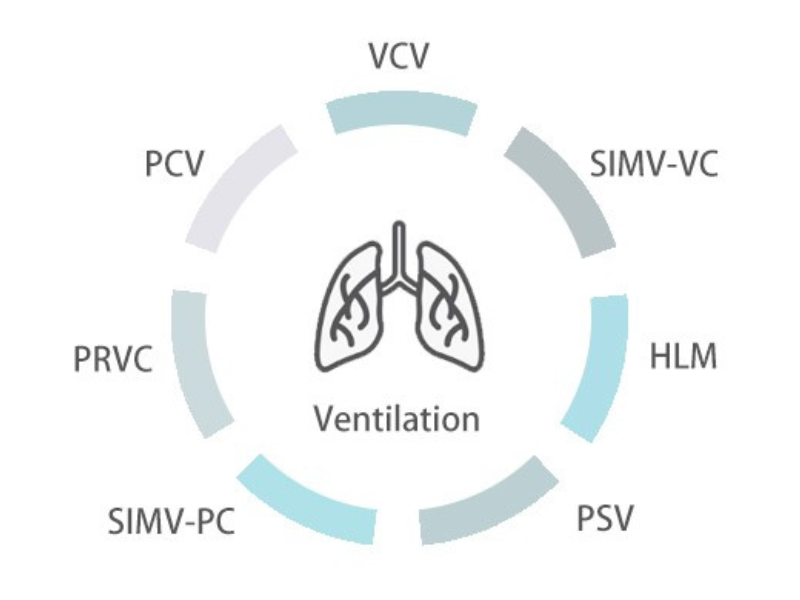

• Comprehensive Modes: Supports Manual/Spontaneous, VCV, PCV, SIMV-VC/PC, CPAP/PSV (with apnea backup), PRVC (Pressure-Regulated Volume Control), and CBM (Cardiac Bypass Mode)—covering routine to specialized cases.
• Smart Parameter Presets: Automatically calculates ideal body weight (via patient height) to preset ventilation parameters and alarm thresholds, saving setup time.

3. Safety-Focused Gas Delivery & Monitoring

• Tri-Gas Compatibility: Supports O2, N2O, and AIR with a high-precision mechanical mixer (O2 flow: 0.02–10 L/min; N2O/AIR: 0.2–10 L/min).
• Hypoxic Guard Protection: S-ORC system prevents O2 concentration from dropping below 21% (limits N2O delivery if O2 supply is insufficient).
• Multi-Gas Monitoring: Integrated module tracks up to 5 anesthetic agents, CO2, O2, and N2O (inhaled/exhaled concentrations + MAC values) with real-time compensation for pressure, flow, and temperature.

4. Hygienic & Durable Breathing Circuit

• High-Temperature Sterilizable: 137°C autoclavable circuit (latex-free components) to reduce cross-infection risks; tool-free disassembly for easy cleaning.
• Anti-Condensation Heating: Switchable active circuit heating minimizes moisture buildup, enhancing patient comfort and circuit longevity.
• Waste Gas Management: Active Gas Scavenging System (AGSS) monitors suction status (high/optimal/low) and includes an exhaust port for third-party monitors.

5. Reliability & Compliance

• Backup Power: Built-in battery provides 90–120 minutes of continuous operation during outages.
• Certifications: CE and NMPA (China FDA) certified, meeting global clinical safety standards.
• Warranty: 36-month coverage for the main unit, oxygen cell, and backup battery.
