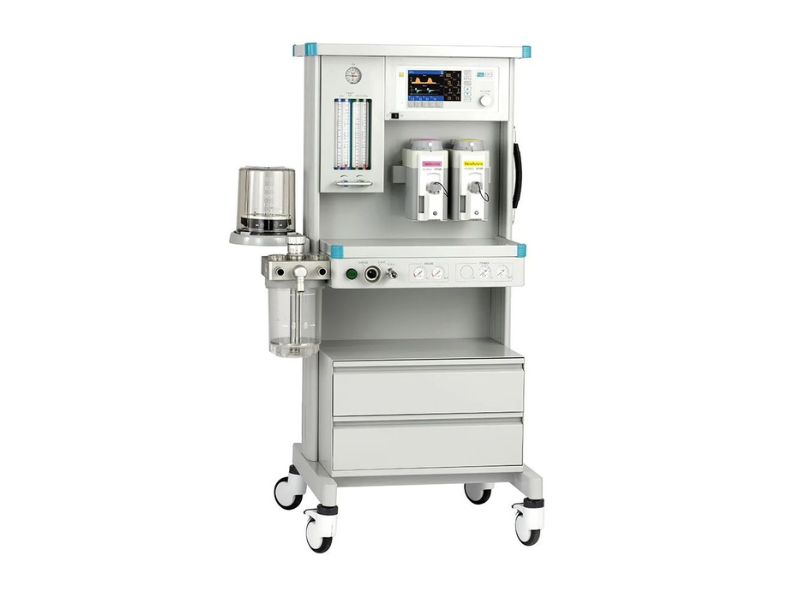

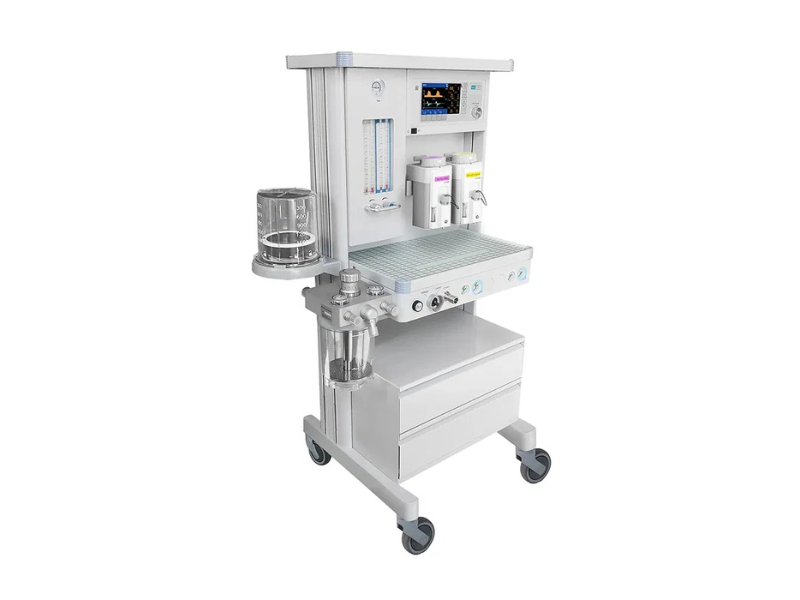

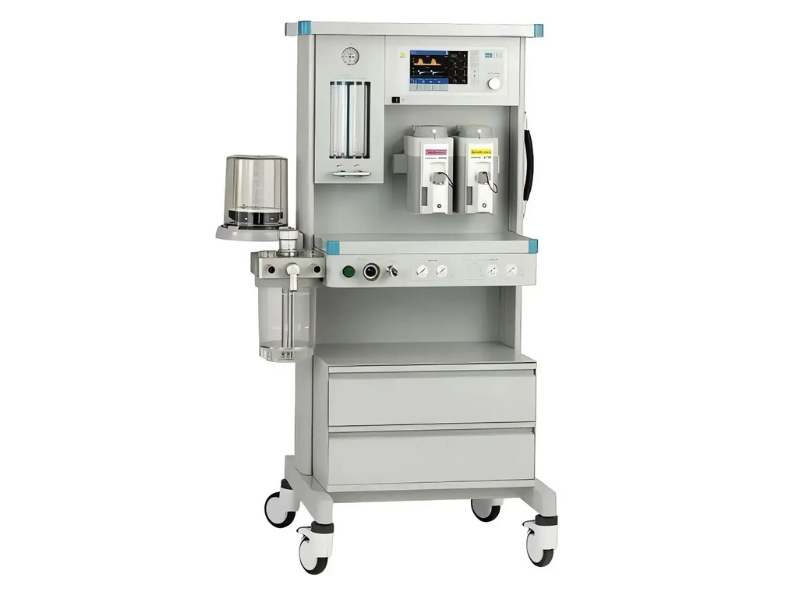

Heyer Aeon7200 Anesthesia Machine
Heyer Aeon7200 Anesthesia Machine
The Aeon7200 is a continuous-flow anesthesia workstation designed for inhalation anesthesia and respiratory support in hospital operating rooms. It is intended for use by licensed clinicians and is suitable for infants, children, and adults, with regulatory documentation specifying patients weighing over 3 kg for the Aeon7200A series.
The system integrates quantitative inhalation of anesthetic agents (including Nâ‚‚O, Isoflurane, Sevoflurane, Enflurane, and Desflurane), oxygen delivery, and ventilation support into a single workstation. It is pneumatically driven and electronically controlled, with a built-in breathing system that delivers an Oâ‚‚/Nâ‚‚O/AIR/anesthetic mixture, alongside electronic monitoring of patient parameters.
The Aeon7200 supports IPPV, PCV, SIMV (flow-trigger), and Manual ventilation modes, with a tidal volume range of 0–1600 ml, ventilation frequency 4–100 bpm, and PEEP 0–20 cmH₂O. An 8.4-inch color touchscreen with navigation knob provides access to waveforms and monitored parameters. The platform also supports Selectatec-compatible vaporizers (up to two) and optional anesthetic gas monitoring (AGM) and AGSS configurations.
The device is referenced with CE marking in distributor documentation. Configuration, vaporizers, monitoring modules, and local registration may vary; confirm the final specification with your supplier.
Key Features & Benefits
Continuous-Flow Anesthesia for Infants, Children, and Adults (≥3 kg)
The Aeon7200 is a continuous-flow anesthetic system offering manual or automatic ventilation, easily adjustable fresh gas delivery, and anesthetic agent delivery. Regulatory documentation for the Aeon7200A series describes suitability for infants, children, and adults, with intended use for patients over 3 kg. This patient range supports use across different surgical populations, subject to the configured settings and clinical protocols.
Integrated Breathing System: Oâ‚‚, Nâ‚‚O, AIR, and Anesthetic Agents
The integrated breathing system delivers a mixture of O₂, N₂O, AIR, and anesthetic agents for patient breathing control. The system supports closed, semi-closed, and semi-open working modes, with a hypoxic guard system and O₂ deficiency alarm referenced in technical documentation. O₂ flush is listed at 35–75 L/min.
IPPV, PCV, SIMV (Flow-Trigger), and Manual Ventilation Modes
The Aeon7200 supports a mode set referenced in Aeonmed technical documentation:
-
IPPV (Intermittent Positive Pressure Ventilation)
-
PCV (Pressure Controlled Ventilation)
-
SIMV with flow trigger
-
Manual ventilation
These modes are intended to meet different anesthesia ventilation requirements. Mode selection and parameter settings should always be performed by trained clinical personnel according to local protocols.
8.4-Inch Color Touchscreen with Navigation Knob
The system features an 8.4-inch color LCD touchscreen with a navigation knob for straightforward operation. The display provides waveforms and parameters in different colors, including P-T, F-T, and V-T waveforms, along with monitored values such as Paw, Ppeak, Pplat, Pmean, MV, Vt, breath rate, FiOâ‚‚, and compliance. Spirometry loops are referenced as supporting interpretation of ventilation effectiveness.
Dynamic Tidal Volume Compensation and Advanced Electromagnetic Valve
The Aeon7200 includes a dynamic compensation system for tidal volume and an advanced electromagnetic valve referenced as ensuring accurate tidal volume and compensation. These design features are intended to support consistent volume delivery during anesthesia ventilation.
Maintenance-Free Patented Sensor
The system includes a built-in patented sensor referenced as maintenance-free and designed to prevent moisture condensation, supporting protection against damage and supporting accurate monitoring.
Dual-Tube Flowmeters for Low/Mini-Flow Anesthesia
The Aeon7200 provides two tubes for each gas (O₂ and N₂O), referenced as supporting easier operation during low-flow and mini-flow anesthesia. Flowmeter ranges are listed as O₂: 0–1 L/min and 1–10 L/min; N₂O: 0–1 L/min and 1–10 L/min. Configurations with 4 or 6 flowmeter tubes for 2 or 3 gas sources are referenced in distributor documentation.
Selectatec-Compatible Vaporizer Mounting
The workstation supports up to two vaporizers with Selectatec-compatible mounting. Agent types referenced include Halothane, Enflurane, Isoflurane, and Sevoflurane. Vaporizer models referenced in regulatory listings include the VP300.
Optional AGM and AGSS
Anesthetic gas monitoring (AGM) is referenced as an option that helps clinicians conveniently control gas concentration. Anesthetic gas scavenging system (AGSS) is referenced as an optional feature intended to protect the device while reducing air pollution in the operating room.
Battery Backup and Pneumatic Drive
The Aeon7200 is pneumatically driven and electronically controlled, with a 24 VDC battery referenced as providing minimum 90–120 minutes of backup (specification varies between source documents). This supports continuity during power interruption, subject to battery condition and configuration.
Compact Trolley Workstation
The main unit dimensions are approximately 824 × 1382 × 680 mm (W × H × D) , with a weight of approximately 110 kg including two vaporizers. The trolley-mounted format supports use in operating room environments.
Technical Specifications
| Specification | Detail |
|---|---|
| Device Type | Continuous-flow anesthesia workstation |
| Model | Aeon7200 (also registered as Aeon7200A) |
| Manufacturer | Beijing Aeonmed Co., Ltd. |
| Patient Range | Infants, children, and adults; >3 kg referenced in regulatory documentation for the Aeon7200A series |
| Drive / Control | Pneumatically driven and electronically controlled |
| Working Modes | Closed, semi-closed, semi-open |
| Ventilation Modes | IPPV, PCV, SIMV (flow-trigger), Manual |
| Tidal Volume (VT) | 0–1600 ml (some sources list 20–1500 ml; confirm configured range with supplier) |
| Ventilation Frequency | 4–100 bpm |
| I:E Ratio | 2:1–1:8 |
| Pressure Control | 5–60 cmH₂O |
| PEEP | 0–20 cmH₂O |
| Inspiratory Plateau | 0–50% Ti |
| Trigger Sensitivity | 2–30 L/min |
| High Pressure Limit | 21–80 cmH₂O |
| Low Pressure Limit | 0–20 cmH₂O |
| Display | 8.4-inch color LCD touchscreen with navigation knob; P-T, F-T, V-T waveforms |
| Monitoring | Paw, Ppeak, Pplat, Pmean; MV, Vt; breath rate; FiOâ‚‚; compliance |
| Graphs / Loops | P-T, F-T, V-T waveforms; spirometry loops referenced |
| Alarms | Paw high/low; MV high/low; Vt high; low Oâ‚‚ supply pressure; apnea; self-test failure; power failure |
| Flowmeters | O₂: 0–1 / 1–10 L/min; N₂O: 0–1 / 1–10 L/min; 4 or 6 tubes for 2 or 3 gas sources referenced |
| Gas Supply | O₂, N₂O: 0.28–0.6 MPa |
| O₂ Flush | 35–75 L/min |
| Hypoxic Guard | Oâ‚‚ deficiency alarm; hypoxic guard system referenced |
| Safety Valve | ≤8 kPa |
| Vaporizers | Up to 2 vaporizers, Selectatec-compatible; agents: Halothane, Enflurane, Isoflurane, Sevoflurane |
| Battery | 24 VDC, minimum 90 min (some sources list 120 min; confirm with supplier) |
| Power Supply | 100–240 VAC, 50/60 Hz; ≤50 W |
| Dimensions (W×H×D) | 824 × 1382 × 680 mm |
| Weight | ~110 kg including two vaporizers |
| Working Temperature | +10 to +40°C |
| Storage Temperature | -22 to +55°C |
| Regulatory Reference | CE marked as referenced in distributor documentation; Aeon7200A registered with MDA Malaysia (GC2859922-101109, valid 2022–2027) |
Note: Tidal volume, battery runtime, and flowmeter tube configurations vary between source documents. The 0–1600 ml range and 90-minute battery are drawn from Aeonmed technical listings; the 20–1500 ml range and 120-minute battery appear in other distributor listings. Confirm the exact configured specification for your unit with the supplier.
Why Choose the Aeon7200?
| Clinical or Operational Need | Aeon7200 Solution |
|---|---|
| Need a continuous-flow anesthesia workstation for infants to adults | Infants, children, and adults, with >3 kg patient range referenced for the Aeon7200A series |
| Need integrated anesthetic agent, Oâ‚‚, and ventilation delivery | Integrated breathing system for Oâ‚‚, Nâ‚‚O, AIR, and anesthetic agents |
| Need volume, pressure, and synchronized ventilation modes | IPPV, PCV, SIMV (flow-trigger), Manual |
| Need a clear, direct-access interface | 8.4-inch color touchscreen with navigation knob; P-T, F-T, V-T waveforms |
| Need accurate tidal volume delivery | Dynamic tidal volume compensation and advanced electromagnetic valve referenced |
| Need low-flow and mini-flow anesthesia support | Dual tubes for each gas; 4/6 flowmeter configurations |
| Need moisture-resistant monitoring | Patented maintenance-free sensor referenced to prevent condensation |
| Need vaporizer flexibility | Selectatec-compatible, up to 2 vaporizers |
| Need optional gas concentration monitoring and scavenging | Optional AGM and AGSS |
| Need battery backup | 24 VDC battery, minimum 90–120 minutes (configuration-dependent) |
