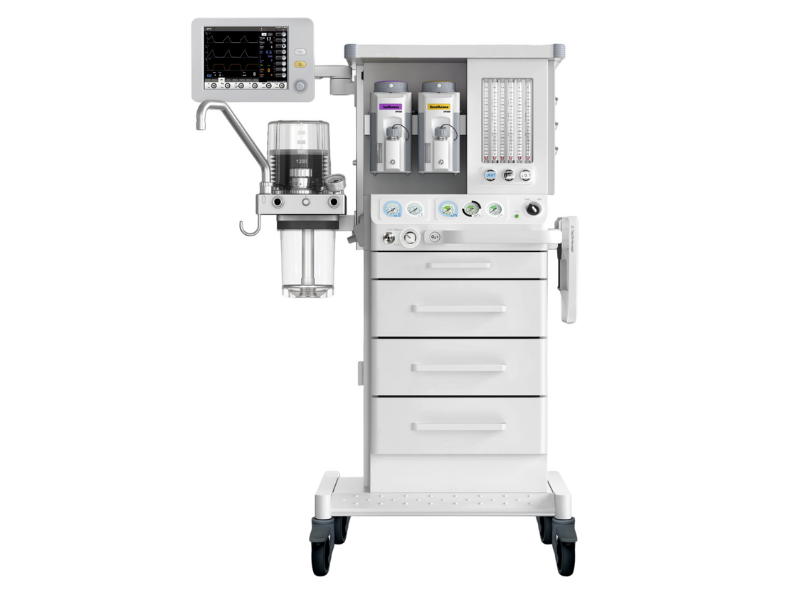

GHM 8100A Comprehensive Anesthesia Workstation #

🌟 Core Highlights (Quick Glance)

• All-Patient Age Coverage: Supports neonates, pediatric, and adult patients (5–1500mL tidal volume)
• Advanced Ventilation Modes: VCV, PCV, SIMV (VC/PC/PRVC), CPAP/PSV, + CBM (cardiac bypass mode)
• 15” Touchscreen Interface: Multi-view display + 15,000-log data storage (retained during power loss)
• Full Monitoring Suite: Gas concentrations (CO₂/anesthetics), waveforms, and physiological parameters (ECG, SpO₂)
• Robust Safety Systems: Hypoxic guard, leak testing, 120-minute backup battery, and autoclavable circuit
• Ergonomic Design: Tool-free circuit disassembly + low-noise operation (reduces clinician fatigue)

1. All-Patient Age Versatility

• Broad Clinical Adaptability: Tuned to support neonates, pediatric, and adult patients with a 5–1500mL tidal volume range, accommodating the delicate respiratory needs of small patients and standard requirements for adults.
• Ideal Weight Presets: Automatically calculates ideal body weight (via patient height) to preconfigure ventilation parameters and alarm thresholds—cutting setup time and minimizing human error.

2. Advanced Ventilation System

• Diverse Modes for Every Scenario: Includes Volume-Controlled Ventilation (VCV), Pressure-Controlled Ventilation (PCV), Synchronized Intermittent Mandatory Ventilation (SIMV-VC/PC/PRVC), CPAP/PSV (with apnea backup), and CBM (Cardiac Bypass Mode) for specialized cases.
• High-Flow Performance: Delivers a maximum inspiratory flow of up to 220 L/min, ensuring reliable support for complex surgical procedures (e.g., orthopedic, neurosurgical, or cardiac interventions).
• Fresh Gas Isolation: Eliminates tidal volume fluctuations caused by fresh gas flow changes, maintaining stable anesthesia delivery throughout procedures.

3. Intuitive 15” Touchscreen Interface

• Multi-View Display: 15-inch high-resolution color touchscreen (1280×768) with 3 customizable views—presenting real-time waveforms, monitoring metrics, and trends on a single screen (no external monitors required).
• Data Logging & Export: Stores up to 15,000 procedure logs (retained during power outages) with table/graph trend views; data can be exported via USB for documentation and clinical analysis.
• Rapid Startup: One-click full/partial self-checks (sensor calibration, leak testing) enable quick, safe setup for emergency situations.

4. Comprehensive Monitoring Capabilities

• Gas & Respiratory Tracking: Integrates monitoring for O₂, CO₂, anesthetic agents (inhaled/exhaled concentrations), plus key respiratory metrics (peak/plateau/mean airway pressure, PEEP, compliance, resistance).
• Physiological Parameters: Optional modules for 5-lead ECG (with ST-segment analysis), SpO₂ (with perfusion index), non-invasive blood pressure, and dual-temperature monitoring—providing full visibility of patient status.
• Real-Time Waveforms: Displays 2–3 dynamic waveforms (Pressure-Time, Volume-Time, Flow-Time) to assess patient-ventilator interaction and detect abnormalities early.

5. Rigorous Safety & Reliability

• Hypoxic Guard Protection: The S-ORC system prevents inspired O₂ concentration from dropping below 21% (restricting N₂O delivery if O₂ supply is insufficient).
• Backup Power Supply: A built-in battery provides 120 minutes of continuous operation during power outages, safeguarding critical procedures.
• Automatic Alarms: Triggers alerts for low O₂, airway pressure (high/low), apnea, and tidal volume—with one-click auto-adjustment of alarm thresholds to boost efficiency.

6. Hygienic & Ergonomic Breathing Circuit

• 134°C Autoclavable Design: Tool-free, latex-free circuit components withstand high-temperature sterilization, reducing cross-infection risks.
• Integrated Heating System: Prevents circuit condensation and warms inhaled gas, minimizing airway irritation for patients.
• Low-Maintenance Flow Sensors: 5 sets of high-precision, direction-free sensors (auto-calibrated) eliminate installation errors and reduce upkeep demands.

7. Precise Anesthesia Delivery

• Dual Vaporizer Compatibility: Dual-canister slots with safety interlock; a standard 300mL sevoflurane vaporizer (desflurane optional) includes temperature/pressure/flow compensation for consistent anesthetic agent delivery.
• Active Waste Gas Management: The AGSS (Active Gas Scavenging System) monitors suction status (high/optimal/low) and features an exhaust port for third-party gas monitoring.
