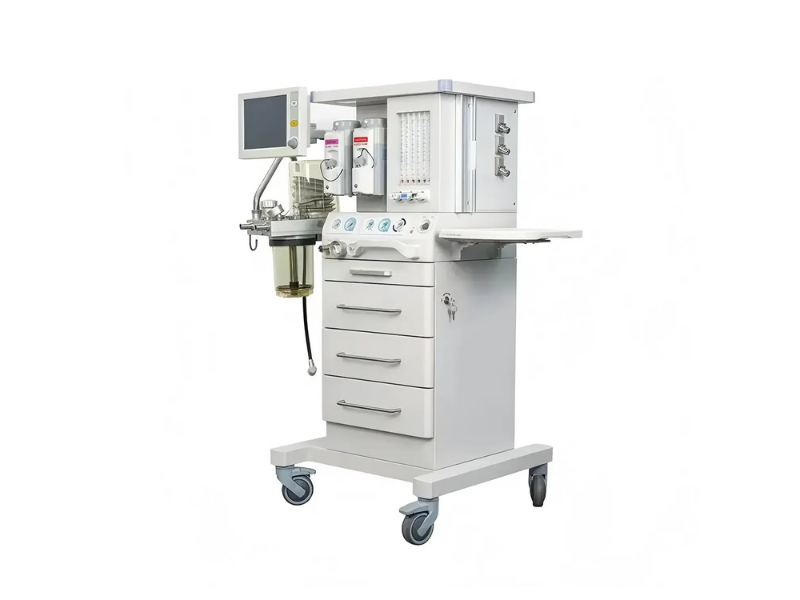

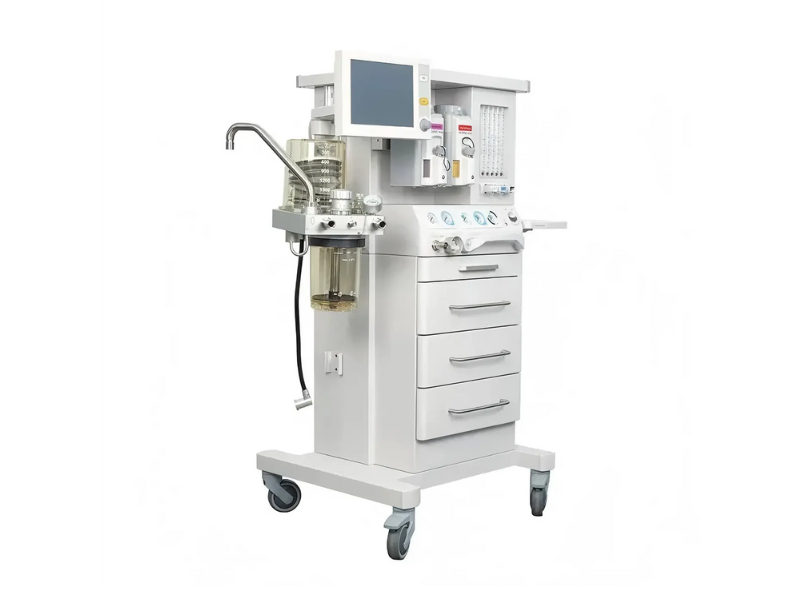

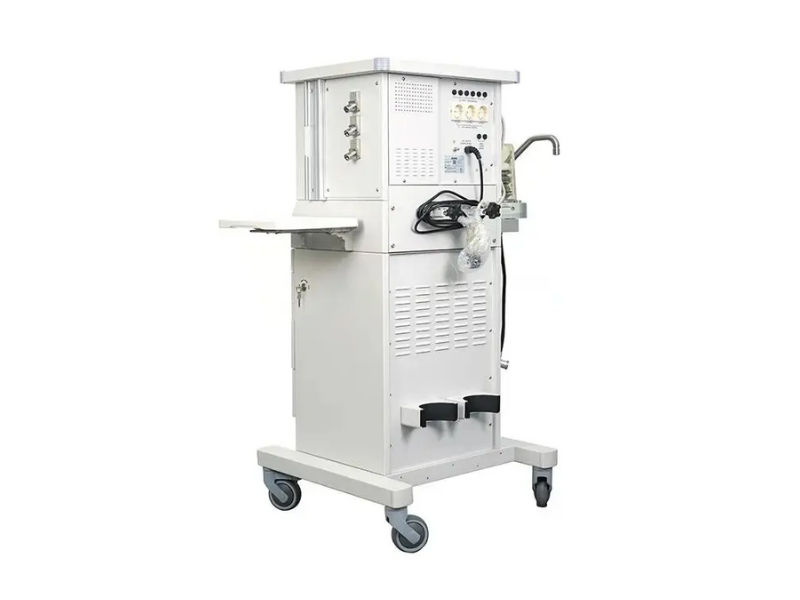

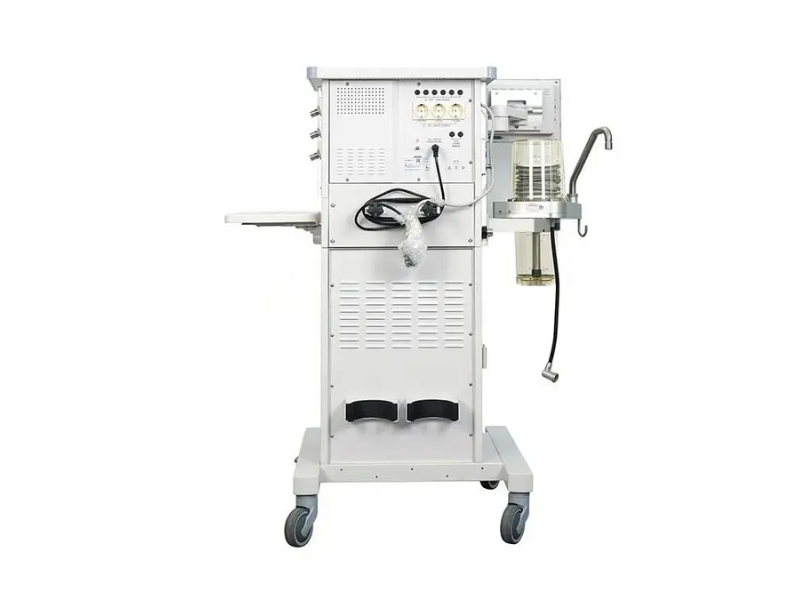

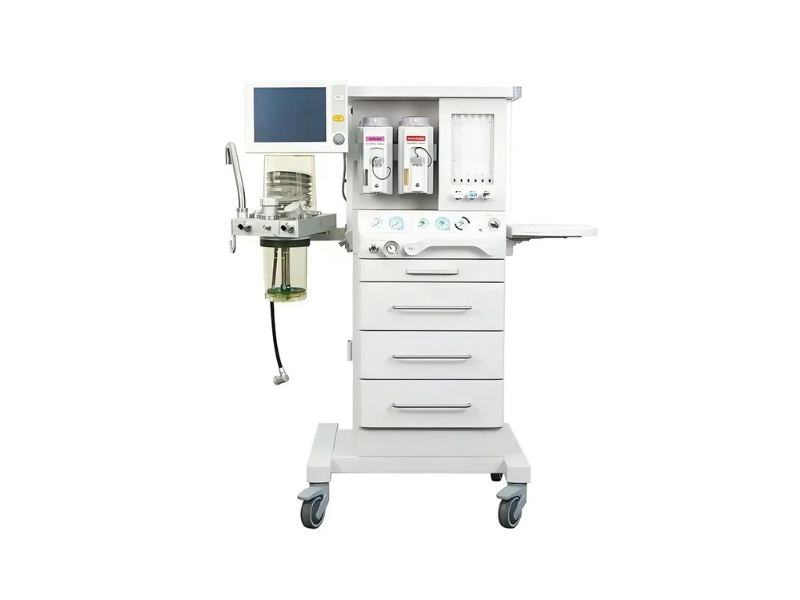

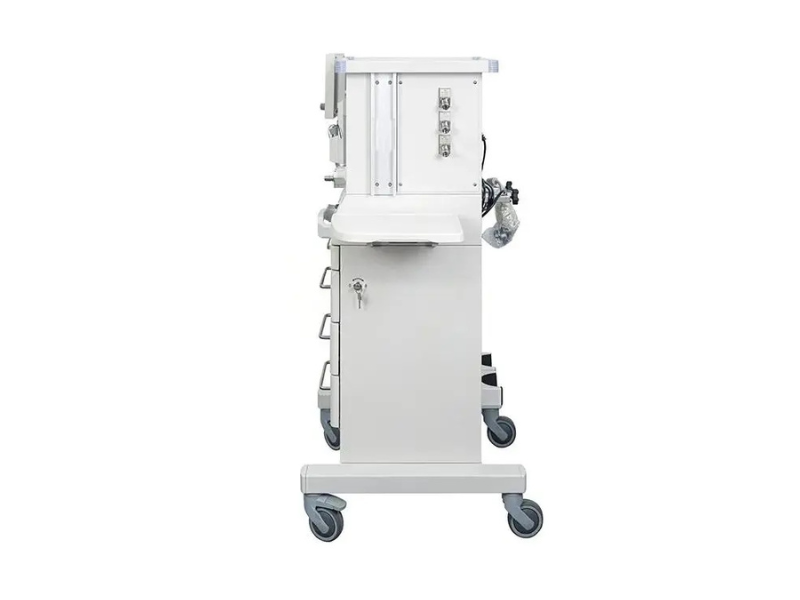

Heyer Aeon8300A Anesthesia Machine

Heyer Aeon8300A Anesthesia Machine

Regular price $14,999.00
Regular price $19,900.00 Sale price $14,999.00
Sale Sold out
Free worldwide shipping. Shipping included in the price.

The Aeon8300A is a compact, pneumatically driven, electronically controlled anesthesia workstation designed for operating room anesthesia and respiratory support across adult, pediatric, and neonatal patient populations (adult and pediatric ≥2 kg per platform documentation). It combines a 10.4-inch rotatable and tiltable TFT color touchscreen with IPPV, PCV, SIMV+PS, PS, and Manual ventilation modes, a tidal volume range of 20–1,500 mL, and an alloy breathing system with integrated constant-temperature heating referenced as preventing moisture condensation during low-flow or long procedures.

The Aeon8300A is positioned as “compact but powerful” — meeting EU clinical requirements with CE certification while fitting different operating room sizes. The platform supports closed, semi-closed, and semi-open working modes, with three-gas, six-tube mechanical flowmeters (Air, O₂, N₂O) and compliance, leakage, fresh gas, and altitude compensation referenced as supporting consistent ventilation delivery.

Optional pathways include anesthetic gas monitoring (AGM), COâ‚‚ monitoring (mainstream or side-stream), a COâ‚‚ bypass option, an auxiliary common gas outlet (ACGO), integrated suction, and an optional heating system. Configuration, vaporizers, and local registration may vary; confirm the final specification with your supplier.

Key Features & Benefits

Compact “Powerful” Chassis for Varied OR Sizes

The Aeon8300A measures 800 Ă— 1,300 Ă— 630 mm (WĂ—HĂ—D, without yoke) and weighs 100 kg (basic unit) , supporting a compact, ergonomic design referenced as convenient for mobility and fitting different operating room sizes. Despite the compact format, it delivers IPPV, PCV, SIMV+PS, PS, and Manual ventilation modes, with PCV and SIMV+PS referenced as providing flexibility in ventilation for both pediatric and adult procedures.

Neonatal-to-Adult Coverage: 20 mL Tidal Volume, Pediatric-Sensitive Ceramic Valve

The platform is referenced for adult and pediatric populations weighing above 2 kg, with distributor listings also citing adult, pediatric, and neonatal coverage. The tidal volume range of 20–1,500 mL supports small-patient ventilation. The ultra-light ceramic one-way valve is referenced as more sensitive to meet the respiratory management of pediatric anesthesia.

10.4-Inch Rotatable, Tiltable Touchscreen with Multi-Angle Adjustment

The 10.4-inch TFT LCD color touchscreen is rotatable and tilted with a highlighted display, supporting multi-angle adjustment for intraoperative observation from different positions. The interface uses touch keys with a navigator wheel knob for parameter setting, referenced as simple and intuitive.

Alloy Breathing System with Integrated Constant-Temperature Heating

The modern-designed alloy breathing system is easy to detach and fully autoclavable with anti-corrosion properties. The integrated constant-temperature heating system — leveraging the alloy’s better thermal conductivity — is referenced as preventing moisture condensation, supporting undisturbed monitoring and increased patient comfort during low-flow or longer procedures.

Non-Consumable Mass Flow Sensor and COâ‚‚ Bypass

The breathing system includes a built-in non-consumable mass-type flow sensor, reducing consumable replacement requirements and supporting long-term use without sensor replacement. The COâ‚‚ bypass option supports replacement of soda lime intraoperatively for longer operating time without interrupting ventilation.

Three-Gas, Six-Tube Mechanical Flowmeters with Backlight

The Aeon8300A provides dual-tube mechanical flowmeters for each gas — Air, O₂, and N₂O — with backlight for visibility. Flow ranges are O₂: 0–1 / 1–10 L/min; N₂O: 0–1 / 1–10 L/min; Air: 0–1 / 1–12 L/min; auxiliary O₂: 0–12 L/min. A ratio system referenced in platform documentation ensures a minimum 25% oxygen concentration in O₂/N₂O mixtures.

Comprehensive Compensation and Monitoring

The Aeon8300A includes compliance and leakage compensation, fresh gas compensation, and altitude compensation referenced as supporting consistent ventilation delivery across different circuit conditions and altitudes. Monitoring includes Paw, Ppeak, Pplat, Pmean, PEEP; MV, Vt; Oâ‚‚ concentration, COâ‚‚ concentration, and anesthetic agent concentration (where optional modules are configured), with P-T, F-T, P-V, and F-V loops and continuous trend information stored and displayed in tables and charts.

Fast-Release APL Valve, One-Key Manual/Auto Switch, and ACGO

The APL valve with fast-release function is referenced as improving induction and resuscitation efficiency. A one-key switch from manual to mechanical ventilation supports rapid workflow transitions. The ACGO (auxiliary common gas outlet) is referenced as convenient for semi-open circuit use.

Integrated 2-Hour Battery and Comprehensive Safety Features

The Aeon8300A includes a 24 V, 4 Ah battery providing a minimum of 120 minutes (2 hours) . Safety features include oxygen supply failure alarm and protection, an O₂ flush of 25–75 L/min, and continuous high-pressure and volume alarms (high/low minute volume, high/low FiO₂) referenced in distributor documentation.

Optional Monitoring and Upgrades

Optional configurations referenced across platform documentation include:

  • Anesthetic gas monitoring (AGM) or COâ‚‚ monitoring — mainstream or side-stream

  • COâ‚‚ bypass option

  • Heating system (optional)

  • Integrated suction device

  • Auxiliary oxygen outlet, auxiliary mains socket, monitor arm, infusion pump holder

  • Vaporizers for common agents (configuration-dependent)

Technical Specifications



Specification Detail
Device Type Continuous-flow anesthesia workstation
Model Aeon8300A (marketed as Heyer Aeon8300A)
Manufacturer Beijing Aeonmed Co., Ltd.
Brand Heyer (post-2019 Aeonmed–HEYER merger)
Patient Range Adult and pediatric ≥2 kg (platform brochure); adult, pediatric, neonate referenced in distributor listings
Drive / Control Pneumatically driven and electronically controlled
Working Modes Closed, semi-closed, semi-open
Ventilation Modes IPPV, PCV, SIMV+PS, PS, Manual
Tidal Volume (VT) 20–1,500 mL
Ventilation Frequency 4–100 bpm
I:E Ratio 4:1–1:8
Inspired Pressure Range 5–70 cmH₂O
Pressure Support Range 3–50 cmH₂O
PEEP Off, 3–30 cmH₂O
Tslope 0–2 s
Inspiratory Plateau Off, 5%–60% Ti
Trigger Sensitivity 1–15 L/min
Peak Gas Flow 75 L/min
Display 10.4-inch TFT color touchscreen, rotatable and tiltable, multi-angle adjustment
Setting Interface Touch key + navigator wheel knob
Flowmeters Dual-tube mechanical with backlight; O₂: 0–1/1–10 L/min; N₂O: 0–1/1–10 L/min; Air: 0–1/1–12 L/min; Aux. O₂: 0–12 L/min
Breathing System Alloy, detachable, fully autoclavable; integrated constant-temperature heating
Flow Sensor Built-in non-consumable mass-type
One-Way Valve Ultra-light ceramic, referenced for pediatric sensitivity
COâ‚‚ Absorption 2 loose fill (3 L) or 2 prepacks; COâ‚‚ bypass option
Compensation Compliance, leakage, fresh gas, altitude
Gas Supply Air, O₂, N₂O: 280–600 kPa
O₂ Flush 25–75 L/min
Safety Features Oxygen supply failure alarm/protection; ratio system ≥25% O₂; high/low minute volume, high/low FiO₂ alarms
Optional Monitoring AGM; COâ‚‚ (mainstream or side-stream)
Optional Upgrades Heating system, integrated suction, ACGO, auxiliary Oâ‚‚ outlet, auxiliary mains socket, monitor arm, infusion pump holder
Battery 24 V, 4 Ah, minimum 120 minutes (2 hours)
Power Supply 100–240 V AC, 50/60 Hz
Dimensions (WĂ—HĂ—D) 800 Ă— 1,300 Ă— 630 mm (without yoke)
Weight 100 kg (basic unit)
Operating Temperature +10 to +40°C
Operating Humidity ≤80% (non-condensing)
Storage Temperature -20 to +60°C
Storage Humidity ≤95% (non-condensing)
Regulatory Reference CE marked; ISO 13485 certified; confirm current local registration with supplier

Note: Dimensions and weight vary slightly across source documents (some listings cite 704 Ă— 1403 Ă— 750 mm or 1350 Ă— 650 Ă— 780 mm with cart/yoke accessories). The figures above are drawn from the Trivitron platform brochure for the basic unit without yoke. COâ‚‚ absorber capacity (2 loose fill 3 L or 2 prepacks) and APL range are from the Anesmed listing. Confirm the exact configured specification, vaporizer models, and optional modules for your unit with the supplier before publishing.

Why Choose the Aeon8300A?



Clinical or Operational Need Aeon8300A Solution
Need a compact anesthesia workstation for varied OR sizes 800 Ă— 1,300 Ă— 630 mm, 100 kg, compact ergonomic design
Need neonatal-to-adult ventilation coverage ≥2 kg patient range, 20 mL minimum tidal volume, pediatric-sensitive ceramic valve
Need flexible ventilation modes IPPV, PCV, SIMV+PS, PS, Manual; PCV and SIMV+PS for complex cases
Need condensation control during low-flow or long procedures Alloy breathing system with integrated constant-temperature heating
Need autoclavable, corrosion-resistant breathing circuit Fully autoclavable alloy system with anti-corrosion properties
Need reduced consumable dependency Non-consumable mass flow sensor
Need extended operating time without circuit interruption COâ‚‚ bypass option for intraoperative soda lime replacement
Need clear, multi-angle intraoperative monitoring 10.4-inch rotatable, tiltable touchscreen with touch keys and navigator knob
Need precise flow control for low-flow anesthesia Dual-tube backlit flowmeters for Air, Oâ‚‚, Nâ‚‚O
Need rapid induction and resuscitation workflows Fast-release APL valve, one-key manual/auto switch, ACGO
Need battery backup for continuity 24 V, 4 Ah battery, minimum 120 minutes
Need optional gas monitoring and upgrades AGM, COâ‚‚ (mainstream/side-stream), heating, suction, monitor arm, infusion pump holder
