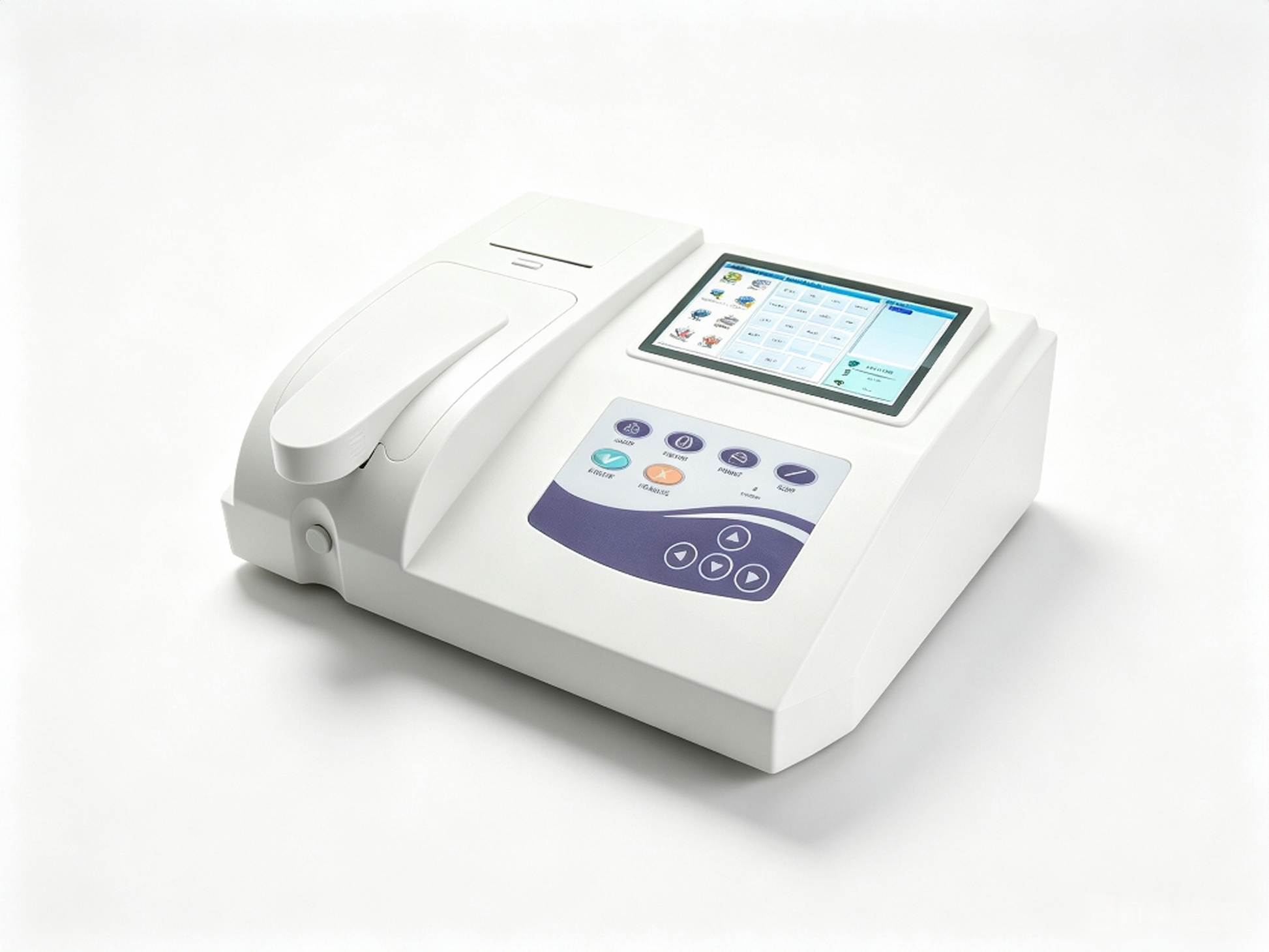

GHM-BC300 Semi-Auto Biochemistry Analyzer | 7" Touch Screen Clinical Laboratory System #

Semi-automatic biochemistry analyzer with 7" touch screen, 500 test items & 10,000 results storage, QC charting, and 4-language support. Ideal for clinical labs, hospitals, and research facilities.

The Global Healthcare Medical GHM-BC300 Semi-Auto Biochemistry Analyzer is a versatile, multi-functional clinical analysis tool designed for accurate and efficient measurement of biochemical indicators in blood and other body fluids. By analyzing these samples and combining the results with other clinical information, the analyzer helps healthcare professionals diagnose diseases, evaluate organ function, identify disease factors, and determine appropriate treatment standards.

Whether you're working in a hospital laboratory, clinical research facility, or veterinary practice, the GHM-BC300 delivers reliable performance, intuitive operation, and comprehensive data management capabilities in a compact, space-saving design.

This device is intended for professional use in clinical and laboratory settings. Not a substitute for professional medical diagnosis.

Key Features

🖥️ 7" Touch Screen with Intuitive Dual Operation

The GHM-BC300 features a 7-inch color LCD (800×480 resolution) with a color graphical interface built on the Linux operating system. The device supports dual operation via touch screen and function keys, and can also be controlled with an external USB mouse or keyboard for maximum flexibility and convenience.

🔬 Multiple Measurement & Calculation Methods

The analyzer supports a wide range of measurement methods to accommodate diverse testing requirements:

• End point method

• Two-point method

• Kinetics (Rate) method

• Double wavelength method

Multiple calculation methods are also available, including factor, linear regression, and nonlinear regression.

💾 Massive Data Storage Capacity

The GHM-BC300 can store up to 500 test items and 10,000 test results—ensuring comprehensive data management without the need for frequent manual archiving.

📊 Comprehensive Quality Control with QC Charting

Each test item can be configured with quality control for two batch numbers. The system automatically calculates and draws QC charts, storing QC data and charts for up to one year—all of which can be checked and printed.

⚡ Intelligent Power Management & Data Protection

• Auto-dormancy for the lamp – Extends the life of the light source

• Power-off protection – Automatically saves measurement results in case of power interruption

• Self-check function – Alerts for light path, liquid path, and mechanical component failures

🔌 Comprehensive Connectivity

The GHM-BC300 features standard communication interfaces for convenient data transmission and processing, including:

• Standard RS232 interface

• 4 USB interfaces

• Ethernet interface

🖨️ Flexible Print Options

The device features a built-in high-speed thermal printer and also supports connection to an external printer—offering multiple print modes and a variety of report formats.

🌍 Multi-Language Support

The GHM-BC300 supports four languages: Chinese, English, Spanish, and Portuguese—making it suitable for international healthcare settings.

🔧 High-Precision Technical Performance

• Absorbency range: -0.3 – 3.0 Abs

• Resolution: 0.001 Abs (display), 0.0001 Abs (internal calculation)

• Wavelength: 340, 405, 510, 546, 578, 620 nm + 2 free positions

• Stability: ≤0.005 A / 30 min

• Half-bandwidth: ≤12 nm

• Temperature control: Room temperature, 25°C, 30°C, 37°C

• Temperature accuracy: ±0.1°C

• Colorimetric cell: 30μl quartz flow cell

Specifications

What's Included

• GHM-BC300 Semi-Auto Biochemistry Analyzer Main Unit

• 7" Color Touch Screen Display

• Built-in Thermal Printer

• Recording Paper

• Halogen Lamp

• Pipette

• Pump Pipe

• 2 Fuses

• Power Cord

• User Manual

Applications

The GHM-BC300 Semi-Auto Biochemistry Analyzer is suitable for:

• Hospital Laboratories – Routine biochemistry testing for patient diagnosis

• Clinical Research Facilities – Biochemical analysis for research purposes

• Veterinary Clinics – Animal biochemistry testing (veterinary applications available)

• Community Health Centers – Point-of-care biochemistry screening

• Educational Institutions – Training and teaching in clinical laboratory science

• Biotechnology & Pharmaceutical Companies – Quality control and research testing

Why Choose the GHM-BC300?

FAQ

Q: What is the GHM-BC300 Semi-Auto Biochemistry Analyzer?

A: The GHM-BC300 is a semi-automatic biochemistry analyzer that measures biochemical indicators in blood and other body fluids to help diagnose diseases, evaluate organ function, and determine treatment standards.

Q: What measurement methods does the device support?

A: The GHM-BC300 supports End point, Two-point, Kinetics (Rate), and Double wavelength methods, with calculation options including factor, linear regression, and nonlinear regression.

Q: How much data can the device store?

A: The device can store up to 500 test items and 10,000 test results.

Q: Does the device have quality control features?

A: Yes. Each test item can be configured with quality control for two batch numbers, with automatic QC charting and storage of QC data and charts for up to one year.

Q: What languages does the interface support?

A: The GHM-BC300 supports Chinese, English, Spanish, and Portuguese.

Q: What connectivity options are available?

A: The device features RS232, 4 USB ports, and Ethernet interfaces for data transmission and processing.

Q: Does the device have a built-in printer?

A: Yes. The GHM-BC300 features a built-in high-speed thermal printer and also supports connection to an external printer.

Q: What is the device's weight and dimensions?

A: The GHM-BC300 measures 410mm × 340mm × 150mm and weighs approximately 6 kg.

Q: What safety and protection features does the device have?

A: The device features auto-dormancy for the lamp to extend its life, power-off protection to automatically save results, and a self-check function that alerts for light path, liquid path, and mechanical component failures.

Q: Is the device suitable for veterinary use?

A: Yes. The GHM-BC300 is also available for veterinary applications, making it suitable for animal biochemistry testing.
