GHM-BC400 Urine Analyzer | 11‑Parameter Semi‑Auto Urinalysis System with Printer #

GHM-BC400 Urine Analyzer | 11‑Parameter Semi‑Auto Urinalysis System with Printer #

Semi-automatic urine analyzer with 11‑parameter testing, 2.8" LCD, 3 working modes, and built-in thermal printer. Ideal for hospitals, clinics, and community health services.

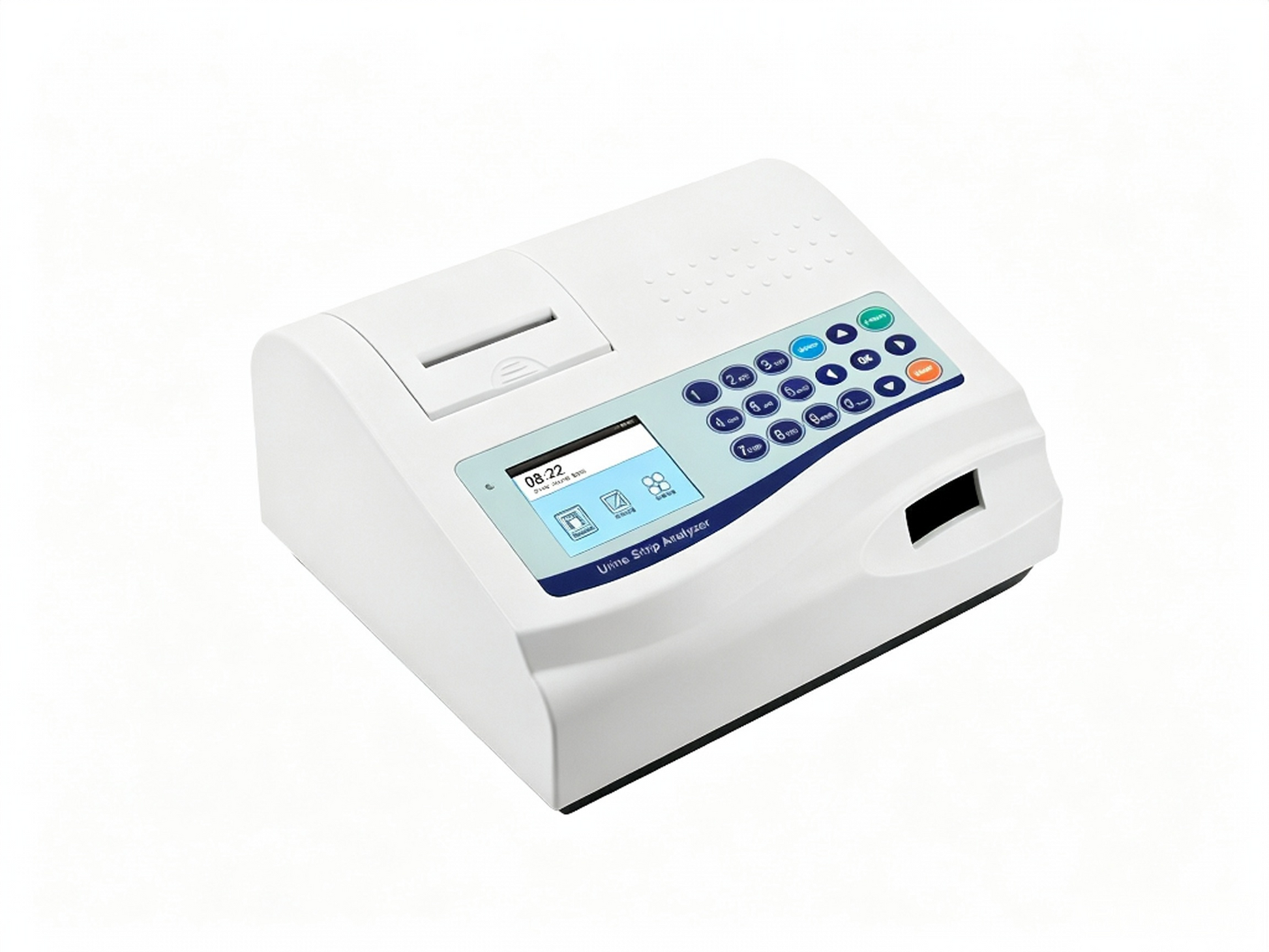

The Global Healthcare Medical GHM‑BC400 Urine Analyzer is a high‑precision, semi‑automatic instrument designed for clinical urine inspection. Developed using modern optics, electronics, and computer science, this analyzer delivers accurate and reliable results for a wide range of urinary parameters.

This device is applicable for use in hospitals, community health services, clinics, and epidemic stations. With its user‑friendly interface, versatile test strip compatibility, and built‑in thermal printer, the GHM‑BC400 streamlines urinalysis workflows in any healthcare setting.

This device is intended for professional use in clinical and laboratory settings. Not a substitute for professional medical diagnosis.

Key Features

🧪 Comprehensive 11‑Parameter Urinalysis

The GHM‑BC400 can test up to 11 key urinary parameters using specialized test strips:

  • GLU – Glucose

  • BIL – Bilirubin

  • SG – Specific Gravity

  • KET – Ketone

  • BLD – Blood

  • PRO – Protein

  • URO – Urobilinogen

  • NIT – Nitrite

  • LEU – Leukocytes

  • VC – Vitamin C

  • PH – pH

💡 High‑Luminance White LED Light Source

The analyzer features a high‑luminance white LED that offers long life and good stability. This ensures consistent, reliable results over thousands of tests.

🖥️ Large LCD Screen with Multi‑Language Support

The large LCD screen with high luminance displays abundant content clearly. The interface supports optional languages: Chinese and English, making it suitable for international healthcare settings.

🔘 Three Working Modes for Different User Groups

The device features three working modes—one‑step, slow, and fast testing mode—making it suitable for different user groups and clinical workflows.

🖨️ Built‑in Thermal Printer

The GHM‑BC400 features a built‑in thermal printer for immediate result printing, providing convenient hard‑copy documentation for patient records.

🔄 Flexible Unit Display

Results can be displayed in three optional unit systems: international unit, conventional unit, and symbol system—accommodating different clinical preferences and regional standards.

📊 Versatile Test Strip Compatibility

The GHM‑BC400 is compatible with 8, 10, or 11‑parameter test strips (optional based on the type of test strip used). This flexibility allows laboratories to choose the appropriate test strip for their specific testing needs.

🔌 Standard Connectivity

  • Standard RS232 interface – For data communication and system integration

  • Interface for data communication – Enables connection to LIS/HIS systems

⚙️ High‑Precision Performance Specifications



Feature Specification
Test Principle RGB tricolor
Test Speed 120 tests/hour or 60 tests/hour (selectable)
Repeatability CV ≤ 1%
Stability CV ≤ 1%
Display 2.8" Color LCD
Working Modes One‑step, slow, fast
Printing Built‑in thermal printer
Interfaces Standard RS232, data communication interface
Power Supply AC 100V‑240V, 50/60Hz
Dimensions 240mm × 220mm × 130mm
Weight Approx. 2.2 kg

Applications

The GHM‑BC400 Urine Analyzer is suitable for:

  • Hospitals & Clinics – Routine urinalysis for patient screening and diagnosis

  • Community Health Services – Point‑of‑care testing in community settings

  • Physical Examination Centers – Health checkups and wellness screenings

  • Epidemic Stations – Public health surveillance and disease monitoring

  • POCT (Point‑of‑Care Testing) – Convenient urinalysis at the patient's bedside

Why Choose the GHM‑BC400?



Manual Urinalysis Global Healthcare Medical GHM‑BC400
Subjective interpretation Objective, automated RGB tricolor analysis
Time‑consuming Up to 120 tests/hour high throughput
No documentation Built‑in thermal printer for instant results
Single language Multi‑language support (Chinese/English)
Limited workflow options 3 working modes for different user groups
Fixed unit system 3 optional unit systems



FAQ

Q: What is the GHM‑BC400 Urine Analyzer?

A: The GHM‑BC400 is a high‑precision, semi‑automatic urine analyzer that uses RGB tricolor technology to test up to 11 urinary parameters for clinical diagnosis and screening.

Q: What parameters can the device test?

A: The device can test GLU, BIL, SG, KET, BLD, PRO, URO, NIT, LEU, VC, and PH using specialized test strips.

Q: What test strips are compatible?

A: The GHM‑BC400 is compatible with 8, 10, or 11‑parameter test strips, depending on the type selected.

Q: What is the test speed?

A: The device delivers up to 120 tests per hour (or 60 tests/hour in selectable mode).

Q: Does the device have a built‑in printer?

A: Yes. The GHM‑BC400 features a built‑in thermal printer for immediate result printing.

Q: What working modes are available?

A: The device features three working modes—one‑step, slow, and fast testing mode—suitable for different user groups.

Q: Can I switch between measurement units?

A: Yes. Results can be displayed in international unit, conventional unit, or symbol system.

Q: What languages does the interface support?

A: The interface supports optional languages: Chinese and English.
