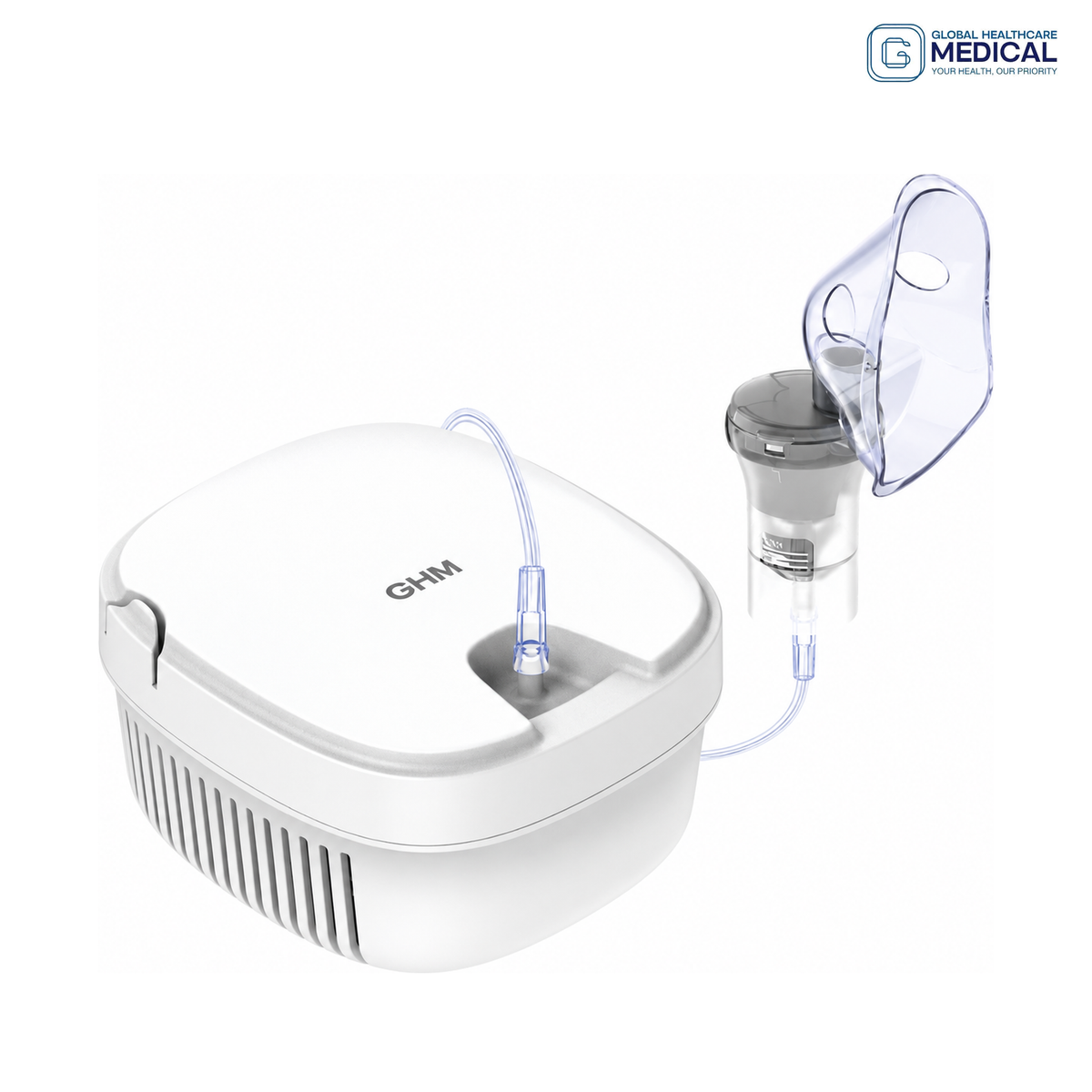

GHM C14 US AC Compressor Nebulizer – AC Powered, ≥0.25 mL/min Nebulization Rate, ≤3 μm Particle Size, 200–350 kPa Pressure
GHM C14 US AC Compressor Nebulizer – AC Powered, ≥0.25 mL/min Nebulization Rate, ≤3 μm Particle Size, 200–350 kPa Pressure
SKU: GHM C14 US
Brand: Global Healthcare Medical
Product Overview
Global Healthcare Medical GHM C14 US AC Compressor Nebulizer is a compact, AC-powered compressor nebulizer designed to convert liquid medication into a fine aerosol mist for inhalation. The device utilizes compressed air technology to produce consistently small particles, making it suitable for use in hospitals, clinics, and home healthcare settings.
The GHM C14 US is powered by an AC power source (AC 230 V, 50 Hz; AC 110 V, 60 Hz for USA; AC 110 V, 50/60 Hz for Japan), providing reliable continuous operation. The nebulizer features a nebulization rate of ≥0.25 mL/min, a particle size of ≤3 μm (EN 13544-1), and a medication bottle capacity of ≤8 mL. It operates at a noise level of ≤65 dB and delivers a nebulization pressure of 200–350 kPa. The device is lightweight (approximately 1.18 kg, not including medicine cup and air tube) and compact (163 × 150 × 89 mm), making it easy to place and store in clinical or home environments.
The system is designed for professional and home use. The device provides efficient and reliable nebulization with simple operation.
This product is intended for the nebulization of liquid medication. For professional and home use.
Key Features & Benefits
AC Compressor Technology – Reliable and Consistent Nebulization
The GHM C14 US uses AC compressor technology to convert liquid medication into a fine aerosol mist. This technology provides efficient and consistent nebulization with a particle size of ≤3 μm, suitable for inhalation.
| Feature | Benefit |
|---|---|
| Compressor technology | Efficient and consistent aerosol generation |
| Particle size | ≤3 μm (EN 13544-1) |
| Nebulization rate | ≥0.25 mL/min |
| Nebulization pressure | 200 kPa – 350 kPa |
| Medication bottle capacity | ≤8 mL |
| Reliable performance | Consistent mist output |
AC Power Source – Continuous Operation
The GHM C14 US is powered by an AC power source, providing reliable continuous operation without the need for batteries. Multiple voltage configurations are available to suit different regions.
| Feature | Benefit |
|---|---|
| AC power | AC 230 V, 50 Hz |
| US configuration | AC 110 V, 60 Hz (USA) |
| Japan configuration | AC 110 V, 50/60 Hz (Japan) |
| Power consumption | Approximately 150 VA |
| Continuous operation | No battery replacement required |
Quiet Operation – Comfortable for All Users
The GHM C14 US operates at a noise level of ≤65 dB, providing comfortable nebulization. This feature supports use in clinical and home settings.
| Feature | Benefit |
|---|---|
| Noise level | ≤65 dB |
| Comfortable operation | Suitable for all users |
| User-friendly | Reduces disturbance during use |
| Reliable performance | Consistent mist output |
Compact and Lightweight – Portable Design
The GHM C14 US is compact (163 × 150 × 89 mm) and lightweight (approximately 1.18 kg, not including medicine cup and air tube), making it easy to place and store. Its portable design supports use at home, in clinics, or while traveling.
| Feature | Benefit |
|---|---|
| Compact dimensions | 163 (L) × 150 (W) × 89 (H) mm |
| Lightweight | Approximately 1.18 kg (not including medicine cup and air tube) |
| Portable | Easy to place and store |
| User-friendly | Simple to handle and operate |
Wide Working Environment – Flexible Use
The GHM C14 US operates effectively across a broad range of environmental conditions, making it suitable for various clinical and home settings.
| Specification | Detail |
|---|---|
| Working temperature | 10 – 40°C |
| Working humidity | 30 – 85% RH |
| Nebulization pressure | 200 – 350 kPa |
Simple Operation – Professional and Home Use
The GHM C14 US is designed for ease of use with intuitive controls. The user simply fills the medication bottle, connects the mouthpiece or mask, and turns on the device.
| Step | Action |
|---|---|
| 1 | Add liquid medication to the medication bottle (≤8 mL) |
| 2 | Connect the mouthpiece or mask |
| 3 | Press the power button to start nebulization |
| 4 | Breathe normally until nebulization is complete |
Product Specifications
| Specification | Detail |
|---|---|
| Model / SKU | GHM C14 US |
| Product Type | AC Compressor Nebulizer |
| Power Source | AC 230 V, 50 Hz; AC 110 V, 60 Hz (USA); AC 110 V, 50/60 Hz (Japan) |
| Power Consumption | Approximately 150 VA |
| Nebulization Rate | ≥0.25 mL/min |
| Particle Size | ≤3 μm (EN 13544-1) |
| Capacity of Medication Bottle | ≤8 mL |
| Noise Level | ≤65 dB |
| Working Environment | Temperature: 10 – 40°C; Humidity: 30 – 85% RH |
| Nebulization Pressure | 200 kPa – 350 kPa |
| Weight | Approximately 1.18 kg (not including Medicine Cup and Air Tube) |
| External Dimensions | 163 mm (L) × 150 mm (W) × 89 mm (H) |
| Intended Use | Nebulization of liquid medication; professional and home use |
| Package Options | Nebulizer, medication bottle, mouthpiece, mask, air tube, user manual |
Why Clinical Laboratories Choose Global Healthcare Medical
| Consideration | GHM C14 US |
|---|---|
| Compressor technology | Efficient and consistent nebulization |
| Small particle size | ≤3 μm for inhalation |
| AC power | Continuous operation without batteries |
| Nebulization pressure | 200 – 350 kPa |
| Nebulization rate | ≥0.25 mL/min |
| Quiet operation | ≤65 dB noise level |
| Compact and lightweight | Portable design for home and clinical use |
| Medication capacity | ≤8 mL |
| Wide working environment | 10 – 40°C, 30 – 85% RH |
| Simple operation | Intuitive controls for all users |
About Global Healthcare Medical
Global Healthcare Medical is dedicated to connecting clinical laboratories, hospitals, and healthcare distributors with high-quality medical devices designed for reliable performance. The GHM C14 US AC Compressor Nebulizer is part of our respiratory care product line, developed to support efficient nebulization in professional and home settings.
Our focus is on dependable performance, clear documentation, and responsive support for clinical and laboratory environments.
