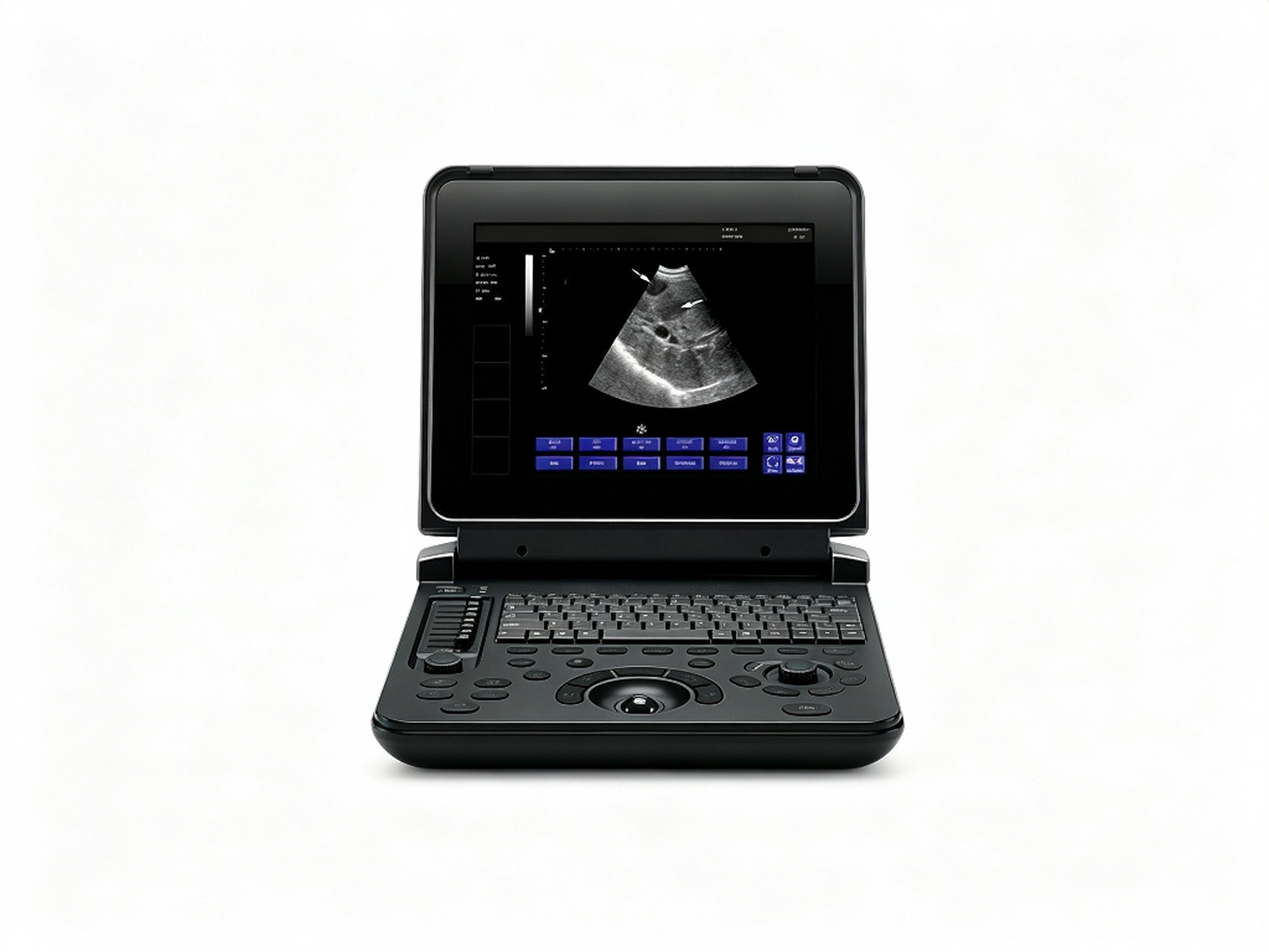

GHM-DL121A Digital Diagnostic Ultrasound | 12" Black & White Ultrasound Machine for Thyroid & General Imaging #

12" black & white ultrasound machine with B/2B/4B/B-M modes, multiple probes, and 255-frame storage. Ideal for thyroid, obstetrics, gynecology, and general imaging.

The Global Healthcare Medical GHM-DL121A Digital Diagnostic Ultrasound System is a versatile, high‑performance black and white ultrasound machine designed for a wide range of clinical applications. Featuring a 12‑inch high‑resolution LED monitor with 1024×768 resolution, this system delivers clear, detailed imaging for accurate diagnosis across multiple departments.

Built on a Linux+ARM+FPGA architecture with 32 physical channels and support for 80/96/128 element probes, the GHM‑DL121A combines advanced adaptive transmission and reception control with efficient multi‑channel parallel processing technology for maximized computing speed and optimal image performance.

Whether you're performing thyroid examinations, obstetric scans, or general abdominal imaging, this system offers the flexibility, image quality, and ease of use that modern diagnostic environments demand.

This device is intended for professional use in clinical and diagnostic settings. Not a substitute for professional medical diagnosis.

Key Features

🖥️ 12‑Inch High‑Resolution LED Display

The GHM‑DL121A features a 12‑inch high‑resolution LED monitor with 1024×768 resolution, delivering clear, detailed imaging for accurate diagnosis. The system supports native image storage of ≥360 images, ensuring comprehensive patient data management.

🔬 Multiple Imaging Modes for Versatile Scanning

The GHM‑DL121A supports a comprehensive range of imaging modes to accommodate diverse clinical applications:

• B Mode – Standard 2D imaging for general scanning

• 2B Mode – Dual‑screen display for comparative viewing

• 4B Mode – Quad‑screen display for multi‑angle assessment

• B/M Mode – Simultaneous B‑mode and M‑mode for cardiac and fetal movement evaluation

• PW Mode – Pulsed Wave Doppler (optional) for blood flow assessment

🦋 Specialized Thyroid Ultrasound Imaging

Built on extensive clinical experience, the GHM‑DL121A allows doctors to characterize the thyroid gland, surrounding tissues, and any nodules that may be present. Its high‑frequency sound wave technology generates high‑definition images, detecting various lesions including:

• Thyroid nodules – Solid or cystic, benign or malignant

• Goiter – Enlargement of the thyroid

• Inflammations and cysts

• Abnormal lymph nodes in the neck

🔧 Advanced Imaging Technologies

The GHM‑DL121A incorporates cutting‑edge imaging technologies for superior image quality:

• Harmonic Imaging (THI) – Uses second harmonics generated by tissue boundary layers to significantly increase contrast resolution and improve image quality

• Automatic Optimization – Real‑time image enhancement

• Noise Cancellation & Speckle Reduction – Cleaner, clearer images

• Fine Angle Steer – Improved visualization of challenging structures

🔄 Multiple Probe Options for Diverse Applications

The GHM‑DL121A supports a wide range of probes to address various clinical needs:

⚡ One‑Key Optimization for Streamlined Workflow

The GHM‑DL121A features a dedicated one‑key optimization function that simplifies the ultrasound workflow:

• Real‑time image enhancement – Improves image quality with a single press

• Measurement and calculation – Automatic measurement tools

• Consistency across users – Ensures uniform image quality regardless of operator experience

🏥 Comprehensive Clinical Applications

The GHM‑DL121A is suitable for a wide range of clinical applications:

• Thyroid – Nodule detection, goiter assessment, and inflammation evaluation

• Obstetrics & Gynecology – Fetal development monitoring and pelvic examinations

• Abdomen – Liver, gallbladder, pancreas, and kidney imaging

• Pediatrics – Safe, non‑invasive imaging for children

• Vascular – Blood vessel assessment

• Small Parts – Breast, testicular, and musculoskeletal imaging

• Cardiology – Basic cardiac assessment

• Urology – Kidney, bladder, and prostate examinations

📦 Portable & Durable Design

The GHM‑DL121A features a slim and smart design that permits easy transportation and storage. With a large capacity lithium battery that can standby for approximately 5 hours (optional)【3†L0】, the system is ideal for both stationary and mobile use.

🔌 Comprehensive Connectivity & Accessories

The GHM‑DL121A offers extensive connectivity options:

• Standard accessories – USB, video cable, power cable, operator's manual

• Optional accessories – Printer, trolley, metal box, high‑frequency linear probe

• Triplex mode support – B+CF, PDI, DPDI+PW (optional)

🌍 Multi‑Language Support

The GHM‑DL121A supports multiple languages including Chinese, English, French, Spanish, Portuguese, Russian, Turkish, and Arabic【3†L1】, making it suitable for international healthcare settings.

Specifications

Optional:

FAQ

Q: What is the GHM-DL121A Digital Diagnostic Ultrasound System?

A: The GHM-DL121A is a versatile black and white ultrasound machine designed for thyroid, obstetrics, gynecology, abdominal, and general imaging applications in clinical and diagnostic settings.

Q: What imaging modes does the device support?

A: The GHM-DL121A supports B, 2B, 4B, B/M, M, and PW (optional) imaging modes.

Q: What probe options are available?

A: The device supports convex, linear, micro convex, trans‑vaginal, trans‑rectal, and high‑frequency linear probes.

Q: Does the device have a battery?

A: Yes. A large capacity lithium battery with approximately 5 hours of standby time is available as an optional configuration【3†L0】.

Q: What applications is the device suitable for?

A: The GHM-DL121A is suitable for thyroid, obstetrics, gynecology, abdomen, pediatrics, vascular, small parts, cardiology, and urology imaging.

Q: Does the device have DICOM connectivity?

A: Yes. The GHM-DL121A supports DICOM 3.0 data transmission for integration with PACS systems.

Q: What languages does the interface support?

A: The GHM-DL121A supports Chinese, English, French, Spanish, Portuguese, Russian, Turkish, and Arabic【3†L1】.
