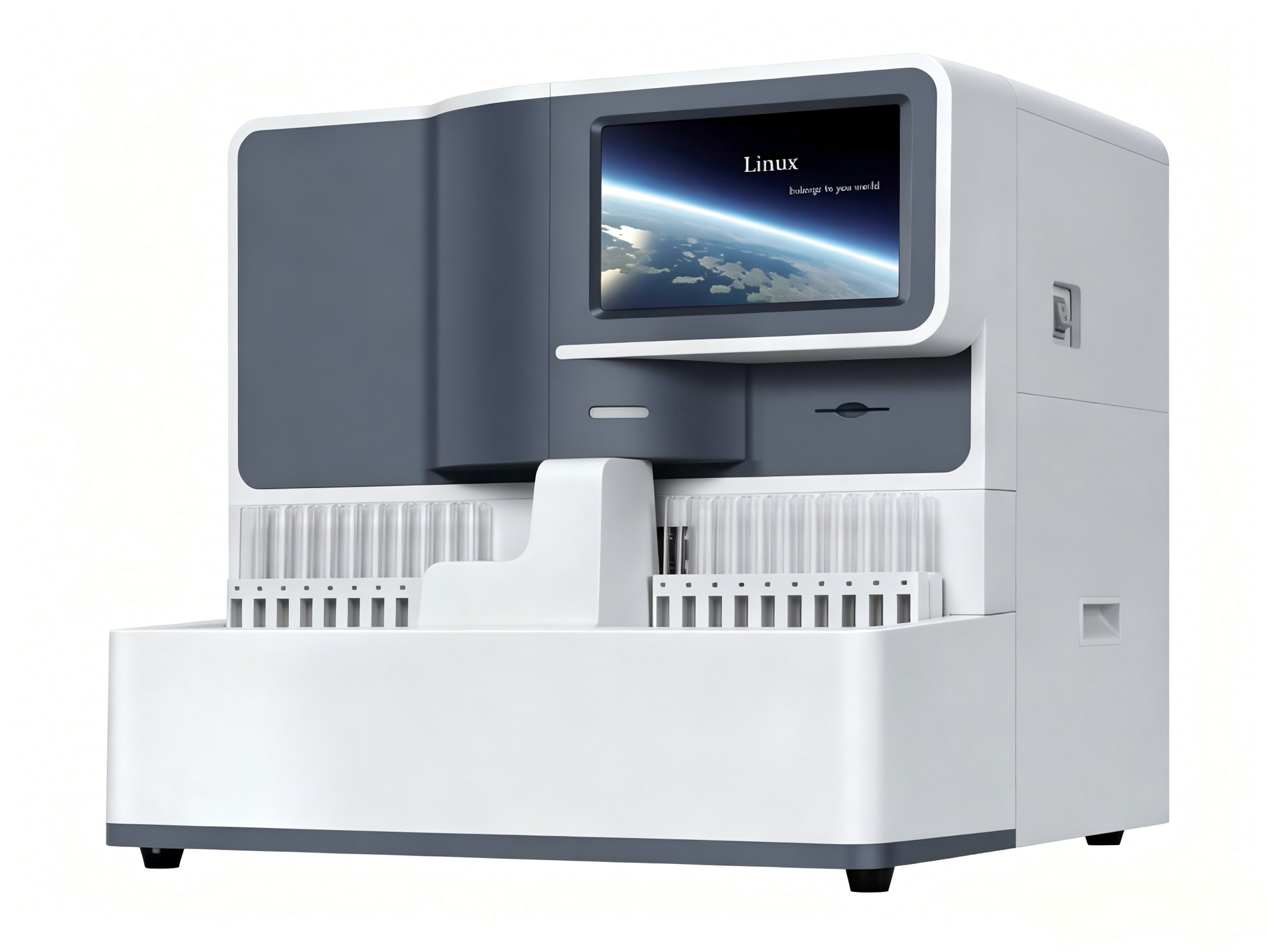

GHM EA2000 Electrolyte Analyzer #

High‑Throughput, Fully Automated Electrolyte Analysis for Large Labs

The GHM EA2000 is a high‑performance, fully automated electrolyte analyzer designed for serum, plasma, urine, cerebrospinal fluid, and dialysate. With a throughput of up to 800 tests per hour and a 50‑position sample rack, it is the ideal solution for high‑volume clinical labs, hospitals, and reference laboratories that demand accuracy, speed, and continuous operation.

Key Features

• 10.1" Large Color Touch Screen
  Intuitive, easy‑to‑use interface – simplifies operation and reduces training time.

• Ultra‑High Throughput – 800 Tests/Hour
  Process up to 800 samples per hour with indirect ion‑selective electrode (ISE) technology. Perfect for busy central labs.

• 50 Continuous Sample Positions (5 Racks)
  Supports non‑stop sample loading – load new racks while the analyzer is running, maximizing efficiency.

• Measures K, Na, Cl, Ca

  • Potassium (K⁺): 0.50–300.00 mmol/L

  • Sodium (Na⁺): 15.0–400.00 mmol/L

  • Chloride (Cl⁻): 15.0–400.00 mmol/L

  • Calcium (Ca⁺⁺): 0.10–6.00 mmol/L
    All with excellent resolution and CV ≤1.0%.

• Indirect ISE Method for Higher Accuracy
  Indirect ion‑selective electrode technology delivers precise, reliable results – especially for samples with abnormal protein or lipid levels.

• Very Low Sample Volume – Only 22 μL
  Minimizes patient sample requirements, ideal for pediatric and geriatric patients.

• Automatic & Manual Calibration
  Flexible calibration options ensure consistent accuracy. Automatic calibration saves time.

• Smart Sample Probe

  • Polished probe design for extremely low carryover

  • Liquid level detection with anti‑collision function – protects the probe and extends life

• Non‑Stop Reagent Replacement
  Monitor remaining reagent and replace without stopping the analyzer – no downtime.

• Multiple Connectivity Options

  • 1 LAN port

  • 3 USB ports (supports external mouse, keyboard, and multiple printers)

  • LIS compatible – seamless integration with your laboratory information system

• Internal & External Printer Support
  Built‑in thermal printer plus option to connect external printers for flexible reporting.

• Robust & Reliable

  • Dimensions: 612 × 580 × 562 mm

  • Weight: 60 kg – built for continuous operation in demanding environments

  • Power supply: 100‑120V / 200‑240V, 50/60Hz

Specifications (EA2000)

• Sample types: Serum, plasma, urine, cerebrospinal fluid, dialysate

• Principle: Indirect ion‑selective electrode (ISE)

• Throughput: Up to 800 tests/hour

• Sample position: 50 positions (5 racks), continuous loading

• Sample volume: 22 μL

• Calibration: Automatic / manual

• Working environment: 10–30°C, ≤85% RH, 70.0–106.0 kPa

• Altitude: ≤3000 m

Why choose the EA2000?
When you need massive throughput, non‑stop operation, and rock‑solid accuracy, the EA2000 delivers. With 800 tests per hour, continuous sample loading, and smart probe technology, it keeps your lab running efficiently – all at a fraction of the cost of imported systems. Perfect for high‑volume clinical and reference labs.
