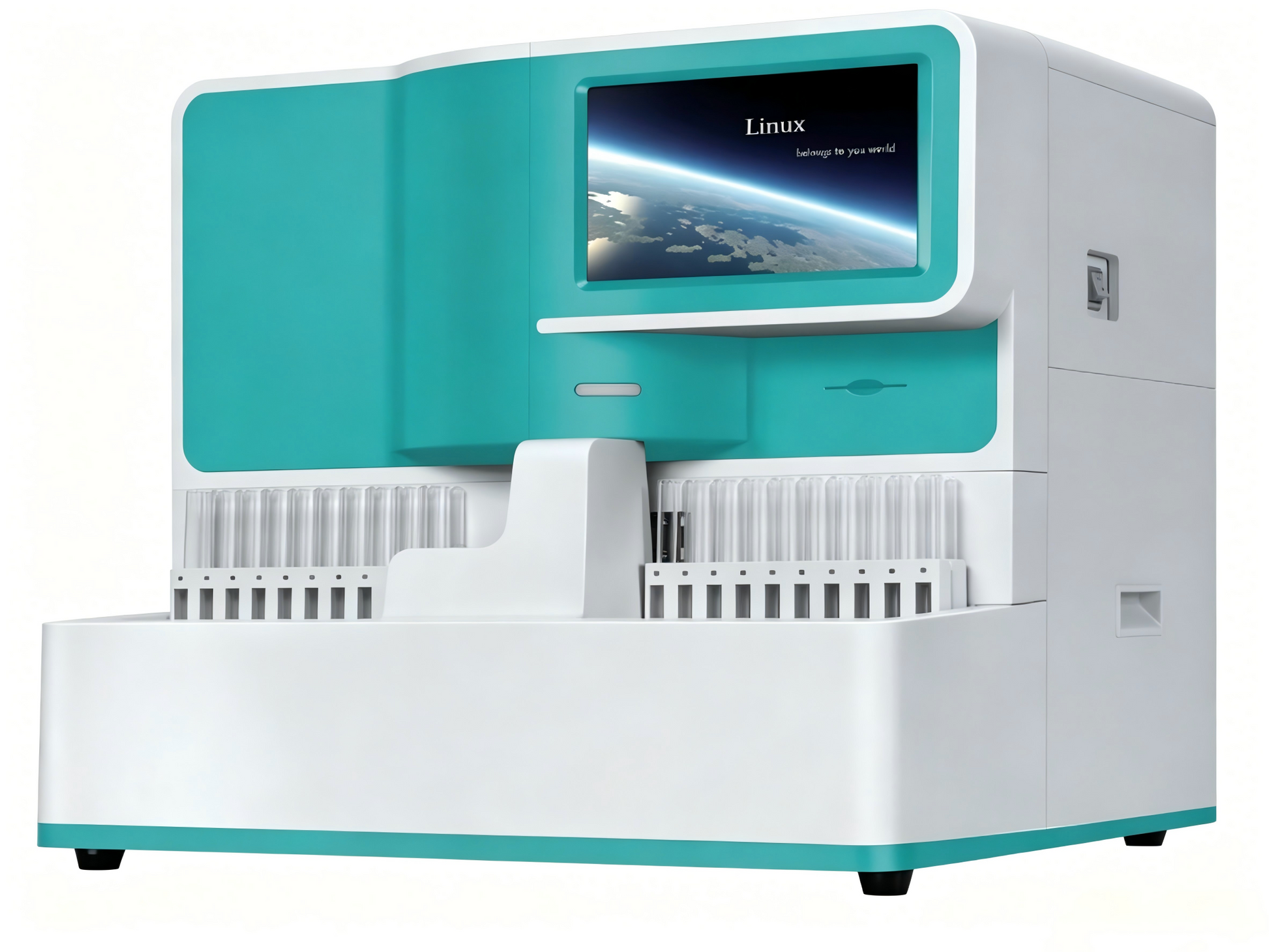

GHM EA2200 Electrolyte Analyzer #

High‑Throughput, Fully Automated Electrolyte Analyzer – 600 Tests/Hour

The GHM EA2200 is a powerful, fully automated electrolyte analyzer designed for serum, plasma, urine, cerebrospinal fluid, and dialysate. With a throughput of up to 600 tests per hour, a 50‑position sample rack, and non‑stop operation, it is the ideal solution for medium‑to‑large clinical labs, hospitals, and dialysis centers that need fast, accurate K, Na, and Cl results.

Key Features

• 10.1" Large Color Touch Screen
  Intuitive, user‑friendly interface – easy to operate with minimal training.

• High Throughput – 600 Tests/Hour
  Process up to 600 samples per hour using indirect ion‑selective electrode (ISE) technology. Keeps your lab running efficiently.

• 50 Continuous Sample Positions (5 Racks)
  Supports non‑stop sample loading – add new racks while the analyzer is running, eliminating downtime.

• Measures K, Na, Cl – Core Electrolytes

  • Potassium (K⁺): 0.50–300.00 mmol/L

  • Sodium (Na⁺): 15.0–400.00 mmol/L

  • Chloride (Cl⁻): 15.0–400.00 mmol/L
    All with excellent resolution and CV ≤1.0%.

• Indirect ISE Method for Higher Accuracy
  Indirect ion‑selective electrode technology delivers precise, reliable results – especially for samples with abnormal protein or lipid levels.

• Very Low Sample Volume – Only 22 μL
  Minimizes patient sample requirements – ideal for pediatric, geriatric, and critical care patients.

• Automatic & Manual Calibration
  Flexible calibration options ensure consistent accuracy. Automatic calibration saves time and reduces operator error.

• Smart Sample Probe

  • Polished probe design for extremely low carryover

  • Liquid level detection with anti‑collision function – protects the probe and extends lifespan

• Non‑Stop Reagent Replacement
  Monitor remaining reagent levels and replace without stopping the analyzer – no interruption to workflow.

• Multiple Connectivity Options

  • 1 LAN port

  • 3 USB ports (supports external mouse, keyboard, and multiple printers)

  • LIS compatible – seamless integration with your laboratory information system

• Internal & External Printer Support
  Built‑in thermal printer plus option to connect external printers for flexible reporting.

• Robust & Reliable Construction

  • Dimensions: 612 × 580 × 562 mm

  • Weight: 60 kg – built for continuous operation in demanding environments

  • Power supply: 100‑120V / 200‑240V, 50/60Hz

Specifications (GHM EA2200)

• Sample types: Serum, plasma, urine, cerebrospinal fluid, dialysate

• Principle: Indirect ion‑selective electrode (ISE)

• Throughput: Up to 600 tests/hour

• Sample position: 50 positions (5 racks), continuous loading

• Sample volume: 22 μL

• Calibration: Automatic / manual

• Working environment: 10–30°C, ≤85% RH, 70.0–106.0 kPa

• Altitude: ≤3000 m

Why choose the GHM EA2200?
The EA2200 delivers the perfect balance of speed, reliability, and affordability. With 600 tests per hour, continuous sample loading, and smart probe technology, it keeps your lab productive – without the high cost of imported systems. Ideal for clinical labs, dialysis centers, and hospital core labs that need fast, accurate K, Na, and Cl results.
