GHM Eco US Blood Glucose Monitoring System – Compact, Accurate, and Easy-to-Use
GHM Eco US Blood Glucose Monitoring System – Compact, Accurate, and Easy-to-Use
SKU: GHM Eco US
Brand: Global Healthcare Medical

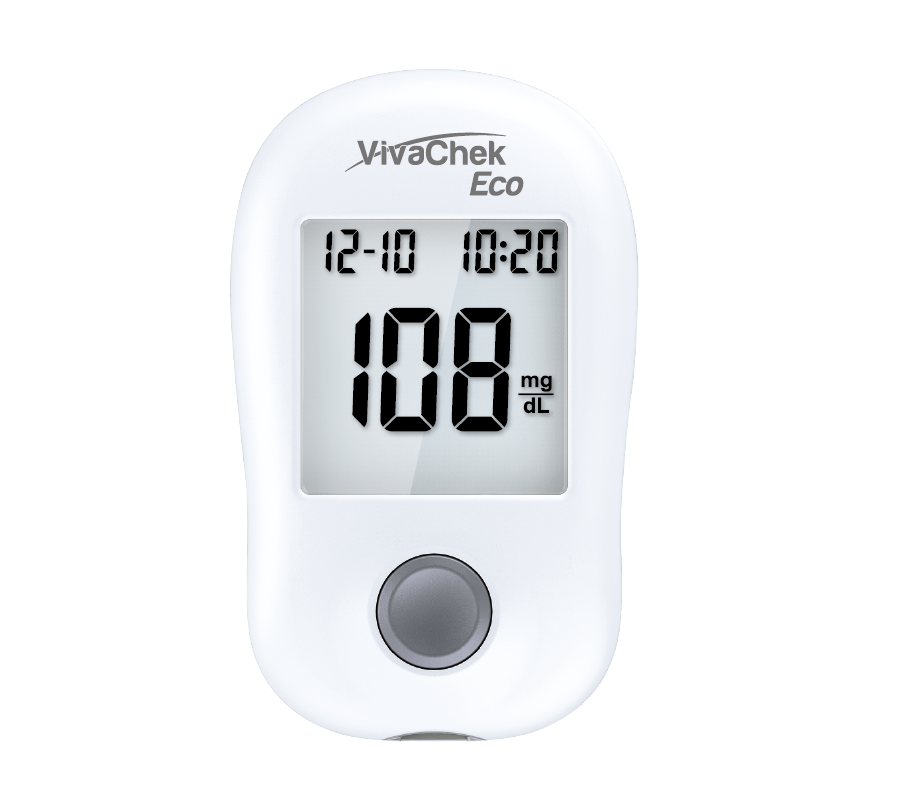

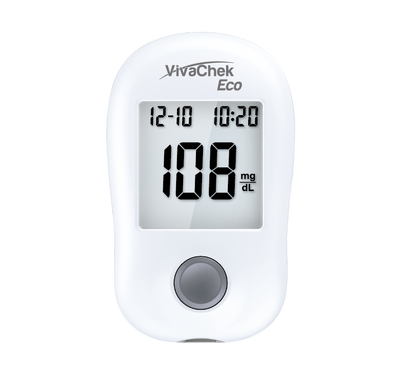

Product Overview
Global Healthcare Medical GHM Eco US Blood Glucose Monitoring System is a compact, automatic blood glucose meter designed for reliable self-testing at home. The system is intended to quantitatively measure glucose concentration in fresh capillary whole blood samples drawn from the fingertips, supporting individuals who monitor their blood glucose as part of a diabetes management program.
The GHM Eco US features a 30 mm × 31 mm display screen and a portable design measuring 79 mm × 48 mm × 18 mm. It requires only a small blood sample of about 0.5 µL and delivers results in about 5 seconds, helping to make daily testing simple and efficient. The meter supports a measurement range of 20–600 mg/dL (1.1–33.3 mmol/L) and is calibrated to plasma-equivalent results. It can store up to 300 test results with time and date, along with 7, 14, and 30-day averaging, supporting retrospective review of glucose trends.
The GHM Eco US is intended for self-measurement and home use. It is designed for use by a single patient and should not be shared. The system uses Eco test strips and is FDA 510(k) cleared for use in the United States.
Key Features & Benefits
Fast, Small-Sample Testing – About 5 Seconds with Only 0.5 µL
The GHM Eco US requires only a tiny blood sample and delivers results in about 5 seconds, making it convenient for frequent testing throughout the day.
| Feature | Benefit |
|---|---|
| Test time | About 5 seconds per measurement |
| Sample volume | About 0.5 µL – a very small blood sample |
| Sample type | Fresh capillary whole blood |
| Calibration | Plasma-equivalent results |
| Automatic shutoff | 2 minutes after last action to conserve battery |
Wide Measurement Range – 20–600 mg/dL
The GHM Eco US supports a broad measurement range, accommodating a wide variety of glucose levels for daily monitoring.
| Parameter | Specification |
|---|---|
| Measurement Range | 20–600 mg/dL (1.1–33.3 mmol/L) |
| Result Calibration | Plasma-equivalent |
| Sample Type | Fresh capillary whole blood |
| Test Time | About 5 seconds |
| Hematocrit Range | 20%–70% |
| Data Port | Micro USB |
Memory – Up to 300 Test Results with Time and Date
The GHM Eco US stores up to 300 test results with time and date, supporting retrospective review of glucose patterns and trends over time. The meter also provides 7, 14, and 30-day averaging.
| Feature | Benefit |
|---|---|
| Memory capacity | Up to 300 results with time and date |
| Averaging | 7, 14, and 30-day averaging |
| Data review | Supports retrospective review of glucose trends |
| Data transfer | Micro USB port |
Portable and Battery-Operated – Designed for Daily Use
The GHM Eco US is compact and lightweight, making it easy to carry and use at home or on the go. It is powered by a single CR 2032 3.0V coin cell battery.
| Specification | Detail |
|---|---|
| Display Size | 30 mm × 31 mm |
| Dimensions | 79 mm × 48 mm × 18 mm |
| Weight | Approx. 53 g |
| Battery | One (1) CR 2032 3.0V coin cell battery |
| Operating Temperature | 41°F to 113°F (5°C to 45°C) |
| Operating Humidity | 10% to 90% non-condensing |
| Hematocrit Range | 20% to 70% |
Advanced Test Strip Technology – Temperature Compensation
The Eco test strips used with the GHM Eco US incorporate temperature compensation technology, which detects the adverse effects of ambient temperature with electrode signals and compensates for them by 5%, contributing to reliable results across a range of conditions.
| Feature | Benefit |
|---|---|
| Temperature compensation | Detects ambient temperature effects and compensates by 5% |
| Hematocrit validation | Reads hematocrit signal and adjusts glucose accuracy by 10% |
| Sample volume | About 0.5 µL |
| Test time | About 5 seconds |
| Micro USB data port | Supports data transfer |
Product Specifications
| Specification | Detail |
|---|---|
| Model / SKU | GHM Eco US |
| Product Type | Blood Glucose Monitoring System |
| Intended Use | Quantitative measurement of glucose concentration in fresh capillary whole blood |
| Sample Type | Fresh capillary whole blood |
| Sample Site | Fingertip |
| Sample Volume | About 0.5 µL |
| Test Time | About 5 seconds |
| Measurement Range | 20–600 mg/dL (1.1–33.3 mmol/L) |
| Result Calibration | Plasma-equivalent |
| Display Size | 30 mm × 31 mm |
| Dimensions | 79 mm × 48 mm × 18 mm |
| Weight | Approx. 53 g |
| Battery | One (1) CR 2032 3.0V coin cell battery |
| Memory | Up to 300 results with time and date; 7, 14, 30-day averaging |
| Data Port | Micro USB |
| Automatic Shutoff | 2 minutes after last action |
| Operating Temperature | 41°F to 113°F (5°C to 45°C) |
| Operating Humidity | 10% to 90% non-condensing |
| Hematocrit Range | 20% to 70% |
| Intended User | Self-measurement and home use; single patient use only |
| Test Strips | Compatible with Eco test strips |
| Regulatory Clearance | FDA 510(k) cleared |
| Package Options | Single unit / retail package |
Why Users Choose Global Healthcare Medical
| Consideration | GHM Eco US |
|---|---|
| Fast results | About 5 seconds per measurement |
| Small sample | About 0.5 µL blood sample required |
| Wide measurement range | 20–600 mg/dL |
| Large memory | Up to 300 results with time and date |
| Portable design | Compact, lightweight, battery-operated |
| Temperature compensation | Electrode signal compensation for ambient temperature effects |
| Hematocrit validation | Reads hematocrit signal and adjusts glucose accuracy |
| Data transfer | Micro USB port for data review |
| FDA cleared | 510(k) clearance for the Eco Blood Glucose Monitoring System |
