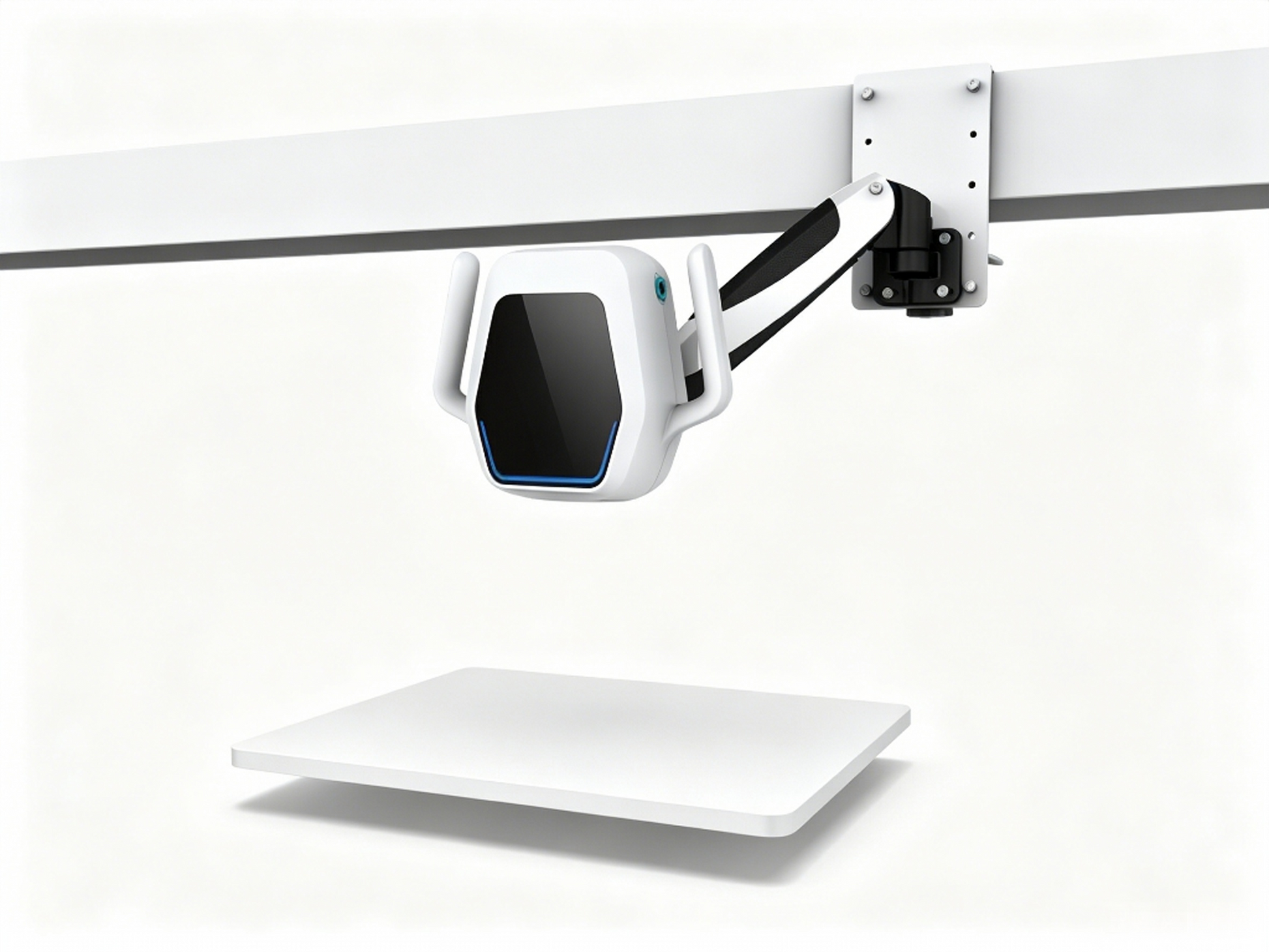

GHM GSC-200 Gross Imaging System #

📸 Crystal‑Clear 20‑Megapixel Imaging

The GHM system captures gross specimens with 20‑megapixel resolution (5472 × 3648 pixels). Every margin, surface detail, and lesion is recorded with exceptional clarity – essential for surgical pathology documentation, frozen section correlation, and medi‑colegal records.

Why it matters: High‑resolution images support accurate gross‑to‑microscopic correlation and reduce the risk of diagnostic errors caused by low‑quality photos.

---

🎯 Auto Focus with 30–90 cm Adjustable Working Distance

The system features a smart auto‑focus mechanism combined with adjustable camera distance (30 cm to 90 cm). Whether you are imaging a tiny biopsy or a large resection specimen, the GHM locks onto the target quickly and stays sharp.

Why it matters: Consistent, in‑focus images across all specimen sizes. No manual focusing delays, no blurry records.

---

📏 Smart Measurement Tools – Length, Area & Perimeter

The GHM includes built‑in measurement tools that go far beyond simple rulers:

• Length measurement – point‑and‑click start‑to‑end

• Area measurement – rectangular, circular and curved areas

• Perimeter measurement – rectangular, circular and curved perimeters

Why it matters: Document tumor size, surgical margins and lesion dimensions directly on the image – no external rulers, no manual transcription errors.

---

🎥 High‑Definition Video Recording with Audio

Capture the entire gross dissection process in high‑definition video. The system supports synchronized audio‑and‑video recording, or audio and video recording separately – perfect for dictating gross descriptions while you work.

Why it matters: Create a complete audiovisual record of specimen handling for teaching, quality assurance and medi‑colegal documentation. No more scribbled notes.

---

✏️ Full Annotation & Image Processing Suite

The GHM is not just a camera – it is a complete imaging workstation. Perform image operations like zoom, rotate and crop. Adjust exposure, white balance, gain, brightness, saturation, and contrast – manually or automatically. Add text annotations, marks, and symbols directly on the image.

Why it matters: Process and annotate images immediately – no separate photo editing software needed. Produce report‑ready images in seconds.

---

💡 Adjustable Illumination for Any Specimen

The GHM features built‑in illumination with adjustable brightness. Eliminate shadows and glare on wet, irregular or translucent specimens.

Why it matters: Consistent, shadow‑free lighting ensures that every specimen – from fatty tissue to bloody resection margins – is captured with true color and depth.

---

🎛️ Foot Pedal Control – Hands‑Free Operation

The system supports foot pedal control for taking photos, focusing and adjusting illumination.

Why it matters: Your hands stay on the specimen and instruments. Capture critical images without breaking your workflow or contaminating controls.

---

🔄 360° Rotating Stand with Height Adjustment

The GHM includes a heavy‑duty stand with ≥30 cm height adjustment and full 360° rotation.

Why it matters: Position the camera at any angle to capture all specimen surfaces and orientations – essential for complex resection specimens.

---

🧾 Scale Plate Integration

A scale plate is supported within the imaging system.

Why it matters: Provide instant size reference in every image – mandatory for medi‑colegal documentation and surgical pathology reporting.

---

🔌 Seamless LIS/PACS Integration

The GHM integrates directly with your pathology department management system.

Why it matters: No manual file transfers. Images and measurements flow automatically into your LIS or PACS – ready for reporting, archiving, and remote consultation.

---

🧩 Digital Zoom & Macro‑Level Detail

The system supports digital zoom to inspect fine specimen features without physically moving the camera.

Why it matters: Examine surface textures, ink margins, and lesion borders at magnified views – all within the same image capture workflow.

---

📦 Quick Specs – GHM Gross Imaging System

---

💡 Perfect For

✅ Surgical pathology labs – Documenting resection specimens, margins, and tumor morphology
✅ Grossing stations – Fast, high‑quality image capture during specimen processing
✅ Teaching hospitals – Creating training videos and annotated image libraries
✅ Forensic pathology – Medi‑colegal documentation with scale and measurement
✅ Remote pathology consultation – Sharing annotated gross images with off‑site colleagues

---

🎯 Why Choose GHM Over Smartphone Photography or Basic Photo Boxes?

---

📦 What's Included

• GHM Gross Imaging camera unit (20 MP)

• Height‑adjustable stand (≥30 cm, 360° rotation)

• Photo box (272 × 212 × 102 mm)

• Illumination system with brightness control

• Foot pedal

• Scale plate

• USB/power cables

• Quick start guide

• 1‑year warranty with technical support

---

📄 Compliance & Quality

• Integration ready – Connects to your existing pathology department management system / LIS / PACS

• Medi‑colegal documentation – Scale plate + measurement tools meet documentation standards

• Training ready – Video recording with audio supports resident and student education
