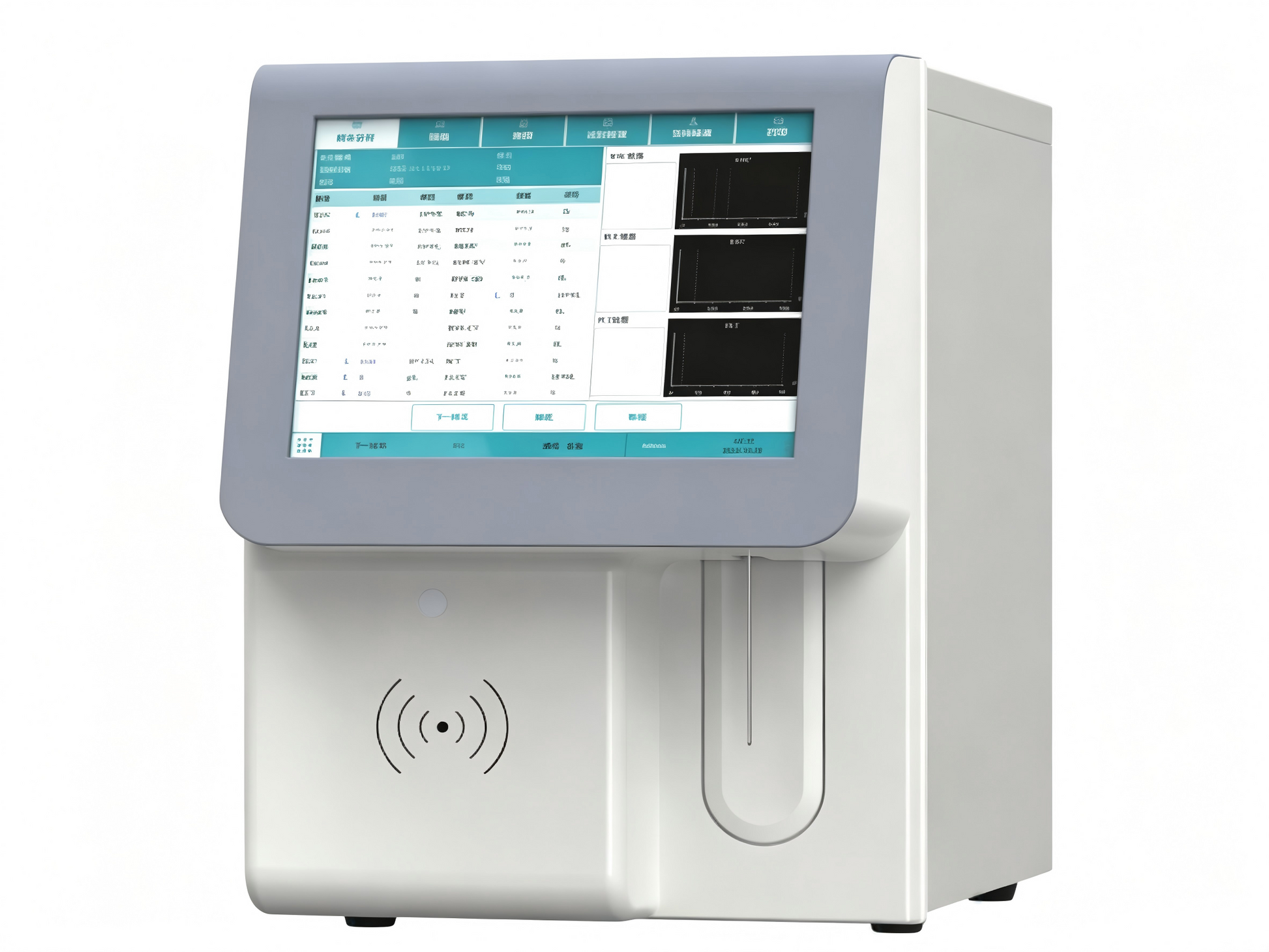

GHM H3000 3-Part Hematology Analyzer #

Efficient 3‑Part Differential
Provides 24 reportable parameters including WBC, Lym#, Mid#, Gran#, RBC, HGB, PLT, and derived ratios (NLR, PLR) – ideal for routine complete blood counts (CBC).

High Throughput, Small Footprint
Processes 60 samples per hour – compact design (275×425×400 mm) fits easily on any lab bench.

Minimal Sample Volume

• Whole blood / Capillary mode: 9 μL

• Pre‑diluted mode: 20 μL
  Excellent for pediatric, geriatric, and low‑volume draws.

Accurate & Reliable Technology

• Impedance method for WBC, RBC, and PLT

• Cyanide‑free colorimetry for HGB – safer for operators and the environment

• Advanced sweeping technology ensures precision of PLT even at low counts

Exceptional Repeatability & Linearity

• WBC: ≤2.0% (4.00–15.00×10³/L) | Linearity up to 200×10³/L

• RBC: ≤1.9% | Linearity up to 9.99×10³/L

• HGB: ≤1.5% | Linearity 0–250 g/L

• PLT: ≤4.0% (150–500×10³/L) | Linearity up to 1000×10³/L

Large Data Storage
Stores 100,000 sample results with histograms – perfect for long‑term patient tracking.

User‑Friendly 10.4″ Touchscreen
High‑definition color display, sensitive touch, and supports operation with rubber gloves – practical for busy labs.

One‑Click Simplicity

• One‑click testing and one‑click troubleshooting

• Single interface presents all daily information – minimal training required

Low Maintenance & Reagent Efficiency

• Uses only 1 probe cleanser for maintenance

• Requires just 2 reagents (1 Lyse + 1 Diluent) – reduces operating costs

Flexible Connectivity

• 4 USB ports, 1 Network port

• Supports HL7 protocol and bi‑directional LIS

• Optional built‑in RFID card reader

Built‑In Printer Options
Includes internal thermal printer or supports external printer – print results on demand.

Global Power & Compact Build

• Power: 100–240V, 50/60Hz

• Net weight: 19 kg – easy to install and move

• Dimensions: 275mm (L) × 425mm (W) × 400mm (H)

✅ Why Choose the H3000?

The H3000 delivers lab‑grade 3‑part differential counts at an affordable price, with low reagent consumption, one‑click operation, and a space‑saving design – ideal for primary care clinics, small hospitals, and teaching labs.
