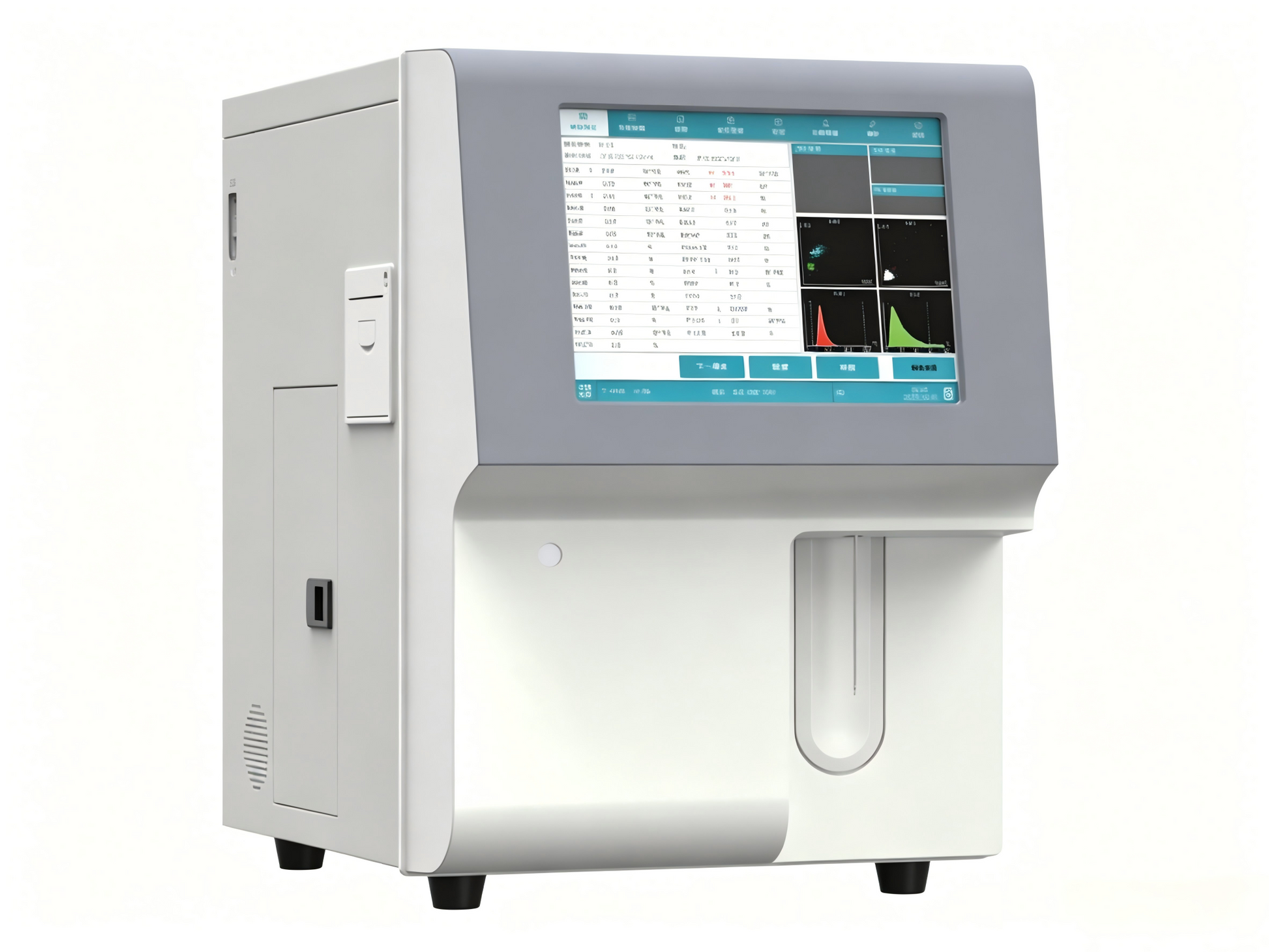

GHM H5000 5-Part Hematology Analyzer

Advanced 5‑Part Differential
Provides 25 reportable parameters including NEU%, LYM%, MON%, EOS%, BAS% and their absolute counts, plus RBC, PLT, and derived indices – perfect for comprehensive CBC analysis.

Research Parameters & Scattergrams

• 4 research parameters: ALY%, ALY#, LIC%, LIC#

• Four 2D scattergrams for WBC differentiation

• 2 histograms for RBC and PLT – deep cell population insight

High‑Accuracy Technology

• Semiconductor laser scattering + flow cytometry

• 3D scattergram analysis for superior cell separation

• Electrical impedance for RBC/PLT and cyanide‑free HGB measurement

Rapid Throughput
Processes 60 samples per hour – ideal for busy clinical labs.

Low Sample Volume
Only 20 μL in whole blood, capillary, or pre‑diluted modes – excellent for pediatric and difficult draw patients.

Massive Data Storage
Stores 100,000+ results including histograms, scattergrams, and patient information – long‑term tracking without extra software.

User‑Friendly 10.4″ Touchscreen
High‑definition color display, sensitive touch, and supports operation with rubber gloves – practical for daily lab use.

Advanced PLT Accuracy
Incorporates advanced sweeping technology to ensure precise platelet counts even in low‑value samples.

Low Maintenance & Reagent Efficiency

• Uses only 1 probe cleanser for maintenance

• Just 3 reagents (1 LH Lyse + 1 Diluent + 1 DFFF Lyse) – reduced operating costs

Flexible Connectivity

• 1 Network port, 2 USB ports

• Bi‑directional LIS with HL7 protocol

• Optional: external USB printer, WiFi connection, built‑in RFID reader

Global Power & Compact Design

• Power: 100–240V, 50/60Hz

• Dimensions: 330mm (L) × 475mm (W) × 467mm (H)

• Net weight: 25 kg – bench‑top friendly

Wide Operating Environment
Temperature: 10–30°C | Humidity: 20–85% | Altitude ≤2000 m – reliable in diverse lab conditions.

✅ Why Choose the H5000?

The H5000 delivers true 5‑part differential with laser‑based flow cytometry, 4 research parameters, and 2D/3D scattergrams – previously found only in high‑end analyzers, now available in a compact, affordable bench‑top design. Perfect for mid‑size hospitals, diagnostic centers, and reference labs.
