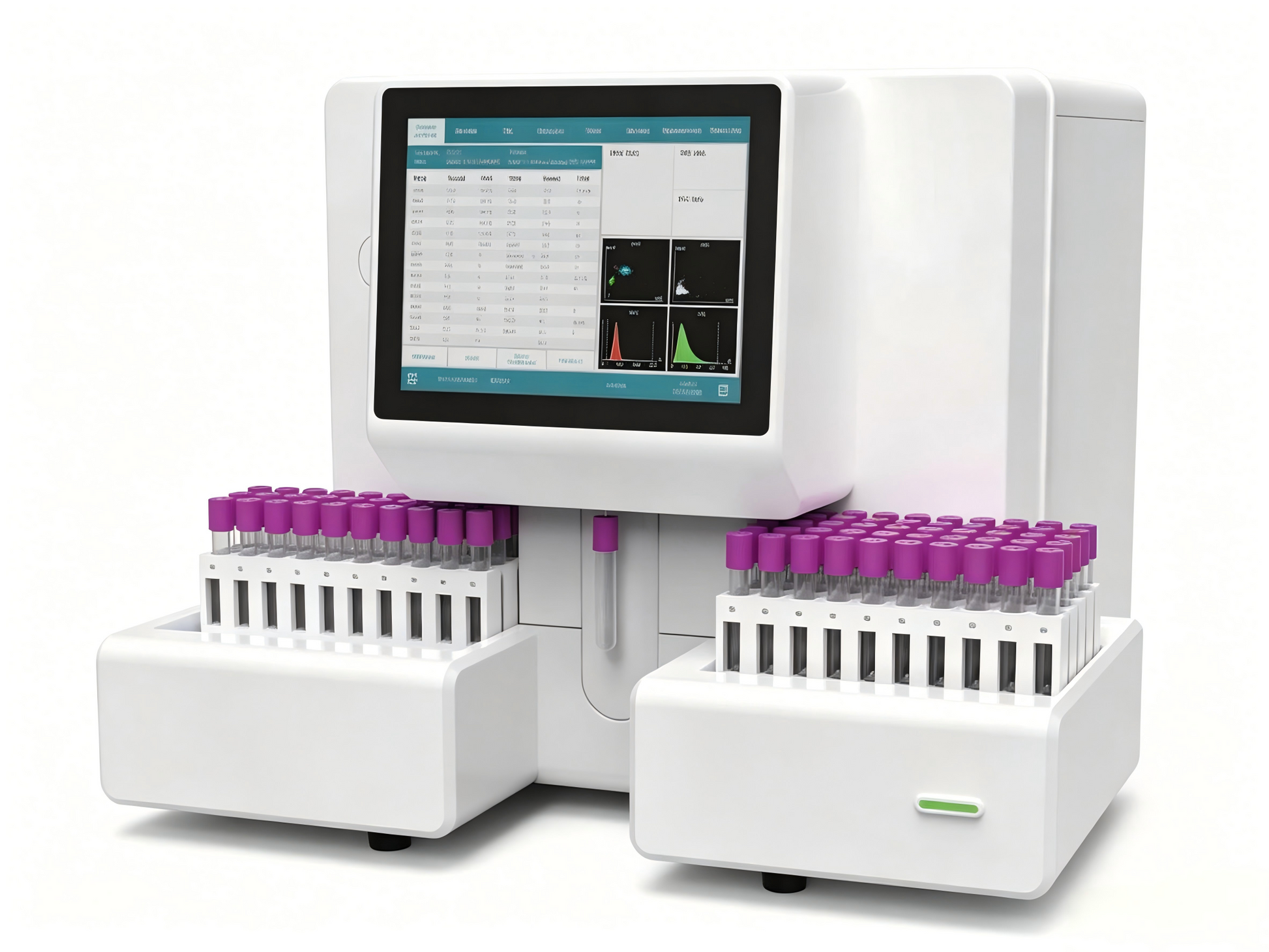

GHM H5810 5-Part Hematology Analyzer #

Comprehensive 5‑Part Differential
Delivers 37 test items including NEU, LYM, MON, EOS, BAS (percentages and absolute counts), RBC, HGB, PLT, and advanced parameters like NRBC#, NRBC%, PLT‑C#, PLT‑C%, ALY%, LIC% – ideal for in‑depth hematology analysis.

High Throughput & Fully Automated Sampling

• 60 samples per hour

• Supports simultaneous loading of 5 sample racks (5 × 10 positions) – walk‑away convenience for busy labs

Intelligent Sample Processing

• Automatic rotary scanning of sample tube barcodes

• Automatic sample shaking before aspiration

• Automatic tube puncture – no cap removal required, reduces exposure risk

• Emergency position detection for STAT samples

Advanced Technology Platform

• Triangular laser scattering + sheath flow for WBC differentiation

• Impedance method for RBC/PLT

• Cyanide‑free HGB measurement (530nm LED)

• 2 channels with gemstone aperture (70μm for RBC/PLT)

Rich Graphical Output

• 4 scatter plots and 2 histograms (RBC, PLT) – visual confirmation of cell populations

Ultra‑Low Sample Volume
Only 20 μL in whole blood, capillary, or pre‑diluted modes – ideal for pediatric and low‑volume draws.

Outstanding Performance

• WBC background ≤0.2×10⁹/L, PLT background ≤10×10⁹/L

• Whole blood CV: WBC ≤3.0%, RBC ≤2.0%, HGB ≤2.0%, PLT ≤5.0%

• Wide linearity ranges: WBC up to 300×10⁹/L, PLT up to 1000×10⁹/L

Massive Data Storage
Stores 50,000 results – sufficient for long‑term patient tracking.

User‑Friendly 10.4″ Touchscreen
Supports touch, keyboard, and mouse – flexible operation. Built‑in thermal printer (57×35mm paper) plus external printer support.

Flexible Connectivity

• 2 USB ports, 1 network port

• LIS system support for bidirectional communication

Low Maintenance Design

• High‑pressure clogging clearance and high‑pressure rinsing

• Reagents: Diluent (20L), Hemolyte DIFF (500mL), Hemolyte LH Lyse (100mL), PB Wash (50mL)

• Easy calibration: manual, automatic, or fresh blood calibration

Reliable Power & Environment

• Power: 100–240V AC, 50/60Hz, 200VA

• Operating temperature: 15–30°C | Humidity ≤85%

• Atmospheric pressure: 70–106 kPa

Compact & Robust Build

• Dimensions: 641mm (L) × 592mm (W) × 465mm (H)

• Net weight: 35 kg

✅ Why Choose the H5810?

The H5810 combines high‑throughput automation (5×10 rack loading, auto puncture, auto shaking) with 37 parameters, 4 scattergrams, and NRBC reporting – a complete 5‑part differential solution for mid‑ to large‑sized laboratories needing efficiency and comprehensive CBC results.
