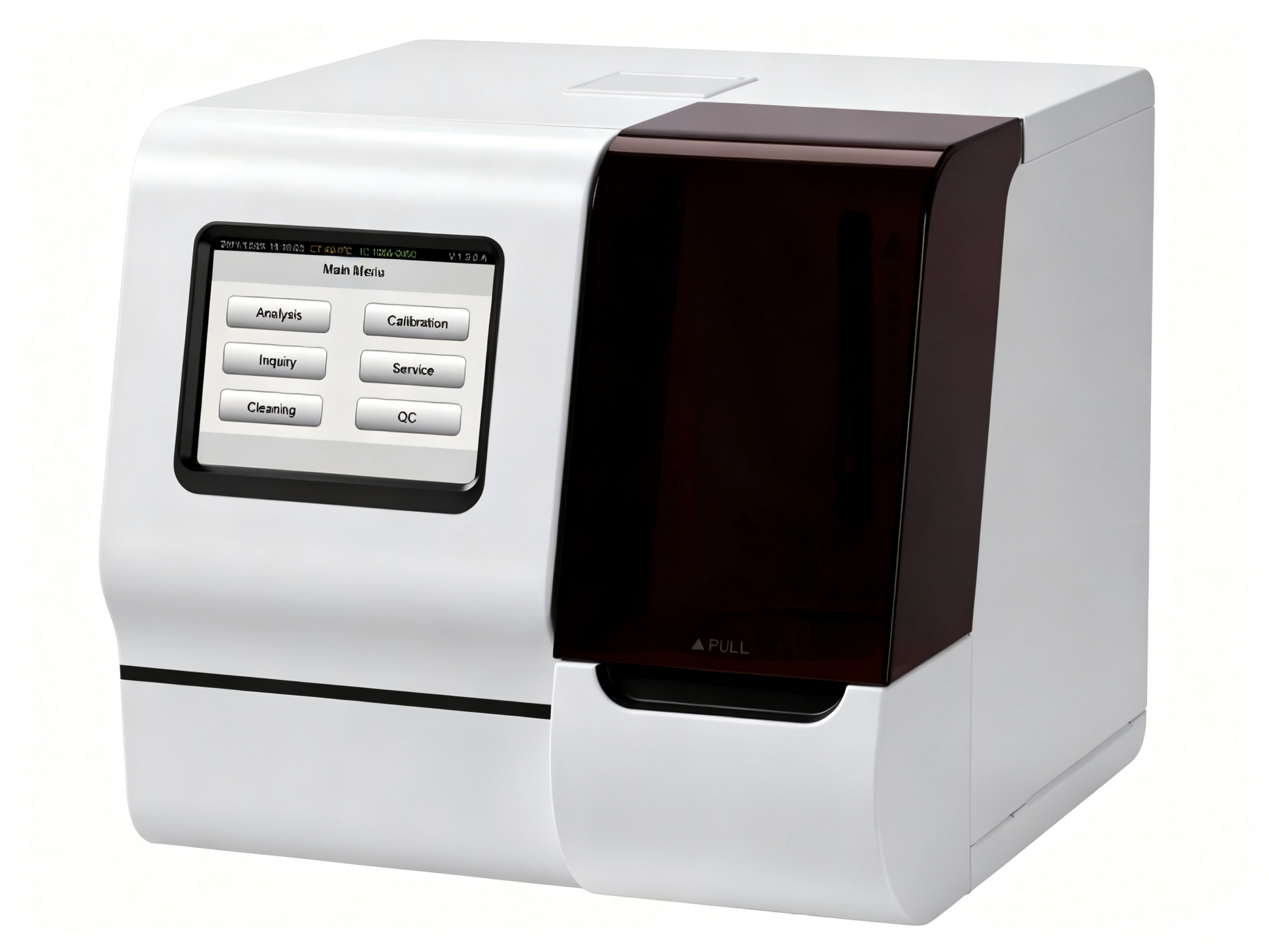

GHM H600 Fully Auto Glycated Hemoglobin Analyzer #

NGSP Authoritative Certification
Trusted accuracy with internationally recognized NGSP and IFCC reporting standards.

High-Performance HPLC Technology
Utilizes High Pressure Ion Exchange Liquid Chromatography for precise separation and quantification of HbA1c and other hemoglobin variants.

Fast & Efficient Testing

• HbA1c test: only 2.5 minutes

• A2/F (Thalassemia) test: 5.5 minutes

Minimal Sample Volume
Requires only 7 μL of blood – ideal for routine and pediatric testing.

Fully Automated Operation

• Automatic mixing and cap-piercing

• 15-position sample tray with dedicated QC/Cal position

• Supports STAT sample processing

Excellent Repeatability & Linearity

• Repeatability: ≤ 3.0%

• HbA1c linear range: 4–17% / 20–162 mmol/mol

Long-Life Hardware

• 415nm LED light source – no warm-up, extended lifespan

• High-stability pump – withstands up to 200 kg/cm² (2900 psi) with minimal fluctuation (±1%)

Precise Temperature Control
Column temperature range: 5–40°C, fluctuation ≤ ±0.2°C for consistent separation.

User-Friendly Software

• Stores up to 10,000 results

• Languages: English, Chinese, Spanish

• Reports: HbA1a, HbA1b, HbF, LA1c, A1c, HbA0, A2, variant proteins C, D, S, E

Easy Maintenance & Alerts

• No special tools required for daily maintenance

• Insufficient reagent alarm

• Column life: 4,000 tests | Sieve life: 300 tests

Connectivity & Display

• 8-inch LCD color touchscreen with real-time testing curve

• USB port for LIS system connection, software upgrades, and optional external barcode scanner

• Built-in thermal printer (57mm × 50mm) for test reports and curves

Robust & Reliable Design

• Operating temperature: 5°C – 40°C

• Humidity: ≤ 80%

• Power: 100–120VAC / 200–240VAC, 50/60Hz, 150VA

• Dimensions: 447mm (L) × 447mm (W) × 400mm (H)

• Weight: 28 kg
