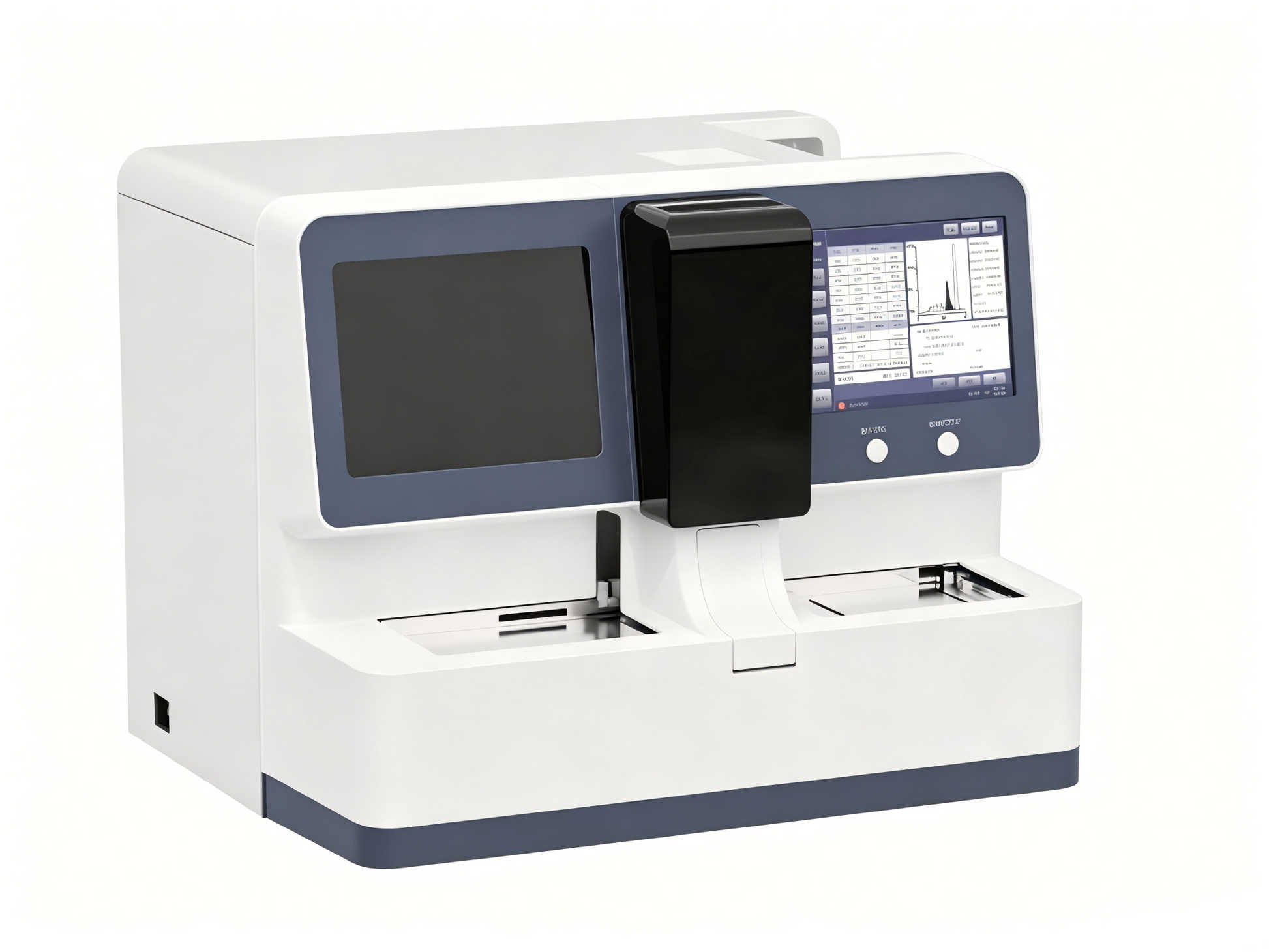

GHM H650 Plus Fully Auto Glycated Hemoglobin Analyzer #

Lightning-Fast Testing

• Standard Mode: 60 seconds/test

• Variant Mode: 96 seconds/test
  Maximize lab efficiency without compromising accuracy.

High-Volume Sample Capacity
50 sample positions – ideal for busy clinical laboratories and high-throughput screening programs.

Ultra-Low Sample Volume

• Whole blood: only 3 μL

• Hemolysis: 80 μL

• B‑thalassemia mode: 8 μL
  Reduces patient discomfort and enables pediatric testing.

Exceptional Repeatability & Linearity

• CV ≤ 1% for unmatched precision

• Linearity: 3% – 20% (HbA1c)

Comprehensive Hemoglobin Variant Detection
Reports include: HbA1a, HbA1b, HbF, LA1c, A1c, HbA0, A2, and variant proteins C, D, S, E.

Long-Life Consumables

• Analytical column: 2,000 tests

• Sieve (filter): 600 tests

Massive Data Storage
Stores up to 100,000 sample results – perfect for long-term patient tracking and large labs.

Advanced Monitoring & Self-Diagnosis

• Real-time monitoring and alarm for columns, filters, reagent levels, and waste liquid

• Automatic recovery from occasional faults

• Effectively indicates abnormal hemoglobin variants

Modern, User-Friendly Interface

• 10.4‑inch color display with Android OS

• Supports gesture controls (touch, swipe)

• Intuitive operation, familiar to smartphone users

Tool‑Less Column Replacement
Change the chromatographic column in under 30 seconds – no special tools required, minimizing downtime.

Flexible Connectivity

• USB port for LIS system integration and software upgrades

• Internal barcode scanner (optional)

• Built-in thermal printer (57mm × 50mm) for test reports and curves

Universal Power & Compact Footprint

• Power supply: 85–264 VAC

• Dimensions: 691mm (L) × 555mm (W) × 560mm (H)

• Weight: 55 kg

• Operating environment: 10°C – 30°C, 30% – 75% relative humidity (no condensation)

NGSP & IFCC Certified Reporting
Globally recognized units for HbA1c – ensuring confidence in diabetes management.

✅ Why Choose the H650 Plus?

The H650 Plus combines high throughput (50 samples), blazing speed (60s/test), and modern Android-based touchscreen operation – making it the most advanced bench-top HPLC analyzer for diabetes and thalassemia screening in medium to large laboratories.
