GHM-HA3100 Automatic Hematology Analyzer | 8" Touch Screen 3-Part CBC System #

Fully automatic hematology analyzer with 8" touch screen, 24 parameters, 60 tests/hour throughput, and 300,000-result storage. Ideal for hospital labs, clinics, and point-of-care testing.

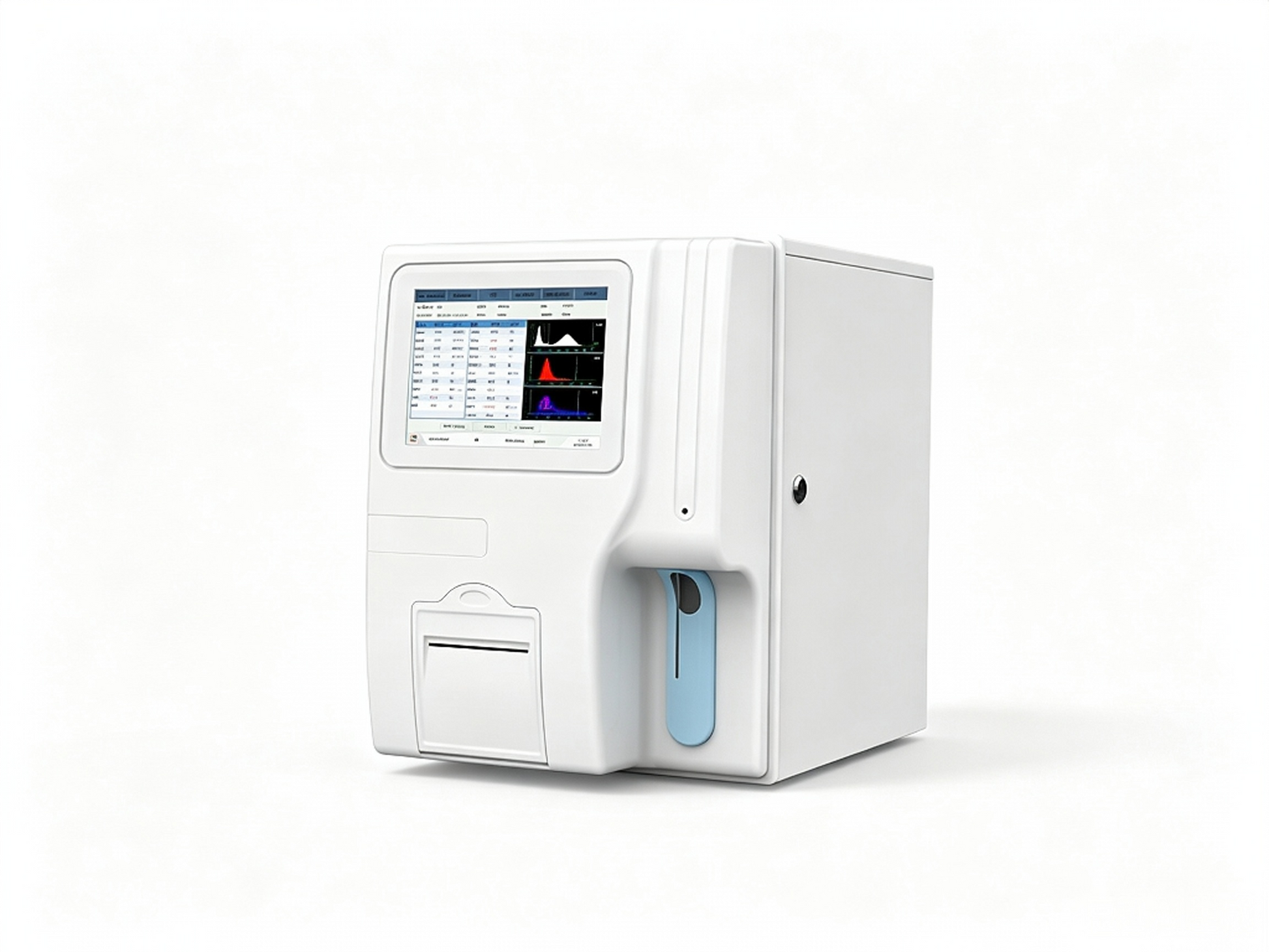

The Global Healthcare Medical GHM-HA3100 Automatic Hematology Analyzer is a fully automated, in vitro diagnostic device designed for quantitative analysis of blood cells in medical laboratories. It provides three-part white blood cell differential counting and delivers 24 parameters including WBC, RBC, PLT, and hemoglobin (HGB) with corresponding histograms for comprehensive hematological assessment.

This analyzer is suitable for the detection of white blood cells, red blood cells, platelets, hemoglobin and other parameters and counting of white blood cells into three classifications. When making a clinical judgment based on the analysis results, the doctor should take the clinical examination results or other test results into consideration.

Whether you're working in a hospital laboratory, clinic, or point‑of‑care setting, the GHM-HA3100 delivers the accuracy, efficiency, and ease of use that modern diagnostic environments demand.

This device is intended for professional use in clinical and laboratory settings. Not a substitute for professional medical diagnosis.

Key Features

🧬 Comprehensive 24‑Parameter Testing with 3‑Part Differential

The GHM-HA3100 provides a complete CBC (Complete Blood Count) with 3‑part WBC differential counting, delivering 24 parameters including WBC, RBC, PLT, HGB, and color histograms. This comprehensive testing capability enables thorough hematological assessment for patient screening and diagnosis.

🖥️ 8‑Inch Color Touch Screen

The 8‑inch color LCD touch screen allows all parameters and histograms to be displayed on the same screen. This intuitive interface makes it easy for laboratory technicians to view and interpret results at a glance.

⚡ High‑Throughput Performance

• Test speed: 60 specimens/hour

• Continuous working: 24 hours

• Detection channels: Dual channel

This high‑throughput capability enables laboratories to process large volumes of samples quickly, reducing turnaround times.

💾 Massive Data Storage Capacity

The GHM-HA3100 can automatically store more than 300,000 groups of complete results, with each result containing three histograms. This extensive storage capacity ensures comprehensive patient data management without the need for frequent manual archiving.

📊 Five Optical Reference Ranges

The analyzer features optical five reference ranges for different patient populations:

• Newborn

• Children

• Adult women

• Adult men

• General use

This ensures accurate interpretation of results across all patient demographics.

🧪 Advanced Clogging Elimination Methods

Multiple clogging elimination methods ensure uninterrupted operation:

• High‑pressure burning jewel hole – Burns away debris

• High‑pressure reverse rinsing – Flushes blockages

• Soaking – Dissolves stubborn deposits

🌿 Environmentally Friendly Hemoglobin Measurement

The analyzer uses the cyanide‑free SFT method to measure hemoglobin, making it an environmentally friendly alternative to traditional cyanide‑based methods.

🔬 Advanced Analysis Algorithms

• Floating boundary algorithm – Optimizes cell classification

• Histogram abnormal prompt function – Alerts to abnormal patterns

• Automatic cleaning of sample probe – Reduces carry‑over and contamination

📋 Quality Control & Calibration Management

The device features quality control management and calibration management functions. It supports L‑J quality control with automatic drawing and printing of quality control charts.

🌍 Multi‑Language & International Connectivity

• Multi‑language support

• Three communication methods: Serial port, wired network, and wireless network (optional)

• Support for external devices: Mouse, keyboard, and printer

• Built‑in thermal printer and serial port printing

🔬 High‑Precision Performance Specifications

Data from Contecmed.eu product specifications

Specifications

What's Included

• GHM-HA3100 Automatic Hematology Analyzer Main Unit

• 8" Color Touch Screen

• Built‑in Thermal Printer

• Mouse

• Thermal Print Paper

• Power Cord

• Grounding Cable

• Serial Cable

• Pipe Assembly (for Diluent, Hemolytic Agent, Waste Liquid)

• User Manual

• Key of Device Side Board

Applications

The GHM-HA3100 Automatic Hematology Analyzer is suitable for:

• Hospital Laboratories – Routine CBC testing for patient diagnosis

• Clinics & Medical Practices – Point‑of‑care hematology testing

• Community Health Centers – Screening and diagnostic support

• Research Facilities – Hematological research and studies

• Veterinary Clinics – Animal hematology testing (optional veterinary version available)

Why Choose the GHM-HA3100?



FAQ

Q: What is the GHM-HA3100 Automatic Hematology Analyzer?

A: The GHM-HA3100 is a fully automatic, in vitro diagnostic device for quantitative analysis of blood cells, providing 3‑part WBC differential counting and 24 parameters including WBC, RBC, PLT, and HGB.

Q: What is the testing throughput?

A: The analyzer delivers 60 tests per hour with continuous 24‑hour operation.

Q: How many parameters does the device measure?

A: The GHM-HA3100 measures 24 parameters including WBC, RBC, PLT, HGB, and color histograms.

Q: How much data can the device store?

A: The device can store more than 300,000 groups of complete results, with each result containing three histograms.

Q: What sample volume is required?

A: The device requires only 10μL of peripheral blood or anticoagulated blood, or 20μL in pre‑dilution mode.

Q: Does the device have quality control features?

A: Yes. The GHM-HA3100 features L‑J quality control with automatic drawing and printing of quality control charts.

Q: Is the hemoglobin measurement environmentally friendly?

A: Yes. The analyzer uses the cyanide‑free SFT method to measure hemoglobin, eliminating the need for toxic cyanide reagents.

Q: What reference ranges are available?

A: The device provides five optical reference ranges: newborn, children, adult women, adult men, and general use.

Q: What communication methods are supported?

A: The GHM-HA3100 supports serial port, wired network, and wireless network (optional) communication.

Q: What is the device's weight and dimensions?

A: The GHM-HA3100 measures 433mm × 300mm × 430mm and weighs 19 kg.

Q: Is the device suitable for veterinary use?

A: Yes. A veterinary version (HA3100VET) is also available for animal hematology testing.
