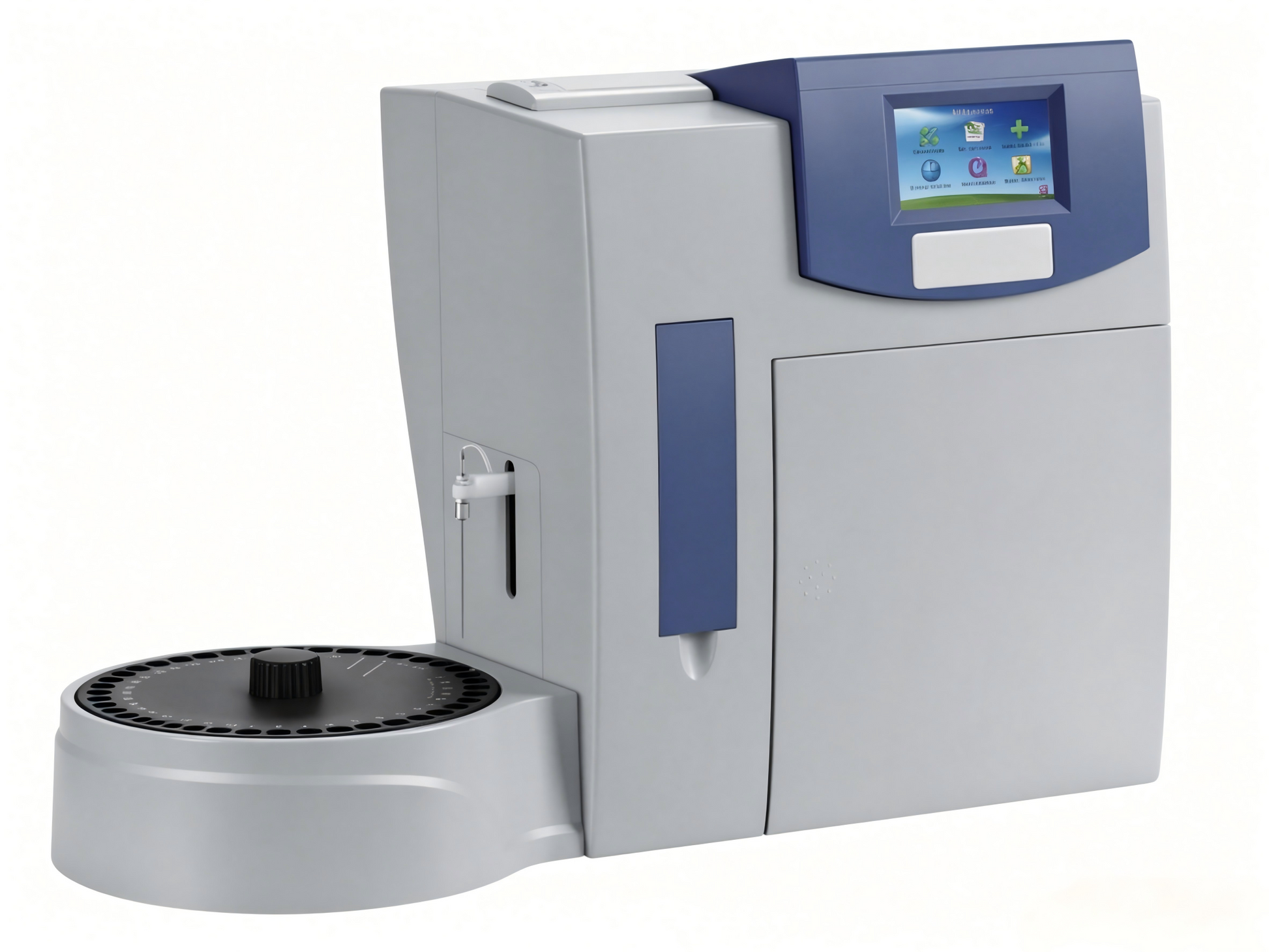

GHM IMS-972 Plus Semi-auto F Electrolyte Analyzer #

GHM IMS-972 Plus Semi-auto F Electrolyte Analyzer #

$1,699.00
$1,699.00
Sale Sold out
Shipping calculated at checkout.

Product Features – GHM IMS-972 Plus Semi-auto F Electrolyte Analyzer

4.3″ Touch Screen – Simple & Intuitive
Modern touchscreen interface with a clear, easy‑to‑follow menu. Real‑time sample ID display and system status – minimal training, maximum efficiency.

Fast Throughput – 80 Tests Per Hour
Results in ≤45 seconds per sample. Perfect for busy clinical labs, psychiatric clinics, and outpatient settings.

Essential Electrolytes + Therapeutic Lithium Monitoring
Measures K⁺, Na⁺, Cl⁻, and Li⁺ (Lithium) – ideal for routine electrolyte panels combined with precise lithium therapy monitoring for bipolar disorder patients.

Sleep Mode Saves Reagents
Automatically reduces reagent consumption when not in use. Individual reagent design eliminates waste – lowers your cost per test significantly.

39 Sample Positions
Includes 5 emergency ports and 4 functional positions – always ready for STAT requests without interrupting routine workflow.

Built‑in Thermal Printer & RS232 Port
Print results instantly or connect to LIS/HIS systems via RS232 for seamless data management.

Smart Maintenance for Reliable Accuracy

  • Automatically detects and filters tiny bubbles – prevents clogs, ensures precise measurement

  • Wave flushing + direct flushing pipe method – no blockages, no cross‑contamination

  • Automatic calibration with two‑point correction (slope and intercept)

  • Real‑time system working status diagnosis

Power Failure Protection
Safely stores up to 10,000 test results – no data loss during unexpected shutdowns.

RTC Clock Management
Timestamp every result for accurate record‑keeping and quality control tracking.

Print QC Graphs & Statistical Parameters
Easily monitor assay performance with printable QC charts and statistics – meets laboratory compliance requirements.

Low Consumption, High Value
Minimizes reagent and consumable costs while delivering lab‑grade accuracy.

Compact, Space‑Saving Design

  • Dimensions: 380×296×433 mm (L×W×H) – significantly shorter than previous models

  • Net weight: 8 kg

  • Power: AC220V ±22V, 50Hz ±1Hz, ≤120W

  • Operating temperature: 10–30°C

Precision You Can Trust



Parameter Measuring Range Resolution Precision (CV%)
K⁺ 0.50–20.00 mmol/L 0.01 mmol/L ≤1.5%
Na⁺ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Cl⁻ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Li⁺ 0.10–6.00 mmol/L 0.01 mmol/L ≤3.0%

Perfect for clinical labs, psychiatric hospitals, and outpatient clinics that need routine electrolyte panels plus accurate lithium monitoring – the IMS‑972 Plus Type F combines touchscreen simplicity with specialized therapeutic drug monitoring capability.
