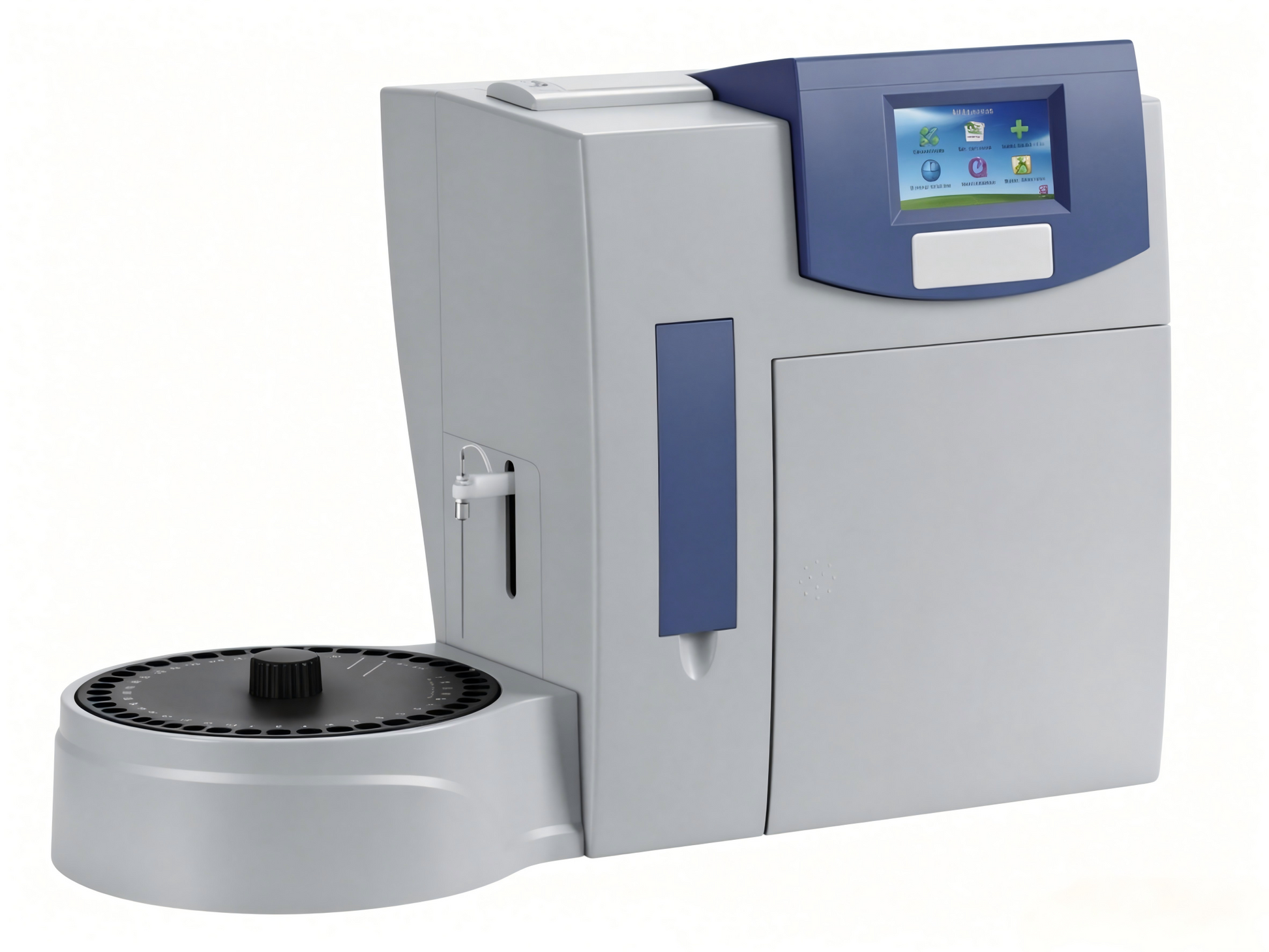

GHM IMS-972 Plus Semi-auto I Electrolyte Analyzer #

GHM IMS-972 Plus Semi-auto I Electrolyte Analyzer #

$2,229.00
$2,229.00
Sale Sold out
Shipping calculated at checkout.

Product Features – GHM IMS-972 Plus Semi-auto I Electrolyte Analyzer

4.3″ Touch Screen – Simple & Intuitive
Modern touchscreen interface with a clear, easy‑to‑follow menu. Real‑time sample ID display and system status – minimal training, maximum efficiency.

Fast Throughput – 80 Tests Per Hour
Results in ≤45 seconds per sample. Perfect for busy clinical labs, ICUs, psychiatric clinics, and emergency departments.

Advanced 10‑Parameter Panel
Measures K⁺, Na⁺, Cl⁻, iCa (ionized calcium), nCa (normalized calcium), TCa (total calcium), pH, Li⁺ (lithium), TCO₂ (total carbon dioxide), plus calculated Anion Gap (AG) – a complete solution for routine electrolytes, calcium status, acid‑base balance, and therapeutic lithium monitoring.

Lithium & TCO₂ for Specialized Needs
Unique combination of lithium (for bipolar disorder therapy) and TCO₂ (for metabolic/acid‑base assessment) – ideal for psychiatric units, ICUs, and dialysis centers.

Sleep Mode Saves Reagents
Automatically reduces reagent consumption when not in use. Individual reagent design eliminates waste – lowers your cost per test significantly.

39 Sample Positions
Includes 5 emergency ports and 4 functional positions – always ready for STAT requests without interrupting routine workflow.

Built‑in Thermal Printer & RS232 Port
Print results instantly or connect to LIS/HIS systems via RS232 for seamless data management.

Smart Maintenance for Reliable Accuracy

  • Automatically detects and filters tiny bubbles – prevents clogs, ensures precise measurement

  • Wave flushing + direct flushing pipe method – no blockages, no cross‑contamination

  • Automatic calibration with two‑point correction (slope and intercept)

  • Real‑time system working status diagnosis

Power Failure Protection
Safely stores up to 10,000 test results – no data loss during unexpected shutdowns.

RTC Clock Management
Timestamp every result for accurate record‑keeping and quality control tracking.

Print QC Graphs & Statistical Parameters
Easily monitor assay performance with printable QC charts and statistics – meets laboratory compliance requirements.

Low Consumption, High Value
Minimizes reagent and consumable costs while delivering lab‑grade accuracy.

Compact, Space‑Saving Design

  • Dimensions: 380×296×433 mm (L×W×H) – significantly shorter than previous models

  • Net weight: 8 kg

  • Power: AC220V ±22V, 50Hz ±1Hz, ≤120W

  • Operating temperature: 10–30°C

Precision You Can Trust



Parameter Measuring Range Resolution Precision (CV%)
K⁺ 0.50–20.00 mmol/L 0.01 mmol/L ≤1.5%
Na⁺ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Cl⁻ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Ca⁺⁺ (iCa) 0.10–6.00 mmol/L 0.01 mmol/L ≤2.0%
pH 4.00–9.00 0.01 pH ≤2.0%
Li⁺ 0.10–6.00 mmol/L 0.01 mmol/L ≤3.0%
TCO₂ 2.0–70.0 mmol/L 0.1 mmol/L ≤3.5%
AG Calculated – –

Ideal for tertiary hospitals, psychiatric clinics, ICUs, dialysis centers, and reference labs that need the most comprehensive panel – routine electrolytes, ionized calcium, pH, lithium, TCO₂, and anion gap – the IMS‑972 Plus Type I delivers total clinical insight with touchscreen simplicity.
