Global Healthcare Medical

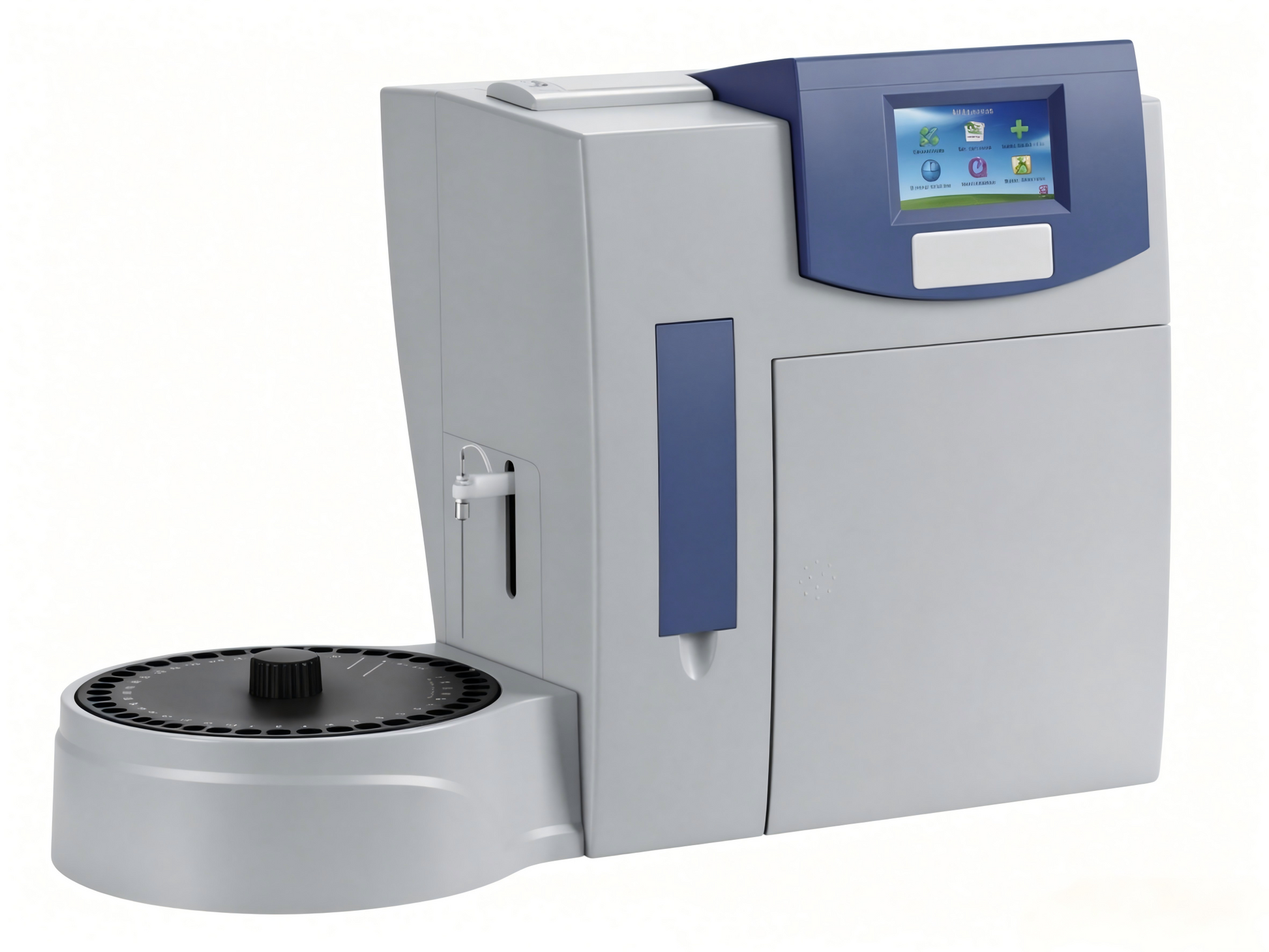

GHM IMS-972 Plus Semi-auto L Electrolyte Analyzer #

GHM IMS-972 Plus Semi-auto L Electrolyte Analyzer #

$2,099.00
$2,099.00
Sale Sold out
Shipping calculated at checkout.

Product Features – GHM IMS-972 Plus Semi-auto L Electrolyte Analyzer

4.3″ Touch Screen – Simple & Intuitive
Modern touchscreen interface with a clear, easy‑to‑follow menu. Real‑time sample ID display and system status – minimal training, maximum efficiency.

Fast Throughput – 80 Tests Per Hour
Results in ≤45 seconds per sample. Perfect for busy clinical labs, ICUs, and emergency departments.

Comprehensive 10‑Parameter Panel
Measures K⁺, Na⁺, Cl⁻, iCa (ionized calcium), nCa (normalized calcium), TCa (total calcium), pH, Mg⁺⁺ (magnesium), TCO₂ (total carbon dioxide), plus calculated Anion Gap (AG) – a complete metabolic, electrolyte, calcium, magnesium, and acid‑base profile in one analyzer.

Magnesium & TCO₂ for Deeper Insight
Unique inclusion of magnesium (essential for neuromuscular and cardiac function) and TCO₂ (key for acid‑base balance) – ideal for critical care, nutrition monitoring, and renal patients.

Sleep Mode Saves Reagents
Automatically reduces reagent consumption when not in use. Individual reagent design eliminates waste – lowers your cost per test significantly.

39 Sample Positions
Includes 5 emergency ports and 4 functional positions – always ready for STAT requests without interrupting routine workflow.

Built‑in Thermal Printer & RS232 Port
Print results instantly or connect to LIS/HIS systems via RS232 for seamless data management.

Smart Maintenance for Reliable Accuracy

  • Automatically detects and filters tiny bubbles – prevents clogs, ensures precise measurement

  • Wave flushing + direct flushing pipe method – no blockages, no cross‑contamination

  • Automatic calibration with two‑point correction (slope and intercept)

  • Real‑time system working status diagnosis

Power Failure Protection
Safely stores up to 10,000 test results – no data loss during unexpected shutdowns.

RTC Clock Management
Timestamp every result for accurate record‑keeping and quality control tracking.

Print QC Graphs & Statistical Parameters
Easily monitor assay performance with printable QC charts and statistics – meets laboratory compliance requirements.

Low Consumption, High Value
Minimizes reagent and consumable costs while delivering lab‑grade accuracy.

Compact, Space‑Saving Design

  • Dimensions: 380×296×433 mm (L×W×H) – significantly shorter than previous models

  • Net weight: 8 kg

  • Power: AC220V ±22V, 50Hz ±1Hz, ≤120W

  • Operating temperature: 10–30°C

Precision You Can Trust



Parameter Measuring Range Resolution Precision (CV%)
K⁺ 0.50–20.00 mmol/L 0.01 mmol/L ≤1.5%
Na⁺ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Cl⁻ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Ca⁺⁺ (iCa) 0.10–6.00 mmol/L 0.01 mmol/L ≤2.0%
pH 4.00–9.00 0.01 pH ≤2.0%
Mg⁺⁺ 0.10–4.00 mmol/L 0.01 mmol/L ≤3.5%
TCO₂ 2.0–70.0 mmol/L 0.1 mmol/L ≤3.5%
AG Calculated – –

Ideal for tertiary hospitals, reference labs, ICUs, dialysis centers, and metabolic units that require the broadest panel – including magnesium and TCO₂ – the IMS‑972 Plus Type L delivers total clinical insight with touchscreen simplicity.
