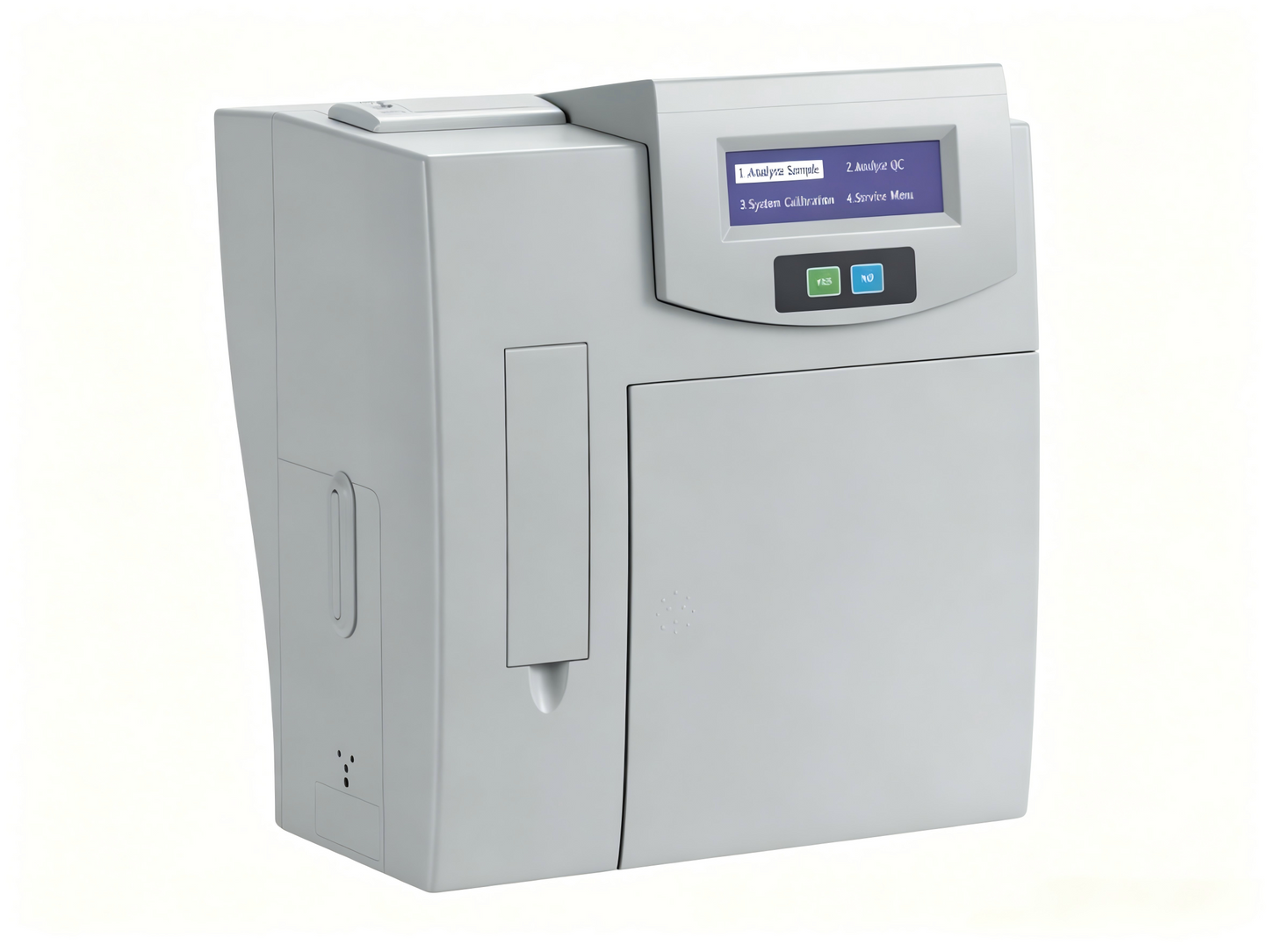

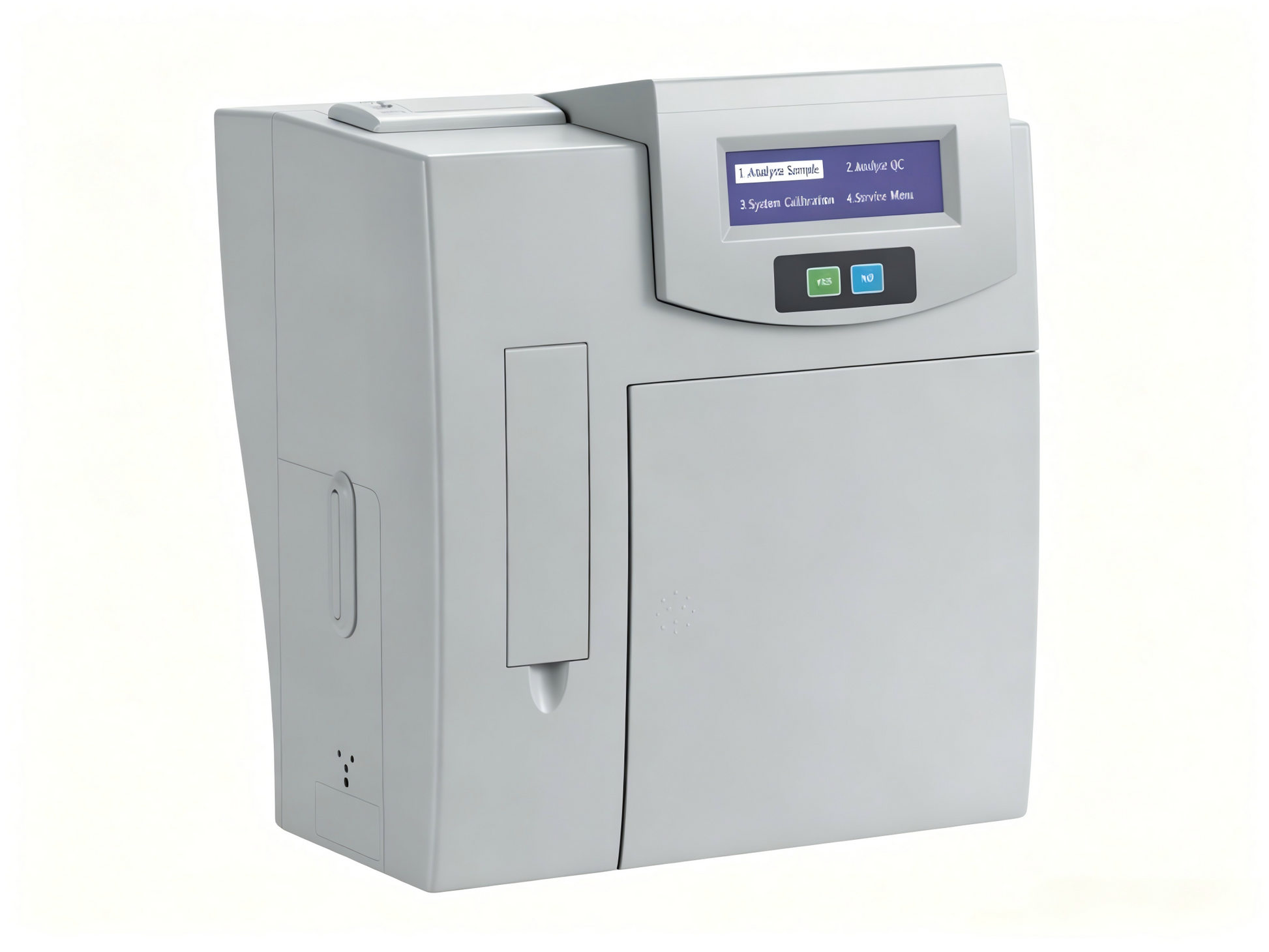

GHM IMS-972 Popular Semi-auto A Electrolyte Analyzer #

Accurate & Reliable Electrolyte Analysis
Designed for serum, plasma, whole blood, and dilute urine samples. Delivers fast, precise results with advanced ion-selective electrode (ISE) technology.

Simple YES/NO Prompted Operation
User-friendly interface guides you through each step – minimal training required, maximum efficiency.

Flexible Parameter Configurations
Choose between Type A (K, Na, Cl) or Type C (K, Na, Cl, iCa, nCa, TCa, pH) to suit your clinical needs.

High-Speed Testing
Measures samples in ≤45 seconds – ideal for busy labs and point-of-care settings.

Large Data Storage
Stores up to 10,000 test results with power failure protection – no data loss during unexpected shutdowns.

Automatic Maintenance for Consistent Performance

• Automatic potential tracking & correction software

• Wave theory flushing & direct flushing pipe method – prevents clogs and cross-contamination

• Automatic calibration and two-point correction for slope and intercept

• Automatic cleaning procedure keeps electrodes in optimal condition

Sleep Mode Saves Reagents
Reduces reagent consumption when not in use. Individual reagent design avoids waste – cost-effective for any hospital or clinic.

Robust & Compact Design

• Operating temperature: 10–30°C

• Humidity: ≤80%

• Power: AC220V ±22V, 50Hz ±1Hz

• Power consumption: ≤120W

• Dimensions: 640×296×433 mm (L×W×H)

• Net weight: only 7 kg – easy to move and install

Safe & Convenient
Power off at any time without damaging the system. Ideal for semi-auto operation in routine electrolyte testing.
