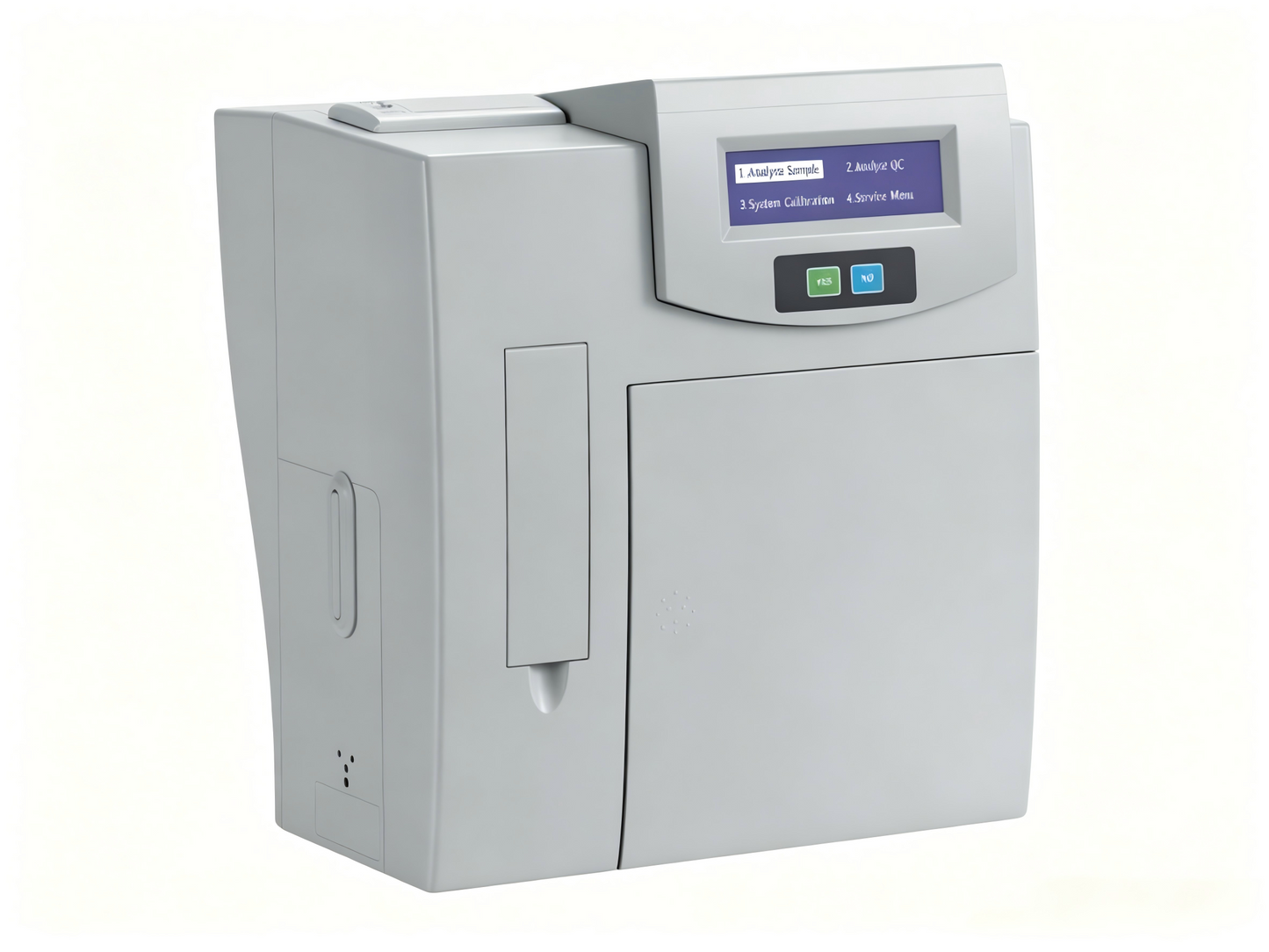

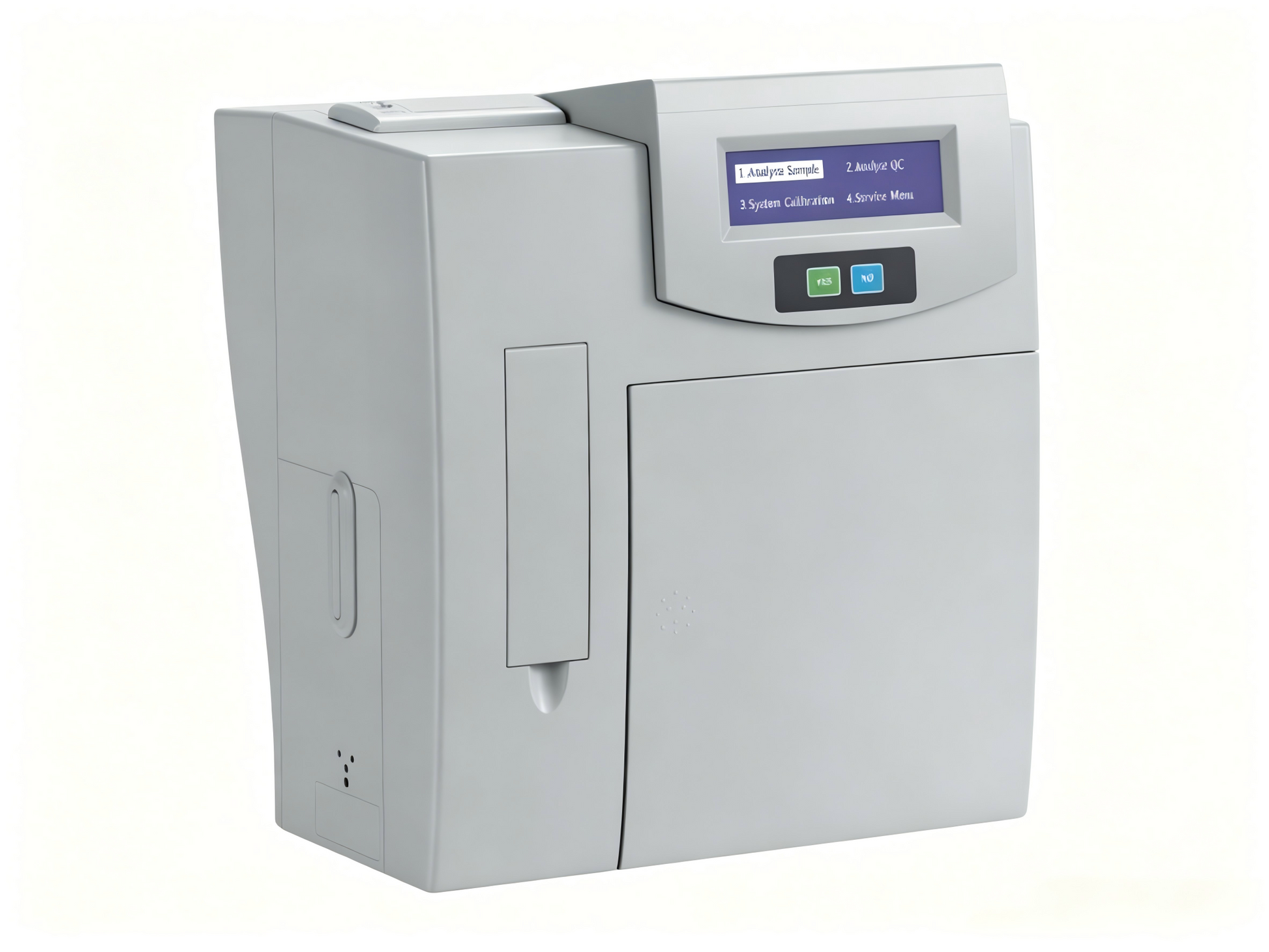

GHM IMS-972 Popular Semi-auto C Electrolyte Analyzer #

Comprehensive Electrolyte & pH Panel
The Type C configuration measures K, Na, Cl, iCa, nCa, TCa, and pH – giving you a complete metabolic profile in one compact analyzer.

Simple YES/NO Prompted Operation
Intuitive, step-by-step interface reduces training time and operator errors – perfect for semi-auto workflows.

Fast & Accurate ISE Technology
Uses high-performance ion-selective electrodes (ISE) with long life and high precision. Measurement time ≤45 seconds per sample.

Multi-Matrix Sample Capability
Works with serum, plasma, whole blood, and diluted urine – versatile for clinical labs, emergency rooms, and point-of-care testing.

Smart Maintenance for Consistent Results

• Automatic potential tracking & correction software ensures stable performance

• Wave theory flushing + direct flushing pipe method prevents blockages and cross-contamination

• Automatic calibration and two-point correction for slope and intercept

• Automatic cleaning cycle keeps electrodes clean and responsive

Large Data Storage & Protection
Stores up to 10,000 test results. Built-in power failure protection prevents data loss during unexpected shutdowns.

Reagent-Saving Sleep Mode
Sleep mode reduces reagent consumption when idle. Individual reagent design eliminates waste – lowers operating costs.

Always Ready to Power Off
You can safely turn off the analyzer at any time without damage, further conserving reagents. Ideal for hospitals of all sizes.

Compact & Durable Design

• Operating temperature: 10–30°C

• Humidity: ≤80%

• Power: AC220V ±22V, 50Hz ±1Hz

• Power consumption: ≤120W

• Dimensions: 640×296×433 mm (L×W×H)

• Net weight: only 7 kg – easy to move and install

Precision You Can Rely On

Ideal for routine electrolyte analysis in hospitals, clinics, and diagnostic centers – the IMS-972 Type C delivers lab-quality results with semi-auto simplicity.
