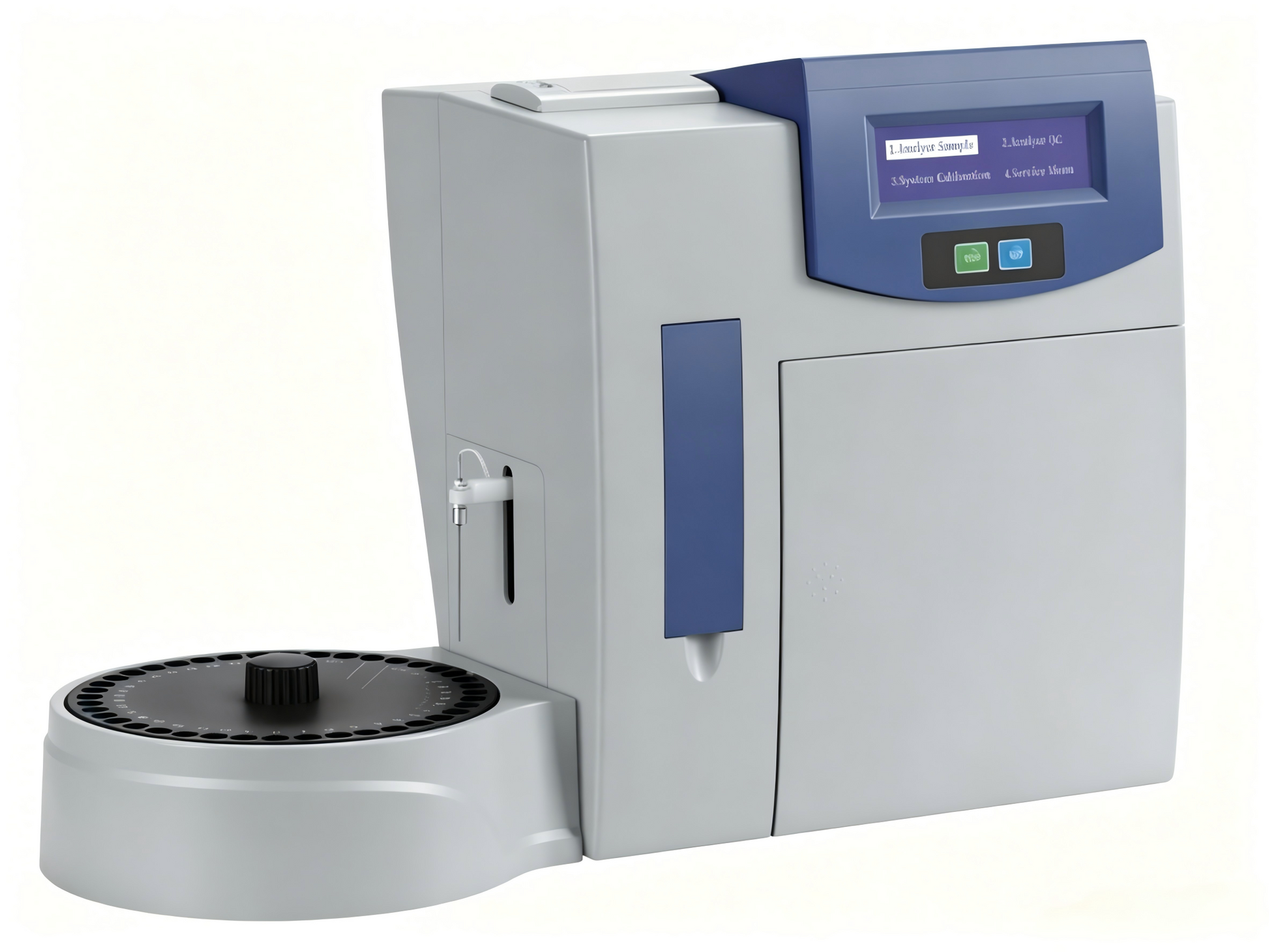

GHM IMS-972 Semi-auto A Electrolyte Analyzer #

GHM IMS-972 Semi-auto A Electrolyte Analyzer #

$899.00
$899.00
Sale Sold out
Shipping calculated at checkout.

Product Features – GHM IMS-972 Semi-auto A Electrolyte Analyzer

Simple YES/NO Prompted Operation
User-friendly interface guides you through every step – minimal training, maximum productivity.

Fast Testing – 80 Tests Per Hour
Rapid measurement speed with ≤45 seconds per sample. Ideal for high‑throughput clinical labs and emergency departments.

High Accuracy & Long-Life Electrode
Reliable ion‑selective electrode (ISE) technology delivers precise results for K⁺, Na⁺, and Cl⁻. Electrode is designed for extended service life.

Sleep Mode Saves Reagents
Automatically reduces reagent consumption when idle. Individual reagent design eliminates waste – lowers operating costs.

Optional Sample Tray
Upgrade with an optional sample tray for automated handling – improves workflow efficiency.

Large Sample Capacity
39 sample positions, including 5 emergency ports and 4 functional positions – always ready for urgent tests.

Built-in Printer & RS232 Port
Internal thermal printer provides instant result reports. RS232 interface allows easy data export to LIS/HIS systems.

Smart Maintenance & Diagnostics

  • Automatic potential tracking and correction software ensures stable performance

  • Automatically detects and filters tiny bubbles – prevents clogs and ensures accuracy

  • Real‑time system status diagnosis

  • Waste liquid automatic detection and alarm

  • Automatic calibration with two‑point correction (slope and intercept)

  • Wave flushing + direct flushing pipe method – no blockages, no cross‑contamination

Power Failure Protection
Stores up to 10,000 test results safely – no data loss during unexpected shutdowns.

Low Consumption, High Value
Minimizes reagent and consumable costs while maintaining lab‑grade accuracy.

Compact & Robust

  • Temperature range: 10–30°C

  • Humidity: ≤80%

  • Power: AC220V ±22V, 50Hz ±1Hz, ≤120W

  • Dimensions: 640×296×433 mm (L×W×H)

  • Net weight: 8 kg – easy to place and move

Precision You Can Trust



Parameter Range Resolution Precision (CV%)
K⁺ 0.50–20.00 mmol/L 0.01 mmol/L ≤1.5%
Na⁺ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Cl⁻ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%

Perfect for routine electrolyte analysis in hospitals, clinics, and diagnostic centers – the IMS-972 Type A delivers speed, simplicity, and savings.
