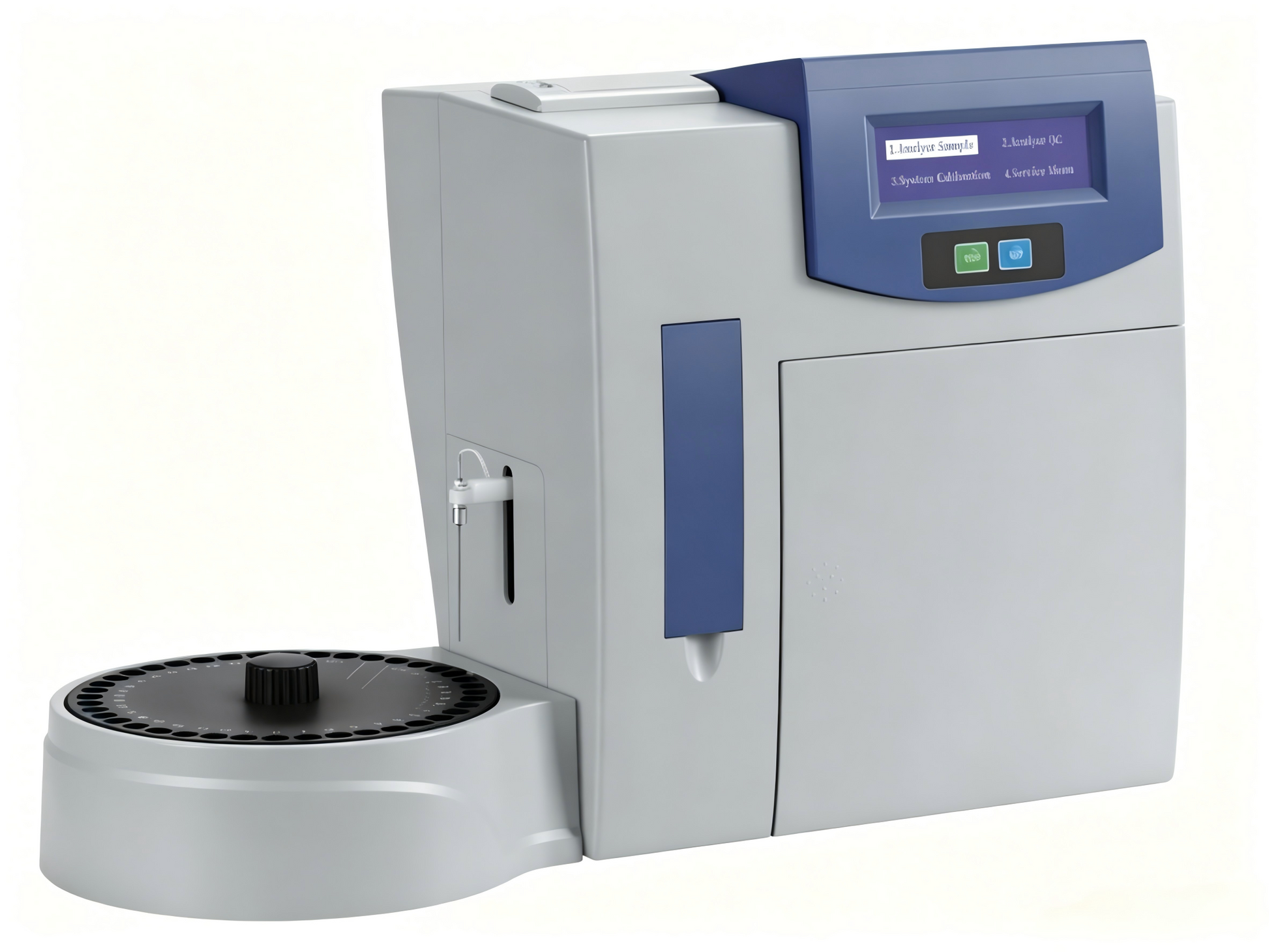

GHM IMS-972 Semi-auto B Electrolyte Analyzer #

GHM IMS-972 Semi-auto B Electrolyte Analyzer #

$1,559.00
$1,559.00
Sale Sold out
Shipping calculated at checkout.

Product Features – GHM IMS-972 Semi-auto B Electrolyte Analyzer

Extended Electrolyte Panel + TCO₂ & Anion Gap
The Type B configuration measures K⁺, Na⁺, Cl⁻, TCO₂ (total carbon dioxide), and automatically calculates Anion Gap (AG) – giving you deeper metabolic insight beyond basic electrolytes.

Simple YES/NO Prompted Operation
Intuitive, step‑by‑step interface reduces training time and operator errors – perfect for semi‑auto workflows in any clinical setting.

Rapid Testing – 80 Tests Per Hour
Fast measurement speed with ≤45 seconds per sample. Handles high workloads with ease, including emergency samples.

High‑Accuracy Long‑Life Sensors
Ion‑selective electrode (ISE) technology for K⁺, Na⁺, Cl⁻, plus a dedicated TCO₂ sensor – all designed for precision and extended service life.

Sleep Mode Saves Reagents
Automatically reduces reagent consumption when idle. Individual reagent design eliminates waste – lowers operating costs significantly.

Optional Sample Tray for Automation
Add the optional sample tray to streamline sample handling – improves efficiency in busy labs.

Large Sample Capacity
39 positions (including 5 emergency and 4 functional positions) – always ready for routine and urgent tests.

Built‑in Printer & RS232 Port
Internal thermal printer delivers instant results. RS232 interface allows seamless data export to LIS/HIS systems.

Smart Maintenance & Reliability

  • Automatic potential tracking and correction software ensures stable performance

  • Automatically detects and filters tiny bubbles – prevents clogs and guarantees accuracy

  • Real‑time system status diagnosis

  • Waste liquid automatic detection and alarm

  • Automatic calibration with two‑point correction (slope and intercept)

  • Wave flushing + direct flushing pipe method – no blockages, no cross‑contamination

Power Failure Protection
Safely stores up to 10,000 test results – no data loss during unexpected shutdowns.

Low Consumption, High Value
Minimizes reagent and consumable costs while maintaining lab‑grade accuracy.

Compact & Durable Design

  • Temperature range: 10–30°C

  • Humidity: ≤80%

  • Power: AC220V ±22V, 50Hz ±1Hz, ≤120W

  • Dimensions: 640×296×433 mm (L×W×H)

  • Net weight: 8 kg – easy to install and move

Precision You Can Trust



Parameter Range Resolution Precision (CV%)
K⁺ 0.50–20.00 mmol/L 0.01 mmol/L ≤1.5%
Na⁺ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Cl⁻ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
TCO₂ 2.0–70.0 mmol/L 0.1 mmol/L ≤3.5%
AG Calculated – –

Ideal for hospitals, dialysis centers, and emergency rooms that need electrolyte, acid‑base balance, and TCO₂ monitoring – the IMS‑972 Type B delivers comprehensive results with semi‑auto simplicity.
